Target Audio TXS 15

Subwoofer, diametro 390 mm, 500 watt nominali, 1000 watt max, cono concavo in polipropilene placcato color titanio, cestello in pressofusione di alluminio, sospensione in gomma butilica, piastre polari cromate, morsetti a vite.

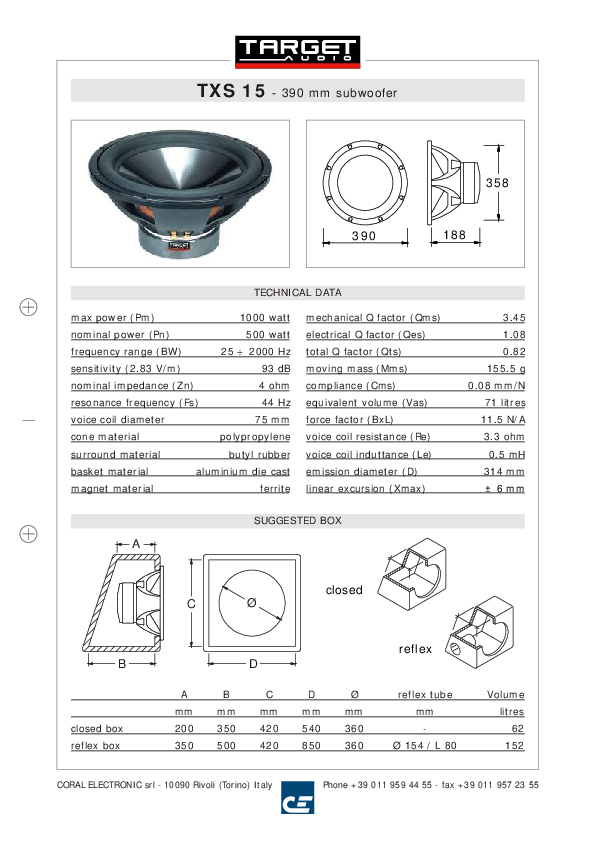

TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
nominal power (Pn): 500 watt
max power (Pm): 1000 watt
sensitivity (2.83 V/1 m): 93 dB
frequency range (BW): 25÷2000 Hz
resonance frequency (Fs): 44 Hz
voice coil diameter: 75 mm
cone material: polypropylene
surround material: butyl rubber
basket material: alumin. die cast
magnet material: ferrite

mechanical Q factor (Qms): 3.45
electrical Q factor (Qes): 1.08
total Q factor (Qts): 0.82
moving mass (Mms): 155.5 g
compliance (Cms): 0.08 mm/N
equivalent volume (Vas): 71 litres
force factor (BxL): 11.5 N/A
voice coil resistance (Re): 3.3 ohm
voice coil inductance (Le): 0.5 mH

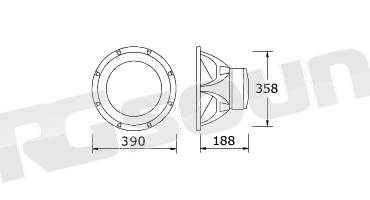

emission diameter (D): 314 mm
linear excursion (Xmax): ± 6 mm
