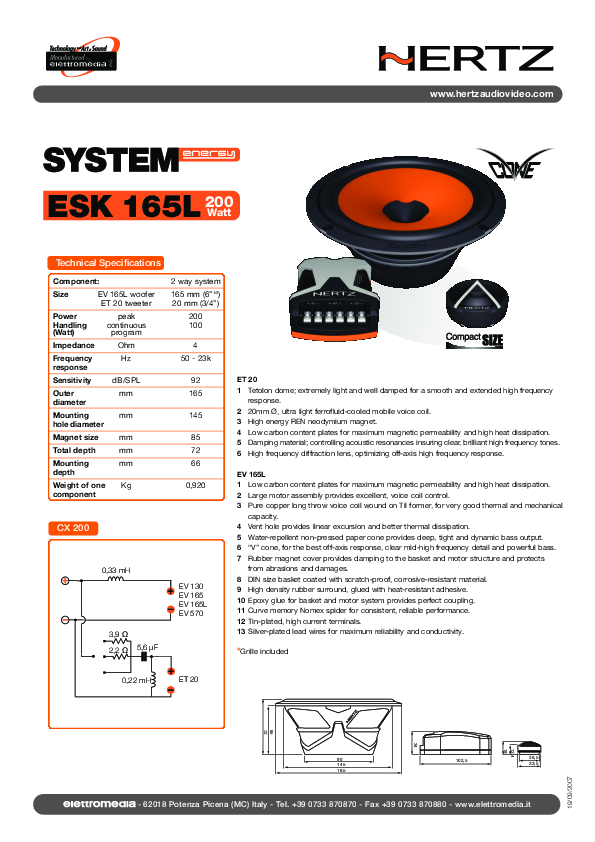

Hertz ESK 165L

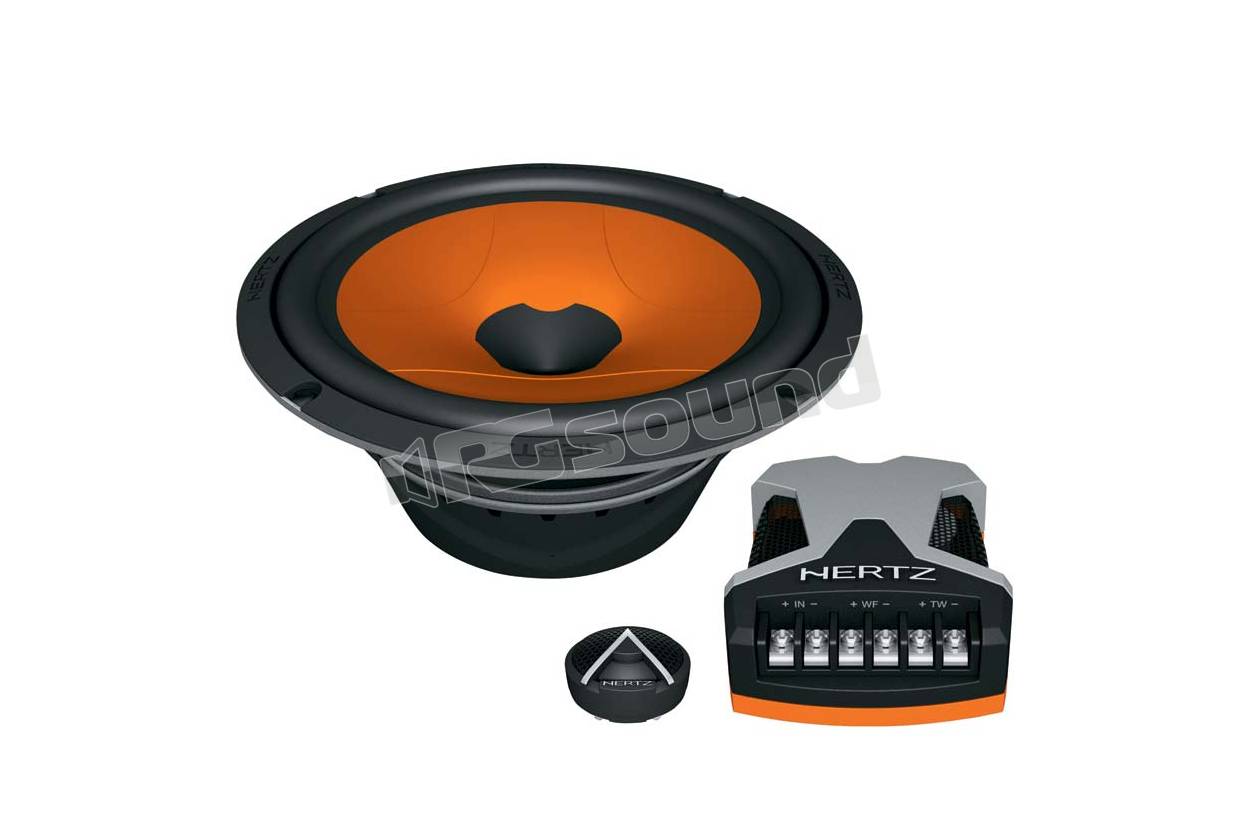

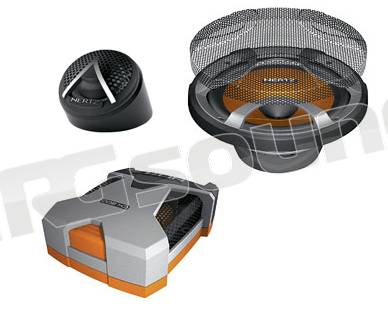

ESK165L  Kit 2 vie 165 mm con EV 165L + ET 20 + crossover, completo di griglie

I sistemi della linea Energy rappresentano la soluzione ideale per l'installazione in predisposizione di un impianto audio di eccellente qualità.
Corredati di tutti gli accessori necessari per il montaggio, questi sistemi riassumono e racchiudono per intero la filosofia del suono della linea Energy.
Energia pura per l'ascolto.

ET 20
1 Tetolon dome; extremely light and well damped for a smooth and extended high frequency
response.
2 20mm Ø, ultra light ferrofluid-cooled mobile voice coil.
3 High energy REN neodymium magnet.
4 Low carbon content plates for maximum magnetic permeability and high heat dissipation.
5 Damping material; controlling acoustic resonances insuring clear, brilliant high frequency tones.
6 High frequency diffraction lens, optimizing off-axis high frequency response.
EV 165L
1 Low carbon content plates for maximum magnetic permeability and high heat dissipation.
2 Large motor assembly provides excellent, voice coil control.
3 Pure copper long throw voice coil wound on Til former, for very good thermal and mechanical
capacity.
4 Vent hole provides linear excursion and better thermal dissipation.
5 Water-repellent non-pressed paper cone provides deep, tight and dynamic bass output.
6 “V” cone, for the best off-axis response, clear mid-high frequency detail and powerful bass.
7 Rubber magnet cover provides damping to the basket and motor structure and protects
from abrasions and damages.
8 DIN size basket coated with scratch-proof, corrosive-resistant material.
9 High density rubber surround, glued with heat-resistant adhesive.
10 Epoxy glue for basket and motor system provides perfect coupling.
11 Curve memory Nomex spider for consistent, reliable performance.
12 Tin-plated, high current terminals.
13 Silver-plated lead wires for maximum reliability and conductivity.
