V-Tronix - Shakespeare 5247-A-D

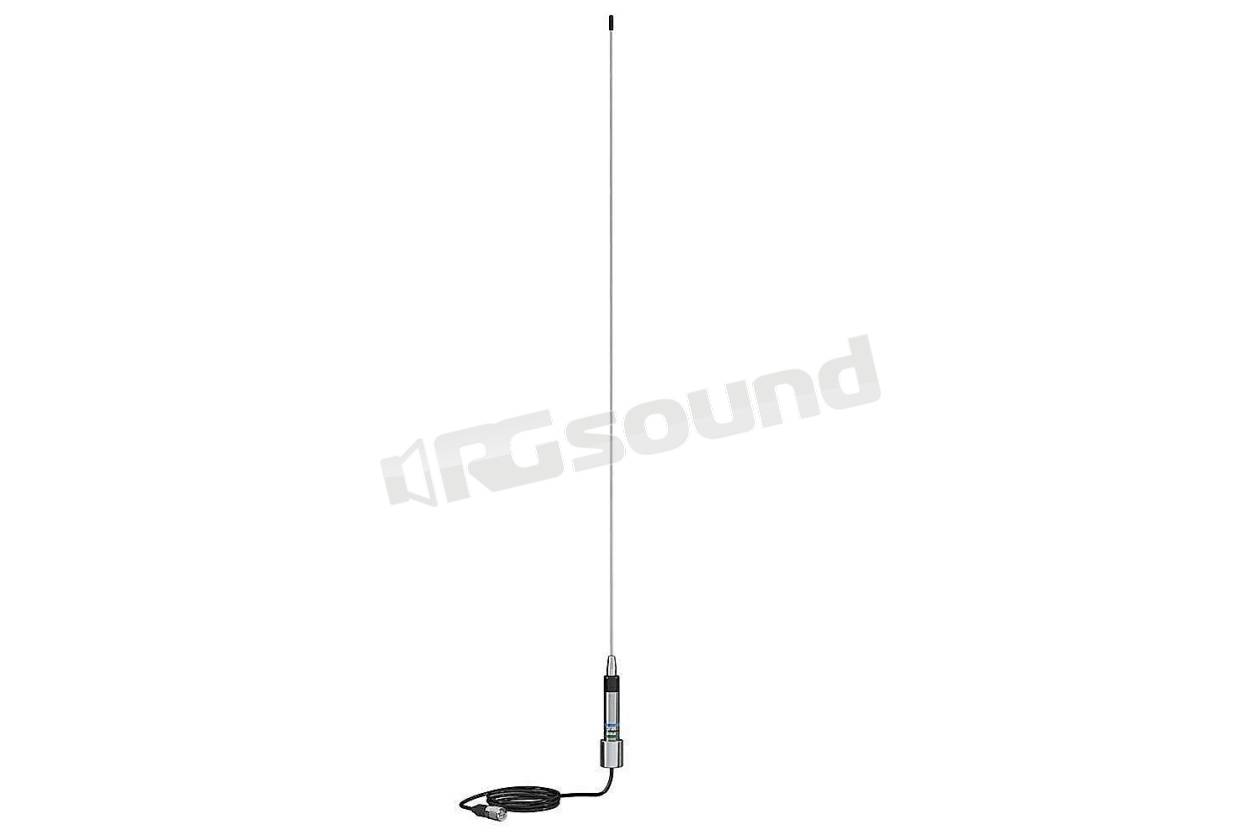

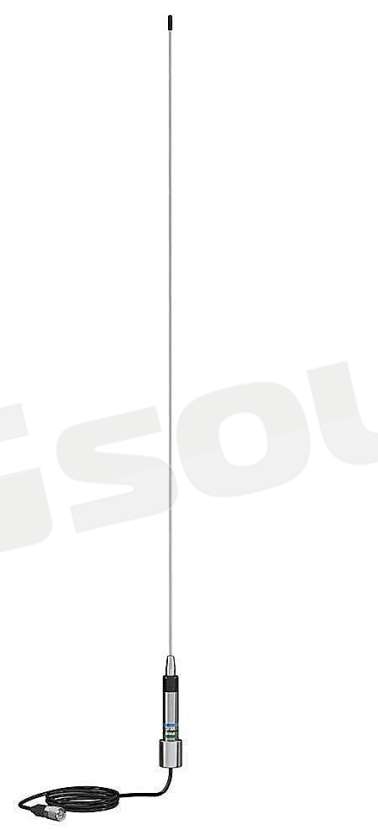

Shakespeare Style 5247-A
3 ft. (0.91 M) VHF Marine Band 3dB

Low-profile end-fed ½-wave with heavy-duty stainless steel whip

The Style 5247-A is a 3dB base load antenna with a three-foot stainless steel whip that Lifts-n-Lays down, out of the way, for fishing, trailering, boat covers, or storage. The Lift 'n Lay feature makes the antenna extra easy to set up and lay down. Superb value, performance, and convenience. The 5247-A has an extra heavy duty whip for extra stability at high speeds.

  •   Sealed, copper wire coil
  •   Extra heavy duty stainless steel whip (36in) minimizes flexing at high speeds
  •   Mounts by passing the antenna's SO-239 connector through horizontal surfaces up to ½" thick.
  •   Coax and PL-259 connector sold separately.
  •   L-bracket included for mast mounting.
  •   Whip is user replaceable.
  •   One section

Best applications include: fishing boats and trailer boats; for small to medium bass, fishing and similar types of vessels.

Shakespeare 5247-A Specifications
Band: VHF Marine Band
Antenna Gain: 3dB
Max. Input Power: 50 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 7 MHz within 2.0:1 VSWR
Ferrule: SO-239 with supplied retaining ring
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground - The antenna will read open on continuity test.
Limited Warranty:
2 years
Sug. Retail Price: $100.95
