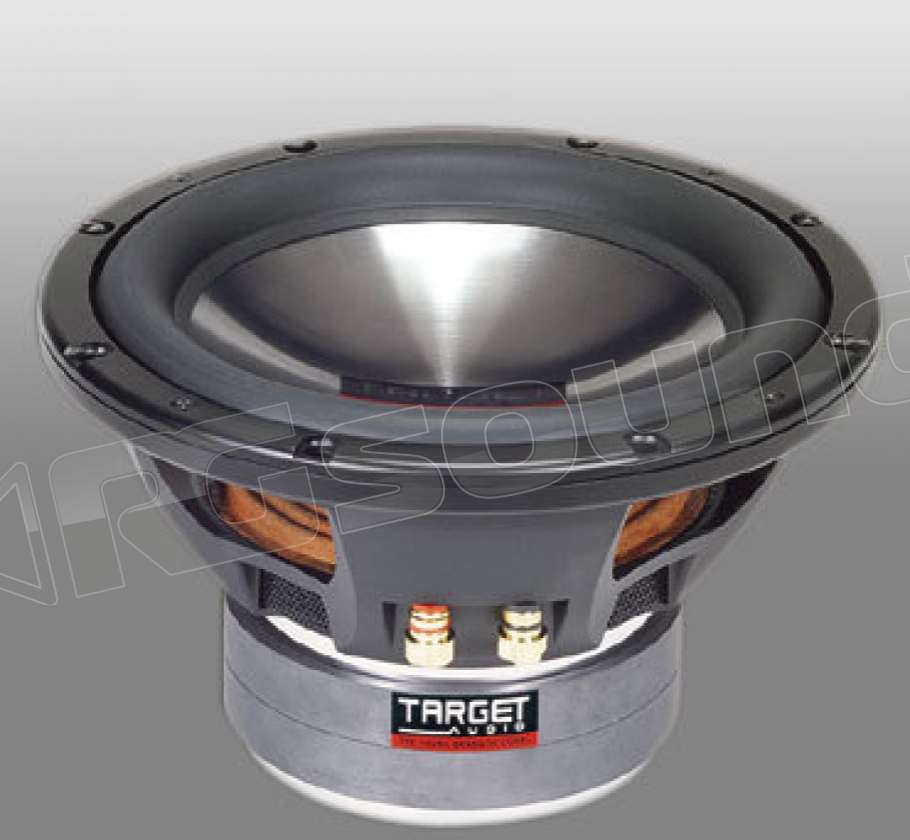

Target Audio TXS 10

Subwoofer TXS 10, diametro 258 mm, potenza 250 watt nominali, 500 watt max. Cono concavo in polipropilene placcato color titanio, cestello in pressofusione di alluminio, sospensione in gomma butilica, piastre polari cromate, morsetti a vite.

Prodotto usato su espositore negozio, ha suonato pochissimo e a bassi livelli. Altoparlante assoslutamente perfetto, garanzia rgsound 6 mesi.

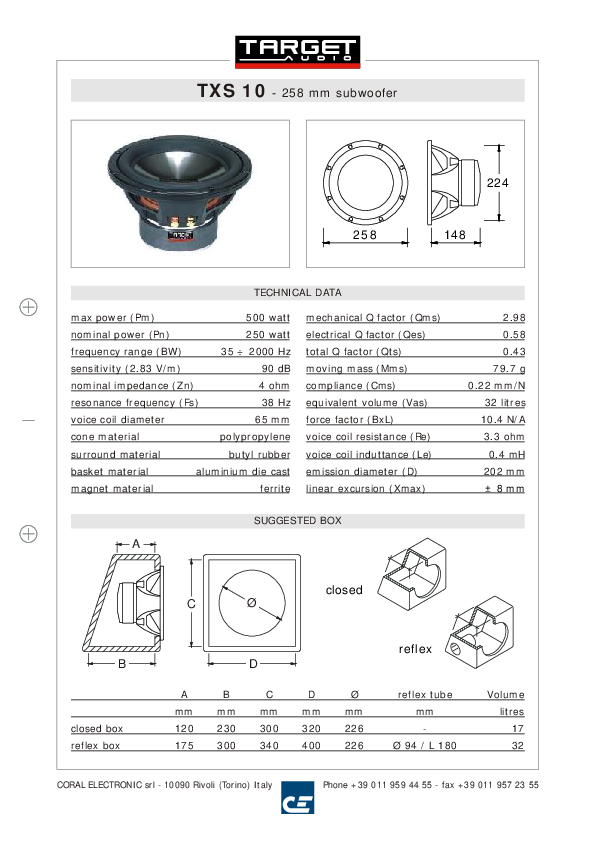

TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
nominal power (Pn): 250 watt
max power (Pm): 500 watt
sensitivity (2.83 V/1 m): 90 dB
frequency range (BW): 35÷2000 Hz
resonance frequency (Fs): 38 Hz
voice coil diameter: 65 mm
cone material: polypropylene
surround material: butyl rubber
basket material: alumin. die cast
magnet material: ferrite

mechanical Q factor (Qms): 2.98
electrical Q factor (Qes): 0.58
total Q factor (Qts): 0.43
moving mass (Mms): 79.7 g
compliance (Cms): 0.22 mm/N
equivalent volume (Vas): 32 litres
force factor (BxL): 10.4 N/A
voice coil resistance (Re): 3.3 ohm
voice coil inductance (Le): 0.4 mH

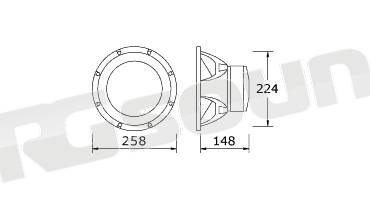

emission diameter (D): 202 mm
linear excursion (Xmax): ± 8 mm
