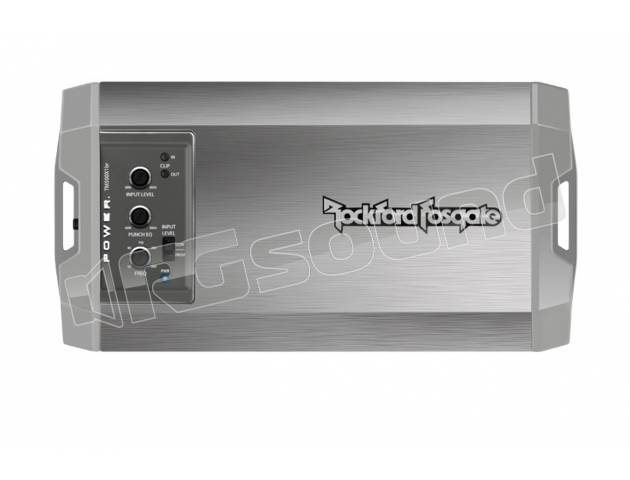

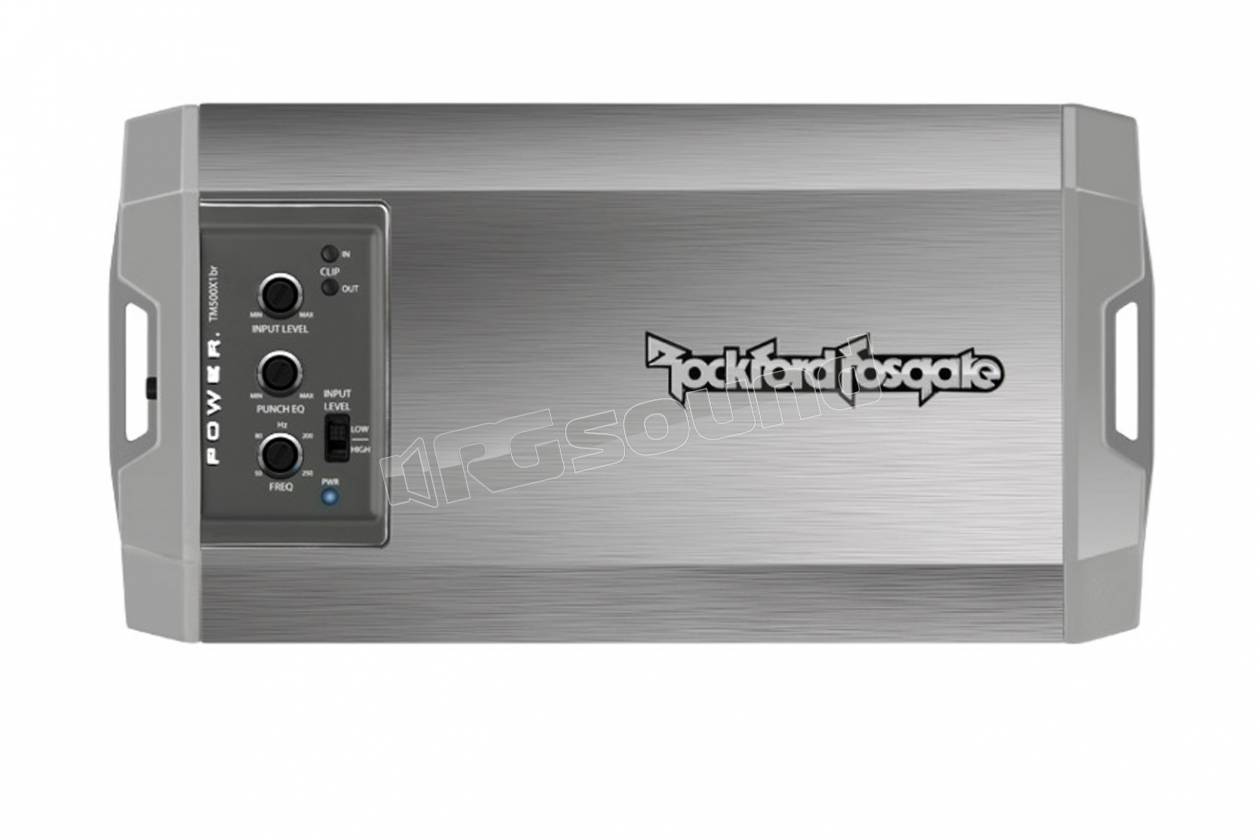

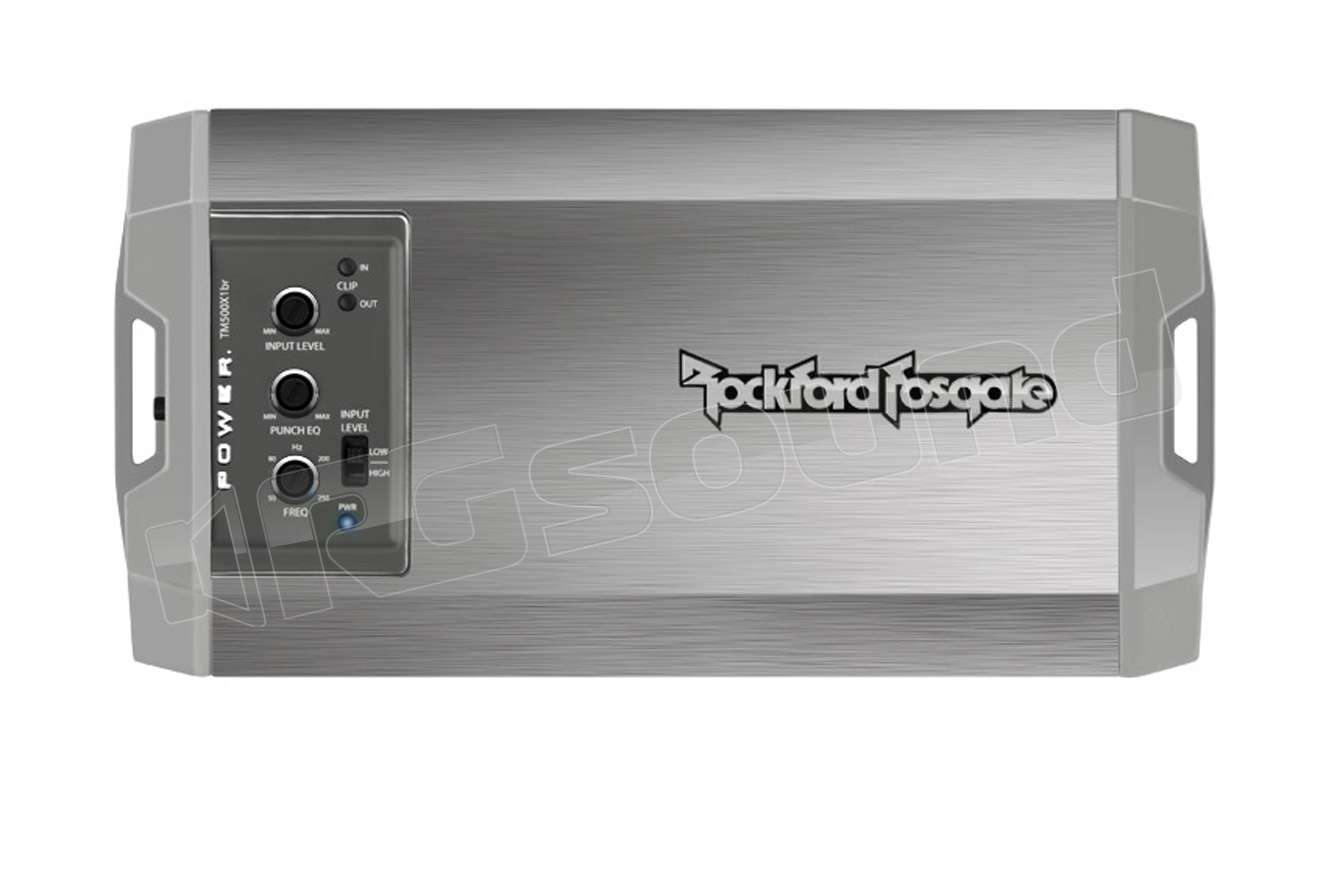

Rockford Fosgate TM500X1BR

Rockford Fosgate TM500x1 BR amplificatore monocanale dedicato per la nautica, Classe-BR, potenza 500W

TM500x1 BR amplificatore ultra-compatto serie Power conferme agli standard di resistenza agli ambienti nautici. Ingressi di alto e basso l

Caratteristiche TM500x1 BR

Tecnologia Boosted Rail brevetatta Rockford Fosgate
Ingressi differenziali di alto livello con auto turn-on
Connettori RCA aggiornati
Alimentazione a terra 8 AWG / Connettori alto livello 10 AWG
Funzione Remote-out quando si utilizzano gli ingressi di alto livello
Controllo remoto opzionale PLC2
C.L.E.A.N. rilevamento ingresso/uscita Clip e indicatore LED
Raffreddamento a doppia ventola
Rilevamento termico in tempo reale con la tecnologia Rollback

Specifiche TM500x1 BR

Number of Channels: 1

Rated Power (RMS Continuous Power):

• 175 Watts x 1 @ 4-Ohm
• 300 Watts x 1 @ 2-Ohm
• 500 Watts x 1 @ 1-Ohm

Total Power (Sum of Rated Power):500 Watts

Dynamic Power (PVC/PowerCube®):

• 201 Watts x 1 @ 4-Ohm
• 342 Watts x 1 @ 2-Ohm
• 540 Watts x 1 @ 1-Ohm

Bridgeable: No

Frequency Response: 20Hz - 220Hz +/-1dB

Efficiency (average): >75%

Total Harmonic Distortion (THD+Noise):

• 4-Ohm: <1.0%
• 2-Ohm: <1.0%
• 1-Ohm: <1.0% above 35 Hz

Crossover Controls: Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth

All-Pass: No

Tone Controls:Bass: 0 to +18 dB @ 45 Hz

Input Sensitivity: 150 mV to 12 V

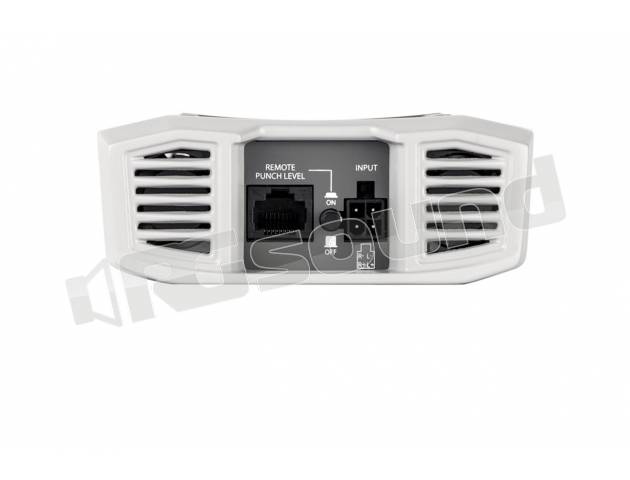

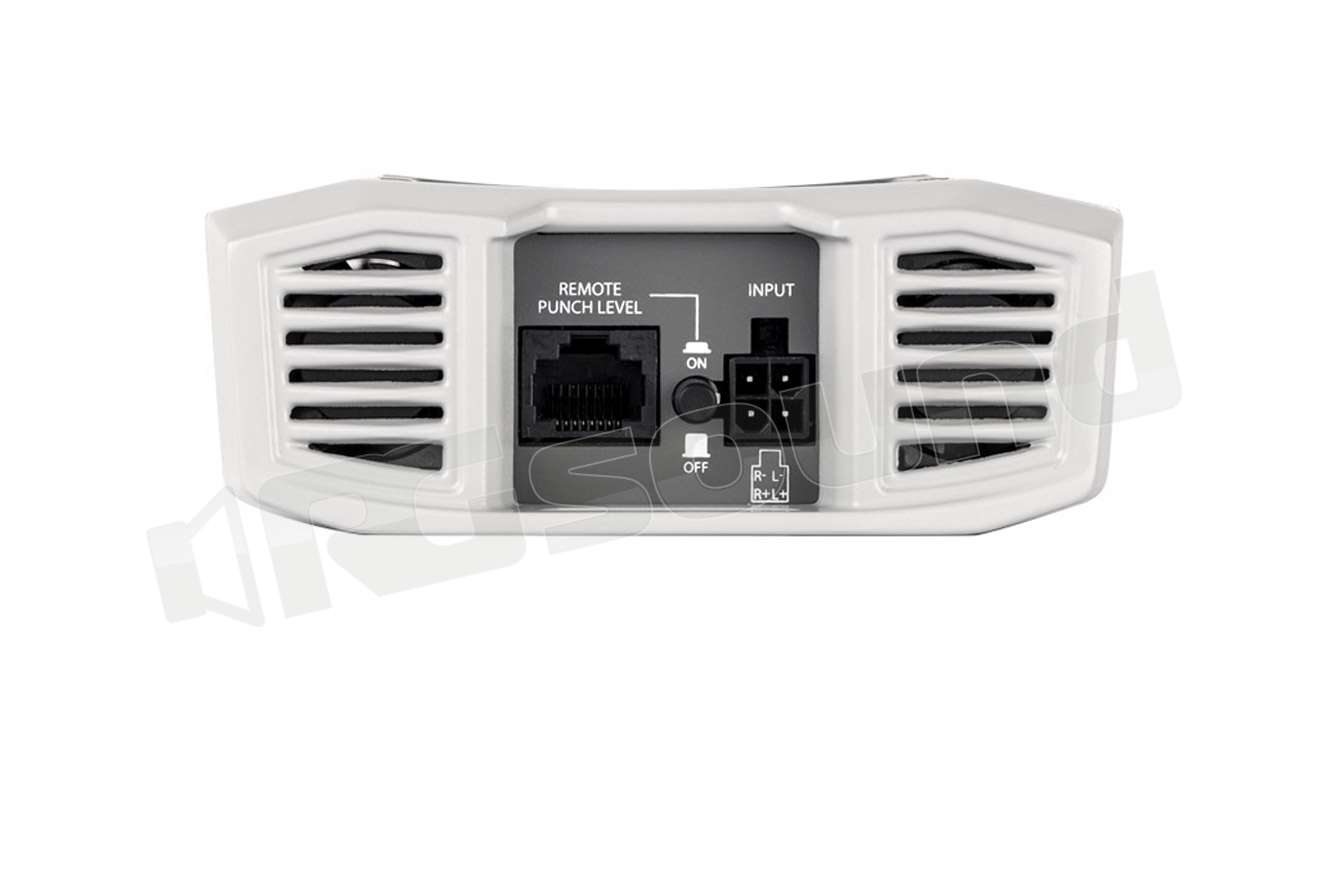

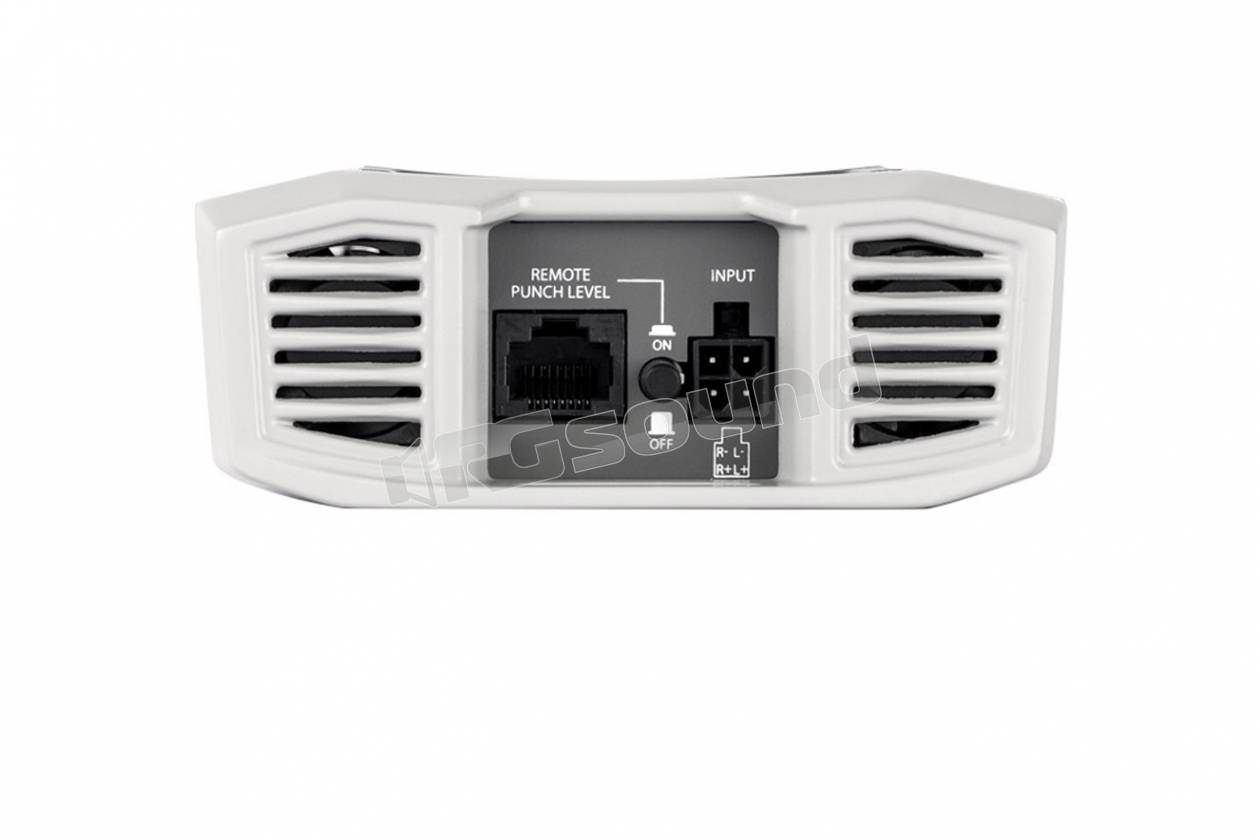

Signal Input:High/Low Level Input: 4-Pin harness

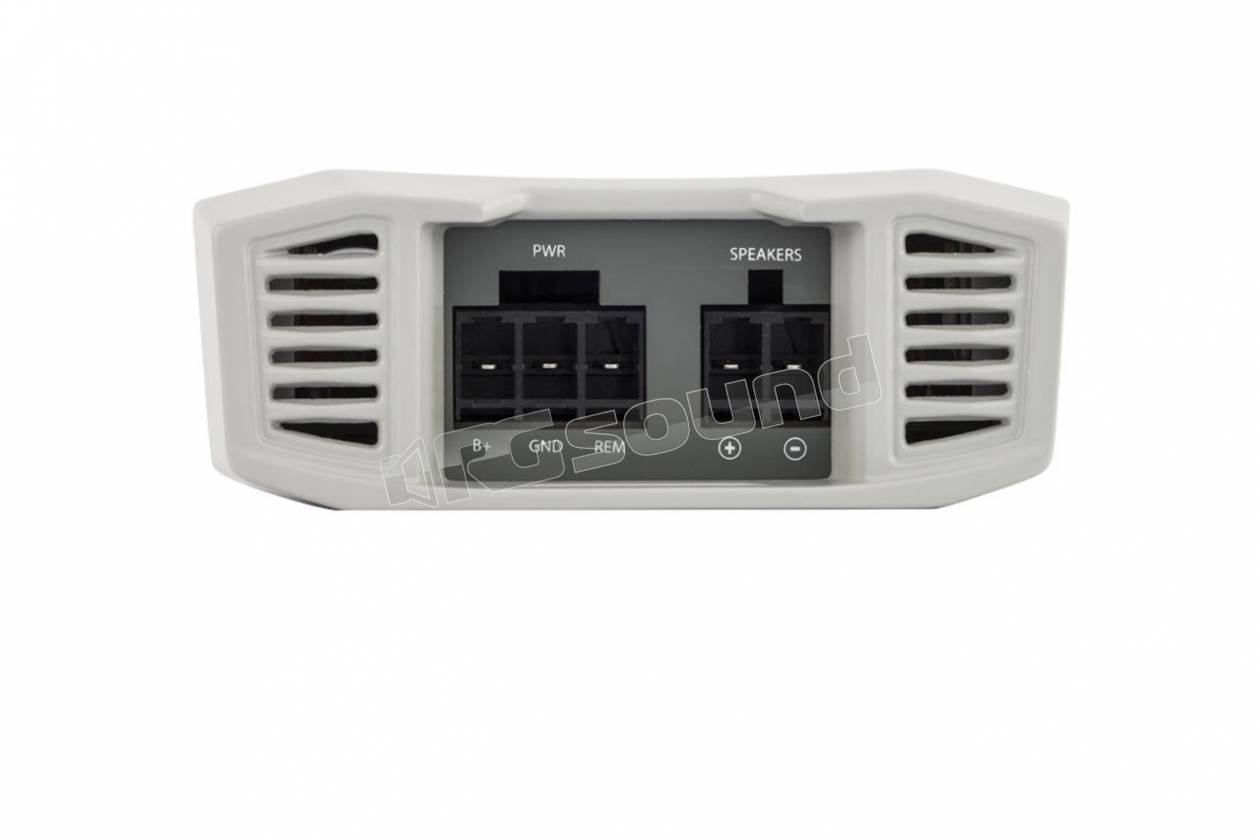

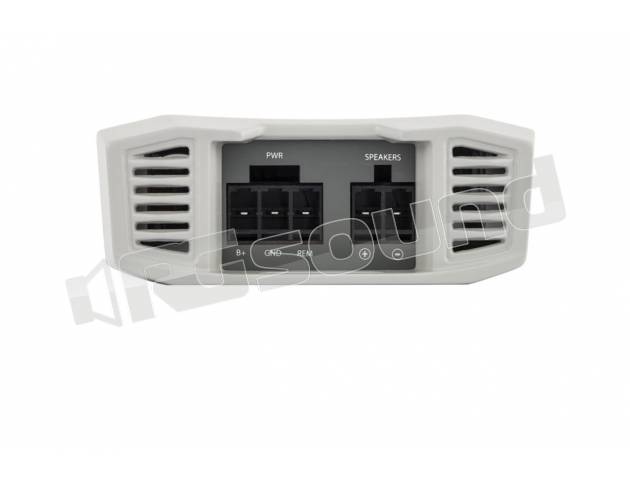

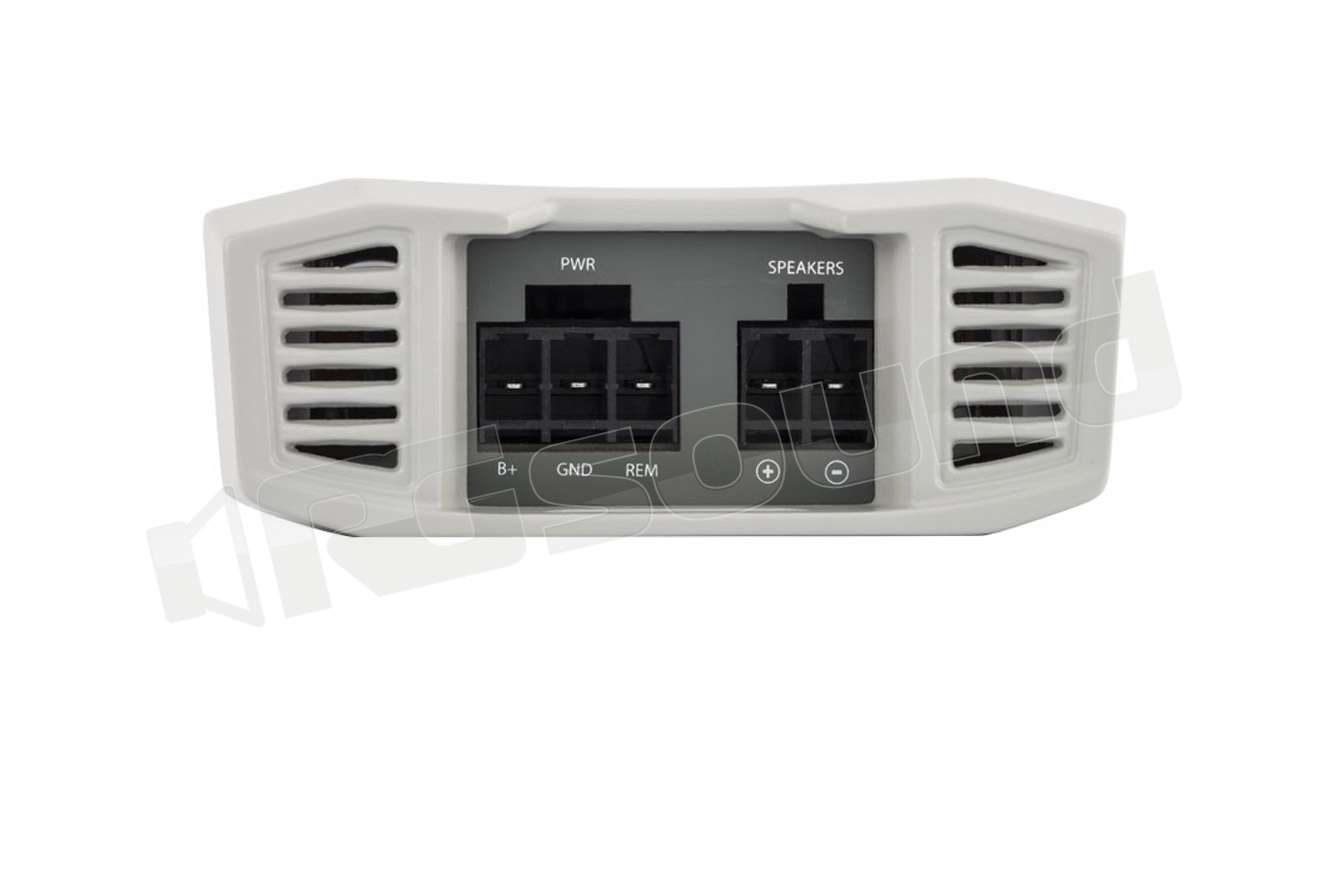

Power Input Connector: Detachable Compression Terminal

Power Wire Gauge: 8 AWG

Speaker Output Connector: Detachable Compression Terminal

Speaker Wire Gauge: 10 AWG

Heat Sink Type: Extruded Aluminum

Cooling: Dual Fan Cooled

Remote Controls: Optional PLC2 provides Punch Level Control

Visual Indicators:

• Power: Blue LED
• Protect: Red LED
• Input Clip: Red LED3
• Output Clip: Blue/Violet/Red LED1,2,3

LED Color Legend:

• 1BLUE: <0.5% THD
• 2VIOLET: 1% THD
• 3RED: 10%+ THD

Circuit Topology Class: Class-BR

Operating Voltage: 9 - 16 VDC

Recommended Fuse (not included): 60 A

Max. Current Draw (13.8V Sinewave): 60 A

Average Current Draw (13.8V Music): 30 A

Suggested Alternator: 75 A

Shipping Weight: 1.4 Kg

Dimensions (H x W x D): 4.1 x 10.8 x 21.1 cm
