Rockford Fosgate TM400X2AD

Rockford Fosgate TM400x2 AD amplificatore ad alta efficienza a 2 canali per nautica, Classe AD, potenza 400 Watt

TM400x2 AD è un amplificatore a 2 canali ultra-compatto con una potenza di 400 Watt realizzato per resistere alle condizioni ambientali nautiche. La sua Classe AD, realizzata in Rockford Fosgate, garantisce una potenza costante in uscita, sia a 4 Ohm, che a 2 Ohm.

Caratteristiche TM400x2 AD:

Rockford Fosgate tecnologia Classe AD
4/2 Ohm muti-impedenza con potenza costante
Ingressi differenziali di alto livello con auto turn-on
Alimentazione a terra 8 AWG  e ingressi RCA
funzione Remote-out quando si utilizzano gli ingressi di alto livello
Funziona a 4 Ohm a ponte
C.L.E.A.N. ingresso / uscita di rilevamento Clip e LED di segnalazione
Raffreddamento a doppia ventola
Rilevamento termico in tempo reale
Doppi dissipatori di calore

Specifiche TM400x2 AD:

Number of Channels: 2

Rated Power (RMS Continuous Power):

• 200 Watts x 2 @ 4-Ohm
• 200 Watts x 2 @ 2-Ohm
• 400 Watts x 1 @ 4-Ohm Bridged

Total Power (Sum of Rated Power): 400 Watts

Dynamic Power (PVC/PowerCube®):

• 223 Watts x 2 @ 4-Ohm
• 248 Watts x 2 @ 2-Ohm
• 449 Watts x 1 @ 4-Ohm Bridged

Bridgeable: Yes

Terminals: Left (+) Right (-)

Frequency Response: 20Hz - 20kHz +/-1dB

Efficiency (average): >75%

Total Harmonic Distortion (THD+Noise):

• 4-Ohm: <1.0%
• 2-Ohm: <1.0%

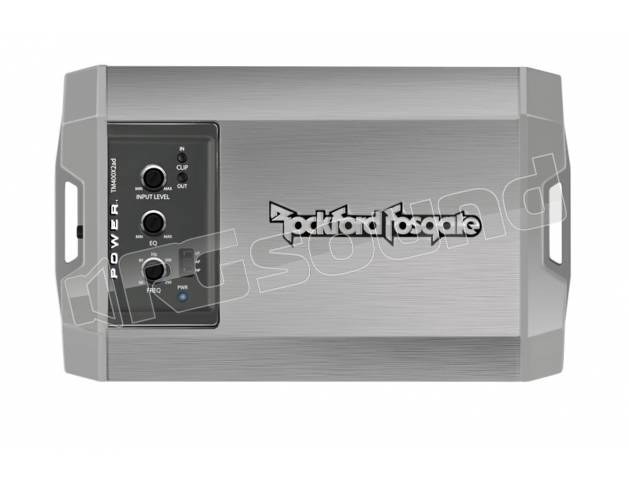

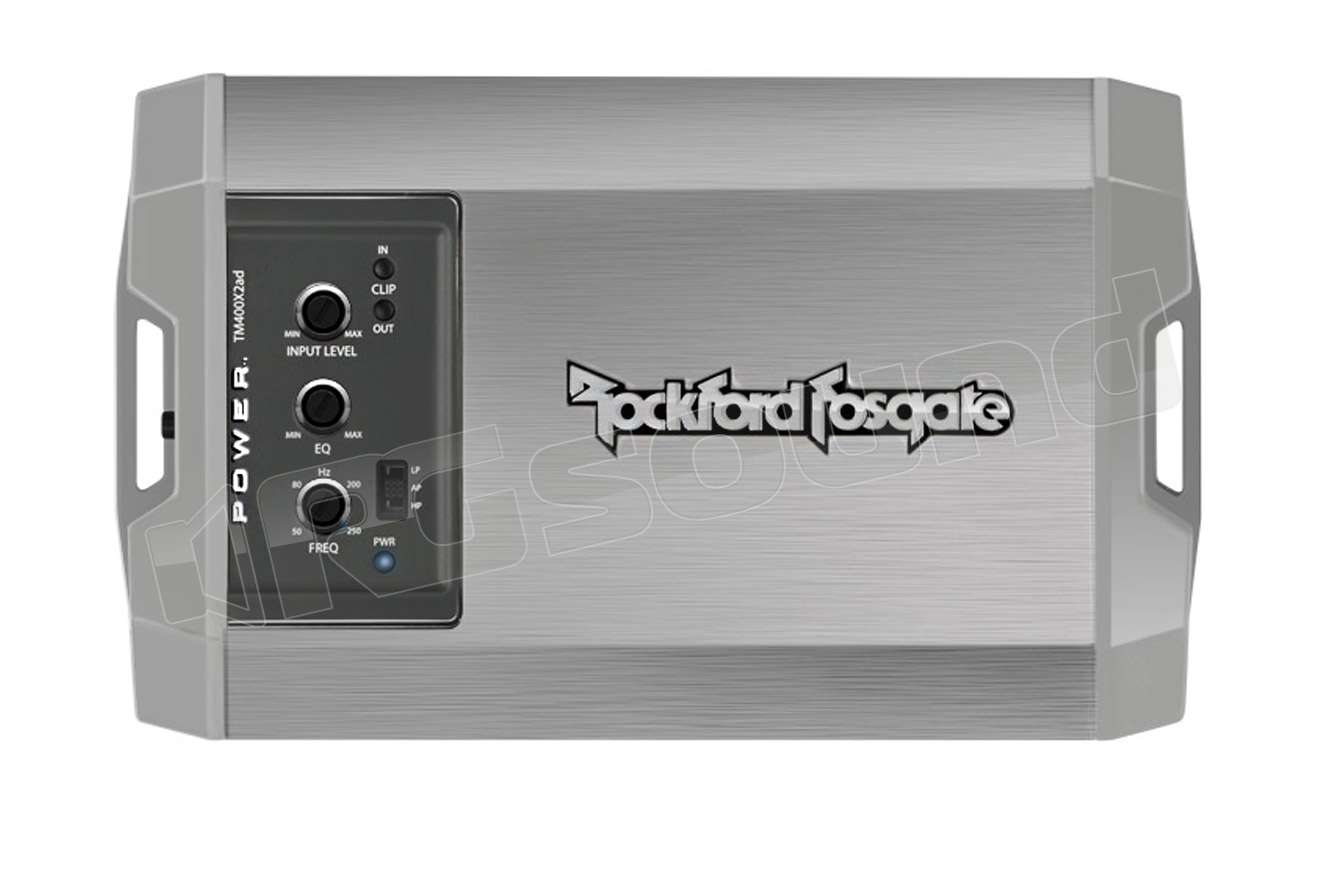

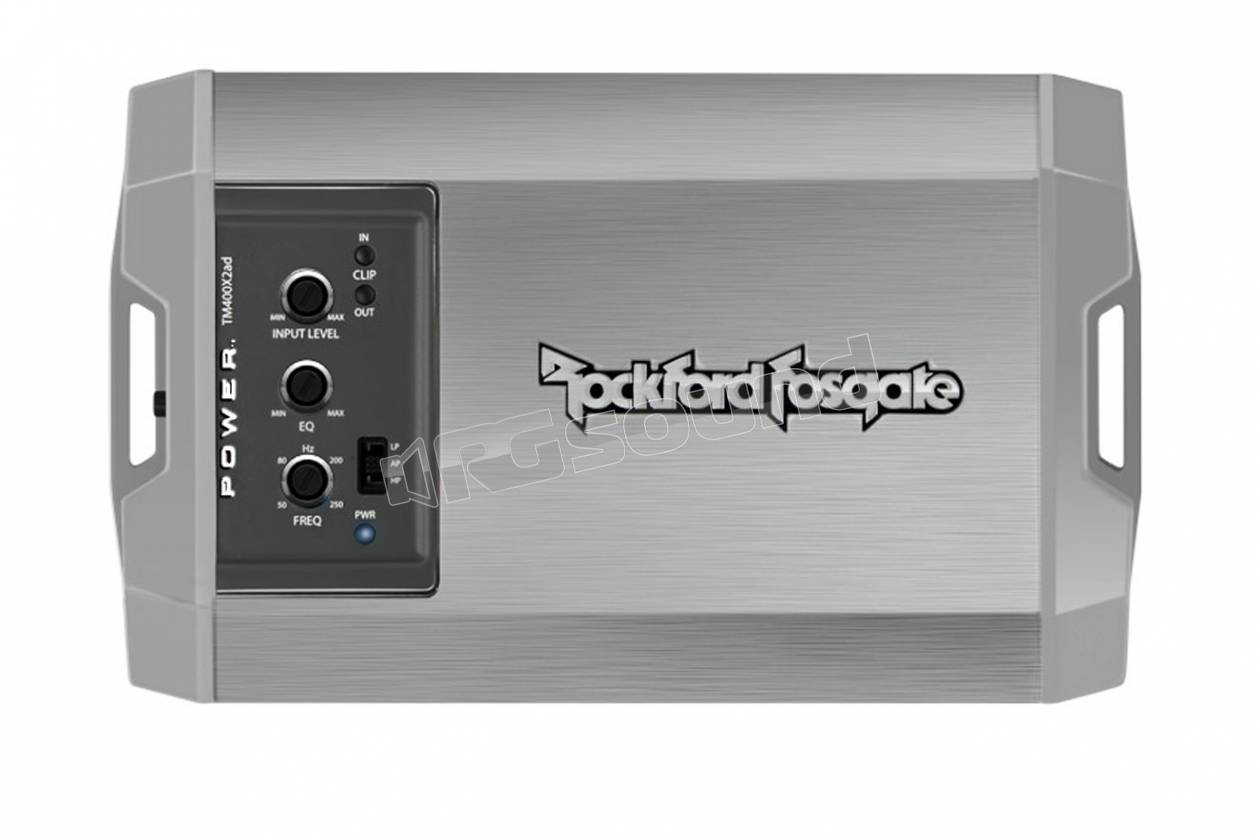

Crossover Controls:
High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
All-Pass: Yes

Tone Controls:Treble: 0 to +14 dB @ 12.5 kHz
Bass: 0 to +18 dB @ 45 Hz

Input Sensitivity: 150 mV - 12 V

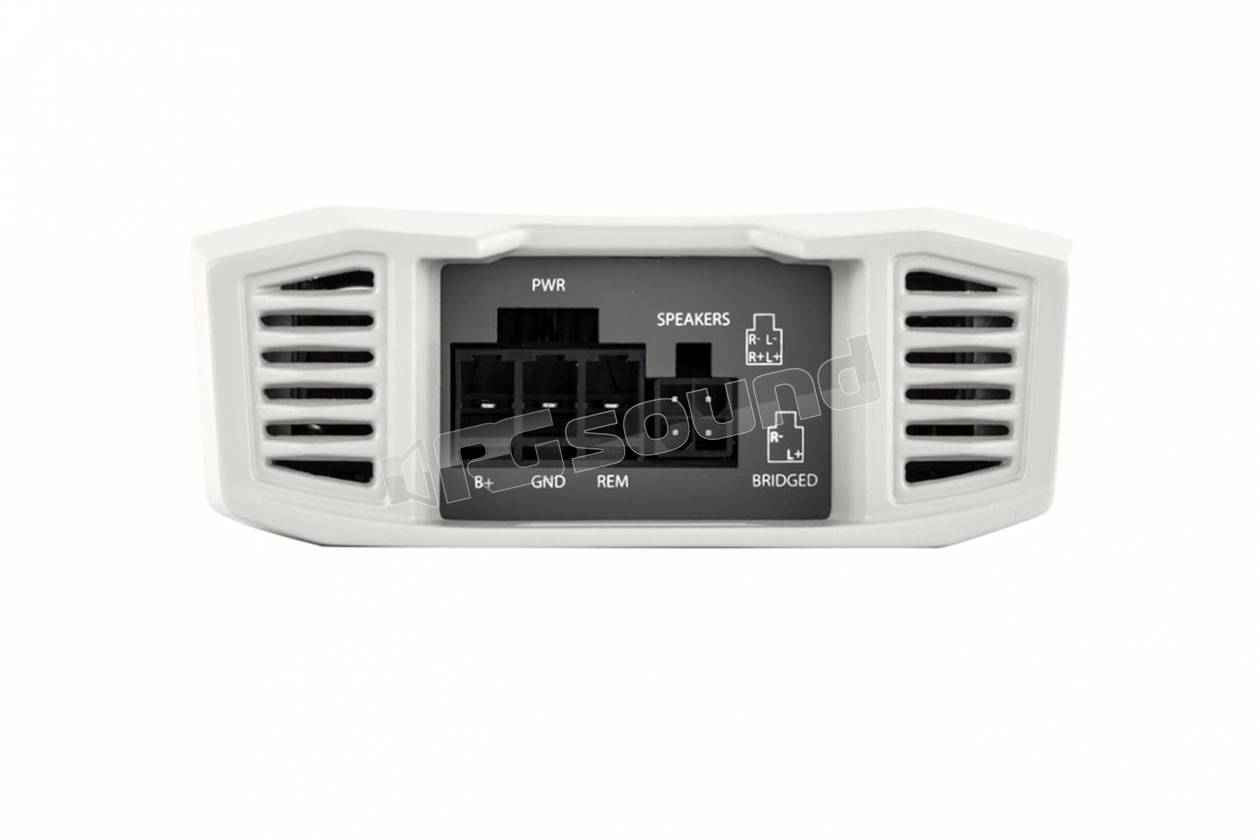

Signal Input:High/Low Level Input: 4-Pin harness

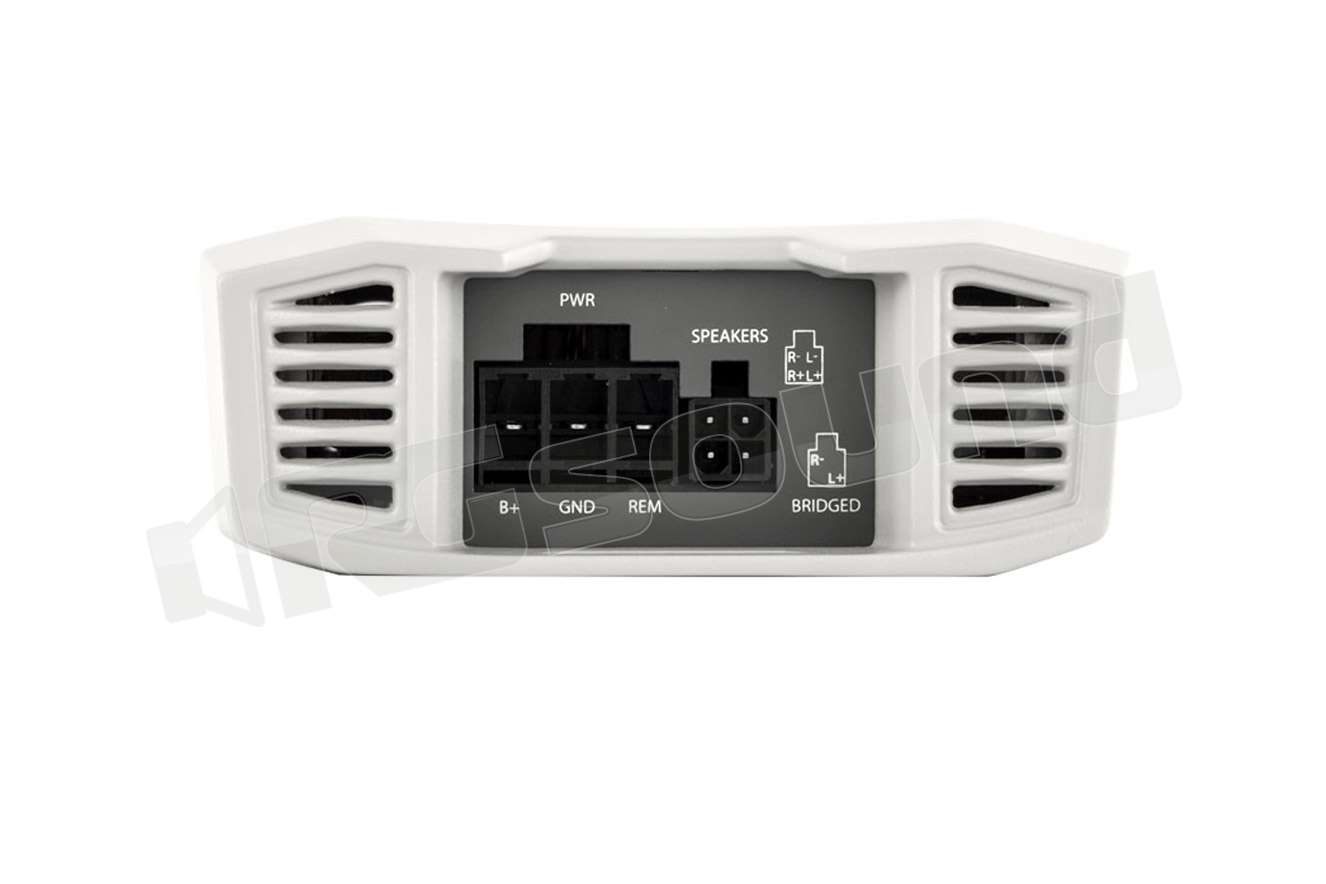

Power Input Connector: Detachable Compression Terminal

Power Wire Gauge: 8 AWG

Speaker Output Connector: 4-Pin Harness

Speaker Wire Gauge: 16 AWG

Heat Sink Type: Extruded Aluminum

Cooling: Dual Fan Cooled

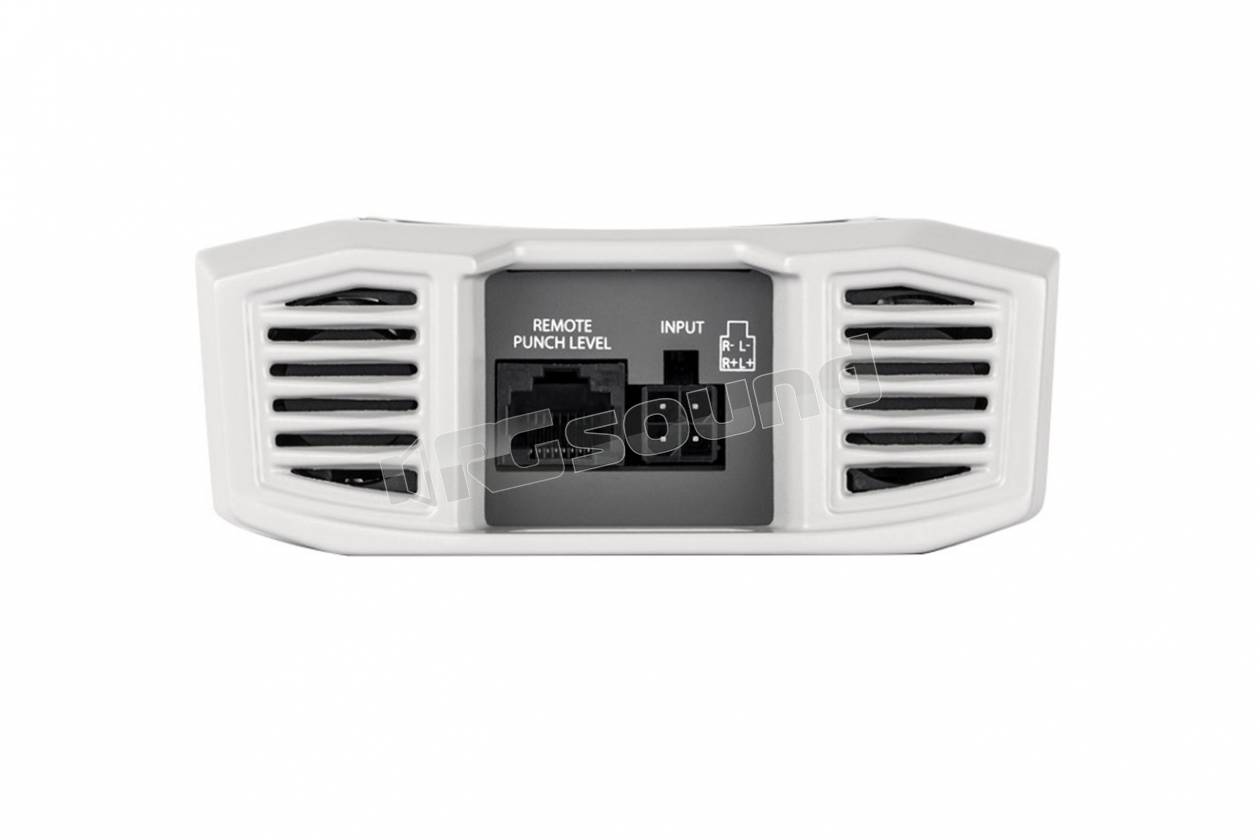

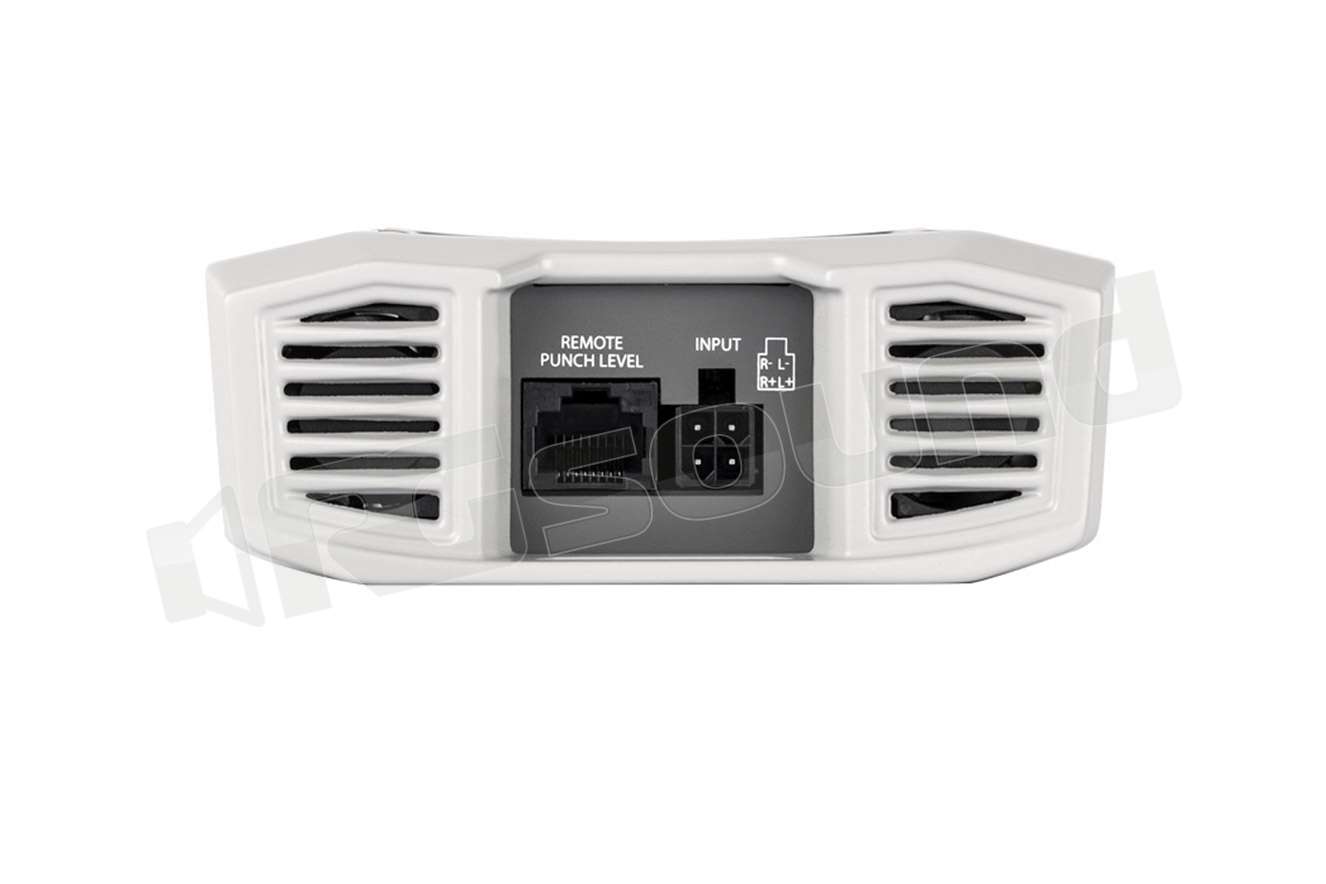

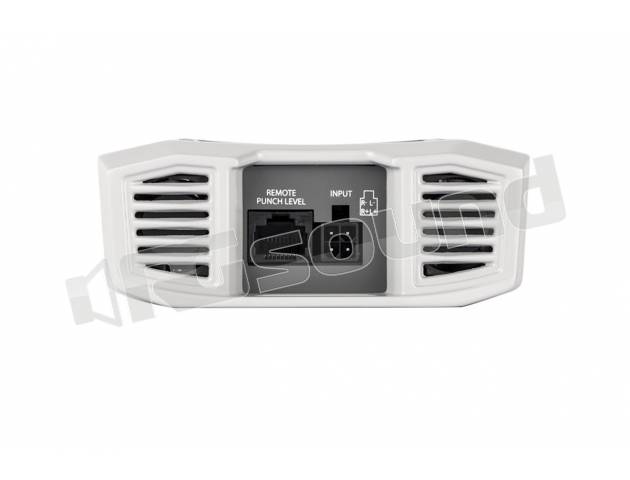

Remote Controls: Optional PLC2 provides Punch Level Control

Visual Indicators:Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD

Circuit Topology Class: Class-A/D

Operating Voltage: 9 - 16 VDC

Recommended Fuse (not included): 60 A

Max. Current Draw (13.8V Sinewave): 45 A

Average Current Draw (13.8V Music): 23 A

Suggested Alternator: 75 A

Shipping Weight: 2.9 Lbs. (1.31 Kg.)

Dimensions (H x W x D): 4.1 x 10.8 x 17.8 cm
