Soundstream T7.124 subwoofer serie TARANTULA
il tuo prezzo: € 310,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto
Tipologia
Subwoofer
Dimensione Altoparlante
300 mm
Potenza MAX
Watt
Potenza RMS
800 Watt
Risposta in frequenza
Hertz
Sensibilità
86.2 dB
Impedenza
4+4 Ohm
Peso
11,79 Kg
Profondità di installazione
167 mm
Materiale Woofer
Alluminio
T7.124 subwoofer 300mm Soundstream serie TARANTULA - Potenza 800W
Serie TARANTULA del 2013.
SPECIFICHE T7.124
- RMS Power (watts) 800
- Efficiency (1w/1m dB) 85.3
- Voice Coil Configuration 63mm DVC 4Ω
- Non Pressed Paper Pulp Cone
- Aluminum Heat-sink Dust-cap
- Nickel Plated 8ga. Compression Wire Terminals

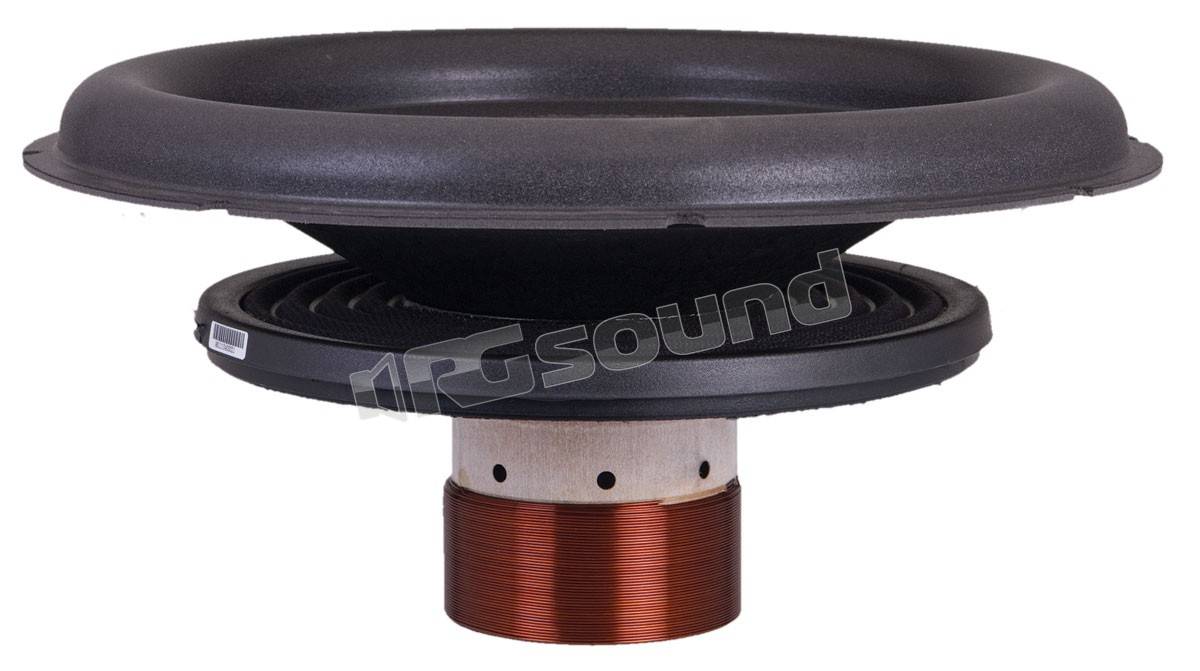

- 63mm 430° Voice Coil on Aluminum Former
- Die-Cast Aluminum Frame w/ Textured Finish
- Polyether Foam Surround
- Dual Poly-Cotton Suspension Spiders
- 170oz. Strontium Ferrite Magnet
- Vented T-Yoke Back-plate
- Re-cone Kit Available
| SPECIFICATIONS | T7.124 |
|---|---|
| Fs (hz) | 34.16 |
| Qms | 5.48 |
| Vas (ft^3) | 1.448 |
| Cms (mm/n) | 0.109 |
| Mms (g) | 199.1 |
| Xmax | 15 |
| Xmech | 22.5 |
| Dia (in.) | 10.08 |
| Sd (in^2) | 79.78 |
| Vd (ft^3) | 0.041 |
| Qes | 0.61 |
| Re (ohms) | 7.23 |
| Z (ohms) | 8 |
| BL | 22.56 |
| Pe (watts) | 800 |
| Qts | 0.55 |
| No | 0.258 |
| 1w/1m SPL | 86.2 |
| VC DIA (IN) | 2.5 |
| VC (Ohms) | DVC4 |
| M-vd (ft^3) | 0.172 |
| Cut-out | 11.125 |
| Depth | 6.5 |

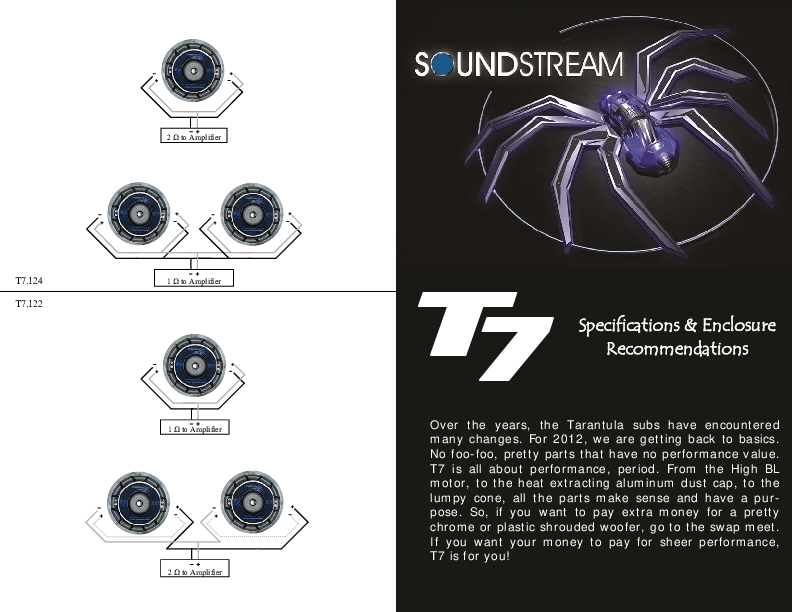

Recommended Enclosures
| High Tuning | |
|---|---|
| Sm Sealed | 0.75 |
| Qtc | 0.97 |
| F3 | 51.18 |
| Med Sealed | 1.00 |
| Qtc | 0.865 |
| F3 | 48.36 |
| Lg Sealed | 1.25 |
| Qtc | 0.801 |
| F3 | 47.11 |
| Low Tuning | |
|---|---|
| Sm Vented | 1.75 |
| port | 4x15.25 |
| Fb | 36.19 |
| F3 | 32.98 |
| Med Vented | 2.00 |
| port | 4x14.5 |
| Fb | 34.04 |
| F3 | 30.75 |
| Lg Vented | 2.25 |
| port | 4x14 |
| Fb | 32.2 |
| F3 | 28.95 |
