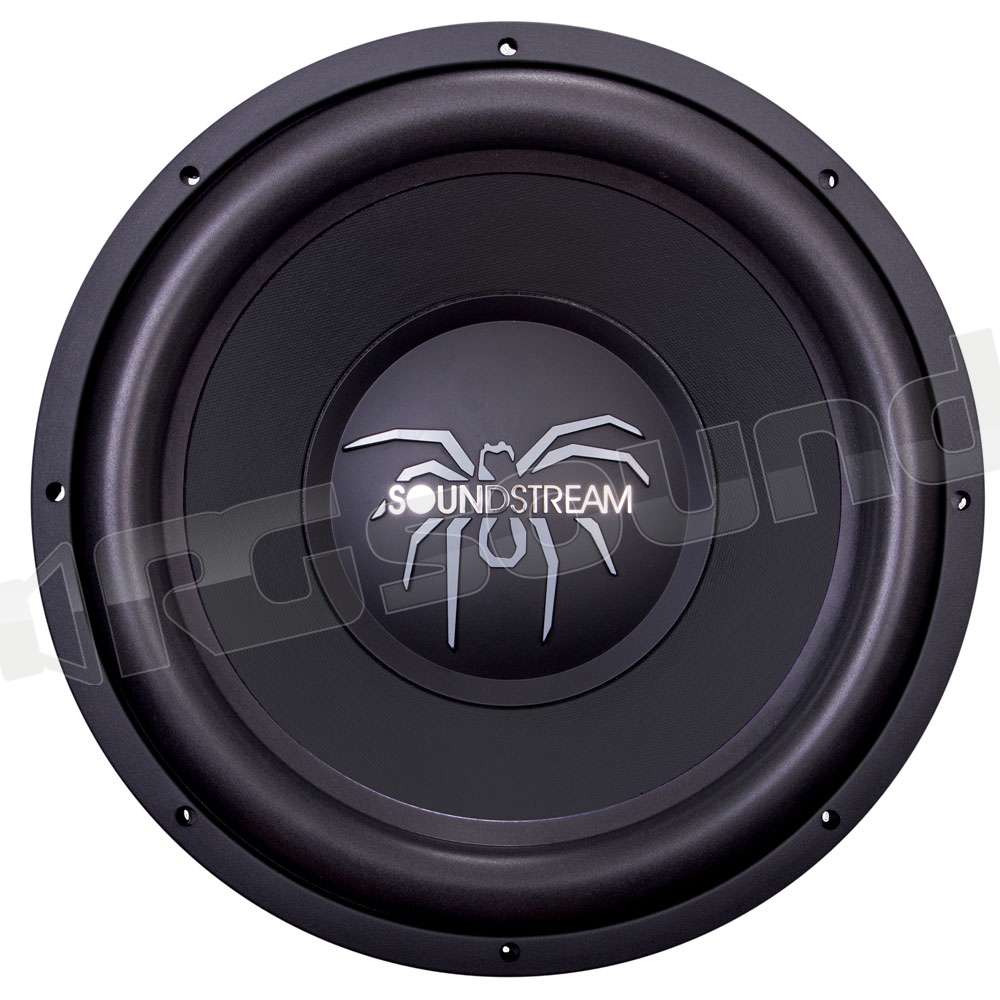

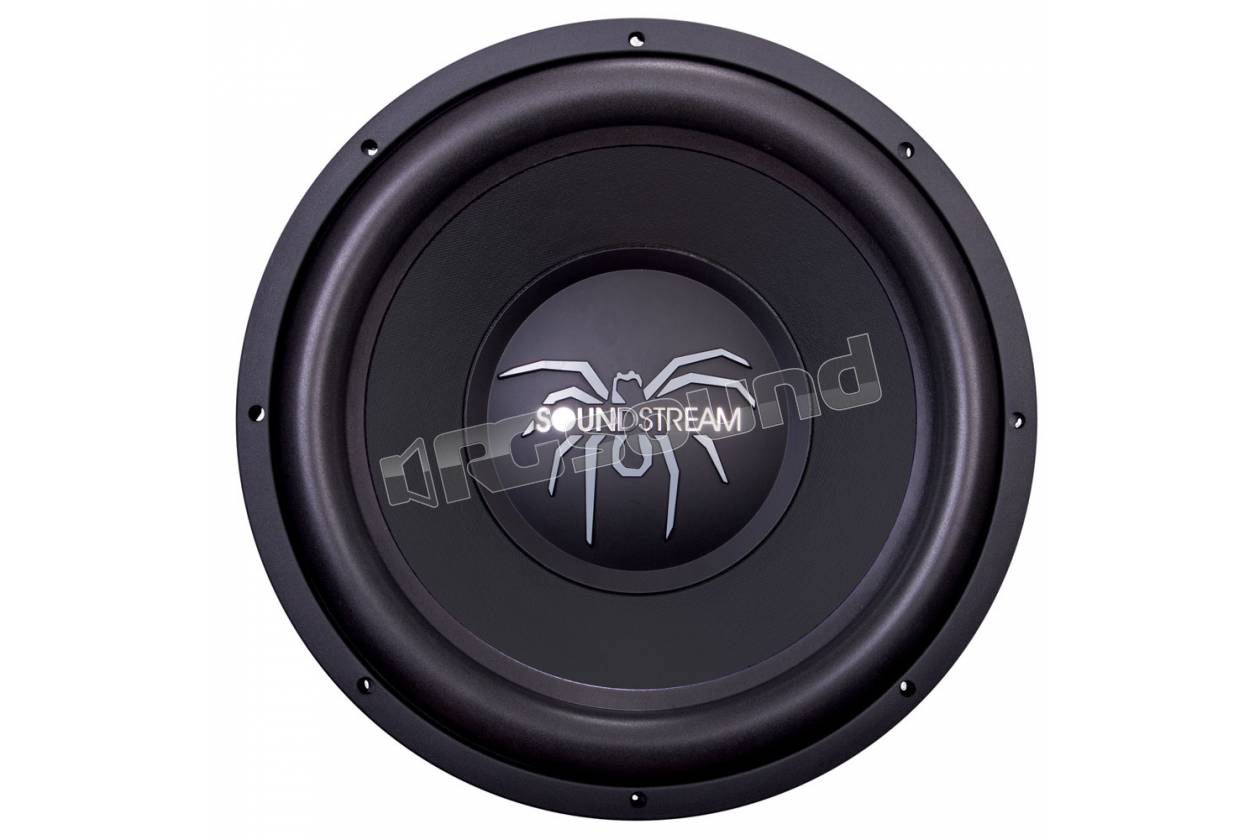

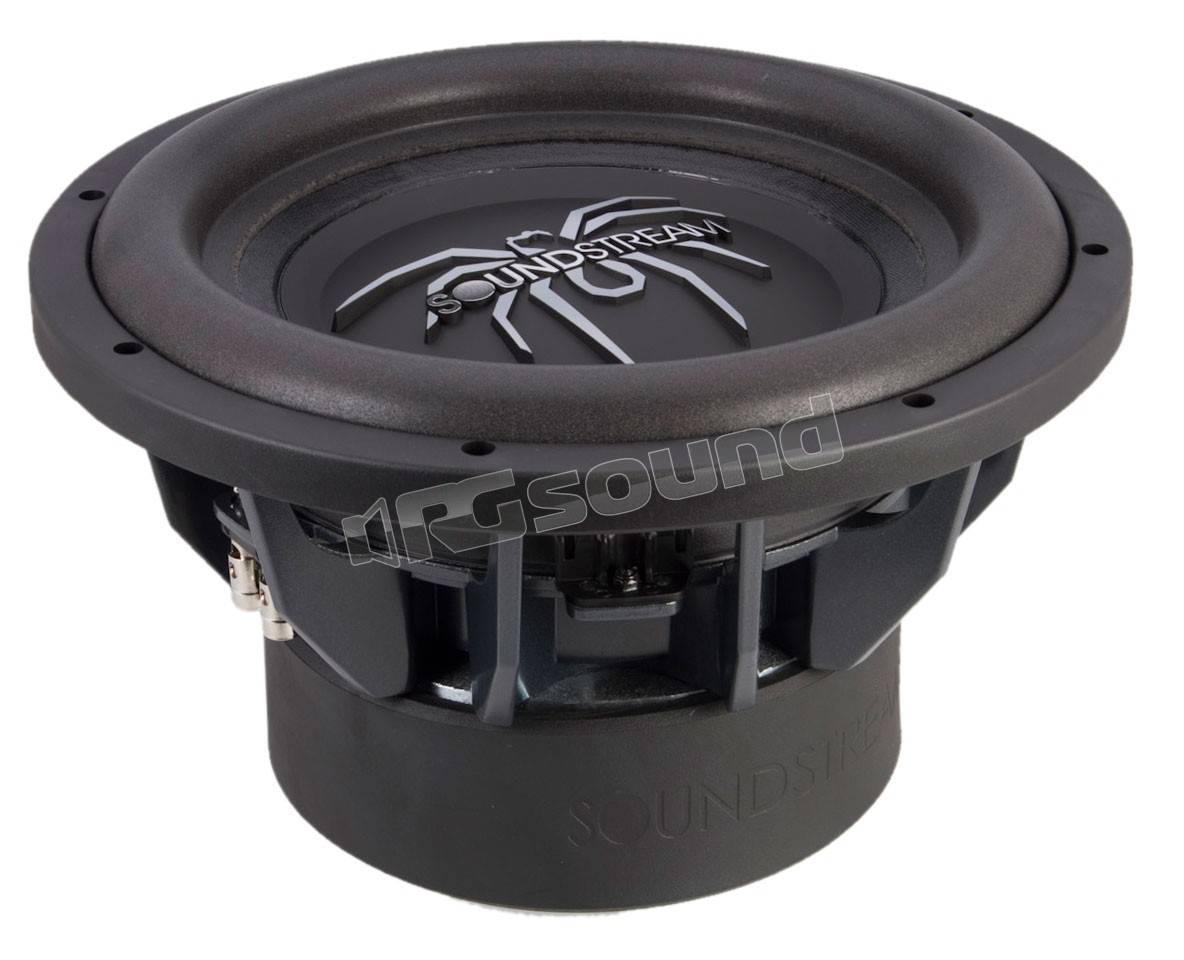

Soundstream SPLX-152HF subwoofer serie TARANTULA

Soundstream
il tuo prezzo: € 458,00

Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Subwoofer
Dimensione Altoparlante 380 mm
Potenza MAX Watt
Potenza RMS 1250 Watt
Risposta in frequenza Hertz
Sensibilità 90.95 dB
Impedenza 2+2 Ohm
Peso 158 Kg
Profondità di installazione 210 mm
Materiale Woofer Alluminio

SPLX-152HF subwoofer 380mm Soundstream serie TARANTULA - Potenza 1250W

Serie TARANTULA del 2013.



SPECIFICHE SPLX-152HF

  • RMS Power (watts) 1,250
  • Efficiency (1w/1m dB) 90.05
  • Voice Coil Configuration 76mm DVC 2Ω
  • Cast Aluminum Frame
  • Dual 2 ohm 76" CCAW Coils
  • Vented Back Plate
  • Epoxy Coated Spruce Pulp Cone
  • Dual NOMEX Spiders
  • Re-cone Kits Available

Soundstream SPLX-152HF
Fs (hz) 35.96
Qms 6.476
Vas (ft^3) 3.052
Cms (mm/n) 0.0794
Mms (g) 247.1
Xmax 13.00
Xmech 19.50
Dia (in.) 13.19
Sd (in^2) 136.6
Vd (ft^3) 0.0606
Qes 0.503
Re (ohms) 2.95
Z (ohms) 4
BL 18.09
Pe (volts) 35v/50vBurp
Pe (watts) 1.25k/2.5k Burp
Qts  0.467
No 0.78
1w/1m 90.95
VC DIA (IN) 3.0
VC (Ohms) DVC2
M-vd (ft^3) 0.298
Cut-out 14.125
Depth 8.375

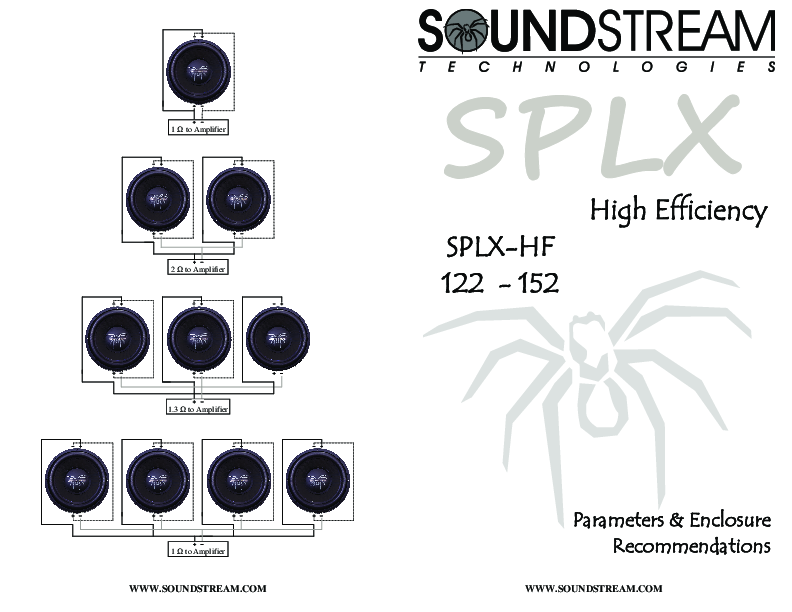

Recommended Enclosures

High Tuning
SM 50Hz 3.00 ft³
Round Ports (2)4"x6.5"
Fb 50.44
F3 42.96
Spike dB/Hz 4.41@64.25
MED 50Hz 4.00 ft³
Round Ports (4)4"x12.25"
Fb 50.08
F3 41.44
Spike dB/Hz 4.9@60.86
LG 50Hz 5.00 ft³
Round Ports (6)4"x16.5"
Fb 50.07
F3 40.81
Spike dB/Hz 5.34@57.64
Low Tuning
SM 40Hz 4.00 ft³
Round Ports (2)4"x8.25"
Fb 39.95
F3 35.35
MED 35Hz 5.00 ft³
Round Ports (2)4"x8.5"
Fb 34.95
F3 31.39
LG 30Hz 6.00 ft³
Round Ports (2)4"x10"
Fb 30.04
F3 28.08
