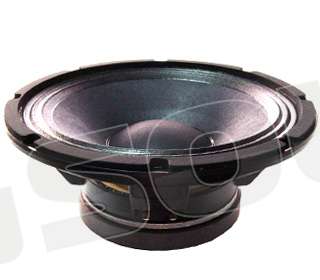

Beyma SM112/N Subwoofer 30 cm
il tuo prezzo: € 136,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto

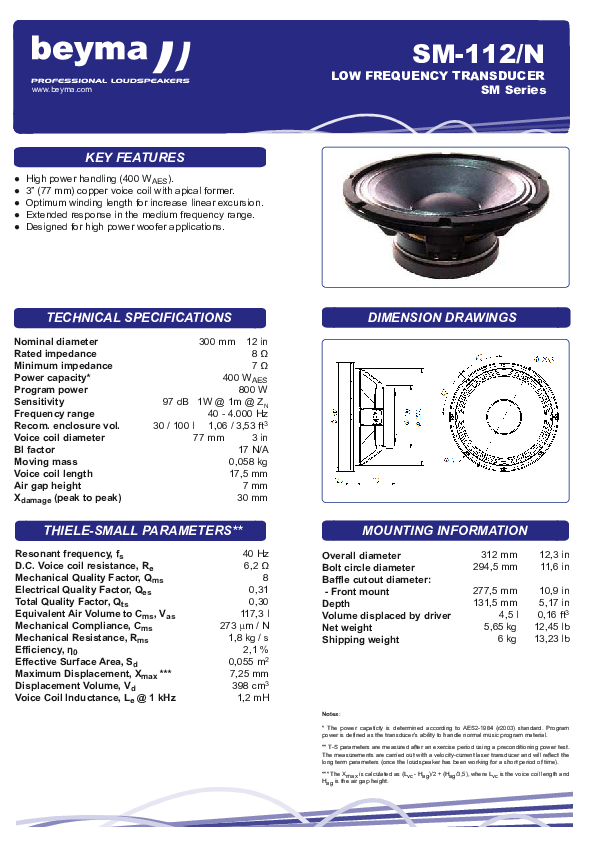

TECHNICAL SPECIFICATIONS
| Nominal diameter | 300 mm 12 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 7 ohm |
| Power capacity | 400 W AES |
| Program power | 800 W |
| Sensitivity | 97 dB 1 W @ 1 m @ 2Π |
| Frequency range | 40-4000 Hz |
| Recommended enclosure volume | 30 / 100 l 1.06 / 3.53 ft.³ |
| Voice coil diameter | 77 mm 3 in |
| BL factor | 17 N / A |
| Moving mass | 0.058 Kg |
| Winding length | 17.5 mm |
| Air gap height | 7 mm |
| Xdamage pp | 30 mm |
THIELE SMALL PARAMETERS
| Fs | 40 Hz |
| Re | 6.2 ohm |
| Qms | 8 |
| Qes | 0.31 |
| Qts | 0.3 |
| Vas | 117.3 l |
| Cms | 273 µm / N |
| Rms | 1.8 kg / s |
| Efficiency % | 2.1 |
| Sd | 0.055 m² |
| Xmax | 7.25 mm |
| Vd | 398 cm³ |
| Le @1 kHz | 1.2 mH |
CONSTRUCTIVE DETAILS
| Net weight | 5.65 kg 12.45 lb |
| Total weight | 6 kg 13.2 lb |
| Magnet | Ferrite |
