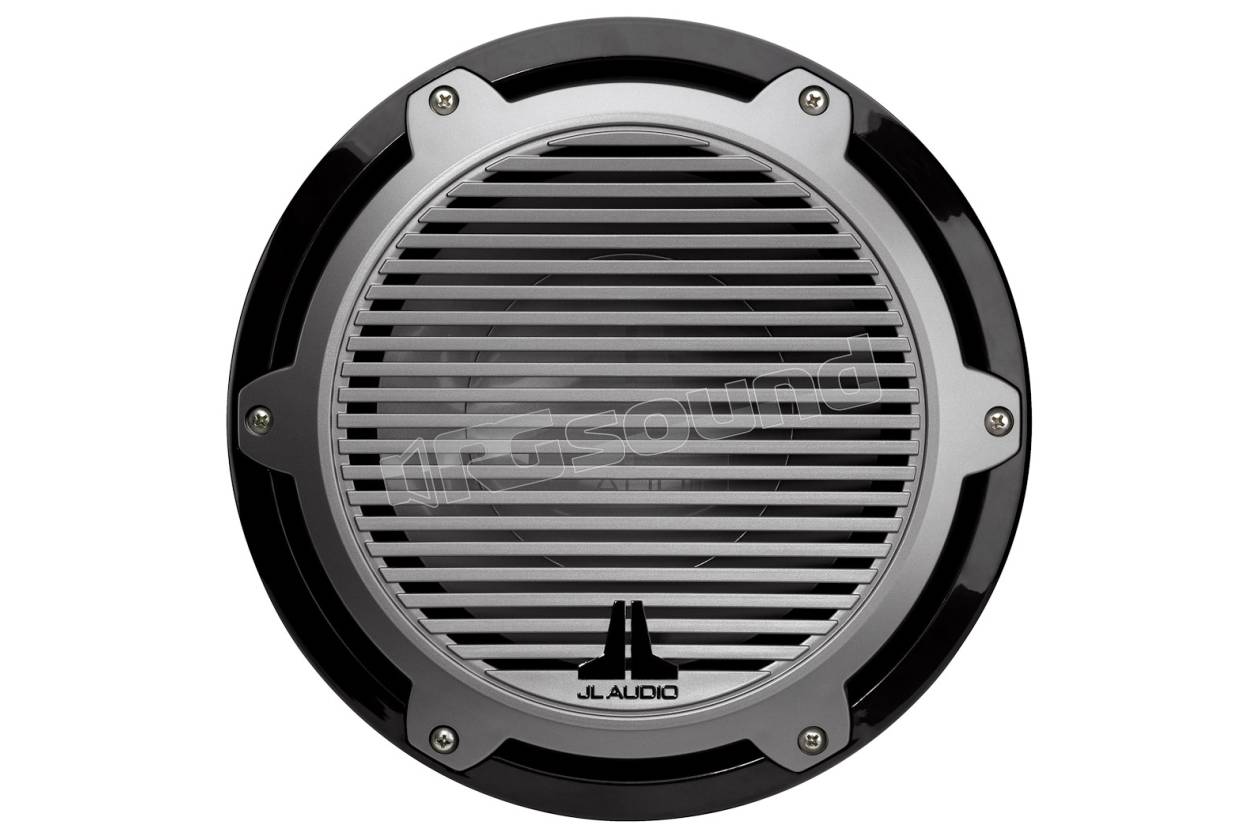

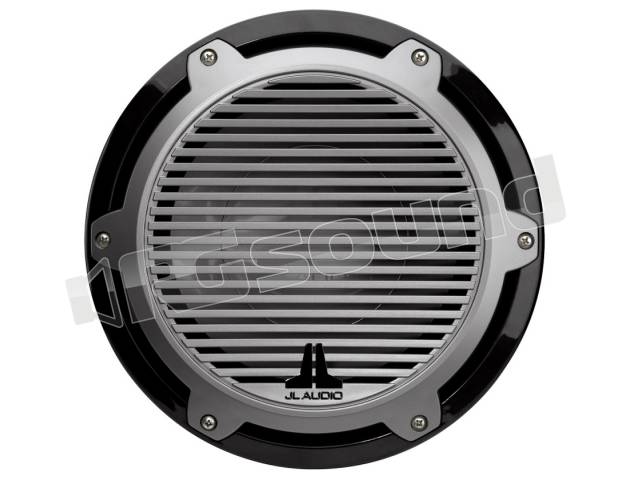

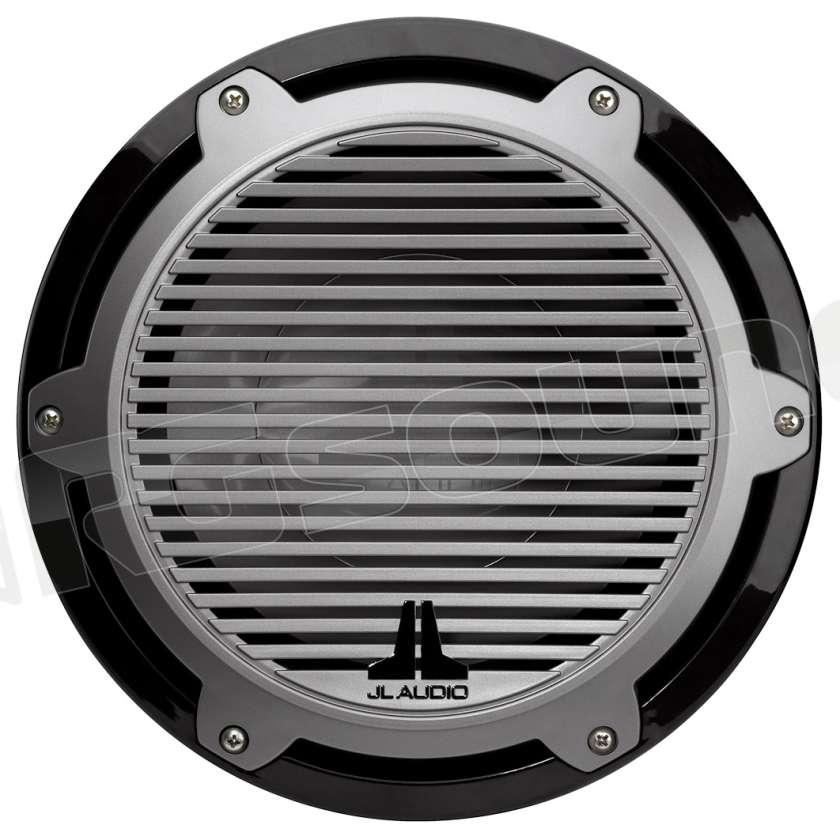

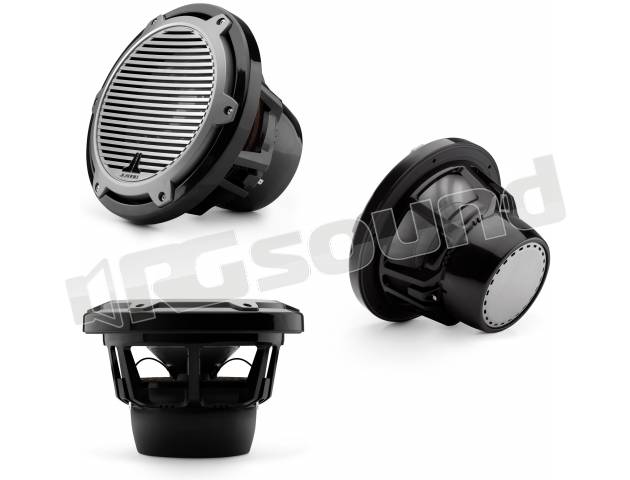

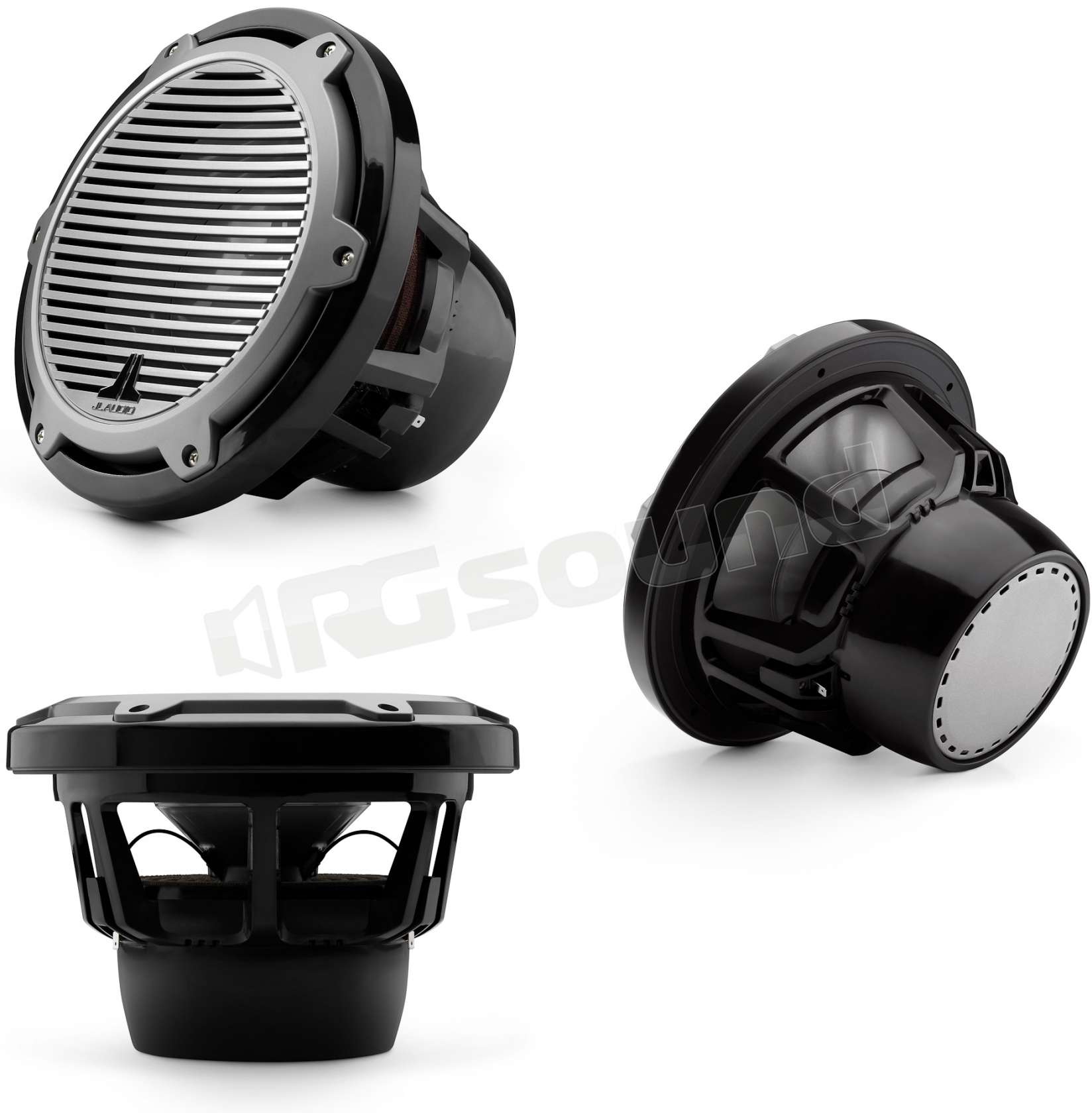

JL Audio M10W5-CG-TB subwoofer marino 25 cm

JL Audio
il tuo prezzo: € 372,30

Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Subwoofer
Potenza MAX Watt
Dimensione Altoparlante 250 mm
Potenza RMS 250 Watt
Diametro griglia 273 mm
Impedenza 4 Ohm
Foro di installazione 225 mm
Sensibilità dB
Profondità di installazione 151 mm
Risposta in frequenza Hertz

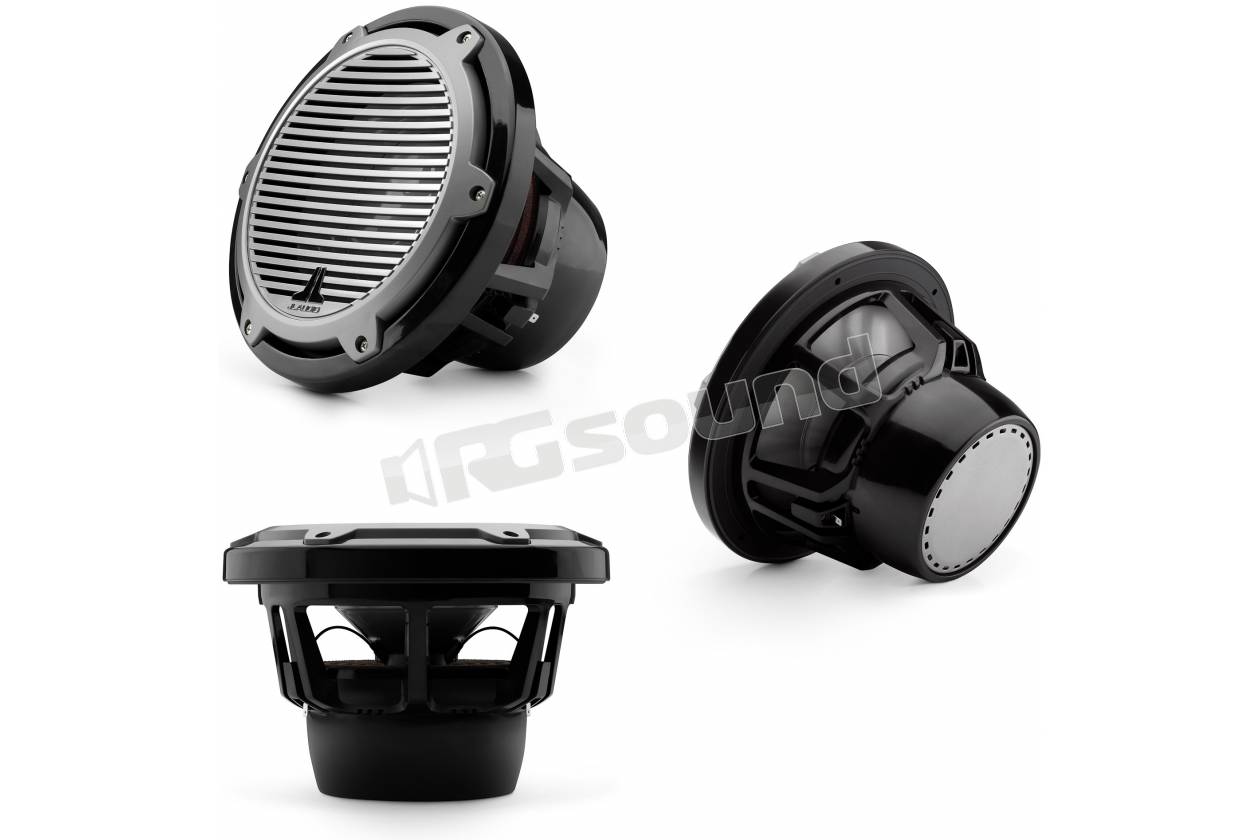

JL Audio M10W5-CG-TB Serie M subwoofer 250 mm di alta gamma per uso nautico. Garantito dal miglior servizio RGsound.it. Griglia classica in titanio inclusa. M10W5-CG-TB è realizzato per contenitori con volume di lavoro limitato.


Potenza RMS 250 W

Impedenza 4 Ohm



JL Audio M10W5-CG-TB

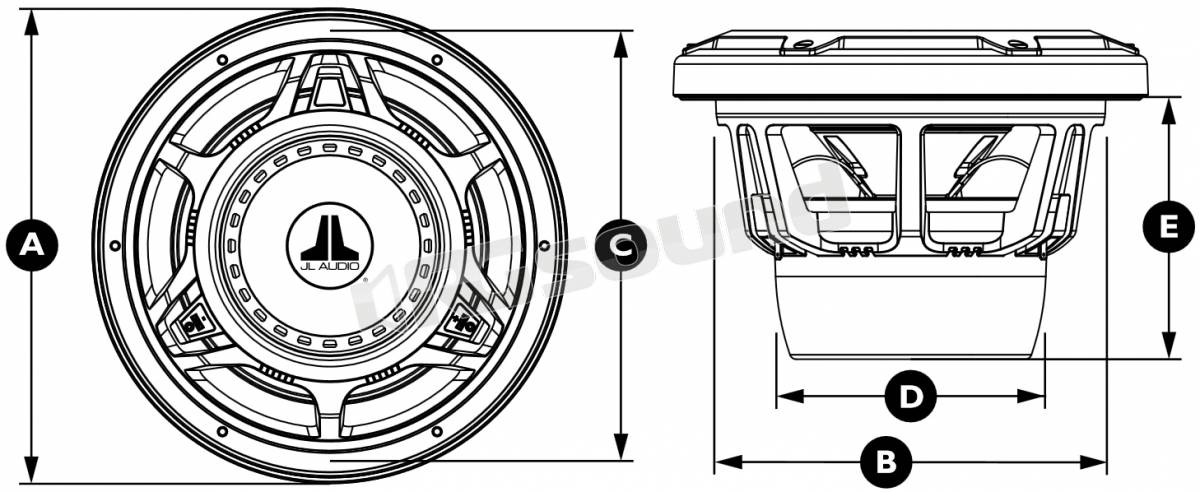

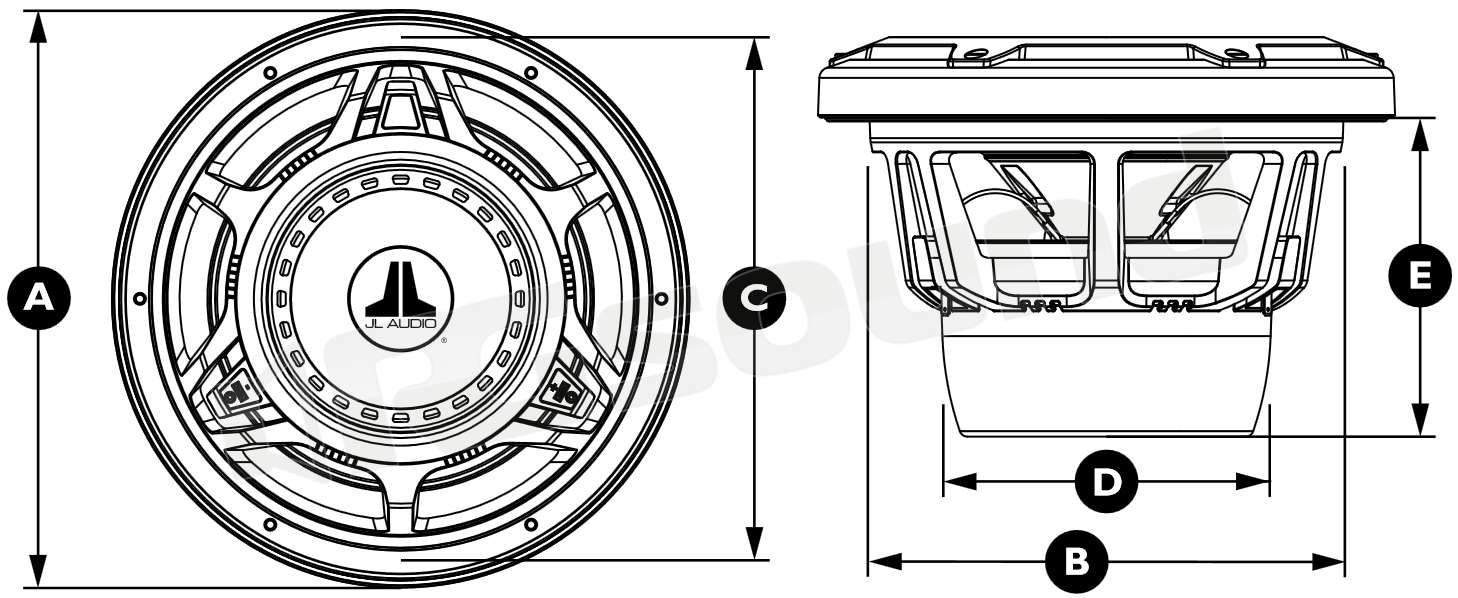

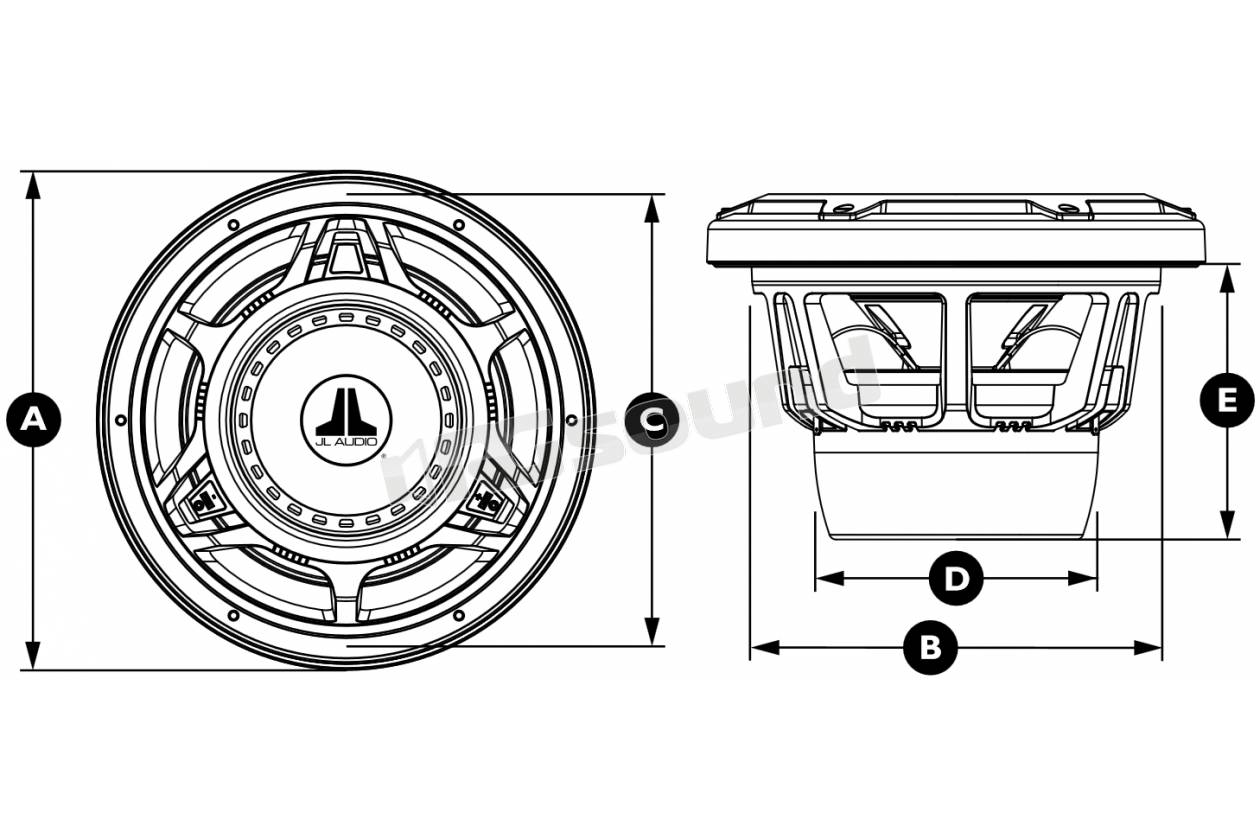

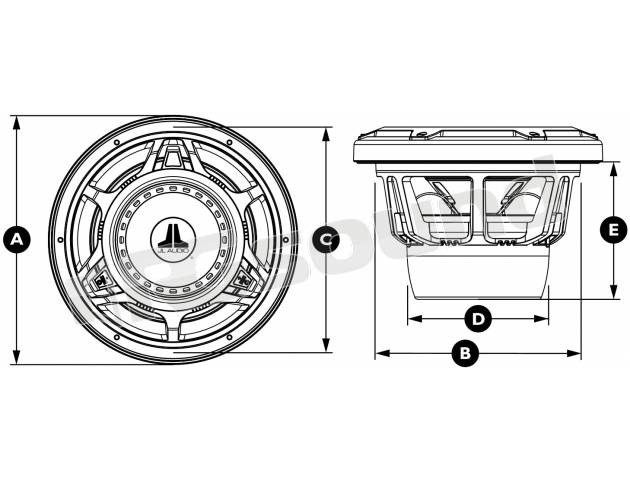

Grafico e dimensioni del M10W5-CG-TB:




JL Audio M10W5-CG-TB


Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.75 in / 273 mm
Mounting Hole Diameter (B) 8.875 in / 225 mm
Bolt Hole Circle (C) 9.706 in / 247 mm
Motor Overmold Outer Diameter (D) 6.11 in / 155 mm
Mounting Depth (E) 5.93 in / 151 mm
Driver Displacement 0.064 cu ft / 1.81 L
Net Weight 11.4 lb / 5.17 kg



Parametri M10W5-CG-TB

Free Air Resonance (Fs) 46.0 Hz
Electrical “Q” (Qes) 0.86
Mechanical “Q” (Qms) 10.69
Total Speaker “Q” (Qts) 0.796
Equivalent Compliance (Vas) 0.91 cu ft / 25.75 L
One-Way Linear Excursion (Xmax)* 0.52 in / 13 mm
Reference Efficiency (no) 0.28%
Efficiency (1 W / 1 m)** 86.7 dB SPL
Effective Piston Area (Sd) 50.11 sq in / 0.0323 sq m
DC Resistance (Re) 4.17 Ω
Minimum Sealed Enclosure Volume 1.25 cu ft / 35.4 L
Optimum Sealed Enclosure Volume 2.0 cu ft / 56.6 L (or larger)
Infinite Baffle Use Yes

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
