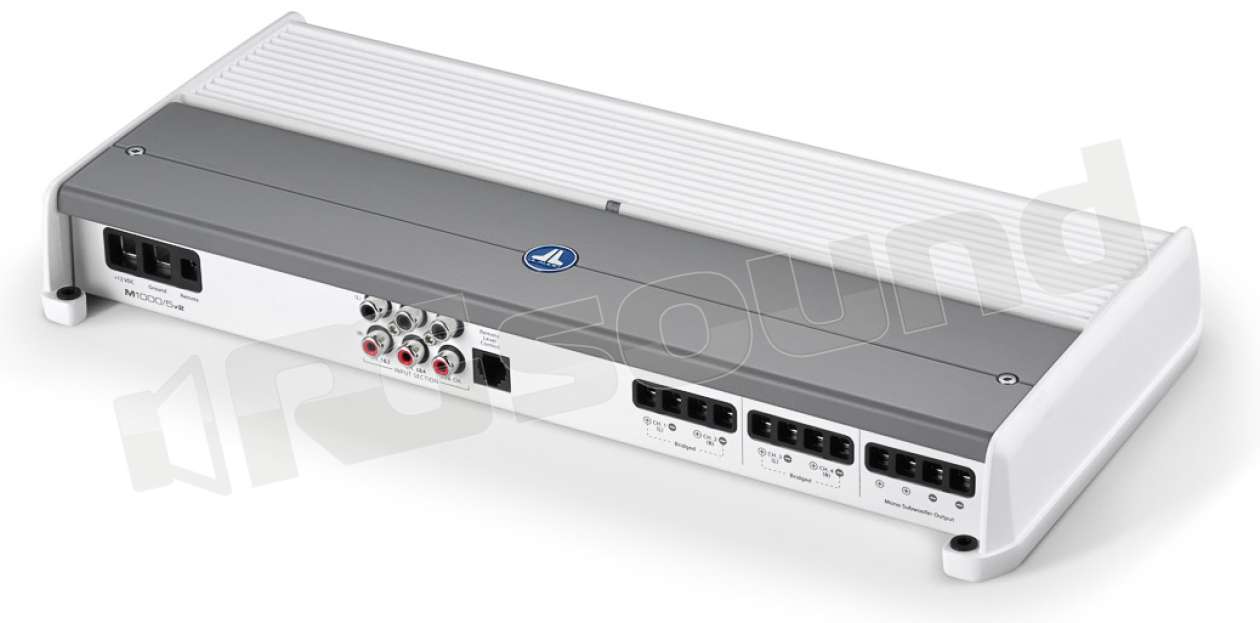

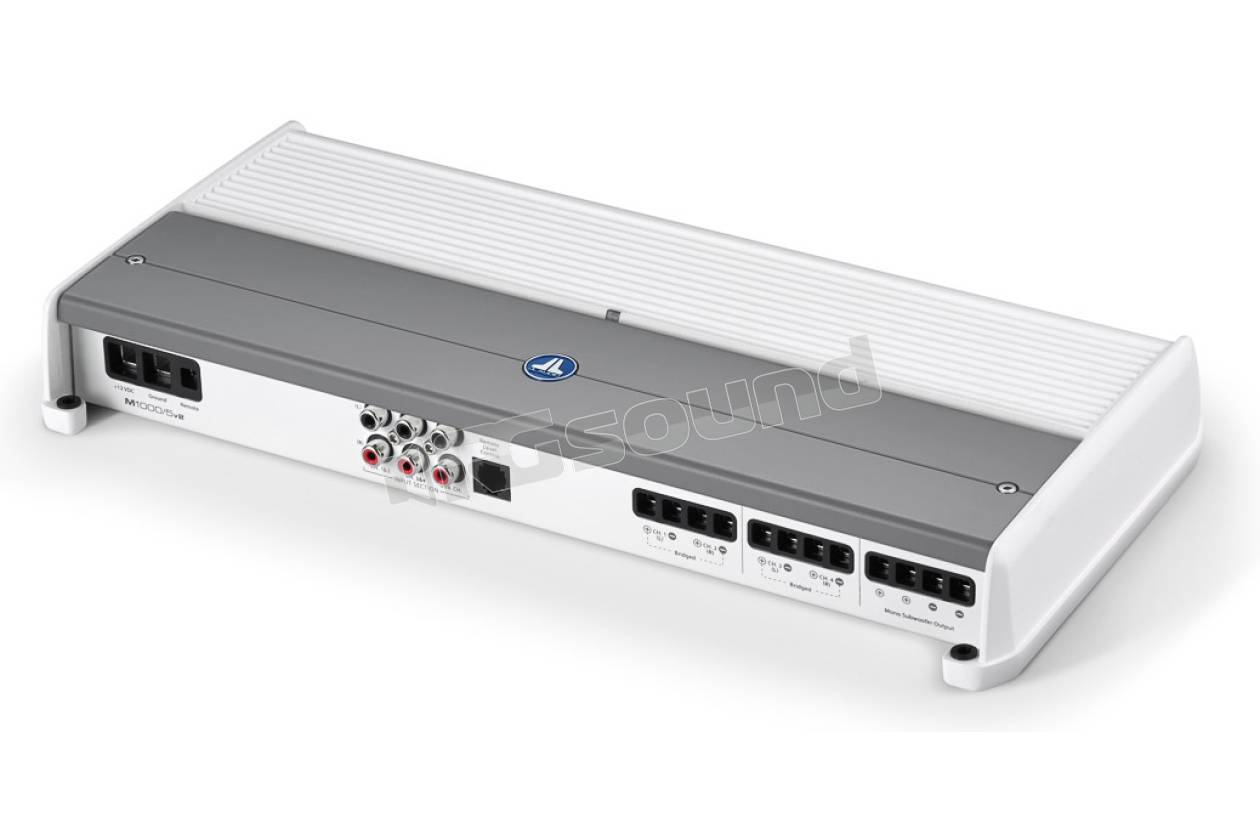

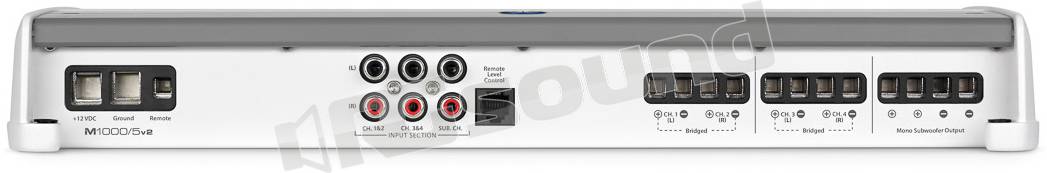

JL Audio M1000/5v2 amplificatore marino cinque canali

JL Audio
il tuo prezzo: € 987,10

Prezzo riferito a singolo pezzo (IVA inclusa)
Spedizione Gratuita SPEDIZIONE GRATUITA
Tipologia Amplificatore 5 canali
Crossover Si
Potenza RMS 4 Ohm 4x75 + 1x400 Watt
Rapporto segnale rumore 84 dB S/N
Potenza RMS 2 Ohm 2x200 + 1x600 Watt
Distorsione armonica 1 % THD
Potenza RMS Mono 4Ω Watt
Dimensione 374x180x52 mm
Potenza RMS Mono 2Ω Watt
Peso Kg

JL Audio M1000/5v2 amplificatore marino full range a cinque canali Classe D. Garantito dal miglior servizio RGsound.it. Dimensioni 374 x 52 x 180 mm - Potenza RMS 4 x 75 W + 1 x 400W @ 4 Ohm.



Caratteristiche M1000/5v2
Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 Ω 75 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels - Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 400 W RMS x 1
Subwoofer Channel @ 3 Ω 500 W RMS x 1
Subwoofer Channel @ 2 Ω 600 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A



Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ω 60 W RMS x 4
Main Channels @ 2 Ω 90 W RMS x 4
Main Channels - Bridged @ 4Ω 180 W RMS x 2
Subwoofer Channel @ 4 Ω 360 W RMS x 1
Subwoofer Channel @ 3 Ω 480 W RMS x 1
Subwoofer Channel @ 2 Ω 600 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A









JL Audio M1000/5v2



Specifiche generali M1000/5v2

Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 8 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)



Signal processing M1000/5v2

Filter Modes: Channels 1 & 2 (front) High-Pass only
Filter Slope (dB/Octave): Channels 1 & 2 (front) 12 dB
Filter Frequency Range: Channels 1 & 2 (front) 50-5000 Hz
Filter Modes: Channels 3 & 4 (rear) High-Pass or Bandpass
Filter Slope (dB/Octave): Channels 3 & 4 (rear) 12 dB
Filter Frequency Range: Channels 3&4 50-500 Hz
Filter Modes: Subwoofer Channel Low-Pass only
Filter Slope (dB/Octave): Subwoofer Channel 12 dB or 24 dB
Filter Frequency Range: Subwoofer Channel 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filters Defeatable? Yes
Infrasonic Filter: Subwoofer Channel none
Remote Level Control Optional (HD-RLC)
Remote Level Modes Sub Ch. or All Channels
Channel Input Mode Switch Yes (2/4/6 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A

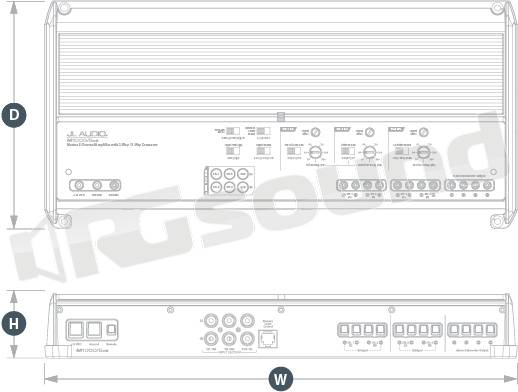

Dimensioni M1000/5v2

Height (H) 2.05 in / 52 mm
Width (W) 14.73 in / 374 mm
Depth (D) 7.09 in / 180 mm



JL Audio M1000/5v2
