JBL
il tuo prezzo: € 149,00

Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Amplificatore 4 canali
Classe amplificatore AB
Potenza RMS 4 Ohm 4x60 Watt
Potenza RMS 2 Ohm 4x85 Watt
Potenza RMS 3 Canali 4 Ohm Watt
Potenza RMS 3 Canali 2 Ohm Watt
Potenza RMS Dual Mono 4 Ohm 2x170 Watt
Potenza RMS Mono 2Ω Watt
Crossover Si
Ingresso Digitale S/PDIF NO
Ingresso Alto Livello SI
Rapporto segnale rumore 93 dB S/N
Distorsione armonica <1% % THD
Dimensione 300 x 206 x 52 mm

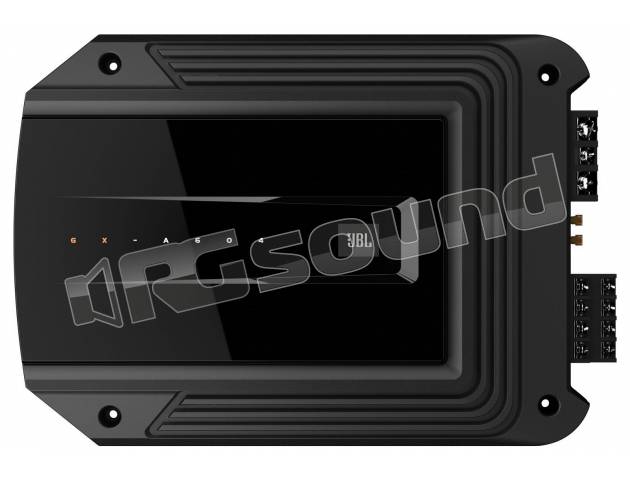

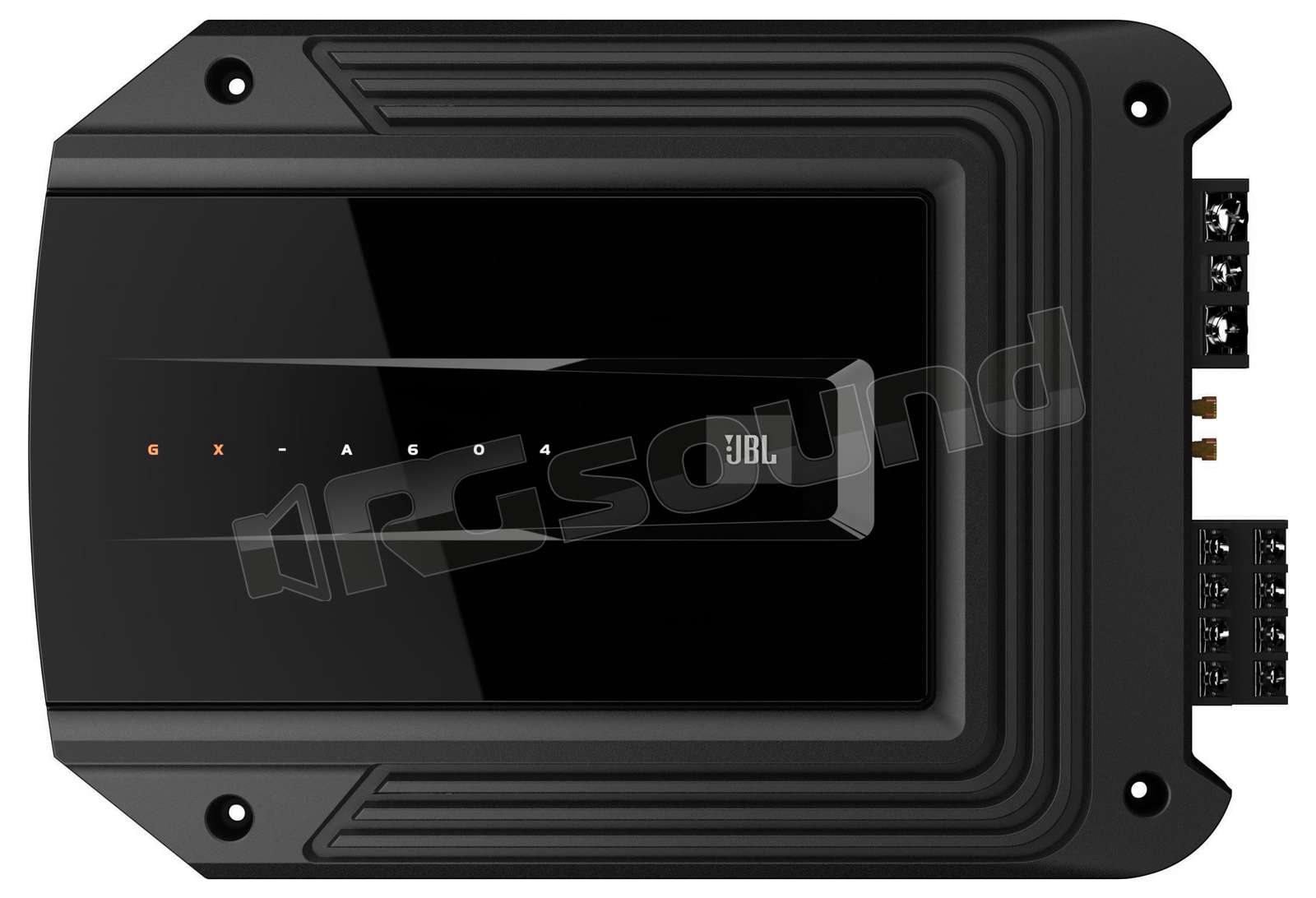

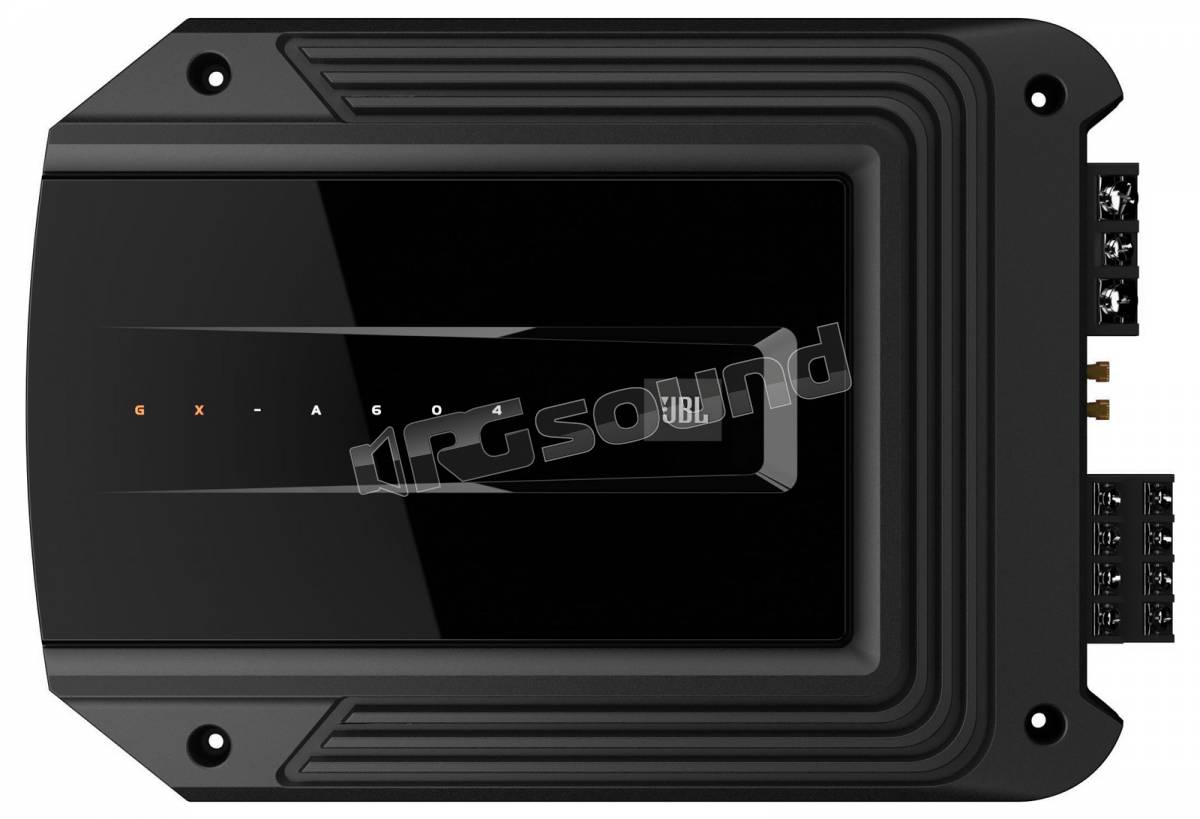

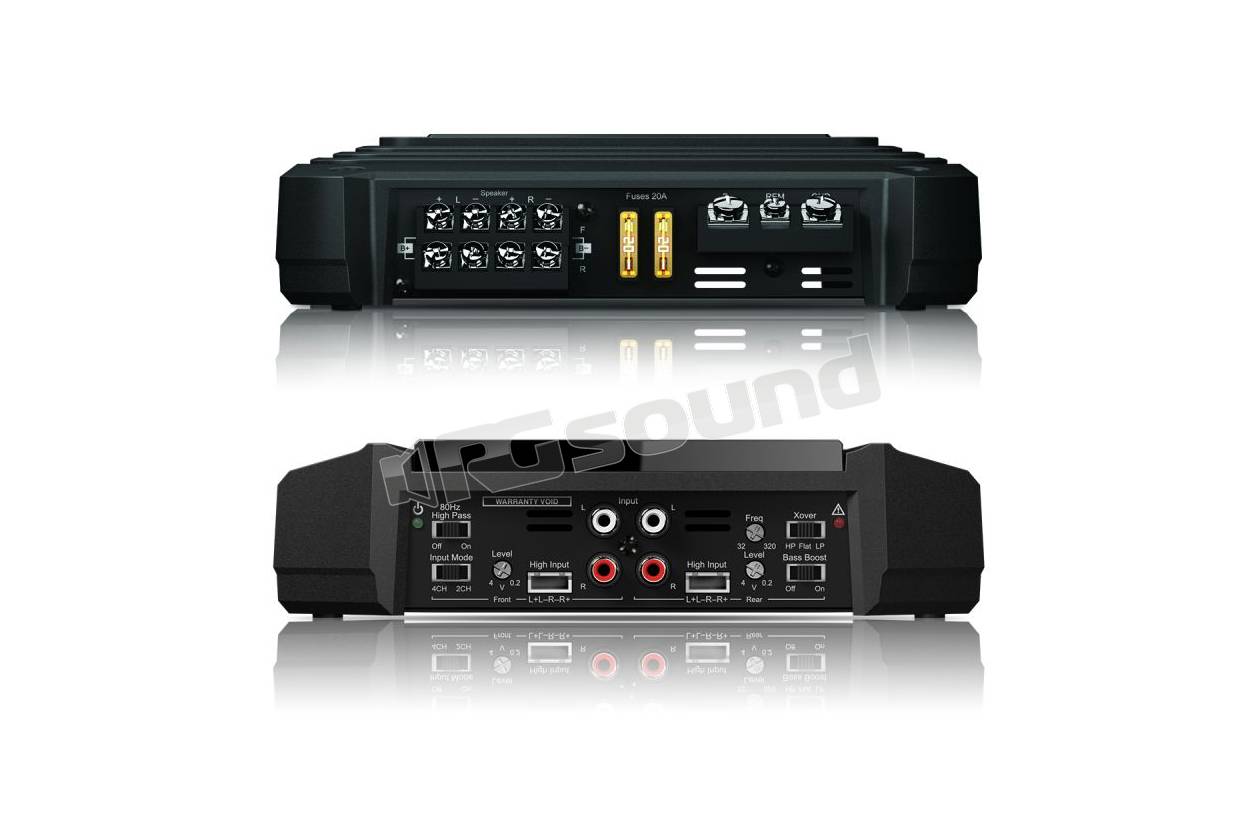

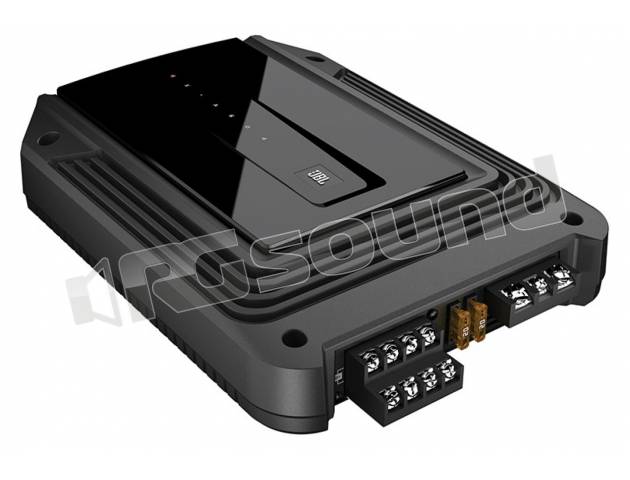

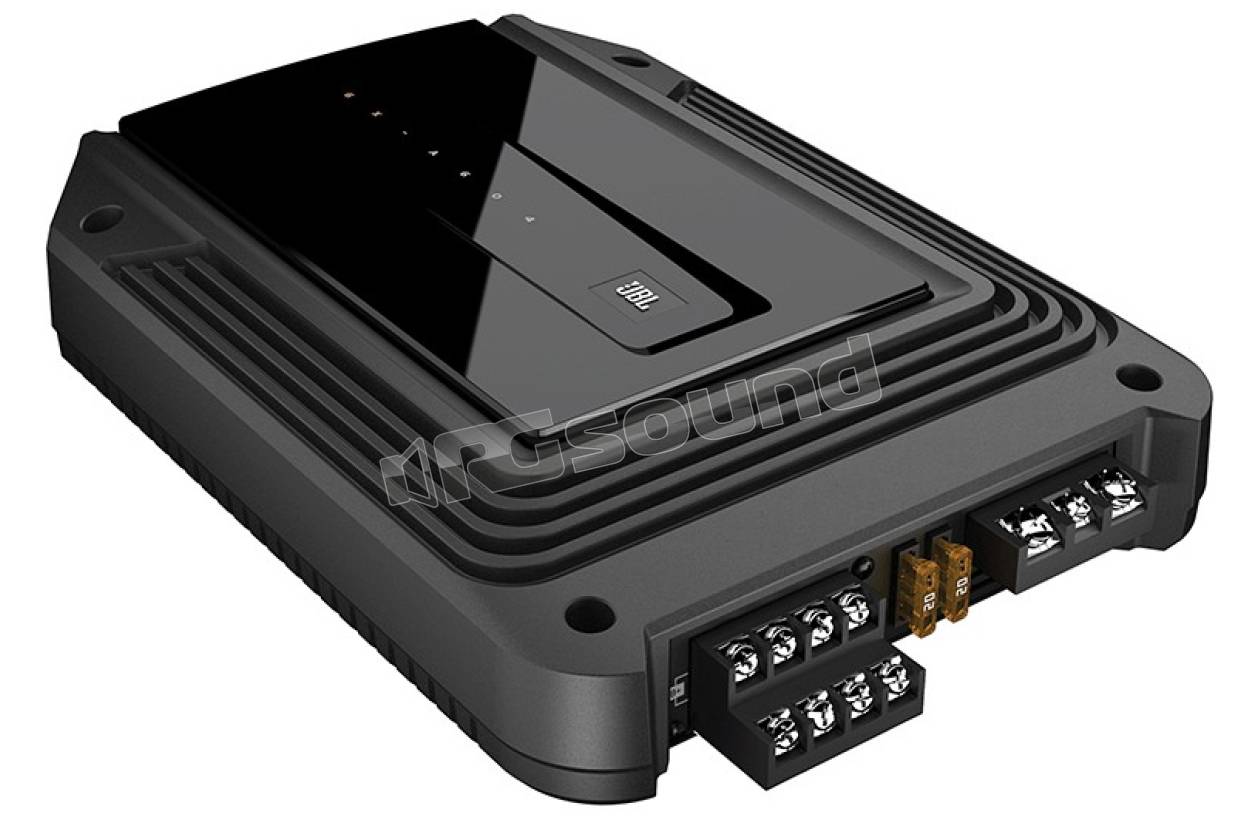

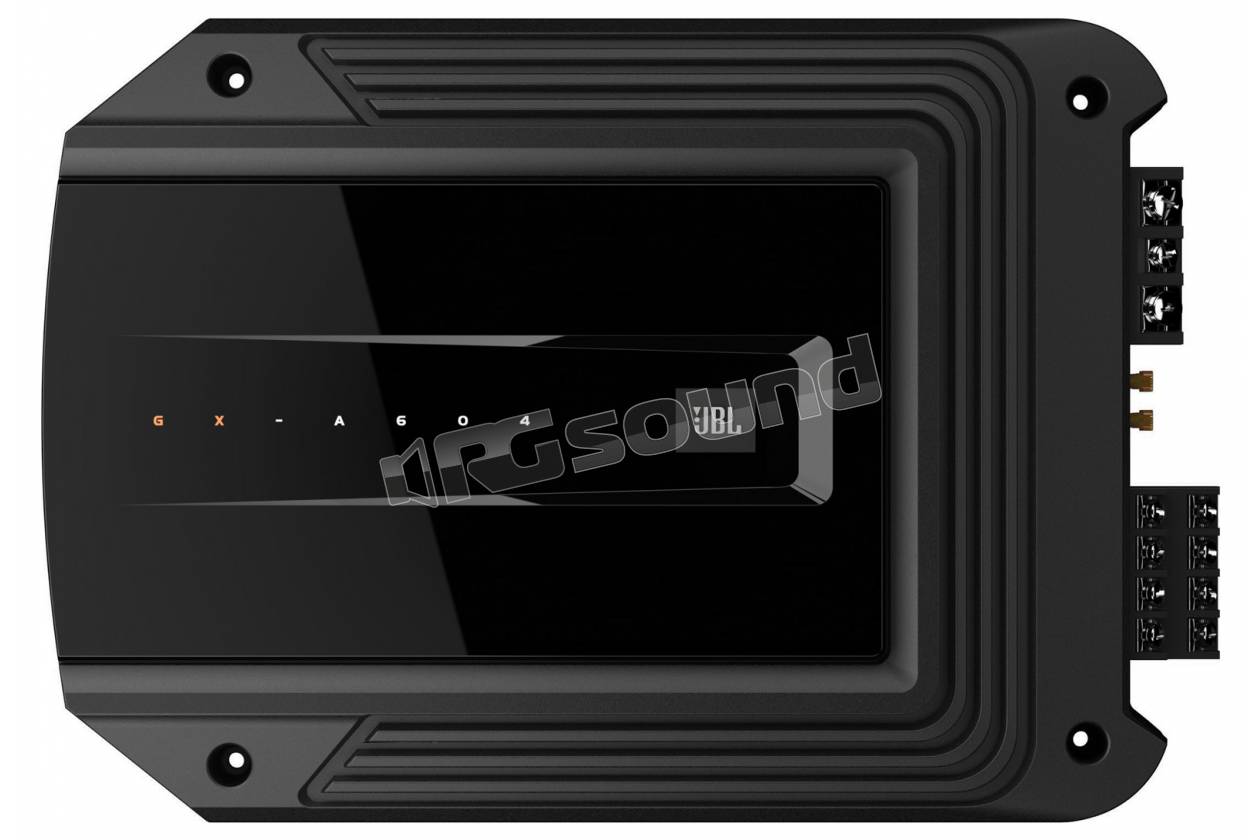

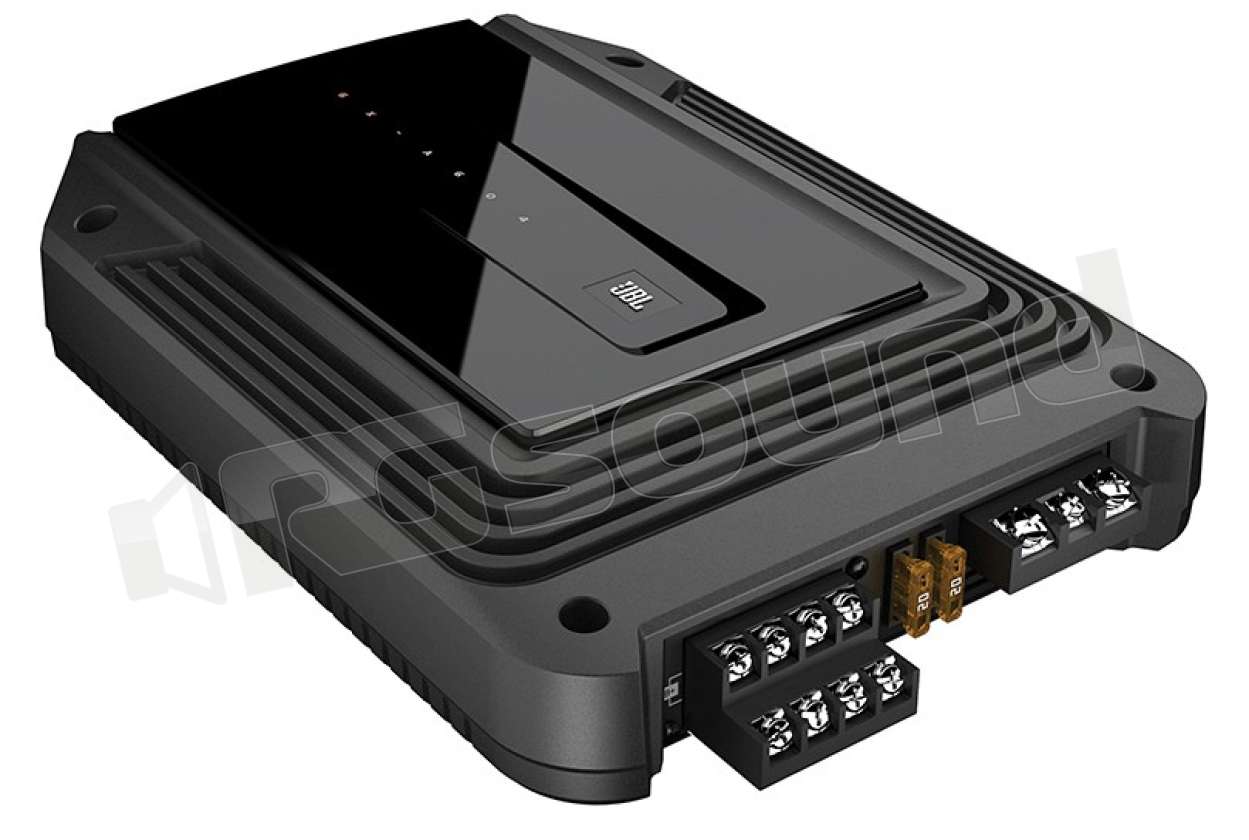

GX-A604 amplificatore a quattro canali

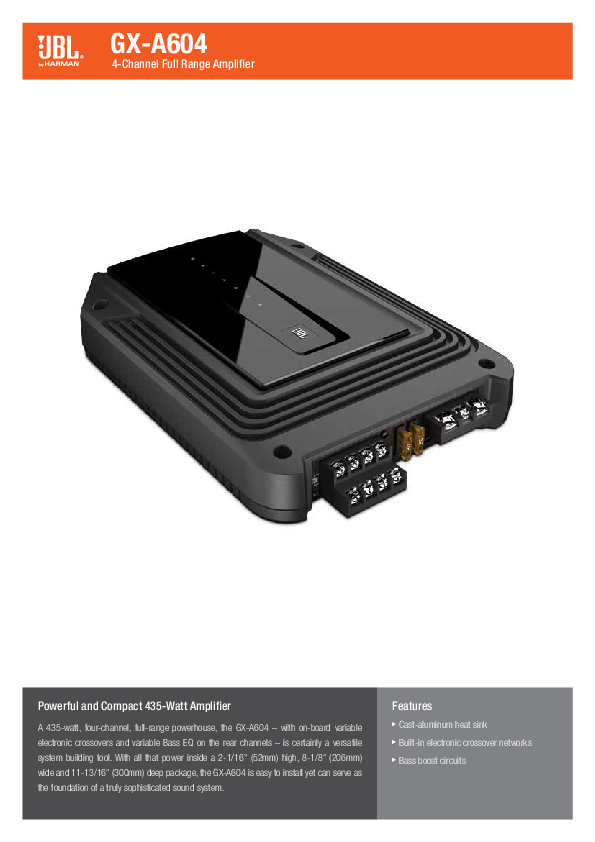

Powerful and Compact 435-Watt Amplifier

  • 4-Channel Full Range Amplifier
  • Class AB
  • 60 Watts RMS x 4 channels @ 4 ohms
  • 85 Watts RMS X 4 channels @ 2 ohms
  • 170 Watts RMS x 2 bridged into 4 ohms

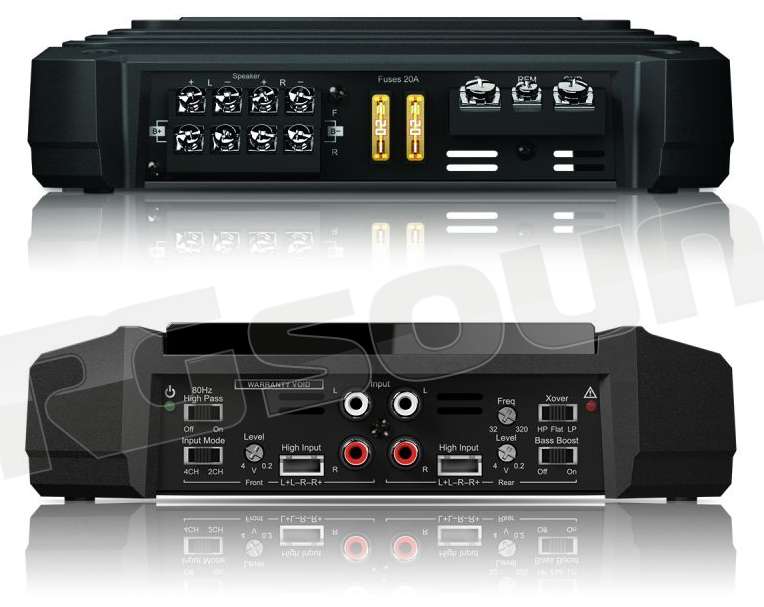

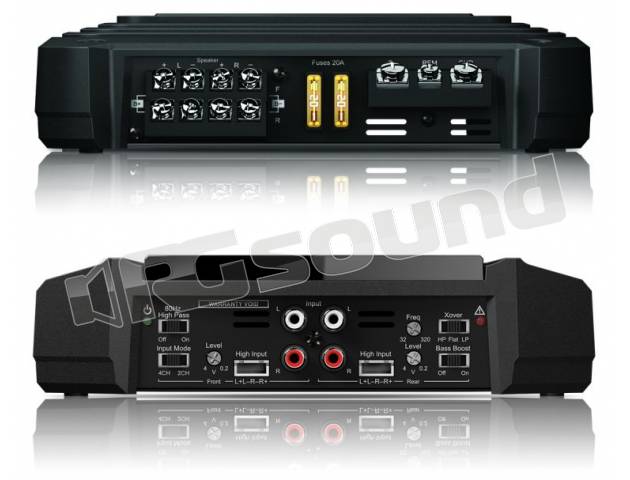

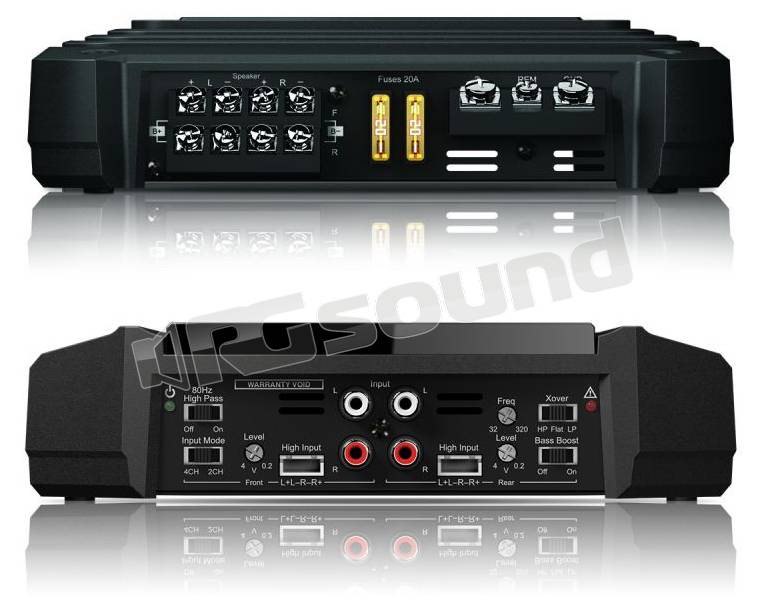

  • Speaker Level inputs w/auto turn-on via MOLEX-style connector
  • RCA inputs
  • Switchable (on/off) Bass Boost +12dB @ 45Hz on Channels 1 and 2
  • Fully Variable 12dB/octave HP/LP/FLAT crossover on Channels 1 and 2
  • Switchable (on/off) 12dB/octave 80HZ HP channels 3 and 4
  • Supports 4-channel full range or high pass operation, 3-channel mixed mode, or 2-channels bridged for a subwoofer



JBL GX-A604





CARATTERISTICHE

Audio Specifications
Number of Channels/Type 2 channels
4-Ohm Power Output 60 W rms x 2,
2-Ohm Power Output 85 W rms x 2,
Bridged Power Output 170 W x 1 into 4 ohms
Total Peak Power Output 280 Watt
Signal-to-noise Ratio (IHF-A) 93 dB
Frequency Response 20 Hz - 20 kHz ±1 dB
THD + N >1%
Control and Connection Features
Variable Electronic Crossover Yes
Subsonic Filter No
Dynamic Bass Optimization (DBO) No
Variable Bass Boost Yes
Remote Bass-Level Control Included Not possible
Input Connections L & R line-Level (RCA)
Speaker Connections 2
Signal Output Connections No
General Specifications
Dimensions (H x W x D – Metric/English) 198 mm x 206 mm x 52 mm





JBL GX-A604
