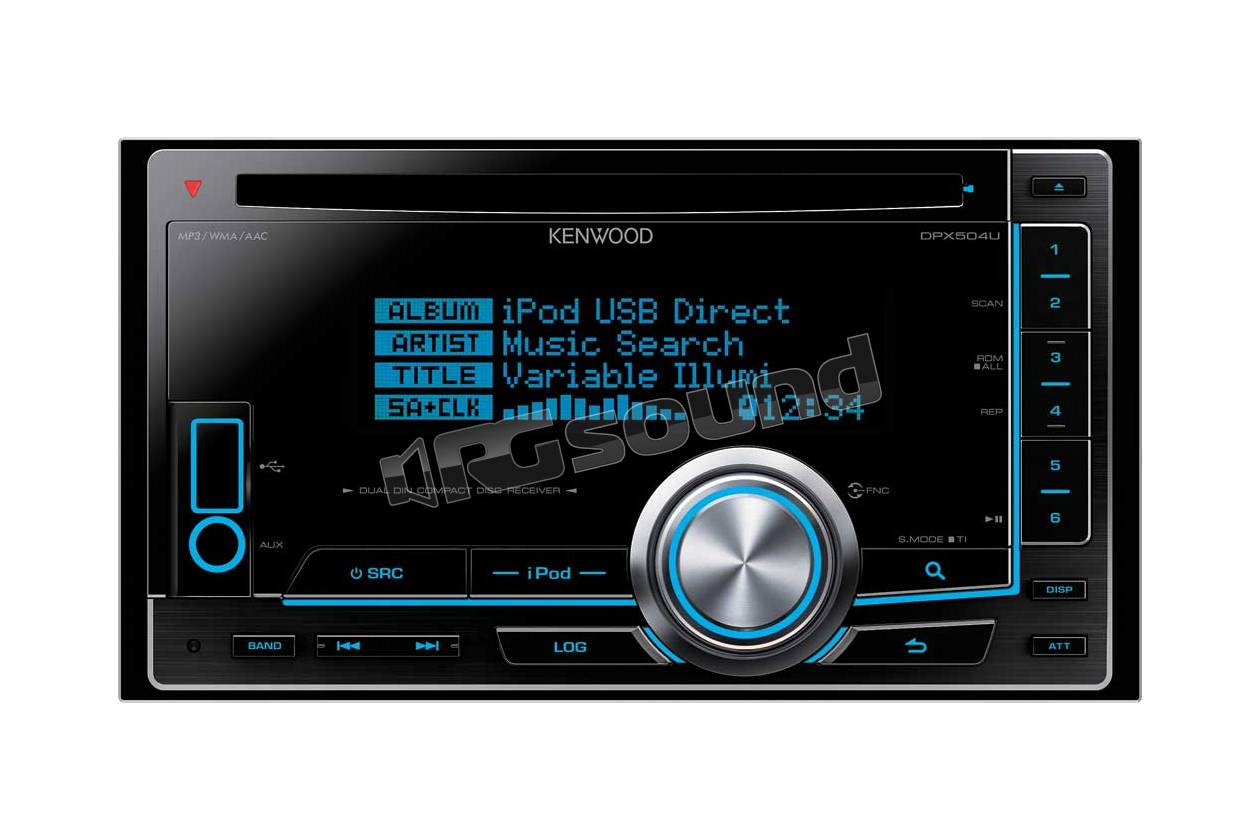

Kenwood DPX504U

Full DOT LCD display

Variable colour illumination

Front USB en AUX input

made for iPod/Iphone

Multi+language text & tag display

Ready for Bluetooth Hands-Free Profile / Audio Profile

System Q-Ex, System E's+, Digital Sound Proccessor (DSP)

Compatible with Kenwood Music editor Lite software

DIN Size

2 DIN

Security Code Function

Yes

Key Illumination

Variable

Rotary Encoder & Control Knob

Yes

Multi control wheel

Yes

Music Search function

Yes

LOG function

Yes

Accent key

Yes

Installer Memory

Yes

Attenuator with Smooth Volume Return

Yes

Touch Sensor Tone

Yes

Optional IR remote controller

Yes

Digital Clock (24H)

Yes

All-off Select (20/40/60 minutes)

Yes

Built-in Connector

Molex 16 pin

ISO connector

Yes

Optional Bluetooth unit

Yes

USB interface x 1

Yes

Display Type

LCD Display

Display Layout

4 line, Ful dot

Display Illumination

Variable

Spectrum Analyzer

Yes

Dimmer Control

2 steps - Manual

Colour control

Yes

Positive/negative switchable

Yes

Display Off Mode

Yes

Demo Mode

Yes

Menu text in selectable language

Yes, English, German, French, Italian, Spanish, Russian

Front/edge

Piano black

Dress plate

Black painted (hair line)

Volume & operation knob or wheel

Chrome Plated

Preset key finish

Piano Black

Escutcheon finish

Black Injection

Triangle Illumination

Red

Volume & operation knob illumination

Variable

Key illumination

variable

Variable color illumination

Yes

Radio Text Plus

Yes

Program Type Function (PTY)

Yes

Enhanced Other Networks Function (EON)

Yes

K3I - Clean Reception Tuner

Yes

FM Reception

Yes

AM (MW/LW) Reception

Yes

Presets

24 Presets (18FM / 3LW / 3MW)

Mixed preset memory (FM & AM)

24 presets

Tuner preset/recall key

Yes

Automatic Memory Entry (AME)

Yes

Up/Down Seek Tuning

Yes

Tuning mode (Auto1 / Auto2 / Manual)

Yes

FM Stereo / Mono Selector

Yes

CD-R/RW Compatible

Yes

MP3 Playback with ID3 Tag Display

Yes

WMA (Windows Media Audio) Playback

Yes

AAC (Advanced Audio Coding) Playback

Yes

Compatible with Kenwood Music Editor Lite

Yes

0 bit Mute

Yes

Random Function (Track/Disc)

Yes

Repeat Function (Track/Disc)

Yes

Scan Function (Track/Disc)

Yes

USB terminal

Yes, Frontside

USB Type

USB1.1 / USB 2.0

Kenwood Music Editor Lite

Yes

MP3 playback with ID3 Tag Display

Yes

WMA (Windows Media File) playback

Yes

AAC (Advanced Audio Codec) playback

Yes

Repeat/Scan/Random search

Yes

Made for iPod & iPhone *

Yes

iPod control by 5L bus

Yes

USB Digital connection (1 wire)

with optiona cable KCA-iP102

Music playback

Yes

Music library search

Yes

Alphabet search

Yes

Skip search

Yes

Related search

Yes

My playlist

Yes

Control by hand

Yes

High speed search

Yes, (ver.2)

Works with iPod Classic *

80G & 120G

Works with iPod Video *

5th/6th generation

Works with iPod Touch *

1st/2nd generation

Works with iPod Nano *

1st/2nd/3rd/4th/5th Gen

Works with iPhone *

Yes

Battery charge + power control

Yes

* Always update to latest Apple firmware

Dual Changer Control (CH1, CH2 & AUX)

Yes

CD Text Ready with Compatible KENWOOD Units

Yes

Disc & Track Repeat

Yes

Disc & Track Scan

Yes

Disc & Track Random Play

Yes

Direct Access

Yes

Bluetooth Handsfree

Yes

Bluetooth Audio Streaming

Yes

iPod Control with KCA-iP500

Yes

Maximum Output Power

50W x 4

MOSFET Power IC

Yes

Auxiliary input

Yes, front side

Auxiliary Type

Mini-jack

Pre-out

2 RCA

Pre-out Output Level

2.5V

Preout Rear / Subwoofer Switchable

Yes

Subwoofer Reference Level Adj.

Yes

Built-In Amplifier Cut-Off

Yes

Dual-Zone Source & Volume Control

Yes

Dual-Zone (FRONT / REAR Switchable)

Yes

Att.(-20dB) with smooth Volume Return

Yes

Sound Excellence DSP

Yes

System Q_EX (Preset & Manual Sound Control)

Yes

Equalizer built-in

Yes

System E's+ (Built-in HPF & LPF)

Yes

Highway sound

Yes

Equalizer:

5 bands

Digital Time Alignment (DTA)

Yes

Preset Equalizer curve (KBS)

Yes

iPod Equalizer curve preset

Yes

Manual Equalizer Control

Yes

Cabine selection

Yes

Listening position selection

Yes

New Bass-Boost

Yes

Speaker setting Front:

Yes

Speaker setting Rear:

Yes

Speaker setting Subwoofer:

Yes

External Media Control Bus (5L)

Yes

Changer Control (5L-Bus)

Yes

iPod I/F Control (5L-Bus)

Yes

Bluetooth Control (5L-Bus)

Yes

iPod Digital Connection (1 Wire)

Yes, with optional KCA-iP102

USB interface

Yes

OEM Wired Remote Control

Yes

Power Control (P.CON) wire

Yes

2-way (Tel/Navi) mute wire

Yes

FM Frequency Range

87.5MHz ~ 108MHz

FM Frequency Step

50kHz

FM Usable Sensitivity

1μV/75ohm (S/N 26dB)

FM Quieting Sensitivity

2.5μV/75ohm (S/N 46dB)

FM Frequency Response

30Hz ~ 15kHz (± 3dB)

FM Signal to noise ratio (Mono)

63dB

FM Stereo Separation (1kHz)

40dB

MW Frequency Range

531kHz ~ 1611kHz

MW Frequency step

9kHz

MW Usable Sensitivity

36μV (S/N 20dB)

LW Frequency Range

153kHz ~ 279kHz

LW Usable Sensitivity

57μV (S/N 20dB)

Laser Diode

GaAlAs

Digital Filter(D/A)

8 Times Over Sampling

Digital/Analogue Converter

24 Bit

Spindle Speed

500 ~ 200rpm (CLV: 1 times)

Wow & Flutter

Below Measurable Limit

Frequency Response

10Hz ~ 20kHz (±1dB)

Total Harmonic Distortion

0.008% (1kHz)

Signal to Noise Ratio

110dB (1kHz)

Dynamic Range

93dB

MP3 Decoder

Compliant with MPEG-1/2 Audio Layer-3

WMA Decoder

Compliant with Windows Media Audio

AAC Decoder

AAC-LC ".m4a" files

USB Version compatibility

1.1 / 2.0

File System

FAT 16/32

Maximum Supply current

500mA

D/A Converter

24 bit

MP3 Decode

Compliant with MPEG-1/2 Audio Layer-3

WMA Decode

Compliant with Windows Media Audio

AAC Decode

AAC-LC ".m4a" Files

Maximum Power

50W x 4

Output Power (DIN45324,+B=14.4v)

30W x 4

Preout Level

2500mV / 10kOhm,

Preout Impedance

≤ 600Ohm

Speaker Impedance

4Ohm ~ 8Ohm

AUX Frequency Response

20Hz ~ 20kHz (±1dB)

AUX Maximum Input Voltage

1200mV

AUX Input Impedance

10kOhm

Operating voltage

14.4V (11 ~ 16V Allowable)

Maximum Current Consumption

10A

Dimensions (WxHxD)

181.7 x 111.2 x 158mm

Weight

1500gr
