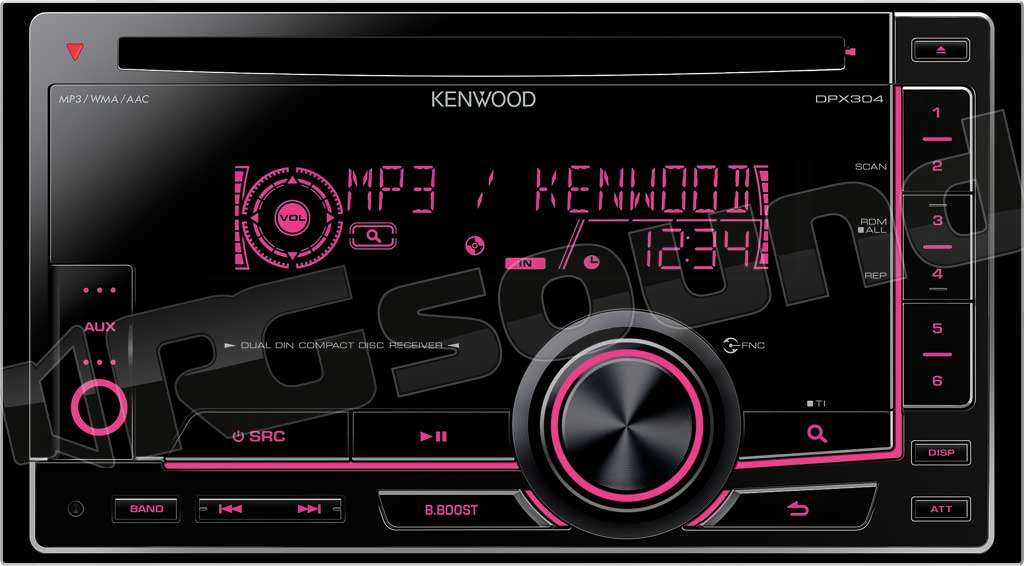

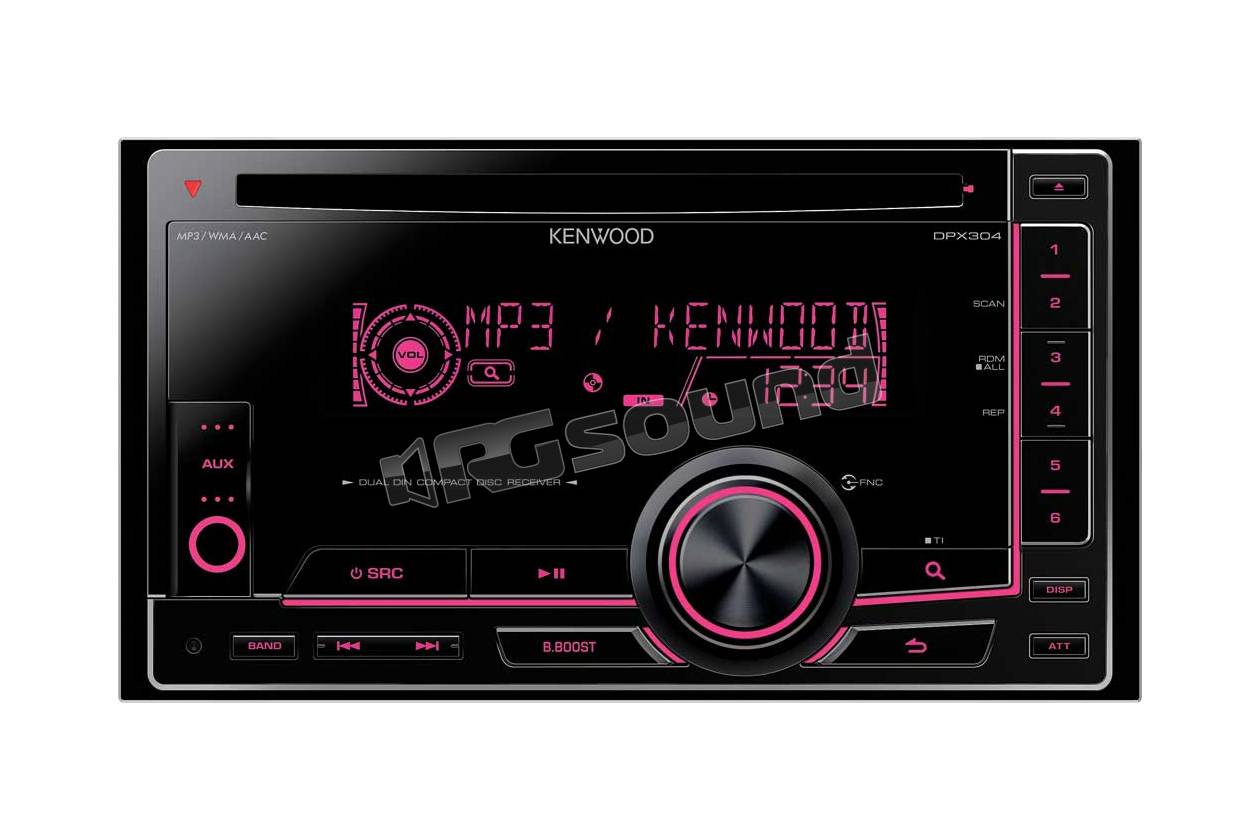

Kenwood DPX304
il tuo prezzo: € 99,90
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto
Sintolettore 2 din
| 14Seg / 13 characters + 7Seg / 4 digit LCD display |
| Variable colour illumination |
| Front AUX input |
| OEM steeringwheel remote terminal |
| Radio data system tuner with radio text plus |
| 4 x 50W, 2 Preouts 2.0V |
| System E's+, system Qex sound system |
General Features
| DIN Size | 2 DIN |
| Security Code Function | Yes |
| Key Illumination | Variable |
| Rotary Encoder & Control Knob | Yes |
| Multi control wheel | Yes |
| Music Search function | Yes |
| Favorite Memory function | Yes |
| Accent key | Yes |
| Installer Memory | Yes |
| Attenuator with Smooth Volume Return | Yes |
| Touch Sensor Tone | Yes |
| Optional IR remote controller | Yes |
| Digital Clock (24H) | Yes |
| All-off Select (20/40/60 minutes) | Yes |
| Built-in Connector | Molex 16 pin |
| ISO connector | Yes |
Display Features
| Display Type | LCD Display |
| Display Layout | 14 segments x 13 Characters + 7 segments x 4 digits |
| Display Illumination | Variable |
| Dimmer Control | 2 steps - Manual |
| Colour control | Yes |
| Positive/negative switchable | Yes |
| Display Off Mode | Yes |
| Demo Mode | Yes |
| Special Character Display | Russian Characters |
Cosmetics features
| Front/edge | Piano black |
| Dress plate | Dark Silver |
| Volume & operation knob or wheel | Chrome Plated |
| Preset key finish | Piano Black |
| Escutcheon finish | Dark Silver |
| Triangle Illumination | Red |
| Volume & operation knob illumination | Variable |
| Key illumination | variable |
| Variable color illumination | Yes |
Tuner Features
| Radio Text Plus | Yes |
| Program Type Function (PTY) | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| K3I - Clean Reception Tuner | Yes |
| FM Reception | Yes |
| AM (MW/LW) Reception | Yes |
| Presets | 24 Presets (18FM / 3LW / 3MW) |
| Tuner preset/recall key | Yes |
| Automatic Memory Entry (AME) | Yes |
| Up/Down Seek Tuning | Yes |
| Tuning mode (Auto1 / Auto2 / Manual) | Yes |
| FM Stereo / Mono Selector | Yes |
CD Features
| CD-R/RW Compatible | Yes |
| MP3 Playback with ID3 Tag Display | Yes |
| WMA (Windows Media Audio) Playback | Yes |
| AAC (Advanced Audio Coding) Playback | Yes |
| Compatible with Kenwood Music Editor Lite | Yes |
| 0 bit Mute | Yes |
| Random Function (Track/Disc) | Yes |
| Repeat Function (Track/Disc) | Yes |
| Scan Function (Track/Disc) | Yes |
Audio Features
| Maximum Output Power | 50W x 4 |
| MOSFET Power IC | Yes |
| Auxiliary input | Yes, front side |
| Auxiliary Type | Mini-jack |
| Pre-out | 2 RCA |
| Pre-out Output Level | 2V |
| Preout Rear / Subwoofer Switchable | Yes |
| Subwoofer Reference Level Adj. | Yes |
| Source Tone Control & Memory | Bass / Mid / Treble |
| Balance/Fader/Loudness Control | Yes |
| Att.(-20dB) with smooth Volume Return | Yes |
| System Q_EX (Preset & Manual Sound Control) | Yes |
| System E's+ (Built-in HPF & LPF) | Yes |
Connectivity
| OEM Wired Remote Control | Yes |
| Power Control (P.CON) wire | Yes |
| 2-way (Tel/Navi) mute wire | Yes |
Tuner Specifications
| FM Frequency Range | 87.5MHz ~ 108MHz |
| FM Frequency Step | 50kHz |
| FM Usable Sensitivity | 1μV/75ohm (S/N 26dB) |
| FM Quieting Sensitivity | 2.5μV/75ohm (S/N 46dB) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 63dB |
| FM Stereo Separation (1kHz) | 40dB |
| MW Frequency Range | 531kHz ~ 1611kHz |
| MW Frequency step | 9kHz |
| MW Usable Sensitivity | 36μV (S/N 20dB) |
| LW Frequency Range | 153kHz ~ 279kHz |
| LW Usable Sensitivity | 57μV (S/N 20dB) |
CD Specifications
| Laser Diode | GaAlAs |
| Digital Filter(D/A) | 8 Times Over Sampling |
| Digital/Analogue Converter | 24 Bit |
| Spindle Speed | 500 ~ 200rpm (CLV: 1 times) |
| Wow & Flutter | Below Measurable Limit |
| Frequency Response | 10Hz ~ 20kHz (±1dB) |
| Total Harmonic Distortion | 0.008% (1kHz) |
| Signal to Noise Ratio | 110dB (1kHz) |
| Dynamic Range | 93dB |
| MP3 Decoder | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decoder | Compliant with Windows Media Audio |
| AAC Decoder | AAC-LC ".m4a" files |
Audio Specifications
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 30W x 4 |
| Preout Level | 2000mV / 10kOhm, |
| Preout Impedance | ≤ 600Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
| AUX Frequency Response | 20Hz ~ 20kHz (±1dB) |
| AUX Maximum Input Voltage | 1200mV |
| AUX Input Impedance | 10kOhm |
| Bass Tone Control | 100Hz ±8dB |
| Middle Tone Control | 1kHz ±8dB |
| Treble Tone Control | 12.5kHz ±8dB |
General Specifications
| Operating voltage | 14.4V (11 ~ 16V Allowable) |
| Maximum Current Consumption | 10A |
| Dimensions (WxHxD) | 181.7 x 111.2 x 158mm |
| Weight | 1500gr |
