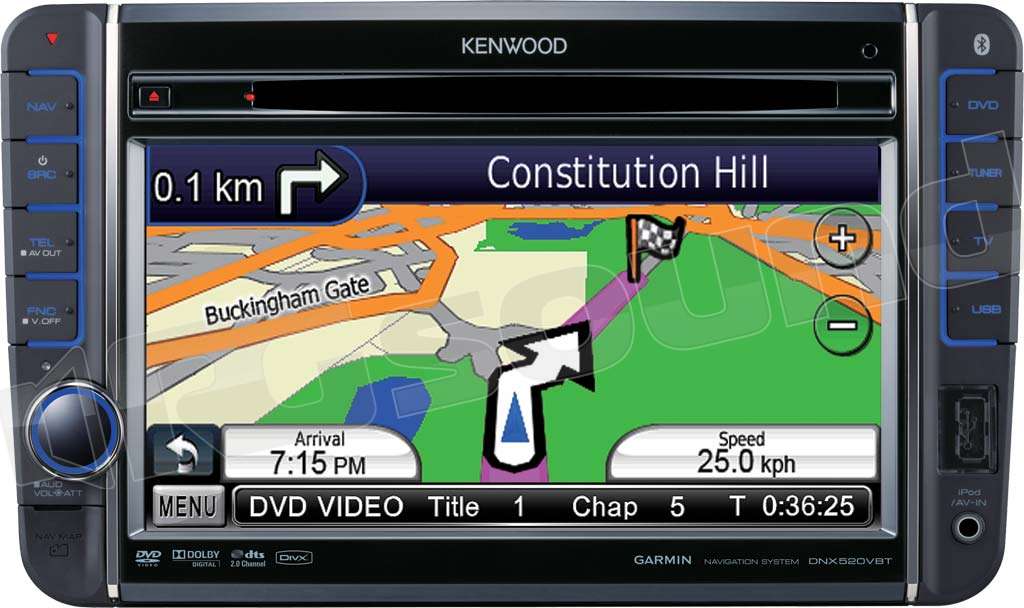

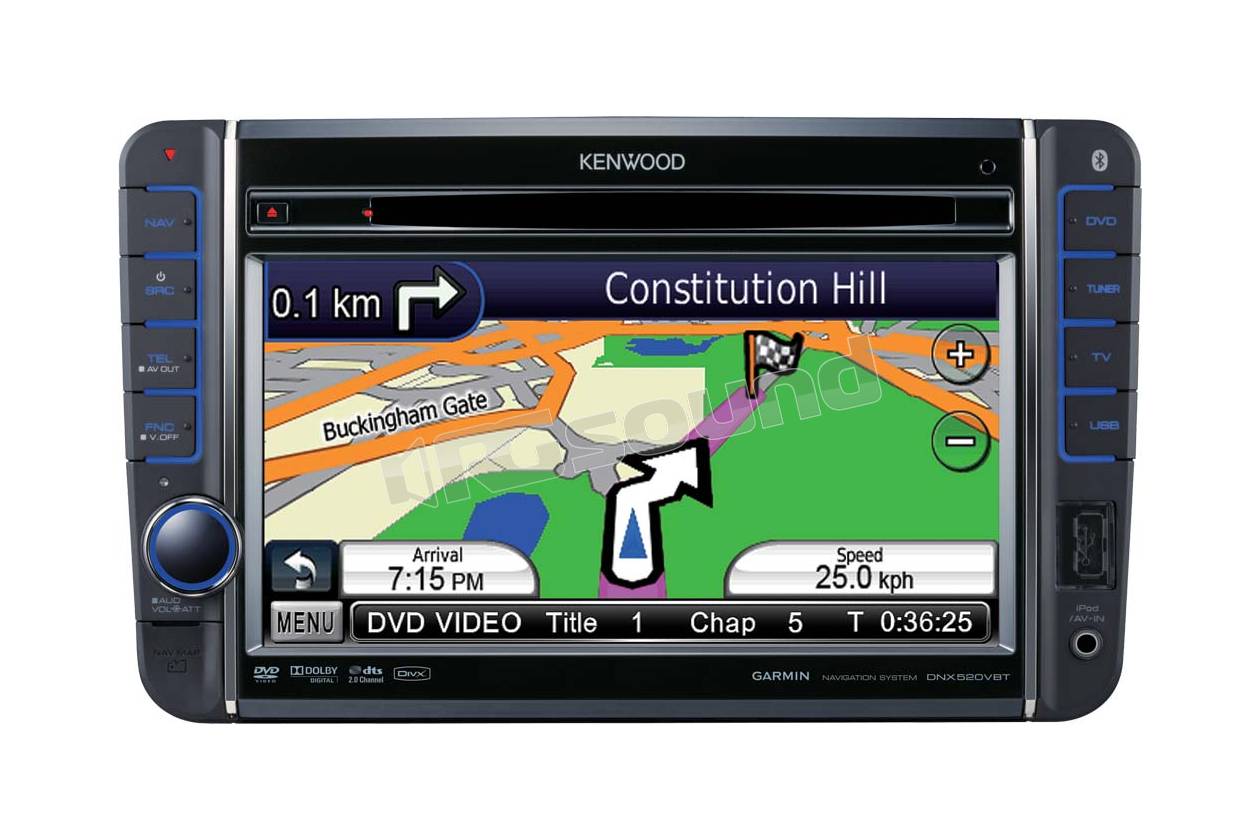

Kenwood DNX520VBT - VW SEAT SKODA

7.0 inch Wide VGA colour TFT

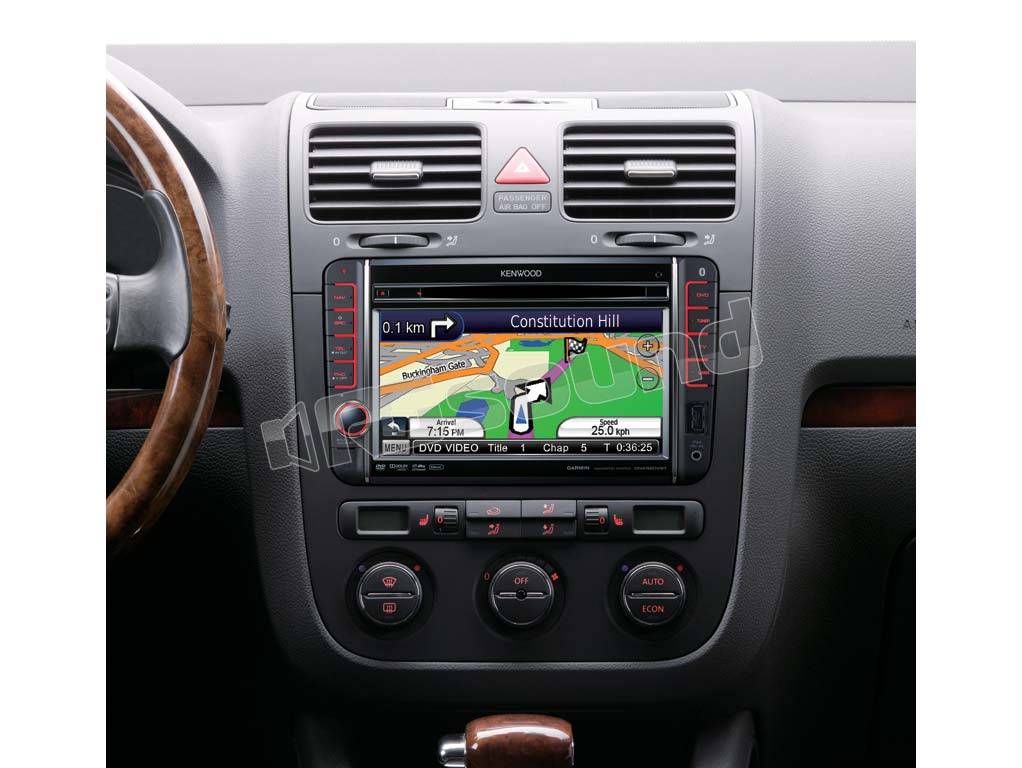

Designed for VW, ŠKODA & SEAT cars

Variable key illumination (Hard keys & GUI colour)

1 AV-In (Front), 1 AV-Out, 1 Video In for optional rear view camera

iPod, iPhone USB direct control (Requires KCA-iP240V)

Bluetooth built-in (handsfree profile/SMS)

Built in Garmin Navigation system (new platform), with V12 map included

TMC(pro) decoder built-in)

Front micro SD slot for navigation update

DivX, MPEG 1/2 Video File & JPEG File, AAC, WMA, MP3 playback

Detachable Faceplate

No

Disabled System Indicator (DSI)

Yes

Security Code Function ( user set)

Yes

On Screen Display (OSD) Operation

Yes

Smooth GUI

Yes

Key Illumination

Variable color

Rotary Encoder & Control Knob

Yes

Installer Memory

Yes

Back-up Memory

Yes

Attenuator with Smooth Volume Return

Yes

Touch Sensor Tone

Yes

Optional IR remote controller

Yes, KNA-RCDV331

Digital Clock (24H)

Yes

ISO connector

Yes

Bluetooth unit built-in (powerd by Parrot)

Yes

Navigation unit built-in

Yes

Touch-screen controllable

Yes

IR Remote controllable

Yes, Remote optional (KCA-RCDV331)

Easy-to-use Graphical Interface

Yes

Built-in Map Data

V12

Map Upgrade via

micro SD Card

3-Dimensional Map Display

Yes

2-Dimensional Map Display

Yes

Auto Zoom Function

Yes

Turn-by-Turn Instructions

Yes

Automatic Re-Route

Yes

Day/Night Colour mode

Yes, Manual/automatic

Detour Re-Routing

Yes

Route Preference Function

Yes

GPS Info page

Yes

Primary/Secundary GUI

Yes

Destination Search

► Adres
► Points of interest
► Recently found
► Favourites
► Junction
► Cities
► Routes (with optimalisation function)
► Co-ordinates
► Phone number
► Browse on map

Voice Guidance

► British English
► Bulgarian
► Cesky
► Dansk
► Deutch
► Eesti
► Ellinika
► Espagnol
► Français
► Hrvatski
► Italiano
► Lietuviu
► Magyar
► Nederlands
► Norsk
► Polski
► Portuguese
► Romana
► Slovencina
► Slovenscina
► Srpski
► Suomi
► Svenska
► Turkce

Text-to-Speech (TTS) Voice Guidance

► American English – Jack
► American English – Jill
► British English – Daniel
► British English - Emily
► Danish - Nanna
► Deutch - Steffi
► Deutch - Yannick
► Espagnol - Isabel
► Français – Virginie
► Italiano – Silvia
► Nederlands – Claire
► Norsk - Nora
► Portuguese – Madelena

Text languages

► American English
► Bulgarian
► British Englis
► Croatian
► Czech
► Dansk
► Deutsch
► Espagnol
► Estonian
► Finnish (Suomi)
► Français
► Greek
► Hungarian
► Italian
► Lithuanian
► Nederlands
► Norsk
► Poski
► Portuguese
► Romanian
► Serbian
► Slovakian
► Svenska
► Turkish

Map Coverage (West Europe)

Great Britain and Republic of Ireland
► Great Britain: Full coverage
► Isle of Man: Full coverage
► Northern Ireland: Full coverage
► Ireland: Full coverage
► Channel Islands: Full coverage
Denmark, Finland, Iceland, Norway, and Sweden
► Denmark: Full coverage
► Finland: Full coverage
► Iceland: Major roads only
► Norway: Full coverage
► Sweden: Full coverage
France and Benelux
► France: Full coverage
► Andorra: Full coverage
► Belgium: Full coverage
► Netherlands: Full coverage
► Luxembourg: Full coverage
Italy, Austria, Switzerland, and Liechtenstein
► Italy: Full coverage
► Austria: Full coverage
► Switzerland: Full coverage
► Liechtenstein: Full coverage
Spain and Portugal
► Spain: Full coverage
► Portugal: Full coverage
► Gibraltar: Full coverage
► Azores Islands: Full coverage
Germany
► Germany: Full coverage
Czech Republic
►Czech Republic: Full coverage
Greece
► Greece: Full coverage

Map Coverage (East Europe)

► Latvia: Full coverage
► Lithuania: Full coverage
► Poland: Full coverage
► Slovakia: Full coverage
► Hungary: Full coverage
► Slovenia: Full coverage
► Croatia: Detailed coverage of Baška, Cres, Dubrinj, Dubrovnik, Dugi Rat, Kali, Kastav, Kaštela, Kostrena, Kraljevica, Krapinske Toplice, Krk, Kukljica, Mali Lošinj, Malinkska-Budasnica, Omišalj, Opatija, Osijek, Pašman, Pazin, Podstrana, Poreč, Preko, Pula, Punat, Rijeka, Rovinj, Sali, Samobor, Šibenik, Solin, Split, Stupnik, Sveta Nedelja, Tkon, Trogir, Umag, Varaždin, Velika Gorica, Viškovo, Vodice, Vrbnik, Zadar, Zagreb
► Bulgaria: Detailed coverage of capital city of Sofija
► Romania: Detailed coverage of Bucuresti (Bucharest), Timisoara and Voluntari
► Turkey: Detailed coverage of Akyurt, Altındağ, Çankaya, Elmadağ, Etimesgut, Gölbaşı, Keçiören, Mamak, Sincan, Yenimahalle, Adalar, Avcılar, Bağcılar, Bahçelievler, Bakırköy, Bayrampaşa, Beşiktaş, Beykoz, Beyoğlu, Büyükçekmece, Eminönü, Esenler, Eyüp, Fatih, Gaziosmanpaşa, Güngören, Kadıköy, Kağıthane, Kartal, Küçükçekmece, Maltepe, Pendik, Sarıyer, Şişli, Sultanbeyli, Tuzla, Ümraniye, Üsküdar, Zeytinburnu, Balçova, Bornova, Buca, Çiğli, Gaziemir, Güzelbahçe, Karşıyaka, Konak, Narlıdere.
► Moldova: Major roads only
► Serbia & Montenegro: Major roads only
► Albania: Major roads only
► Macedonia: Major roads only
► Ukraine: Major roads only

Phone call by POI search

Yes

ecoRoute™

Yes

Traffic Message Channel Built-in

Yes, With TMC-Pro support in Germany

TMCpro decoder

Yes, needs upgrade

EGNOS System Compatible

Yes

Vehicle Position Sensing

by GPS

Trip Computer

Yes

Screen Type

TFT 7.0" Wide

Display Mode

4 Mode (Full/Just/Zoom/Normal)

High Resolution VGA Display

Yes

Screen Adjustments

Brightness/Tint/Color/Contrast/Black Level/Dimmer

Dimmer function

ON/OFF/Sync/Navi-Sync

Visual Source Mode

DVD/Video/Navigation/(TV)/USB/iPod

Touch Panel

Yes

Mechanism Angle Adjustment

none (fixed faceplate)

NTSC/PAL judge

Auto

OSDC Type

Full Graphics

Colour Pallet

29790

GUI colour coordinate

Yes

Menu text

English

Background Customize

Yes

Skin Change

Yes, 3D, Fire & Metal

Radio Data System

Yes

Radio Text Plus

Yes

Program Type Function (PTY)

Yes

Enhanced Other Networks Function (EON)

Yes

K3I - Clean Reception Tuner

Yes

FM Reception

Yes

AM (MW/LW) Reception

Yes

Presets

24 Presets (18FM / 3LW / 3MW)

Station Select

List

Automatic Memory Entry (AME)

Yes

Up/Down Seek Tuning

Yes

Tuning mode (Auto1 / Auto2 / Manual)

Yes

FM Stereo / Mono Selector

Yes

Mechanism

DVS-8220

Disc Capacity

1 Disc(s)

DVD±R/RW Compatible

Yes

DVD Region Code

2

VCD Compatible

Yes

CD-R/RW Compatible

Yes

CD Text

Yes

MP3

Yes

ID3 Tag

Yes

WMA

Yes

WMA Tag

Yes

AAC

Yes

AAC Tag

Yes

WAV

Yes

Digital/Analog Converter

24 bit

Shock Proof

Yes

MPEG1/2 Video File (.mpg) Compatible

Yes

JPEG File (.jpg) Compatible

Yes

DivX (Certified)

Yes

CD-DA Repeat/Scan/Random play

Yes

Direct Search

Yes

Time Code Display

Yes

Resume Play

Yes

Zoom Control (DVD/VCD)

Yes

Disc Menu Direct Touch

Yes

Picture Control (JPEG)

Yes

JPEG slide show

Yes

USB terminal

Yes

USB Type

USB1.1 / USB 2.0

MP3 playback with ID3 Tag Display

Yes

WMA (Windows Media File) playback

Yes

AAC (Advanced Audio Codec) playback

Yes

WAV (Waveform Audio Format) playback

Yes

MPEG1 Video decoder

Yes

MPEG2 Video Decoder

Yes

DivX Video Decoder

Yes

JPEG slide show

Yes

JPEG picture control

Yes

Repeat/Scan/Random search

Yes

Category search

Yes

Resume play

Yes

Time code display

Yes

Made for iPod & iPhone *

Yes

USB Video & Audio direct control (2 wire)

with optional KCA-iP240V

Music playback

Yes

Video playback

Yes

Album art support

Yes

Music library search

Yes

Alphabet search

Yes, up to characters

Works with iPod Classic *

80G & 120G

Works with iPod Video *

5th/6th generation

Works with iPod Touch *

1st/2nd Gen

Works with iPod Nano *

1st/2nd/3rd/4th/5th Gen

Works with iPhone *

Yes, iPhone, iPhone 3G & iPhone 3GS

Battery charge + power control

Yes

* Always update to latest Apple firmware

Max. Output Power (MOSFET Power IC)

4 x 50W

Pre-out

3RCA: Front/Rear/Subwoofer

Pre-out Output Level

2V

Auxiliary Input

AV Front Input with optional CA-C3AV

Rear / Subwoofer Switchable

Yes

Subwoofer Reference Level Adj.

Yes

Dual Zone Source & Volume Control

Yes

Dual Zone (FRONT / REAR Switchable)

Yes

Source Tone Control & Memory

Bass / Mid / Treble

Balance/Fader Control

Yes

Loudness Control

Yes

Att.(-20dB) with smooth Volume Return

Yes

System QEX (Preset & Manual Sound Control)

Yes

System E's+ (Built-in HPF & LPF)

Yes

Beep On/Off

Yes

Audio/Video Output

1 RCA

Audio/Video Input

Yes, Mini-jack in front panel, need optional CA-C3AV

iPod AV input switchable to additional AV input

Yes

Video-In for Rear-view Camera

1 dedicated video input (RCA)

Detection Mode Rear View Camera

Reverse sensor wire

DVD Menu Direct Touch Operation

Yes

MPEG Decoder

Yes

TV ready

Yes

OEM Wired Remote Control

Yes

Parking sensor wire

Yes

Reverse sensor wire

Yes

Power Control (P.CON) wire

Yes

2-way (Tel/Navi) mute wire

Yes

Dimmer control wire

Yes

TV Tuner Control

Yes

GPS Antenna Input

Yes

External microphone input

Yes

Hands free Profile (HPF)

Yes

Serial Port Profile (SPP)

Yes

Headset Profile (HSP)

Yes

Phonebook Access Profile (PBAP)

Yes

Phone numbers hold:

up to 1000 per registered phone.

Object Push Profile (OPP)

Yes

Synchronization Profile (SYNC)

Yes

Short Message Service (SMS)

Yes

Phone device status display

Yes

Signal strength display

Yes

Remaining battery display

Yes

Bluetooth phones to register

5

High-quality noise canceling microphone

Yes, external microphone

Bluetooth firmware upgradeable

Yes

* depends on phone model/make

FM Frequency Range

87.5MHz ~ 108MHz

FM Frequency Step

50kHz

FM Usable Sensitivity

0.7μV/750ohm (S/N 26dB)

FM Quieting Sensitivity

1.6μV/75ohm (S/N 46dB)

FM Frequency Response

30Hz ~ 15kHz (± 3dB)

FM Selectivity(DIN)

over 80dB (±400kHz)

FM Stereo Separation (1kHz)

35dB

MW Frequency Range

531kHz ~ 1611kHz

MW Frequency step

9kHz

MW Usable Sensitivity

25μV (S/N 20dB)

LW Frequency Range

153kHz ~ 281kHz

LW Usable Sensitivity

45μV (S/N 20dB)

D/A Converter

24 bit

Video decoder

Linear PCM/Dolby Digital/dts/MLP/MP3/WMA/AAC

Audio decoder

MPEG1/MPEG2/MPEG4(Divx)

Wow & Flutter

Below Measurable Limit

Freq. Resp. (96kHz Sampling)

20Hz ~ 44kHz

Freq. Resp. (48kHz Sampling)

20Hz ~ 22kHz

Freq. Resp. (44,1kHz Sampling)

20Hz ~ 20kHz

Total Harmonic Distortion

0.01% (1kHz)

Signal to Noise Ratio

98dB (1kHz)

Dynamic Range

98dB

Disc Format

DVD-Video/Video-CD/CD-DA

FM Signal to Noise Ratio

65dB(MONO)

Sample Frequency

44.1kHz/48kHz/96kHz

Quantifying bit number

16/20/24bit

USB Version compatibility

1.1 / 2.0

File System

FAT 16/32

Maximum Supply current

500mA

D/A Converter

24 bit

MP3 Decode

Compliant with MPEG-1/2 Audio Layer-3

WMA Decode

Compliant with Windows Media Audio

AAC Decode

AAC-LC "m4a" Files

WAV Decode

Linear - PCM Files

Acceptable video files

MPEG1, MPEG2, DivX

Acceptable video files extentions

mpg, mpeg, m1v, m2v, divx, div, avi

Maximum Power

50W x 4

Output Power (DIN45324,+B=14.4v)

30W x 4

Preout Level

2000mV / 10kOhm,

Preout Impedance

≤ 600Ohm

Speaker Impedance

4Ohm ~ 8Ohm

Bass Tone Control

100Hz ±10dB

Middle Tone Control

1kHz ±10dB

Treble Tone Control

10kHz ±10dB

Color System of External Video Input

NTSC/PAL

External Video Input Level (RCA)

1Vpp / 75Ohm

External Audio Max. Input Level (RCA)

2V / 25kOhm

Video Output Level (RCA)

1Vpp / 75Ohm

Audio Output Level (RCA)

1.2Vpp / 10kOhm

Screen size (Diagonal)

6.1 Inches Wide

Screen Size (WxH)

136 x 72mm

Display system

Transparent TN LCD Panel

Drive system

TFT Active Matrix System

Number of Pixels

1152000pixels (800(H) x 480(V) x RGB)

Effective pixels

99.99%

Pixel arrangement

RGB Striped

Back lighting

LED (Light Emitting Diode)

Technology

bluetooth 1.2 certified

Frequency

2.402 - 2.48 GHz

Output power

+4dBm(max), 0dBm (AVE) power class 2

Maximum range

Line of sight approx. 10 meter

Handsfree profile (HFP)

Yes

Serial port profile (SPP)

Yes

Object push profile (OPP)

Yes

Phonebook access profile (PBAP)

Yes

Receiver type

High sensitivity GPS receiver

Receiver frequency

1575.42 MHz (C/A code)

Acquisition time cold

< 38 sec

Acquisition time, factory reset

< 45 sec

Update rate

1/sec continuous

Position accuracy

< 10 meters/typical

Velocity accuracy

0.05 meter/sec RMS

Positioning method

GPS

Antenna

External GPS antenna

DC cord (Molex to ISO)

20 cm

GPS antenna

with 500 cm cable

Handsfree Microphone

with 300 cm cable

Operating voltage

14.4V (10 ~ 16V Allowable)

Maximum Current Consumption

15A

Dimensions (WxHxD)

182 x 112 x 160mm

Weight

1900gr

Operation Temperature Range

-10°C ~ 60°C

Storage Temperature Range

-20°C ~ 85°C

Instruction Manuals

ENG/FRE/GER/DUT/ITA/SPA/POR
