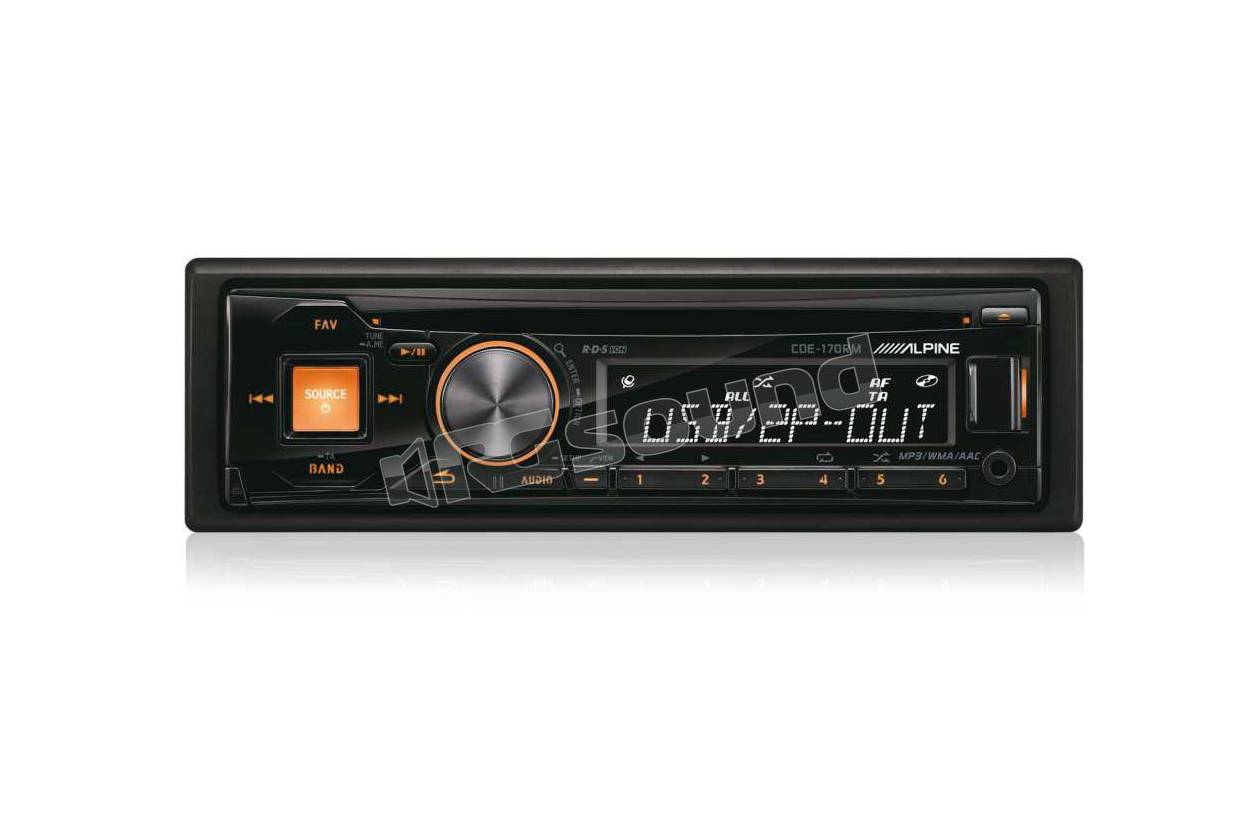

Alpine CDE-170RM illuminazione ambra

Alpine
il tuo prezzo: € 79,90
Prezzo riferito a singolo pezzo (IVA inclusa)
Formato 1 Din
Potenza MAX 200 Watt
DAB Digital Radio No
Bluetooth No
Lettore CD Si
USB Si
iPod No
Colore tasti Ambra
Pre out 4 canali
Pre out subwoofer Si

La CDE-170RM è la sorgente entry level della gamma 2013 di Alpine, con un ingresso USB frontale ed un ingresso ausiliario sulla parte anteriore, così da collegare facilmente i dispositivi portatili.



Ricarica Rapida per Ricaricare i Dispositivi

La porta USB della CDE-170RM può fornire un'alimentazione fino a 1000 mA. Questo permette di ricaricare i dispositivi portatili in pochissimo tempo.



Prestazioni e caratteristiche Bass Engine

Questa sorgente offre un equalizzatore con 10 preset integrato. E' possibile passare facilmente da una impostazione ad un settaggio audio differente. L'equalizzatore parametrico a 3 Bande Integrato permette anche una regolazione più decisa, secondo i gusti personali.



Alimentazine per HDD

Poiché queste sorgenti supportano una alimentazione di 1 Ampere, è possibile collegare e dischi rigidi portatili. Questo rende possibile godere della vostra intera libreria musicale all'interno dell' auto.



RGsound è ufficialmente riconosciuto da Alpine come "Excellent Partner". Acquistando questo prodotto potrai usufruire gratuitamente di un terzo anno di garanzia, previa registrazione nell'apposita sezione del sito Alpine.

I prodotti Alpine sono realizzati secondo elevati parametri qualitativi e vengono sottoposti a rigidi controlli. Per questo motivo i prodotti elettronici Alpine acquistati presso un punto vendita “Excellent Partner” godono di un anno di estensione di garanzia gratuita valida solo sul territorio italiano.



Audio di alta qualità e funzioni versatili per tutte le tasche.

Caratteristiche CDE-170RM:

Tuner

  • Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
  • Memory: Auto Memory
  • Seek Mode: Local/DX Selection

RDS

  • RDS Functions: AF, TA, TP, PTY, EON, Radio Text

Disc Player

  • Disc Type: CD Player
  • Disc Playback Type: CD, CD-R/RW
  • Music Playback: CDDA, MP3, WMA, AAC Playback
  • M.I.X. Random Play: Tracks/Files, All
  • Repeat
  • CD Text Display
  • CD Text Name Search
  • Percentage Search
  • DAC: Multi Bit DAC

Connessione USB

  • USB Connection: Front USB Connection with 1000mA charging support and iPhone quick charging
  • Music Playback: MP3, WMA, AAC Playback
  • USB Class: Mass Storage Class
  • File/Folder Name Search
  • Percentage Search
  • Folder Up/Down
  • M.I.X. Random Play: Files in a folder, All
  • Repeat

Sound Tuning

  • Bass Engine™
  • Subwoofer Level Adjustment
  • Subwoofer Phase Select
  • Subwoofer System Select: Subwoofer Level Control Management
  • High Pass Filter
  • Low Pass Filter
  • Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classic
  • 3-band Parametric Equalizer
  • Loudness
  • Source Tone Memory
  • Power IC Management System

Generale

  • Power Output: 4 x 50W High Power Amplifier
  • Control Type: Rotary Encoder Knob
  • Illumination Buttons: Green (CDE-170R), Amber (CDE-170RM), Red (CDE-170RR)
  • PreOut: 2 PreOuts (2V, Front + Rear/Subwoofer)
  • AUX-In: Front AUX Input (3.5mm mini jack)
  • Steering Wheel Remote Control Ready
  • Remote Control Ready
  • Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
  • Favorite Source Setting
  • Detachable DIN Trim Plate
  • Detachable Face Plate
  • Dimmer
  • Power Antenna Lead
  • Remote Turn-On

Max Power Output Ratings

  • Max Power Output: 4 x 50W

FM Tuner

  • Tuning Range: 87.5 - 108.0 MHz
  • Mono Usable Sensitivity: 0.7 μV
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2 dB

MW Tuner

  • Tuning Range: 531 - 1,602 kHz
  • Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB

LW Tuner

  • Tuning Range: 153 - 281 kHz
  • Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB

Disc Player

  • Frequency Response: 5 - 20k Hz (±1 dB)
  • Total Harmonic Distortion (at 1kHz): 0.008 %
  • Dynamic Range (at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 105 dB
  • Channel Separation (at 1kHz): 85 dB
  • Wow & Flutter (%WRMS): B.M.L.

USB

  • USB Requirements: USB 1.1/2.0
  • Max. Power Consumption: 1,000 mA
  • USB Class: Mass Storage Class
  • File System: FAT 12/16/32
  • MP3 Decoding: MPEG Audio Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: AAC-LC Format ′′.m4a′′ File
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 - 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
  • Total Harmonic Distortion (at 1kHz): 0.008 %
  • Dynamic Range (at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 105 dB
  • Channel Separation (at 1kHz): 85 dB

Sound Tuning

  • Subwoofer Level Adjustment: 0 to 15
  • Subwoofer Phase Setting: 0° or 180°
  • High Pass Filter: Off, 60/80/120/160 Hz
  • Low Pass Filter: Off, 60/80/120/160 Hz
  • Bass Level Control Range: -7 to +7 dB
  • Bass Center Frequency: 60/80/100/120 Hz
  • Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
  • Mid Level Control Range: -7 to +7 dB
  • Mid Center Frequency: 500/1k/1.5k/2.5k Hz
  • Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
  • Treble Level Control Range: -7 to +7 dB
  • Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
  • Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
  • Loudness: 10 dB

Generale

  • Power Requirement: 14.4 V.DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 2V / 10k ohms
  • Aux In: 1.4V / 10k ohms
  • Maximum Mounting Angle: 35°
  • Weight: 1.5 kg

Dimensioni

  • Din Size: 1 DIN
  • Chassis Size (W x H x D) mm: 178 x 50 x 161 mm
  • Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
