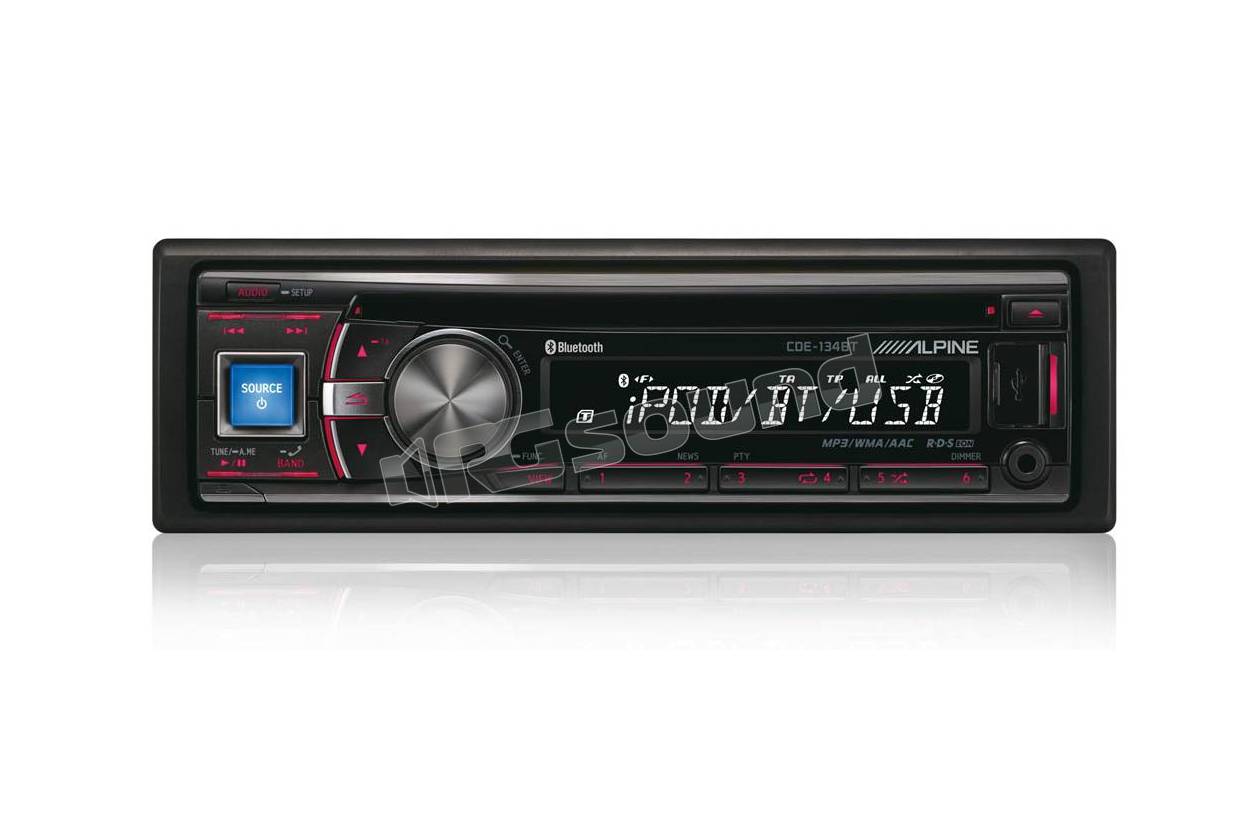

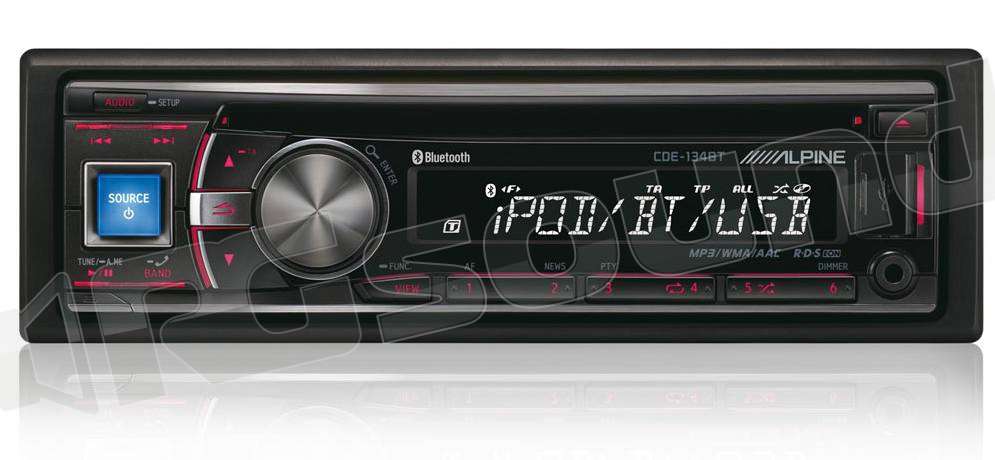

Alpine CDE-134BT

Alpine
il tuo prezzo: € 188,60

Prezzo riferito a singolo pezzo (IVA inclusa)
Formato 1 Din
Potenza MAX 4 x 50 Watt
Lettore CD Si
DAB Digital Radio No
USB Si
iPod Si
Bluetooth Si
Colore tasti Multicolore
Pre out 6 Canali
Pre out subwoofer Si

La massima qualità audio Alpine e la comodità del viva-voce Bluetooth incorporato. Il sinto cd CDE-134BT permette di ascoltare tramite USB o CD i tuoi Mp3, WMA, AAC o di connettere un iPod ® o iPhone ® tramite USB (cavo venduto separatamente).
Il Bluetooth PLUS Parrot incorporato permette sia il funzionamento in viva-voce con la possibilità di gestire le periferiche BT in modalità audio streaming.



Alpine CDE-134BT Grazie al Bluetooth Parrot Integrato, questo apparecchio è in grado di eseguire chiamate in viva voce, gestendo interamente la rubrica del telefono. Il BT PLUS offre molte nuove funzioni, come l’avviso di ricevimento SMS, la ricerca alfabetica nella rubrica, 6 numeri preferiti, la cancellazione dell’ECO, visualizzazione id3TAG con lo streming audio, indicatore di carica della batteria e molto altro!



Alpine CDE-134BT E’ possibile selezionare il colore della illuminazione dei tasti della sorgente, per abbinare al meglio la radio all’illuminazione del cruscotto. Il tasto principale può essere commutato in Verde, Blu, Rosso o Ambra, mentre gli altri tasti varieranno tra Verde o Rosso.



Alpine CDE-134BT E’ possibile controllare il vostro Phone o iPod direttamente dalla sorgente. La modalità di controllo diretto iPod, consente di utilizzare l’iPod/iPhone tenendolo  comodamente in mano, scegliendo la lingua preferita e visualizzando le informazioni nel display Apple. Questa funzione è particolarmente utile quando il passeggero sceglie la musica, mentre il guidatore tiene gli occhi puntati sulla strada. Collegate il vostro iPod ® o iPhone ® tramite la porta USB frontale della CDE-134BT, utilizzando il cavo KCU-445i o il cavo originale Apple.

-> Visita il nostro listino dei supporti per smartphone e tablet






RGsound è ufficialmente riconosciuto da Alpine come "Excellent Partner". Acquistando questo prodotto potrai usufruire gratuitamente di un terzo anno di garanzia, previa registrazione nell'apposita sezione del sito Alpine.

I prodotti Alpine sono realizzati secondo elevati parametri qualitativi e vengono sottoposti a rigidi controlli. Per questo motivo i prodotti elettronici Alpine acquistati presso un punto vendita “Excellent Partner” godono di un anno di estensione di garanzia gratuita valida solo sul territorio italiano.



Tuner

  • Memory Presets: Preset Stations (FM:18 / MW:6 / LW:6)
  • Memory: Auto Memory
  • Seek Mode: Local / DX Selection

RDS

  • RDS Functions: AF, TA, TP, PTY, NEWS, EON, RADIO TEXT, PI SEEK

BLUETOOTH®

  • Built-in Parrot Bluetooth module
  • Hands Free Calling: HFP (Hands Free Profile)
  • Head Set Calling: HSP (Head Set Profile)
  • Streaming Music: A2DP (Advanced Audio Distribution Profile)
  • Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) with TAG display
  • Connection: Secure Simple Pairing supported
  • Phone Book: Phone Book Transfer
  • Phone Book Search: Alphabet Search
  • Voice Dial Operation: Voice Dial Operation Supported
  • Auto Answer Supported
  • Call History Display: Phone Book Call/Dialled call/Received call/Missed call
  • Redialing Numbers in Outgoing History
  • Speech Volume Level Adjustment: Adjust Microphone Gain
  • Firmware Updatable
  • Microfono in dotazione

CDE-134BT Made for iPod® / iPhone®

  • Made for iPod/iPhone:
  • Connection Type: USB Connection
  • Connection for USB: Front Panel Input
  • Compatibility for iPod® / iPhone®: Made for iPod touch 4G/3G/2G/1G, iPod nano 6G/5G/4G/3G/2G/1G, iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4, iPhone 4S, iPhone 3GS, iPhone 3G and iPhone
  • Connection: USB Cable (KCU-445i) Required
  • M.I.X. (Shuffle) Play: Song, Albums, All
  • Music Control: Song Up/Down, Repeat
  • Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
  • Percentage Search (Direct Search Function)
  • Information Display: Artist name, Song name, Album name
  • Easy Navigating: Quick Search
  • Direct iPod/iPhone Control: iPod mode/HU mode selectable

CDE-134BT Works with Nokia

  • Works with supported Nokia Phones:
  • Connection Type: USB Connection
  • Muisc Playback: MP3/WMA/AAC Playback
  • File/Folder Name Search:
  • Tag Info Search: Tag display

Disc Player

  • Disc Type: CD Player
  • Disc Playback Type: CD, CD-R, CD-RW
  • Compressed Media Playback: CDDA, CDDA/MP3/AAC/WMA
  • Repeat: Music Repeat (track/all)
  • Playback Control: Play, Pause, Fast Forward/Backward
  • M.I.X. Random Play: M.I.X. Mode
  • CD Text Display: Tag display
  • DAC: Multi Bit DAC
  • Zero data Mute: Zero Data Mute
  • Digital Servo: Digital Servo

USB Media Connection

  • USB Connection: USB Connection cable Required
  • Music Playback: MP3/AAC/WMA Playback
  • USB Class: Mass Storage, MTP
  • Works with supported Nokia Phones
  • File/Folder Name Search
  • Banking: Max. 20 Banks (20,000 songs)
  • MTP Ready: Search music by Album, Artist, Song, Playlist, Genre, Composer, Folder, File

Sound Tuning

  • Subwoofer Level Adjustment
  • Subwoofer Phase Select: Subwoofer Phase Adjustment (0°/180°)
  • Subwoofer System Select
  • High Pass Filter Adjustment
  • Low Pass Filter Adjustment
  • Default Equalizer setup: USER / FLAT (Initial setting) / POPS / ROCK / NEWS / JAZZ / ELEC DANCE / HIP HOP / EASY LIS / COUNTRY / CLASSICAL
  • Equalizer: 3-Band Equalizer
  • Bass Level Adjustment
  • Bass Center Frequency Adjustment
  • Bass Bandwidth Adjustment: Bass Q Adjustment
  • Mid Level Adjustment
  • Mid Center Frequency Adjustment
  • Mid Bandwidth Adjustment: Mid Q Adjustment
  • Treble Level Adjustment
  • Treble Center Frequency Adjustment
  • Treble Bandwidth Adjustment: Treble Q Adjustment
  • Loudness Feature
  • Source Tone Memory

General CDE-134BT

  • Power Output: 4 x 50 W High Power Amplifier
  • Display: White LCD (14seg×10)
  • Control Type: Rotary Encoder Knob
  • Face Color: Black
  • Illumination Buttons: 4 Colour (Blue/Green/Red/Amber) Illumination
  • PreOut: 3 PreOuts (2V, Front/Rear/Subwoofer)
  • Bluetooth®: Parrot Bluetooth built-in
  • AUX-In: Front AUX Input (3.5mm mini jack)
  • Steering Wheel Control Ready
  • Bass & Treble control
  • Fader & Balance control
  • Mute: -20dB Mute (Remote control only)
  • Remote Control Ready
  • Display Language Bluetooth®: English, German, French, Italian, Spanish
  • AUX Mix Funtion
  • Detachable Face Plate
  • Dimmer Input
  • Power Antenna Output
  • Remote Turn-On: Amplifier Remote Turn-On Output

Max Power Output Ratings

  • Max Power Output: 4 x 50 W

FM Tuner

  • Tuning Range: 87.5-108.0 MHz
  • Mono Usable Sensitivity: 0.7 µV
  • 50dB Quieting Sensitivity: 1.3µV/13.5dBf
  • Alternate Channel Selectivity: 80.0 dB
  • Signal-to-Noise Ratio: 65.0 dB
  • Stereo Separation: 35.0 dB
  • Capture Ratio: 2.0 dB

MW Tuner

  • Tuning Range: 531-1,602 kHz
  • Usable Sensitivity (IEC Standard): 22.5µV/27.0 dBf

LW Tuner

  • Tuning Range: 153-281kHz
  • Usable Sensitivity (IEC Standard): 31.6µV/30.0dB

Disc Player

  • Frequency Response: 5Hz ~20kHz (±1 dB)
  • Channel Separation (at 1kHz): 85 dB
  • Dynamic Range (at 1kHz): 95 dB
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • Wow & Flutter (%WRMS): Below Measurable Limits
  • Signal-to-Noise Ratio: 105 dB

USB

  • USB Requirements: USB 1.1/2.0
  • Max. Power Consumption: 1,000 mA
  • USB Class: Mass Storage
  • File System: FAT 12/16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: ACC-LC format ′′.m4a′′ file
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5Hz ~20kHz (±1 dB)
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • Dynamic Range (at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 105 dB
  • Channel Separation (at 1kHz): 85 dB

BLUETOOTH®

  • BLUETOOTH® Version : Bluetooh V 3.0
  • Output Power: +4 dBm Max. (Power class 2)
  • HFP: HFP (Hands-Free Profile)
  • HSP: HSP (Head-Set Profile)
  • A2DP: A2DP (Advanced Audio Distribution Profile)
  • AVRCP: AVRCP (Audio/Video Remote Control Profile)

Sound Tuning

  • Subwoofer Level Adjustment: 0 to +15
  • High Pass Filter: OFF/60/80/120/160Hz (Selectable)
  • Low Pass Filter: OFF/60/80/120/160Hz (Selectable)
  • Bass Level Control Range: -7 to +7
  • Bass Center Frequency: 60/80/100/120Hz (Selectable)
  • Bass Bandwidth Adjustment (Q): 4 choices (0.5 =narrow, 1.0 =medium, 1.5 =medium, 2 =wide)
  • Mid Level Control Range: -7 to +7
  • Mid Center Frequency: 500/1k/1.5k/2.5kHz (Selectable)
  • Mid Bandwidth Adjustment (Q): 4 choices (0.75 =narrow, 1.0 =medium, 1.25 =medium, 1.5 =wide)
  • Treble Level Control Range: -7 to +7
  • Treble Center Frequency: 7.5k/10k/12.5k/15kHz (Selectable)
  • Treble Bandwidth Adjustment (Q): 2 choices (0.75 =narrow, 1.25 =wide)

General

  • Power Requirement: 14.4 (11-16) V.DC
  • Pre Output Voltage (Before Clipping): 2 V/10 k ohms
  • Operating Temperature (°C): -10°C to +60°C
  • Maximum Mounting Angle: 35° from Horizontal
  • Weight: 1.5 kg
  • Aux In: 1.4 V/10 k ohms

Dimensions

  • Din Size: 1DIN
  • Chassis Size (W x H x D) mm: 178 mm x 50 mm x 161 mm
  • Nose Piece Size (W x H x D) mm: 170 mm x 46 mm x 25 mm

Remote Control

  • Included/Ready: Ready
