Beyma
il tuo prezzo: € 163,20
Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Super Tweeter
Dimensione Altoparlante 100 mm
Potenza MAX 140 Watt
Potenza RMS 70 Watt
Risposta in frequenza 700 - 19.000 Hertz
Sensibilità 111 dB
Impedenza 8 Ohm
Peso 1,3 Kg
Profondità di installazione 47 mm
Diametro bobina mobile 44 mm

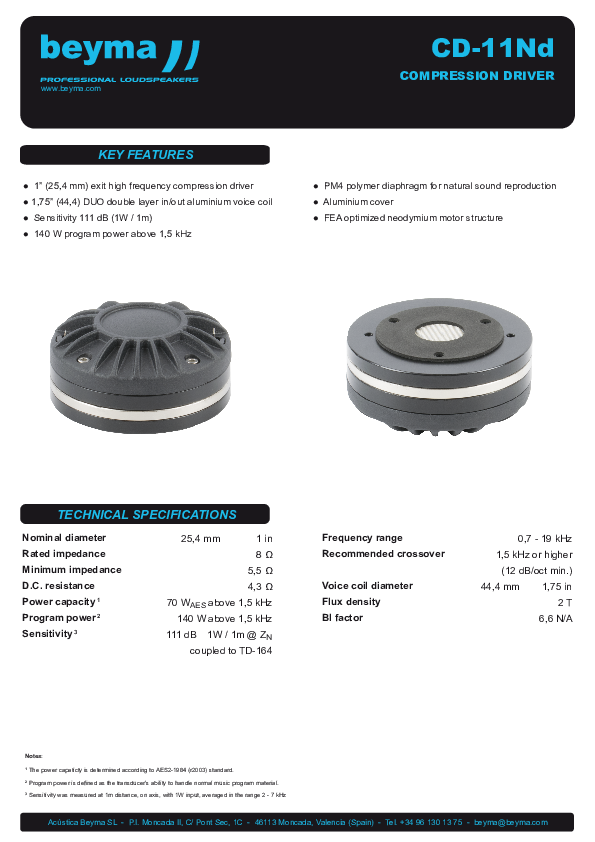

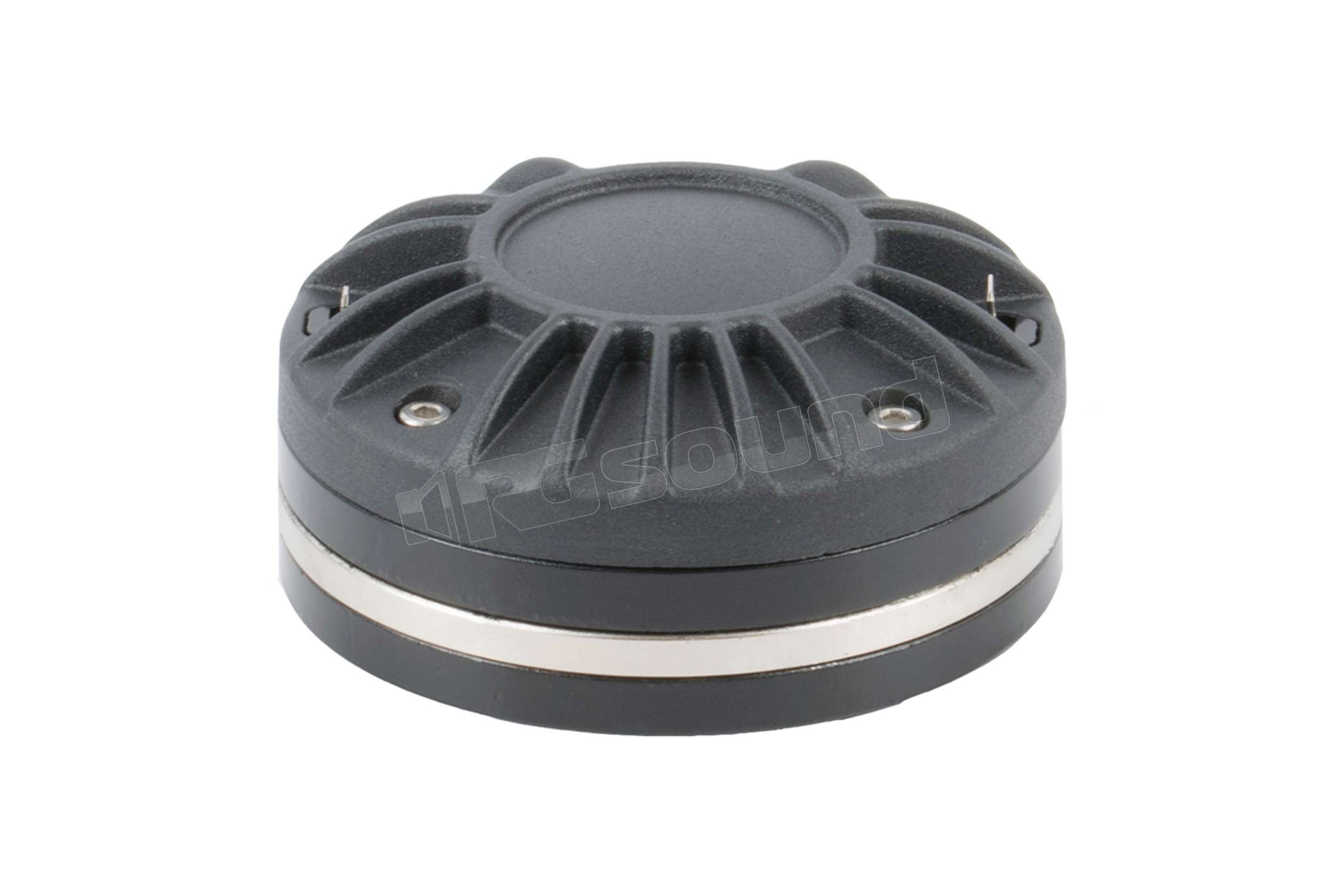

Beyma CD-11Nd high frequency compression drive



Caratteristiche tecniche:

Throat diameter 25.4 mm 1 in

Nominal impedance 8 Ohm

Minimum impedance 5.5 ohm

Re 4.3 ohm

Power capacity 70 W AES above 1.5 kHz

Program power 140 W above 1.5 kHz

Sensitivity 111 dB 1 W @ 1 m coupled to horn TD-164

Frequency range 700-19000 Hz

Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope)

Voice coil diameter 44.4 mm 1.75 in

Flux density 2 T

Diaphragm material PM4



External diameter 100 mm 3.9 in

Depth 47 mm 1.9 in



Mounting:

Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle.
Two M5 threaded holes. 180º apart on 76.2 mm (3 in) diameter circle.



Net weight 1.3 kg 2.93 lb

Total weight 1.4 kg 3.1 lb

Magnet Neodymium
