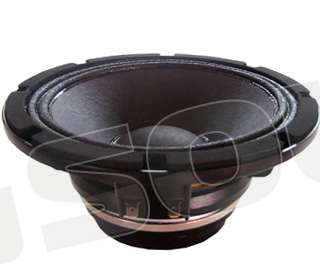

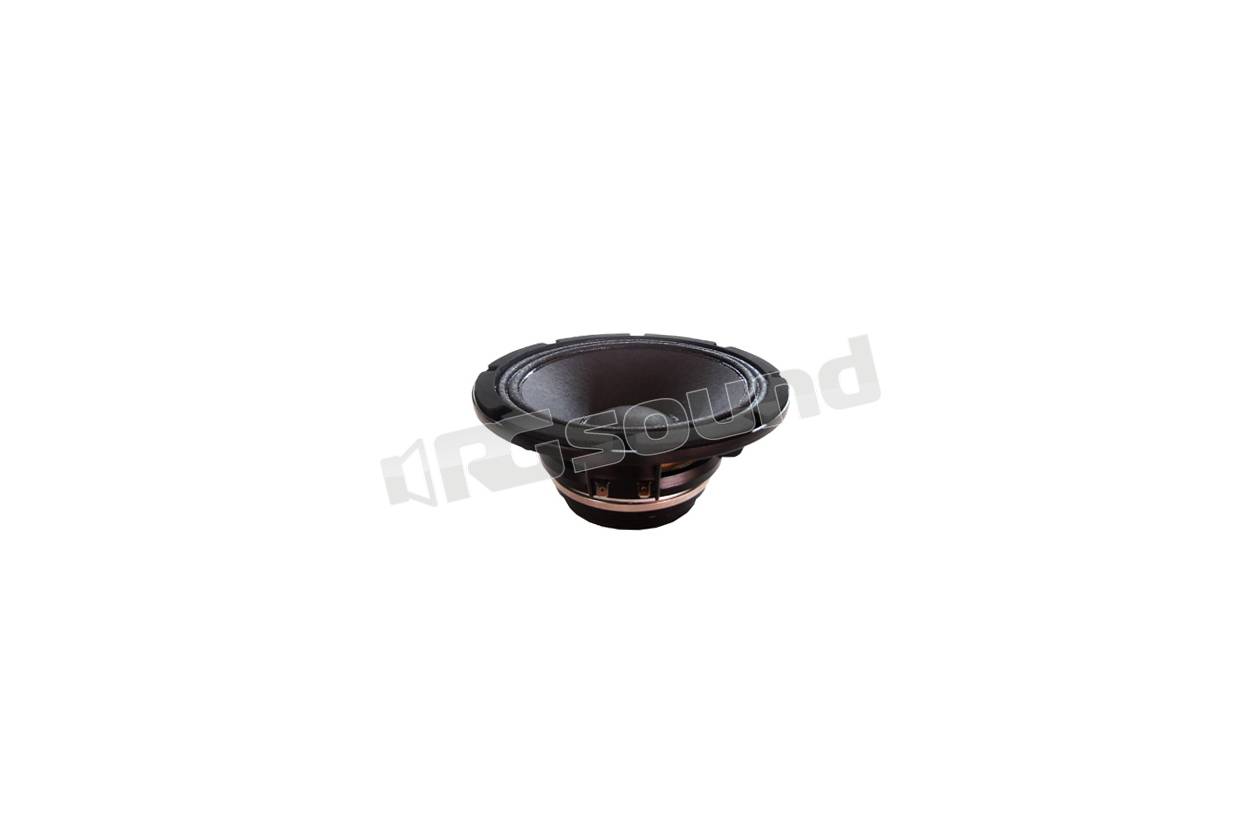

Beyma 8LW30 Subwoofer 20 cm
il tuo prezzo: € 143,50
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto

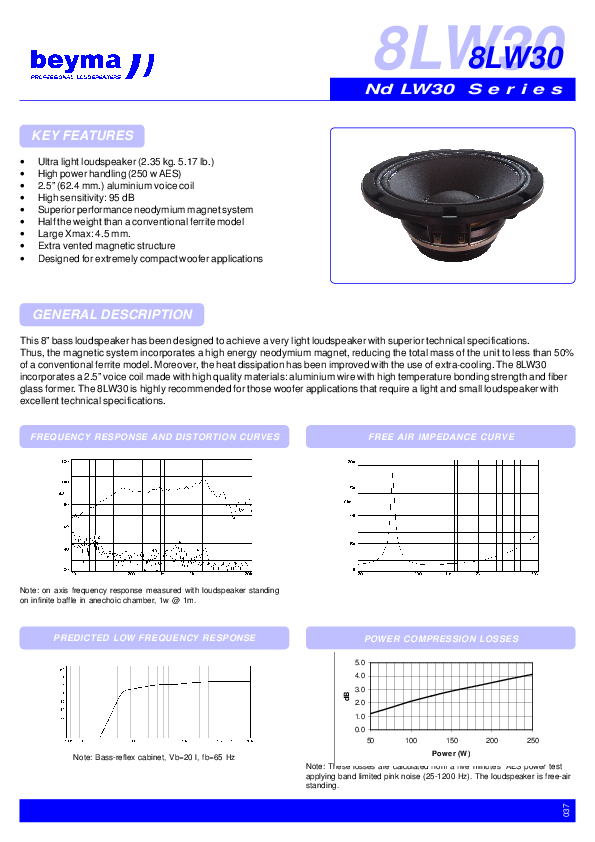

TECHNICAL SPECIFICATIONS
| Nominal diameter | 200 mm 8 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 6.9 ohm |
| Power capacity | 250 W AES |
| Program power | 500 W |
| Sensitivity | 95 dB 1 W @ 1m @ 2Π |
| Frequency range | 65-6000 Hz |
| Recommended enclosure volume | 10 / 30 l 0.35 / 1.06 ft.³ |
| Voice coil diameter | 62.4 mm 2.5 in |
| BL factor | 12 N /A |
| Moving mass | 0.022 kg |
| Winding length | 16 mm |
| Air gap height | 7 mm |
| Xdamage pp | 23 mm |
THIELE SMALL PARAMETERS
| Fs | 70 Hz |
| Re | 5.8 ohm |
| Qms | 7 |
| Qes | 0.39 |
| Qts | 0.37 |
| Vas | 16 l |
| Cms | 232 µm / N |
| Rms | 1.4 kg / s |
| Efficiency % | 1.35 |
| Sd | 0.022 m² |
| Xmax | 4.5 mm |
| Vd | 99 cm³ |
| Le @1 kHz | 1.1 mH |
CONSTRUCTIVE DETAILS
| Net weight | 2.35 kg 5.17 lb |
| Total weight | 2.5 kg 5.5 lb |
| Magnet | Neodymium |
