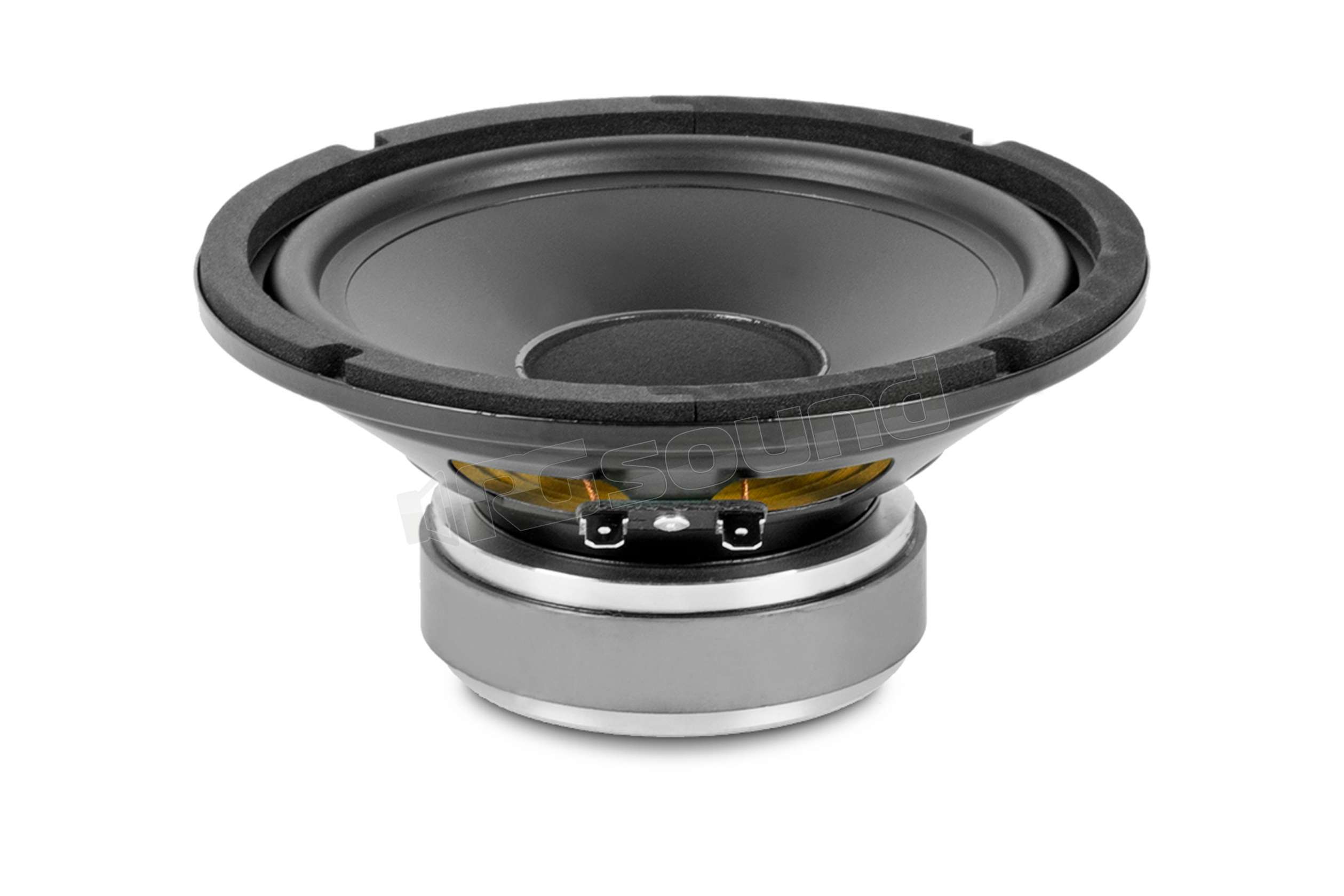

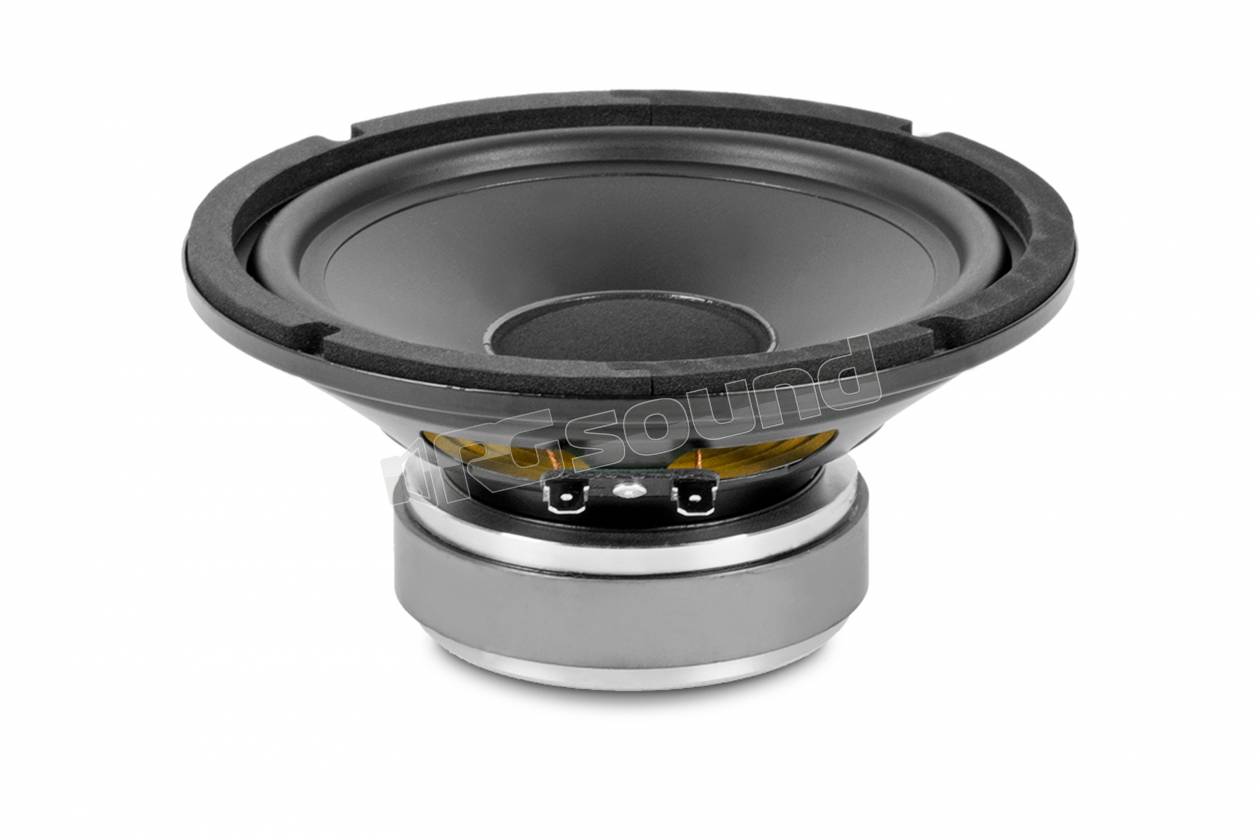

Beyma 6B30/P Woofer 165 mm

Beyma
il tuo prezzo: € 60,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Aggiungi al carrello   AGGIUNGI AL CARRELLO

TECHNICAL SPECIFICATIONS

Power capacity   50 W RMS
Nominal diameter   165 mm 6.5 in
Nominal impedance   8 Ohm
Minimum impedance   6.3 ohm
Program power   80 W
Sensitivity   90 dB 1 W @ 1m @ 2Π
Frequency range   55-8000 Hz
Recommended enclosure volume   -
Voice coil diameter   25.4 mm 1 in
BL factor   6.8 N/A
Moving mass   0.014 kg
Winding length   14 mm
Air gap height   6 mm
Xdamage pp   15 mm


THIELE SMALL PARAMETERS

Fs   56 Hz
Re   5.5 ohm
Qms   3
Qes   0.6
Qts   0.50
Vas   15.6 l
Cms   564 µm / N
Rms   1.67 kg/s
Efficiency %   0.45
Sd   0.014 m²
Xmax   5.5 mm
Vd   77 cm³
Le @1 kHz   0.3 mH

CONSTRUCTIVE DETAILS

Net weight   1.25 kg 2.76 lb
Total weight   1.5 kg 3.3 lb
Magnet   Ferrite
