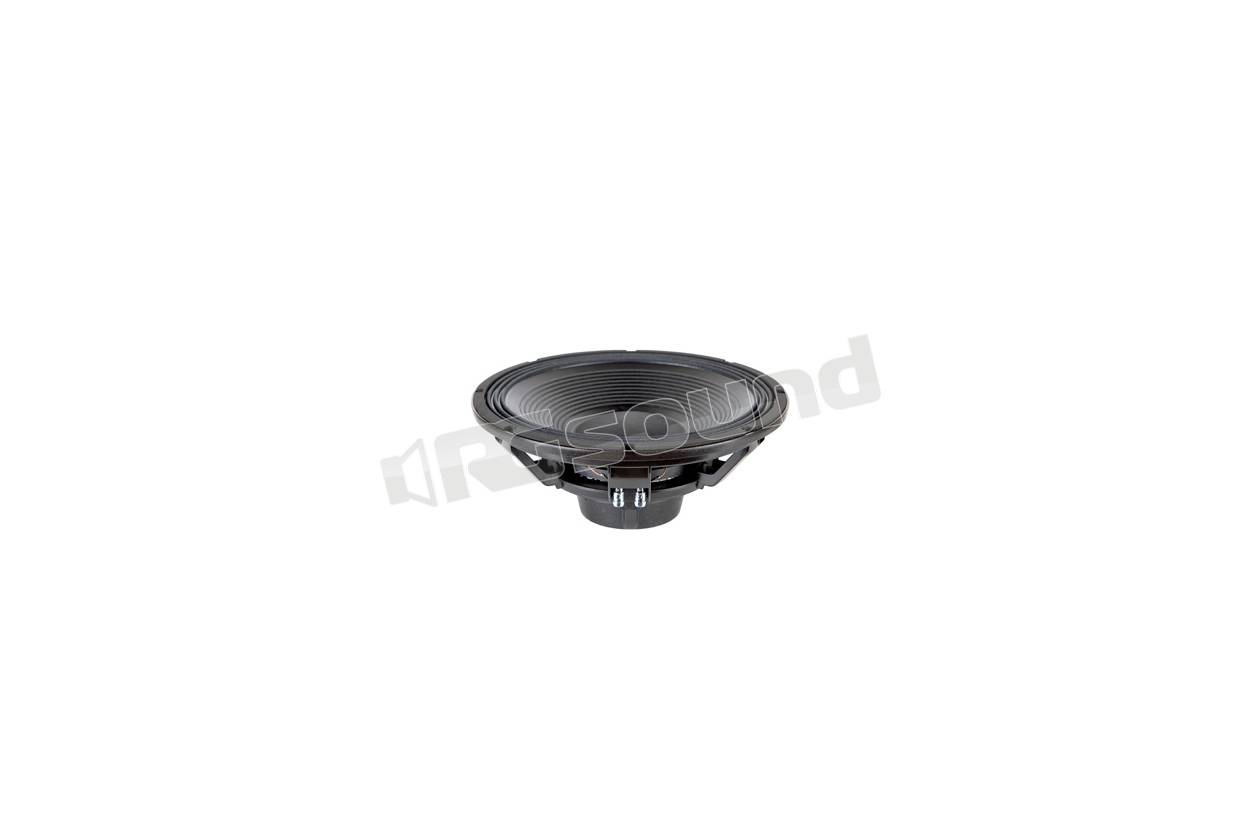

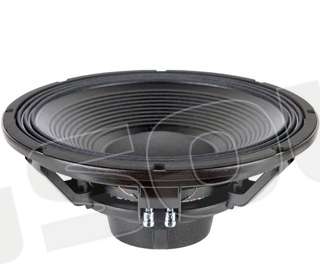

Beyma 15SW1300Nd Subwoofer 38 cm
il tuo prezzo: € 444,20
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto
TECHNICAL SPECIFICATIONS
| Nominal diameter | 380 mm 15 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 5.8 ohm |
| Power capacity | 1300 W AES |
| Program power | 2600 W |
| Sensitivity | 97 dB 1 W @ 1 m @ 2Π |
| Frequency range | 25-1800 Hz |
| Maximum recom. frequency | 200 Hz |
| Recommended enclosure volume | 40 / 150 l / 1.4 / 5.3 ft³ |
| Voice coil diameter | 100 mm 4 in |
| BL factor | 25.1 N / A |
| Moving mass | 0.160 kg |
| Winding length | 25 mm |
| Air gap height | 14 mm |
| Xdamage pp | 60 mm |
THIELE SMALL PARAMETERS
| Fs | 44 Hz |
| Re | 5.2 ohm |
| Qms | 14.7 |
| Qes | 0.37 |
| Qts | 0.36 |
| Vas | 89.6 l |
| Cms | 81.5 µm/ N |
| Rms | 3.02 kg / s |
| Efficiency % | 1.99 |
| Sd | 0.088 m² |
| Xmax | 10 mm |
| Vd | 836 cm³ |
| Le @1 kHz | 3.45 mH |
CONSTRUCTIVE DETAILS
| Net weight | 7.7 kg 16.94 lb |
| Total weight | 8.7 kg 19.14 lb |
| Magnet | Neodymium |
