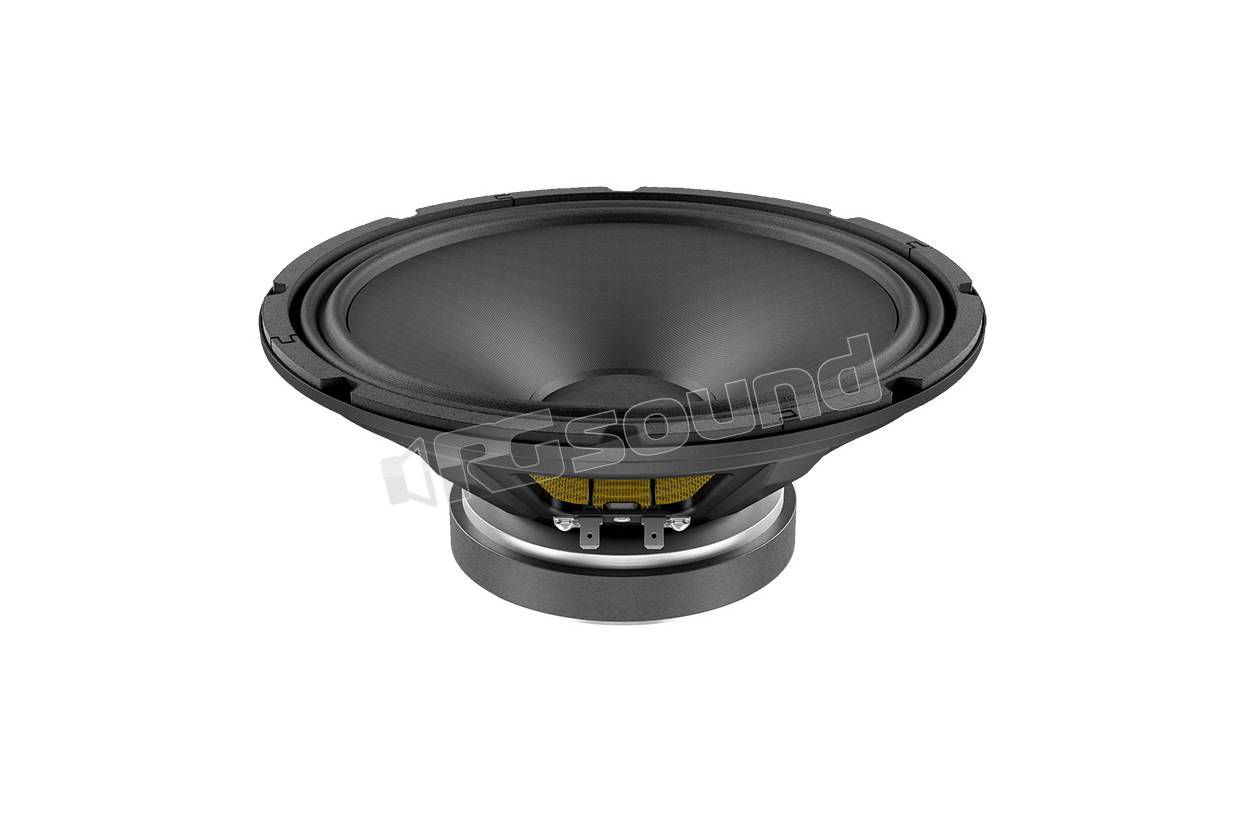

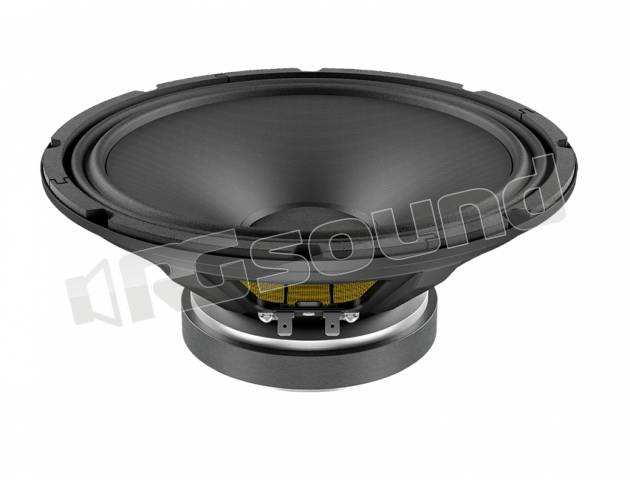

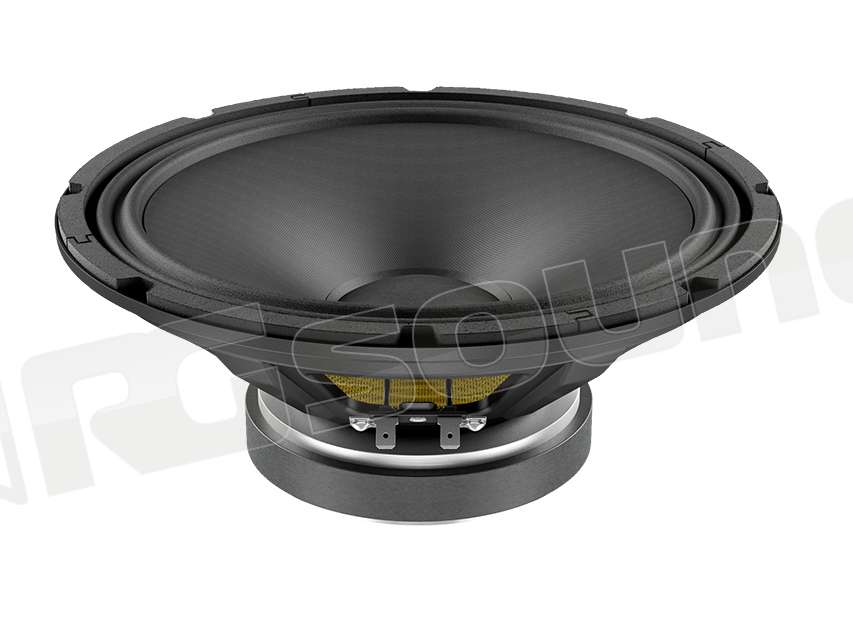

LaVoce WSF101.82 Woofer 250mm (10 pollici)
Fai una domanda sul prodotto
LaVoce WSF101.82 Woofer 250mm (10 pollici) Nom. Ø: 10" - V.C. Ø: 1,8'' - Power handling: 150 W AES / 300 W Program, Sensitivity: 97,5 dB, Frequency range: 65 - 3000 Hz
LaVoce codice 70R02100
Features
- 1.8 INCH COPPER VOICE COIL
- 97,5 dB/SPL SENSITIVITY
- 300 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
General Specifications
| Nominal diameter | mm (in) | 250 (10) |
| Nominal Impedance | Ohm | 8 |
| Minimum impedance | Ohm | 6,4 |
| Program power | W | 300 |
| AES Power rating | W | 150 |
| Sensitivity | dB | 97,5 |

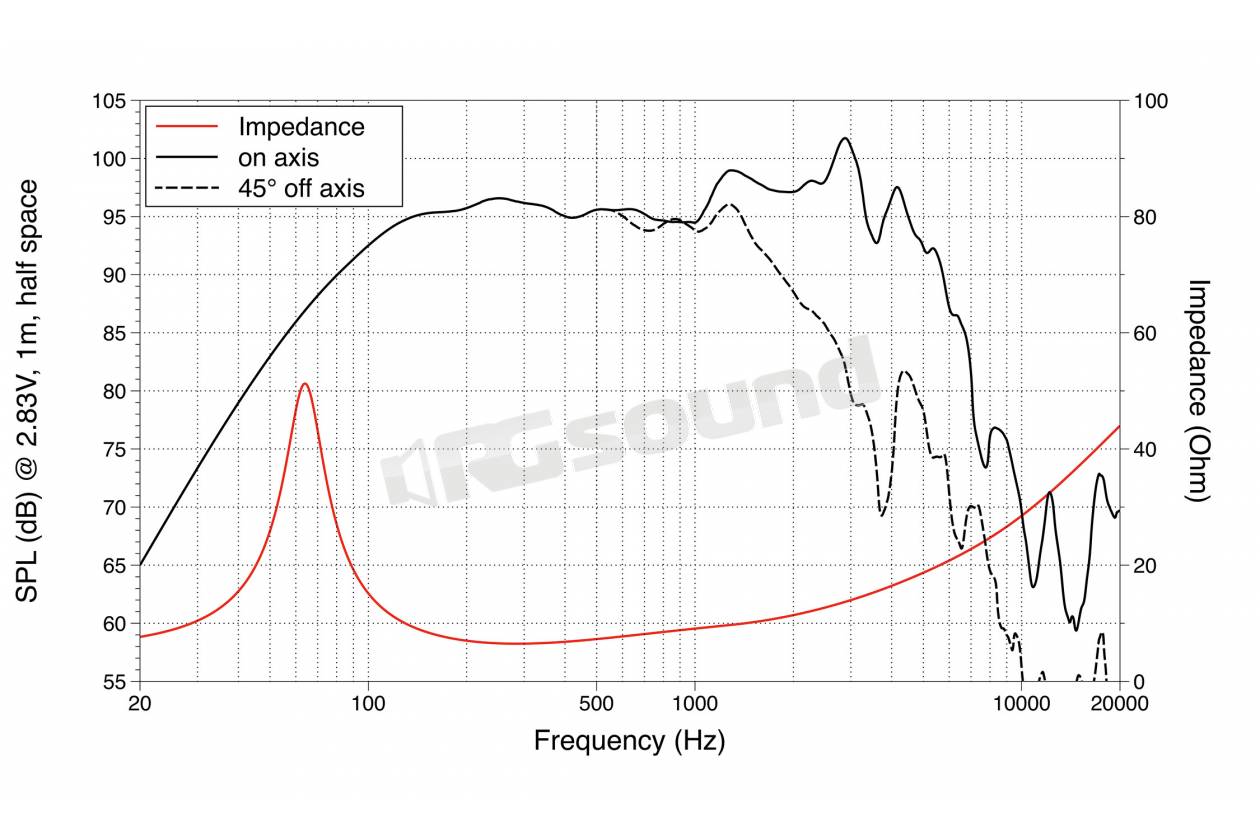

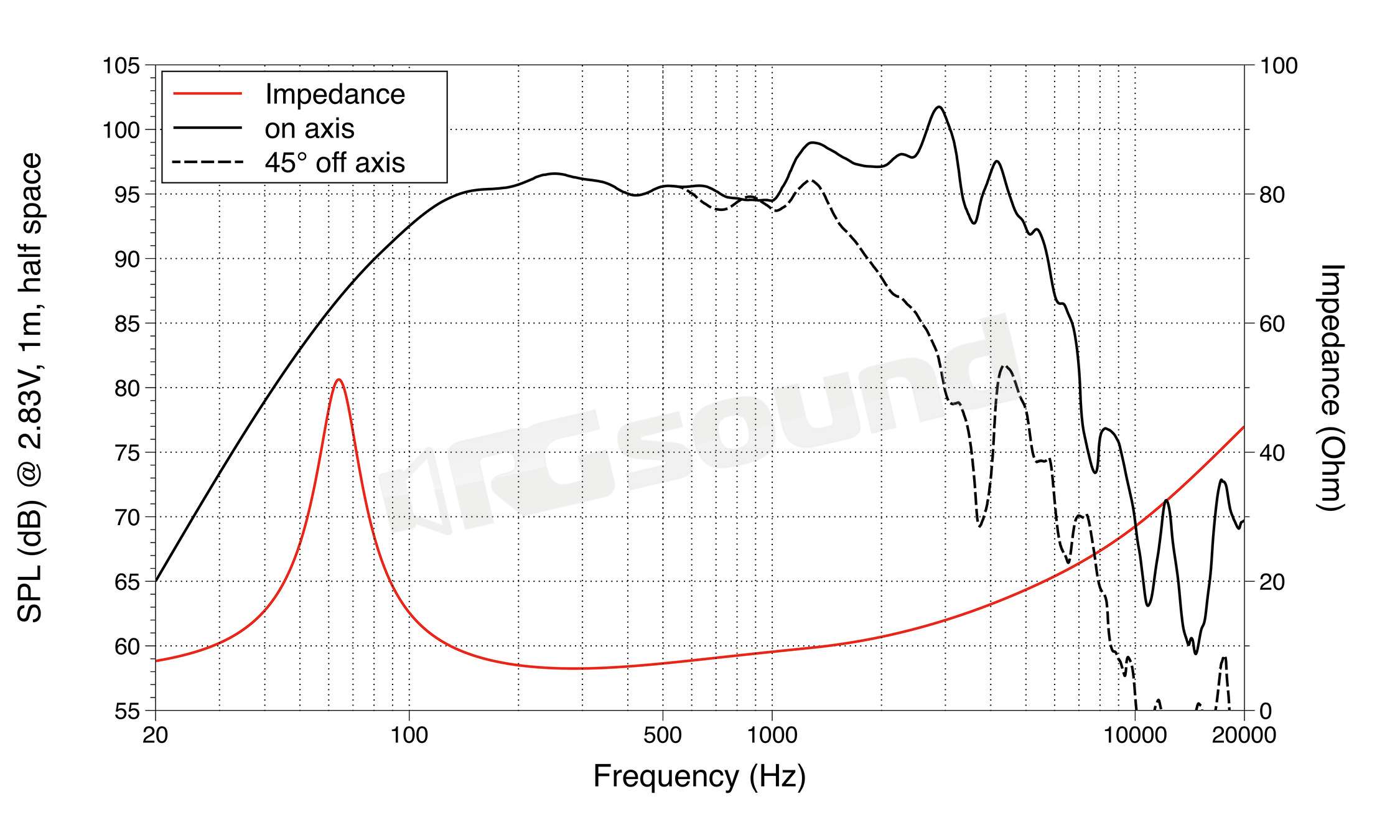

| Frequency range | Hz | 65 ÷ 3000 |
| Voice coil diameter | mm (in) | 45 (1.8) |
| Chassis material | Steel | |
| Magnet material | Ferrite | |

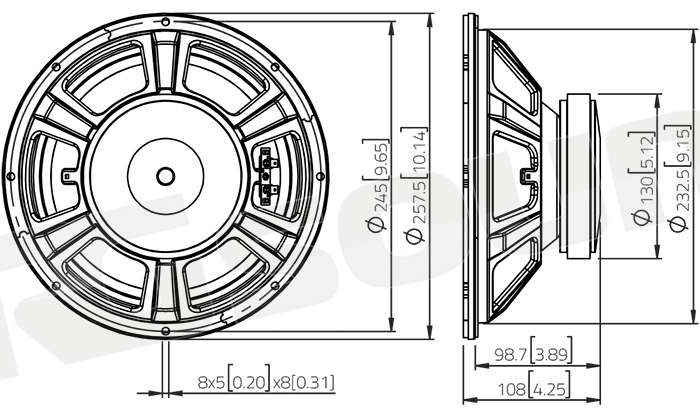

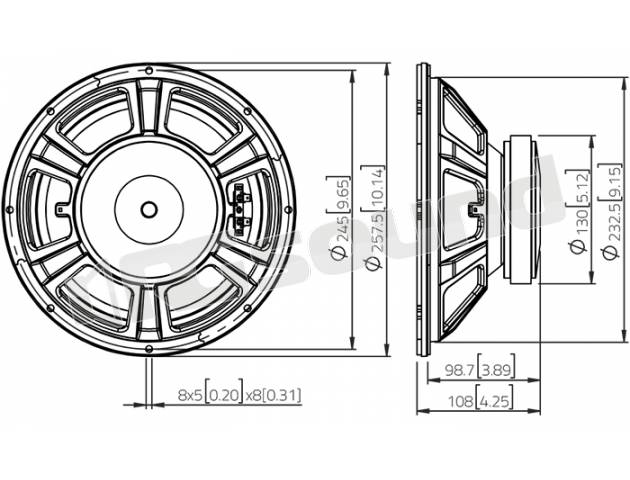

| Magnet dimensions OD x ID x h | mm (in) | 130 x 60 x 18 (5.1 x 2.36 x 0.7) |
| Coil material | Copper | |
| Former material | Glass Fiber | |
| Cone material | Water Proof Treated Paper | |
| Surround material | Polycotton | |
| Xmax | mm (in) | 4,6 (0.18) |
| Xmech | mm (in) | 7,1 (0.28) |
| Gap height | mm (in) | 6 (0.24) |
| Voice coil winding height | mm (in) | 12,2 (0.48) |
| Driver displacement volume | l (ft³) | 1,1 (0.04) |
Small Signal Parameters
| DC resistance | Ohm | 5,6 |
| Resonance frequency | Hz | 64 |
| Moving mass | g (oz) | 26,2 (0.92) |
| Compliance | mm/N | 0,24 |
| Force factor | N/A | 11,5 |
| Mechanical Q-factor | 3,6 | |
| Electrical Q-factor | 0,45 | |
| Total Q-factor | 0,40 | |
| Equivalent air volume | l (ft3) | 41,6 (1.47) |
| Voice coil inductance | mH | 0,43 |
| Diaphragm area | cm2 (in.2) | 363 (56.27) |
| Reference efficiency | 2,3% |
Shipping Information
| Net weight | kg (lb) | 2,6 (5.7) |
| Multipack size W x D x H | mm x mm x mm (in x in x in) | 300 x 300 x 148 (11.8 x 11.8 x 5.8) |
| Multipack weight | kg (lb) | 3,6 (7.8) |
