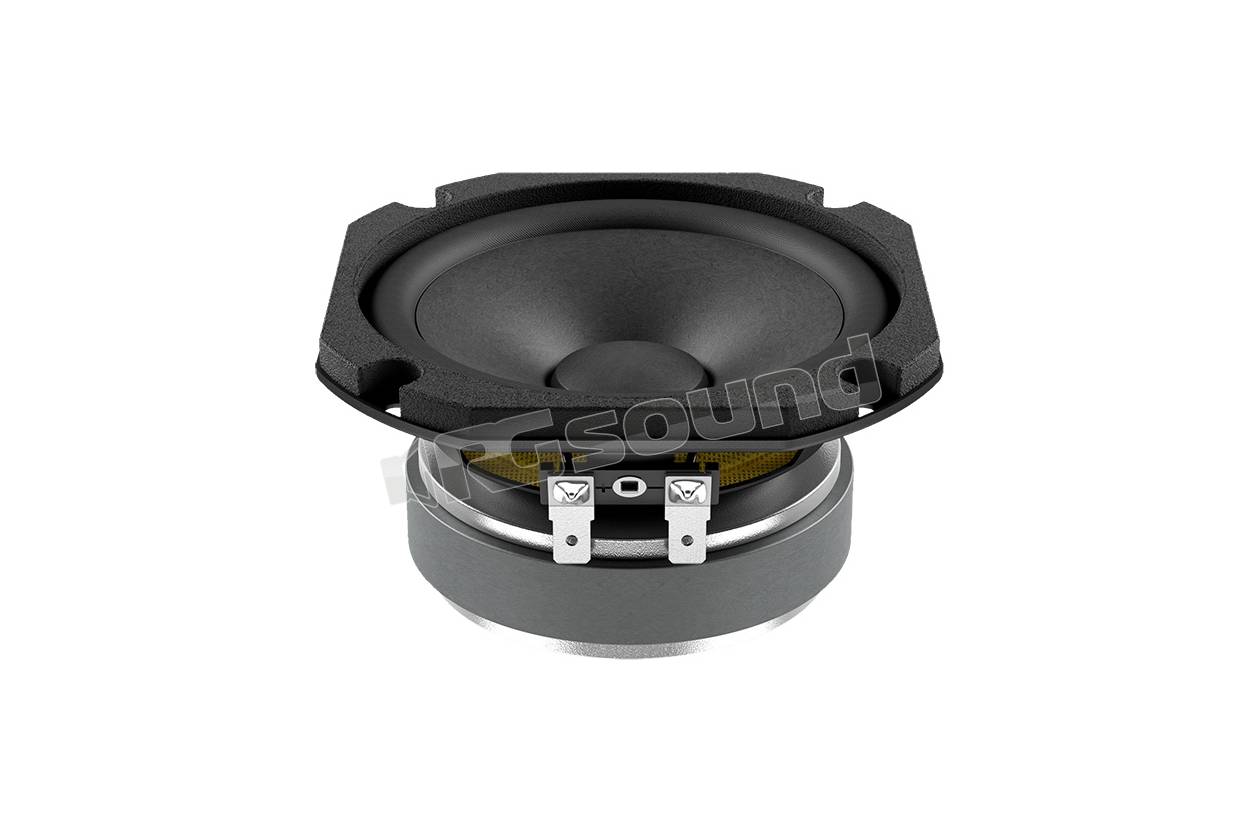

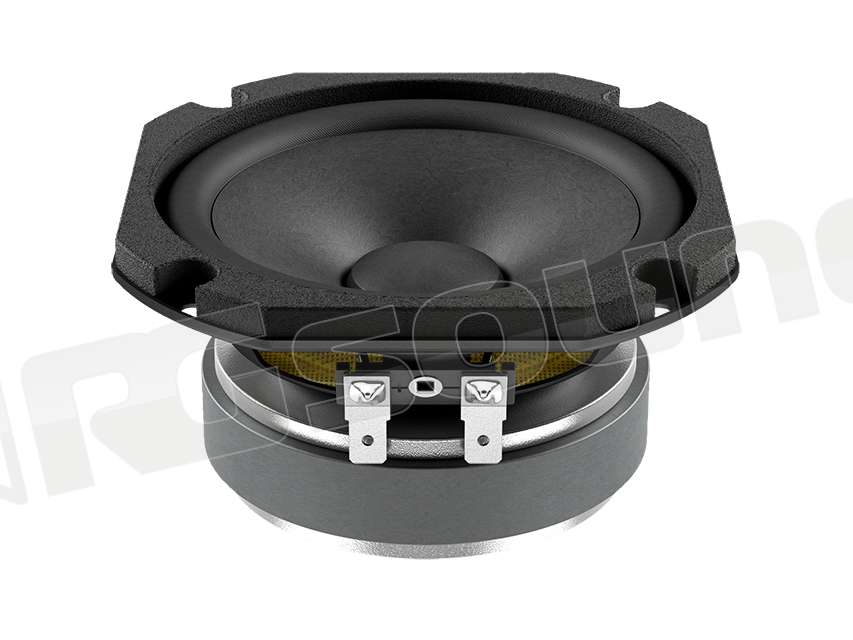

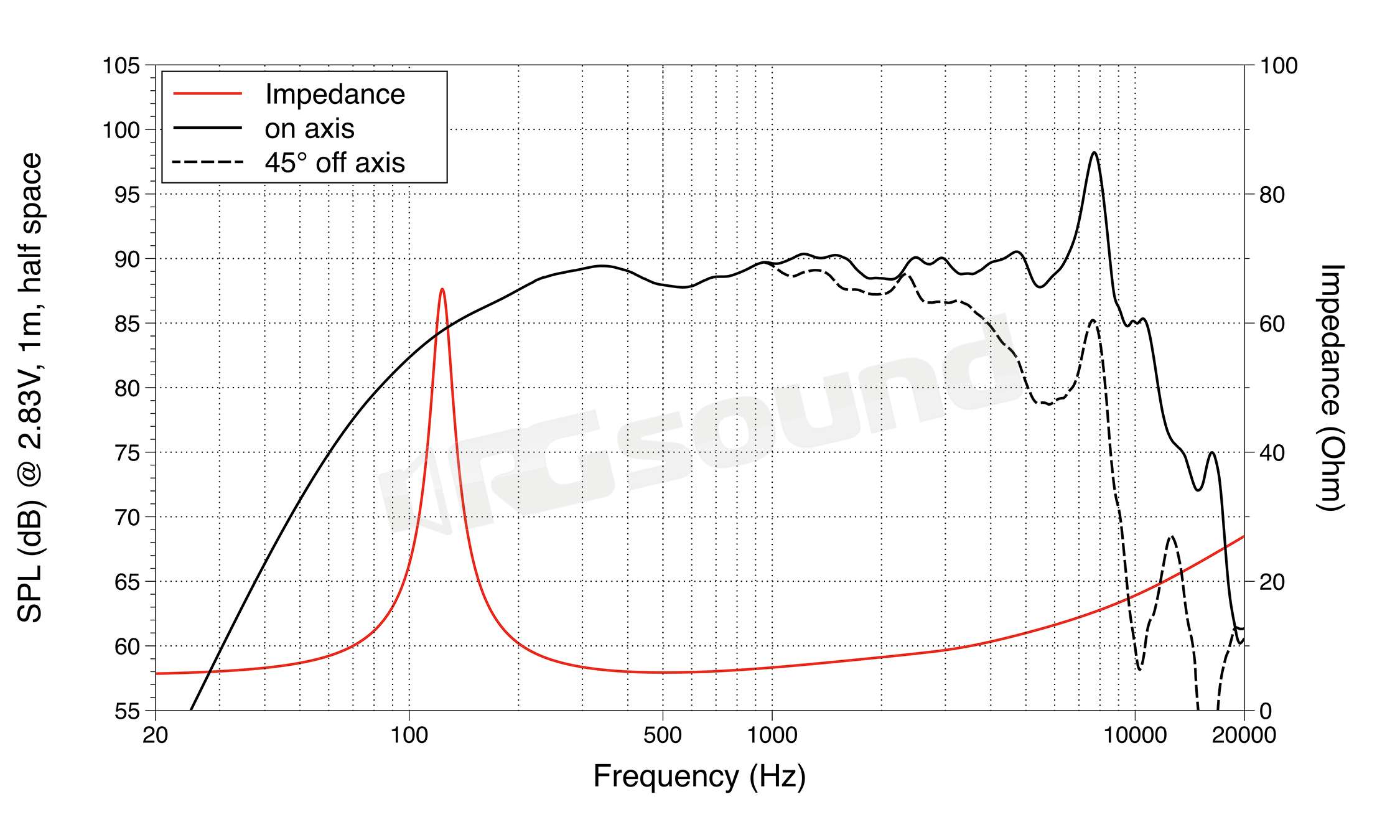

LaVoce WSF041.00 Woofer 100mm (4 pollici) Nom. Ø: 4" - V.C. Ø: 1'' - Power handling: 40 W AES / 80 W Program, Sensitivity: 90 dB, Frequency range: 90 - 6000 Hz

LaVoce codice 70R06041

Features

- 2.5 INCH CCAW VOICE COIL

- 96 dB/SPL SENSITIVITY

- 600 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN


General Specifications

Nominal diametermm (in)250 (10)
Nominal ImpedanceOhm8
Minimum impedanceOhm6
Program powerW600
AES Power ratingW300
SensitivitydB96
Frequency rangeHz75 ÷ 3000
Voice coil diametermm (in)65 (2.5)
Chassis materialSteel
Magnet materialNaodymium
Magnet dimensions OD x ID x hmm (in)63 x 10 (2.48 x 0.39)
Coil materialCCAW
Former materialGlass Fiber
Cone materialWater Proof Treated Paper
Surround materialPolycotton
Xmaxmm (in)3,1 (0.12)
Xmechmm (in)10,9 (0.43)
Gap heightmm (in)13 (0.51)
Voice coil winding heightmm (in)12,7 (0.5)
Driver displacement volumel (ft³)1,1 (0.04)

Small Signal Parameters

DC resistanceOhm4,8
Resonance frequencyHz75
Moving massg (oz)36 (1.27)
Compliancemm/N0,12
Force factorN/A14
Mechanical Q-factor4,8
Electrical Q-factor0,43
Total Q-factor0,39
Equivalent air volumel (ft3)22 (0.78)
Voice coil inductancemH0,6
Diaphragm areacm2 (in.2)356 (55.18)
Reference efficiency2,19 %

Shipping Information

Net weightkg (lb)2,8 (6.2)
Multipack size W x D x Hmm x mm x mm (in x in x in)300 x 300 x 158 (11.8 x 11.8 x 6.2)
Multipack weightkg (lb)3,8 (8.4)
