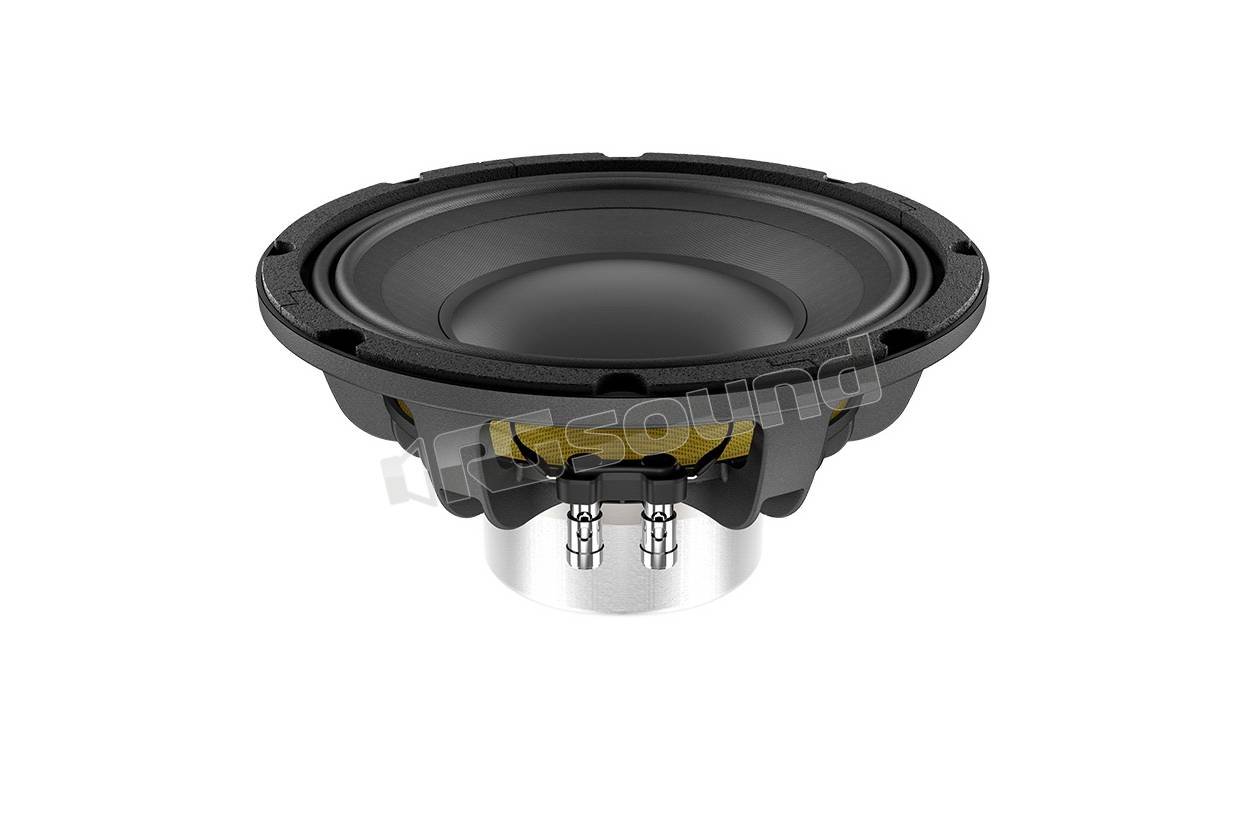

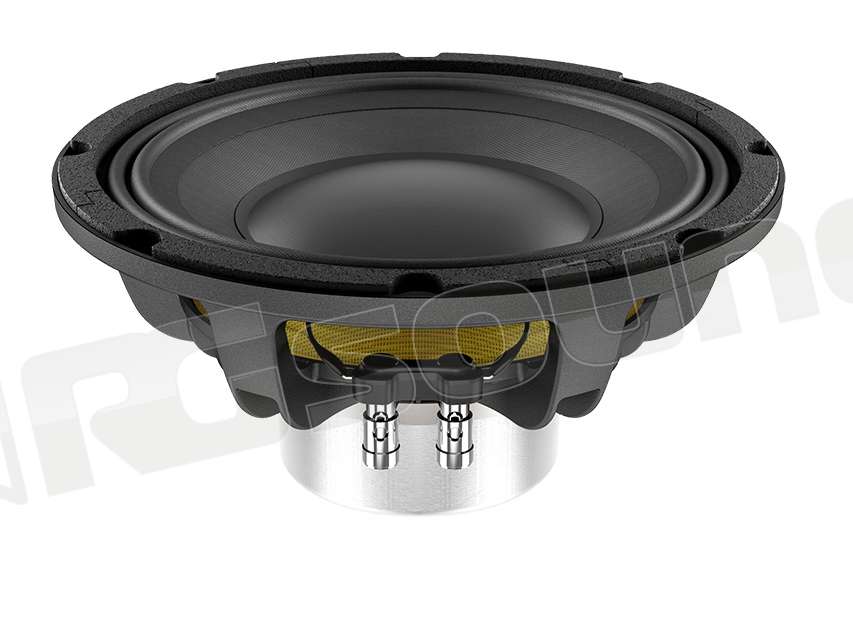

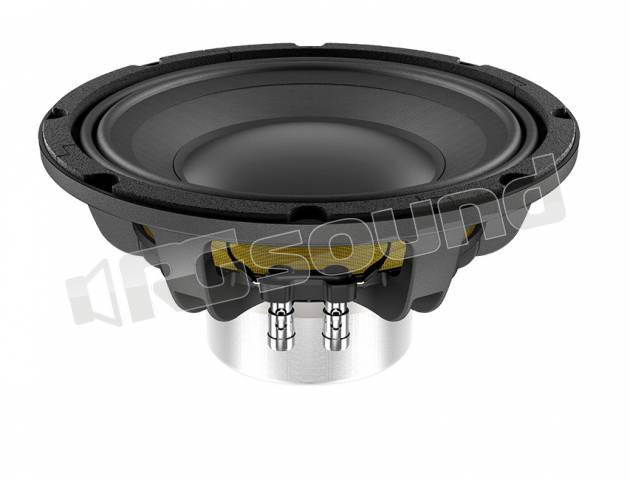

LaVoce WAN103.00 Woofer 250mm (10 pollici)
Fai una domanda sul prodotto
LaVoce WAN103.00 Woofer 250mm (10 pollici) Nom. Ø: 10" - V.C. Ø: 3'' - Power handling: 450 W AES / 900 W Program, Sensitivity: 93 dB, Frequency range: 50 - 1500 Hz ,
LaVoce codice 70R10102
Features
- 3 INCH COPPER VOICE COIL
- 93 dB/SPL SENSITIVITY
- 900 WATT PROGRAM POWER HANDLING
- 29,6 mm (1.2 INCH) PEAK TO PEAK MAXIMUM EXCURSION
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
General Specifications
| Nominal diameter | mm (in) | 250 (10) |
| Nominal Impedance | Ohm | 8 |
| Minimum impedance | Ohm | 8,2 |
| Program power | W | 900 |
| AES Power rating | W | 450 |
| Sensitivity | dB | 93 |
| Frequency range | Hz | 50 ÷ 1500 |
| Voice coil diameter | mm (in) | 75 (3) |
| Chassis material | Aluminium | |
| Magnet material | Neodymium | |
| Magnet dimensions OD x ID x h | mm (in) | 75 x 20 x 10 (3 x 0.8 x 0.4) |
| Coil material | Copper | |
| Former material | Polyimide | |
| Cone material | Water Proof Treated Paper | |
| Surround material | Polycotton | |
| Xmax | mm (in) | 9,6 (0.38) |
| Xmech | mm (in) | 14,8 (0.58) |
| Gap height | mm (in) | 9,5 (0.37) |
| Voice coil winding height | mm (in) | 24 (0.94) |
| Driver displacement volume | l (ft³) | 1,6 (0.06) |
Small Signal Parameters
| DC resistance | Ohm | 7,1 |
| Resonance frequency | Hz | 48 |
| Moving mass | g (oz) | 68,6 (2.42) |
| Compliance | mm/N | 0,16 |
| Force factor | N/A | 19,7 |
| Mechanical Q-factor | 4,5 | |
| Electrical Q-factor | 0,37 | |
| Total Q-factor | 0,35 | |
| Equivalent air volume | l (ft3) | 26 (0.92) |
| Voice coil inductance | mH | 1,4 |
| Diaphragm area | cm2 (in.2) | 343 (53.17) |
| Reference efficiency | 0,7 % |
Shipping Information
| Net weight | kg (lb) | 3,8 (8.3) |
| Multipack size W x D x H | mm x mm x mm (in x in x in) | 300 x 300 x 153 (11.8 x 11.8 x 6) |
| Multipack weight | kg (lb) | 4,7 (10.4) |
