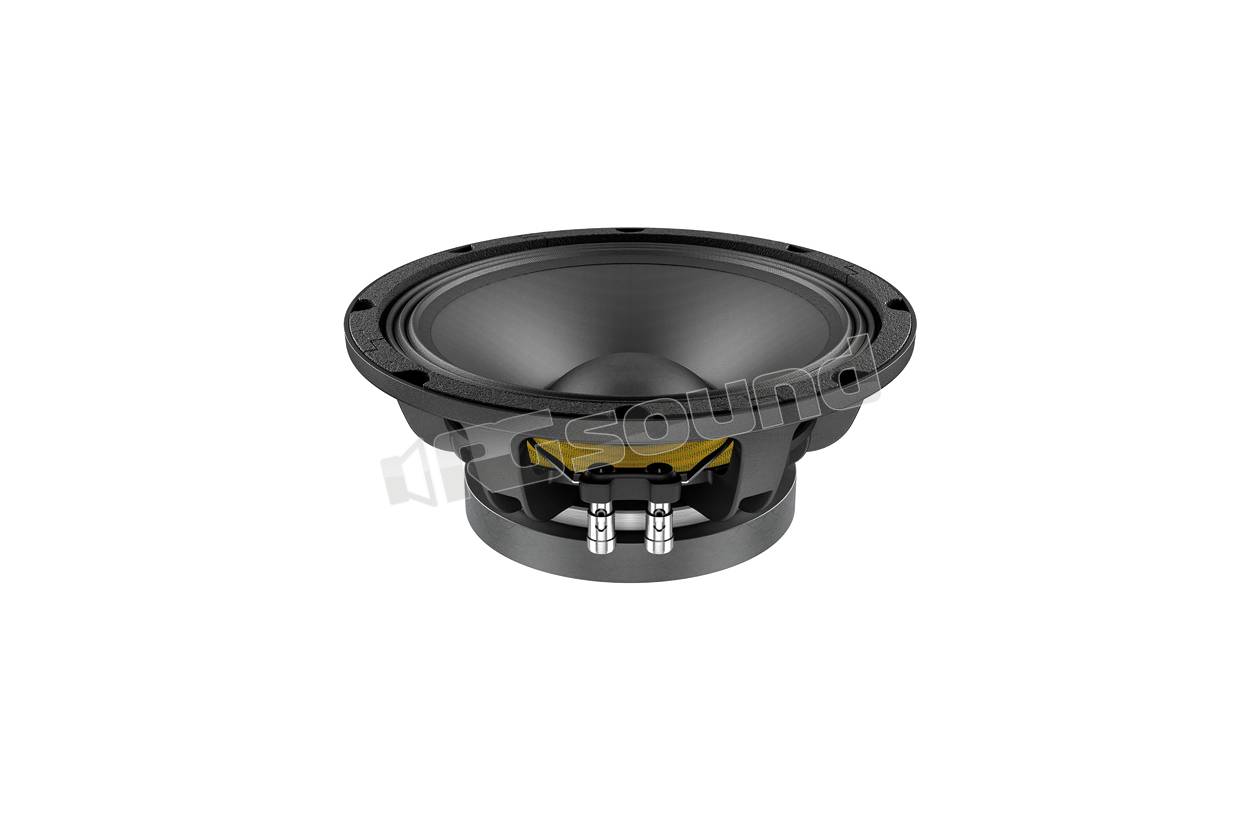

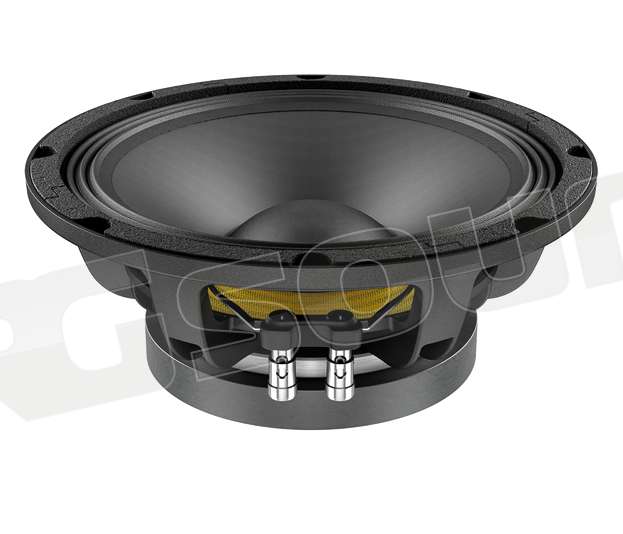

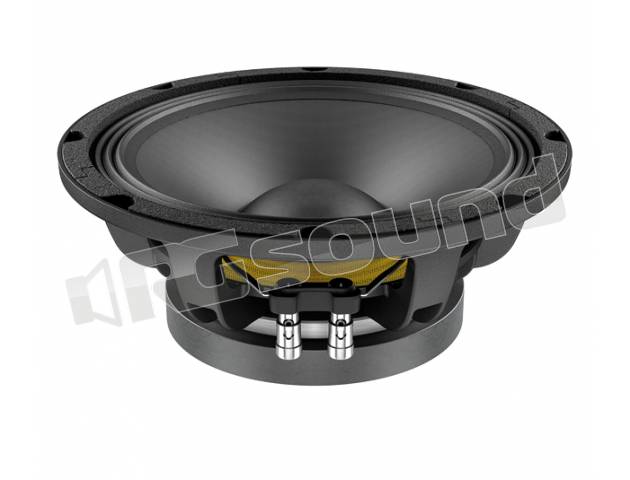

LaVoce WAF102.52 Woofer 250mm (10 pollici)
Fai una domanda sul prodotto
LaVoce WAF102.52 Woofer 250mm (10 pollici) Nom. Ø: 10" - V.C. Ø: 2,5'' - Power handling: 350 W AES / 700 W Program, Sensitivity: 96 dB, Frequency range: 60 - 4000 Hz
Prodotto disponibile solo su ordinazione, tempo di attesa 6 settimana dal momento dell'ordine.
LaVoce codice 70R1010A
Features
- 2.5 INCH CCAW VOICE COIL- 96 dB/SPL SENSITIVITY
- 700 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
- TRIPLE ROLL SURROUND
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
General Specifications
| Nominal diameter | mm (in) | 250 (10) |
| Nominal Impedance | Ohm | 8 |
| Minimum impedance | Ohm | 5,90 |
| Program power | W | 700 |
| AES Power rating | W | 350 |
| Sensitivity | dB | 96 |

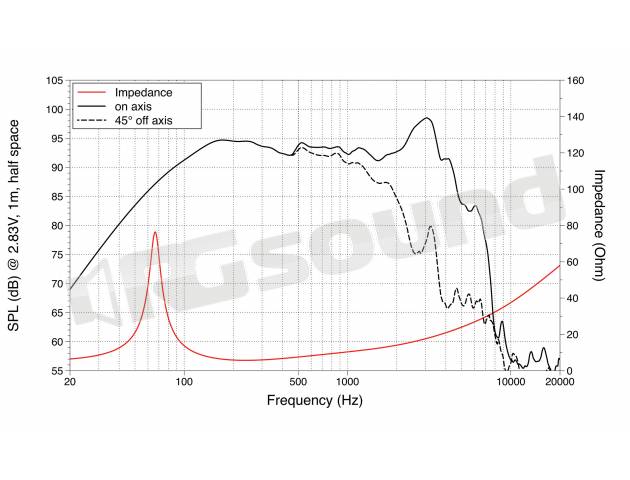

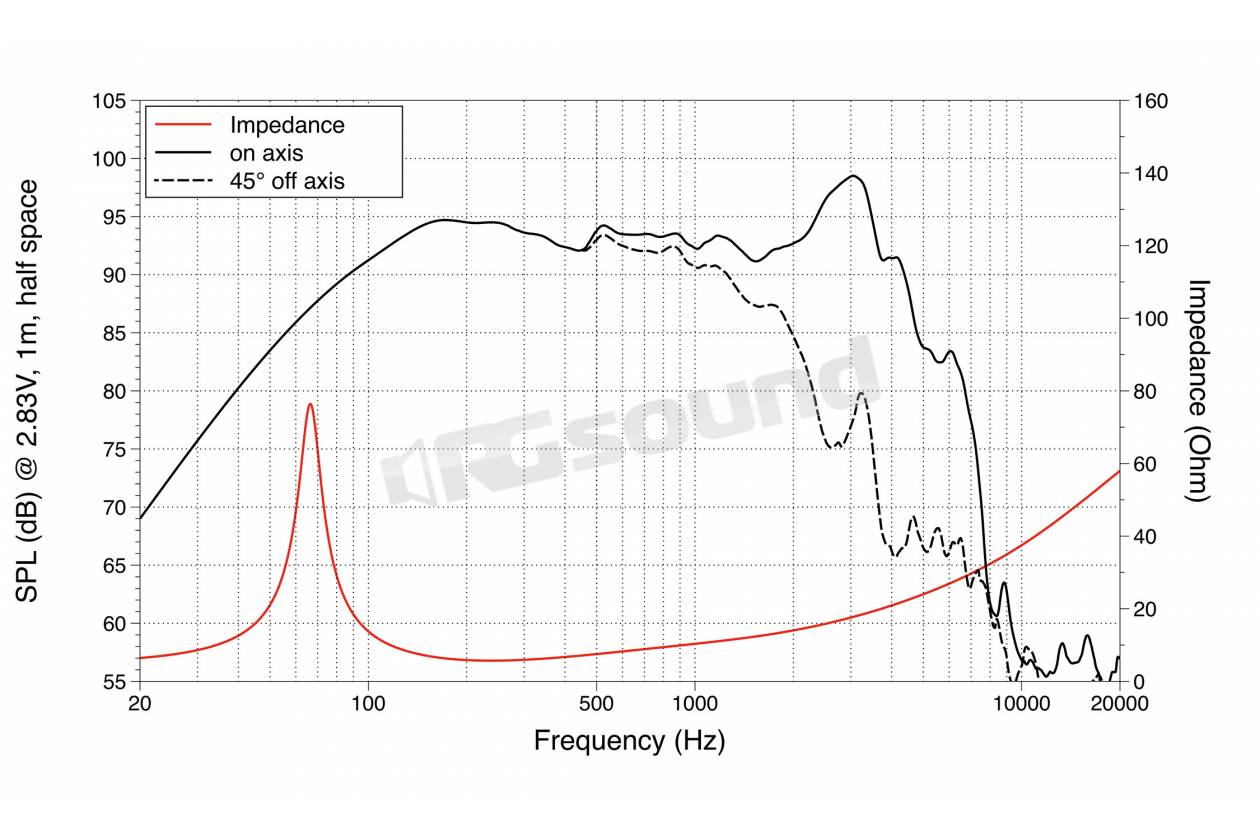

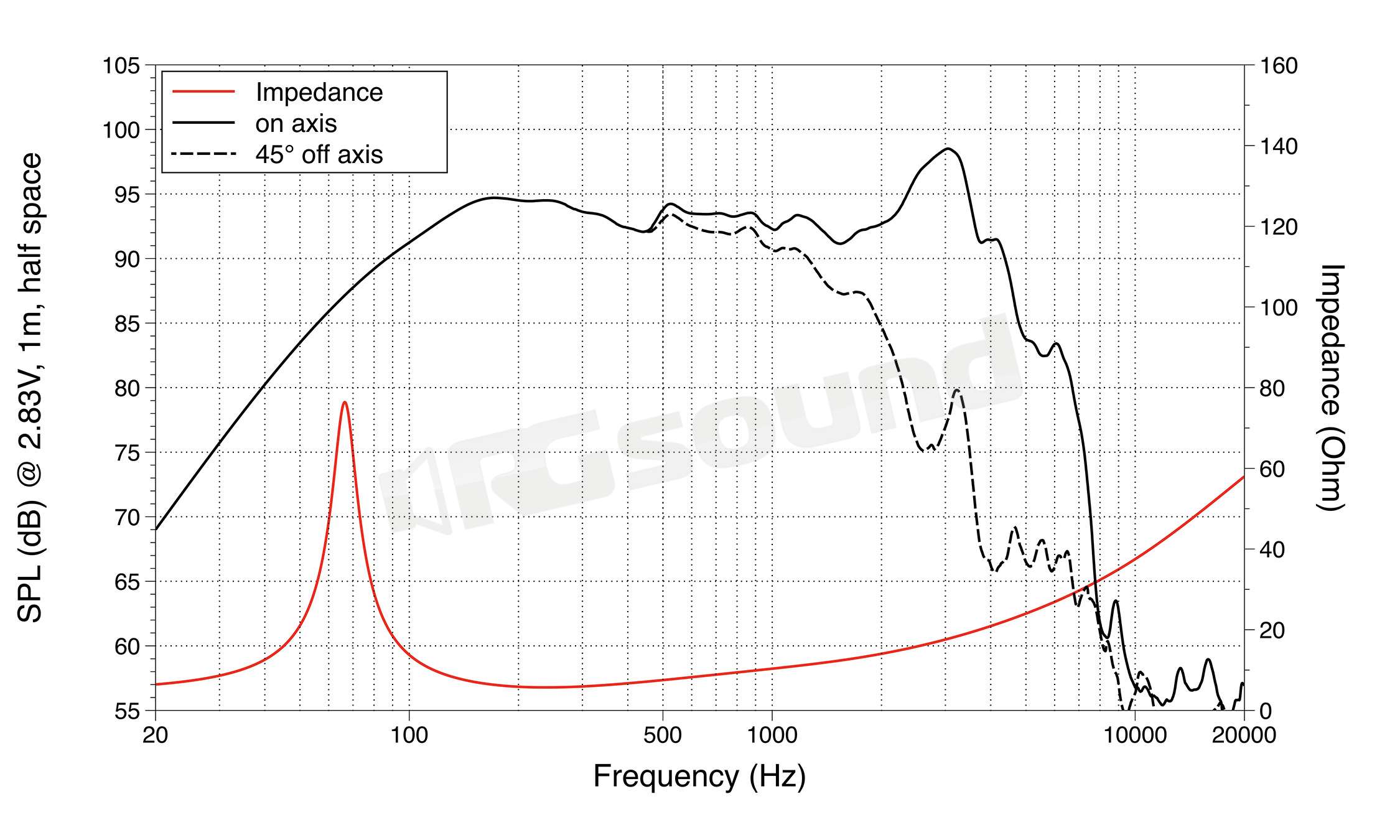

| Frequency range | Hz | 60 ÷ 4000 |
| Voice coil diameter | mm (in) | 65 (2.5) |
| Chassis material | Aluminium | |
| Magnet material | Ferrite | |

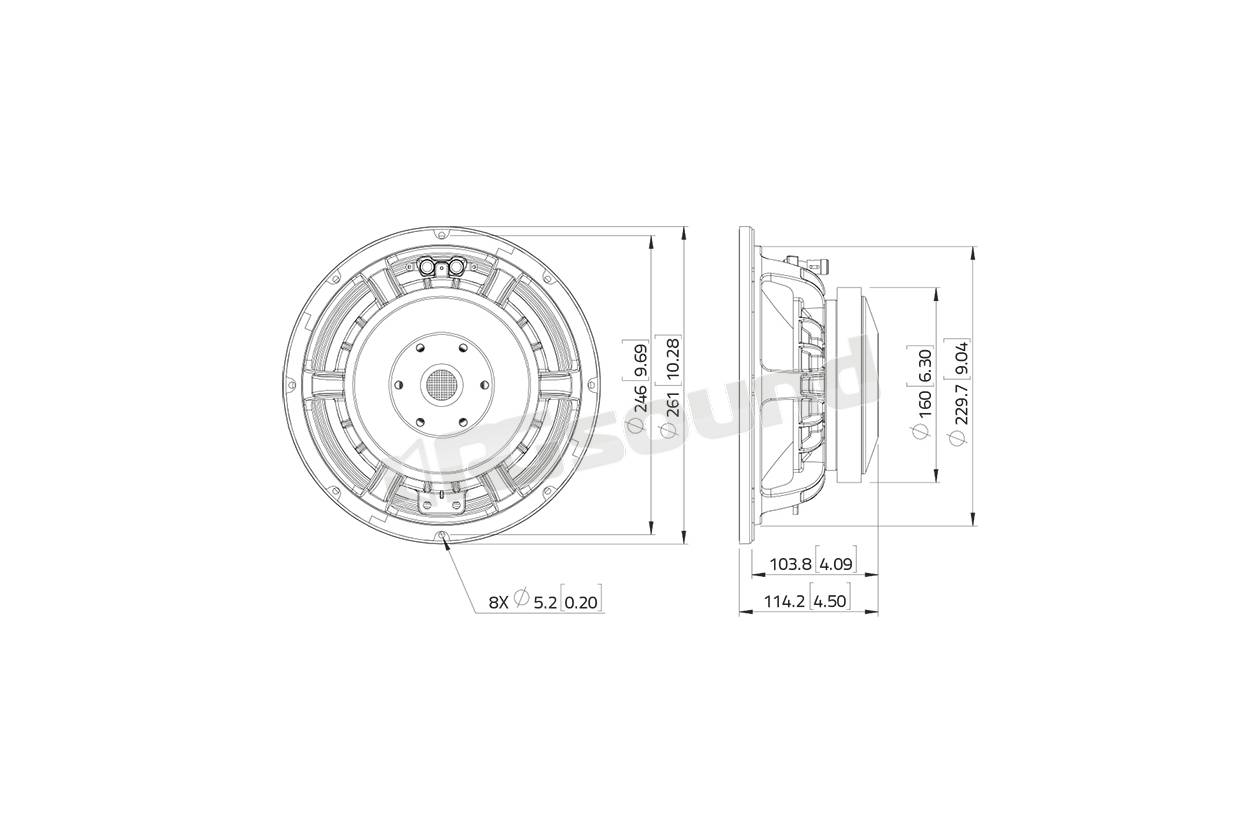

| Magnet dimensions OD x ID x h | mm (in) | 160 x 70 x 20 (6.3 x 2.76 x 0.79) |
| Coil material | CCAW | |
| Former material | Glass Fiber | |
| Cone material | Water proof treated paper | |
| Surround material | Polycotton | |
| Xmax | mm (in) | 9,1 (0.36) |
| Xmech | mm (in) | 14,6 (0.57) |
| Gap height | mm (in) | 10 (0.39) |
| Voice coil winding height | mm (in) | 23,1 (0.91) |
| Driver displacement volume | l (ft³) | 1,6 (0.06) |
Small Signal Parameters
| DC resistance | Ohm | 4,9 |
| Resonance frequency | Hz | 66 |
| Moving mass | g (oz) | 41,7 (1.47) |
| Compliance | mm/N | 0,14 |
| Force factor | N/A | 13,9 |
| Mechanical Q-factor | 6,4 | |
| Electrical Q-factor | 0,44 | |
| Total Q-factor | 0,41 | |
| Equivalent air volume | l (ft3) | 23,5 |
| Voice coil inductance | mH | 0,8 |
| Diaphragm area | cm2 (in.2) | 346 (53.63) |
| Reference efficiency | 1,5% |
Shipping Information
| Net weight | kg (lb) | 5 (11) |
| Multipack size W x D x H | mm x mm x mm (in x in x in) | 300 x 300 x 148 (11.8 x 11.8 x 5.8) |
| Multipack weight | kg (lb) | 5,9 (12.9) |
