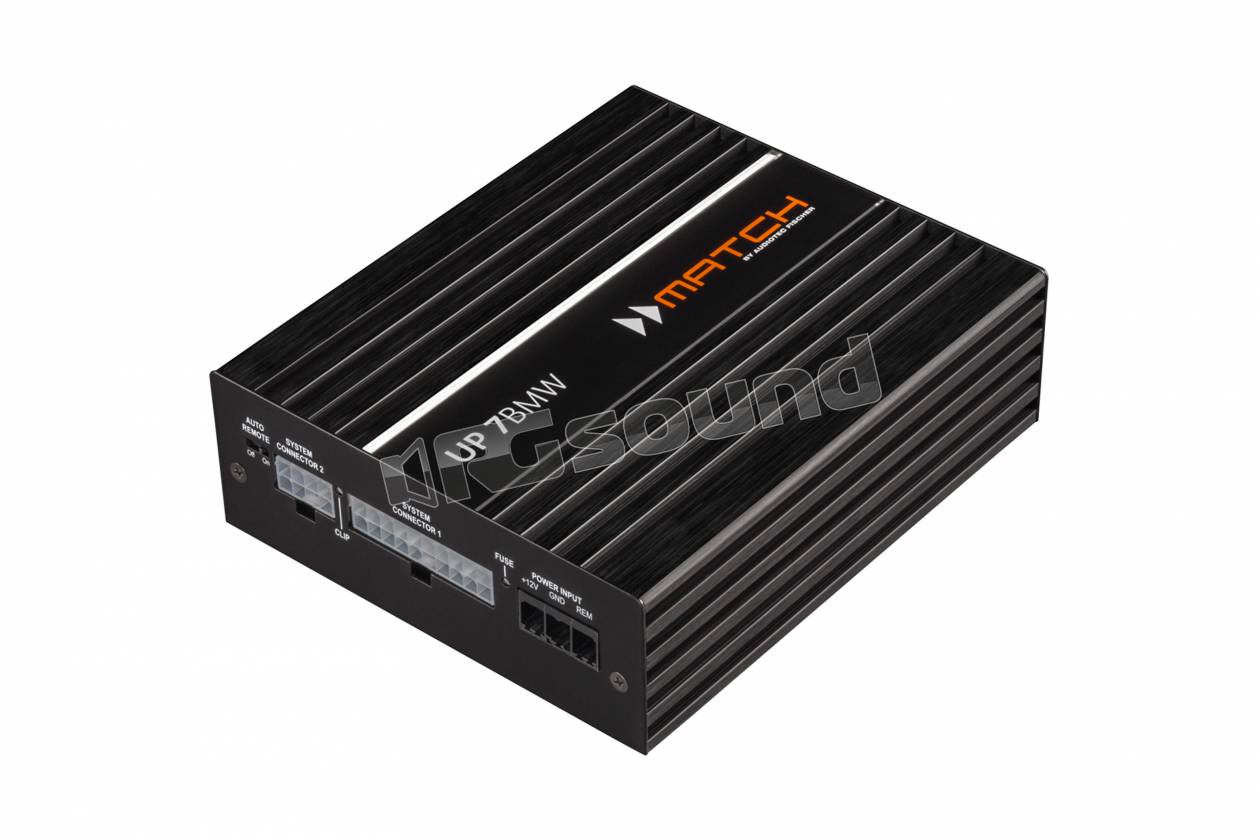

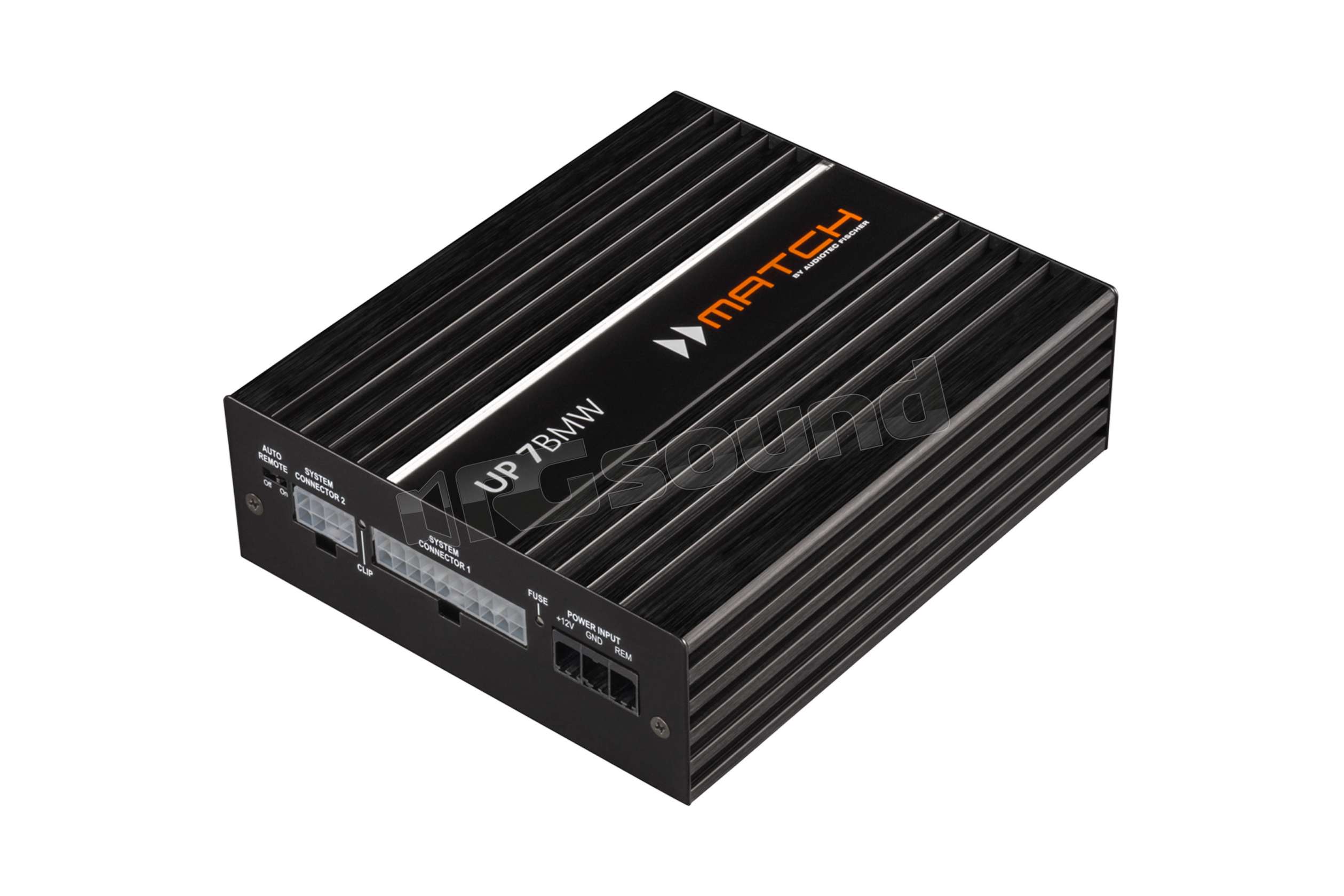

Amplificatore plug & play a 7 canali con dsp a 64 bit per bmw con impianto bmw hifi sound system (option 676)
The "M package" for your BMW HiFi sound system (option 676) - The MATCH UP 7BMW is a revolutionary sound upgrade for those who desire significantly more power and dynamics, but also care about seamless integration into the vehicle.

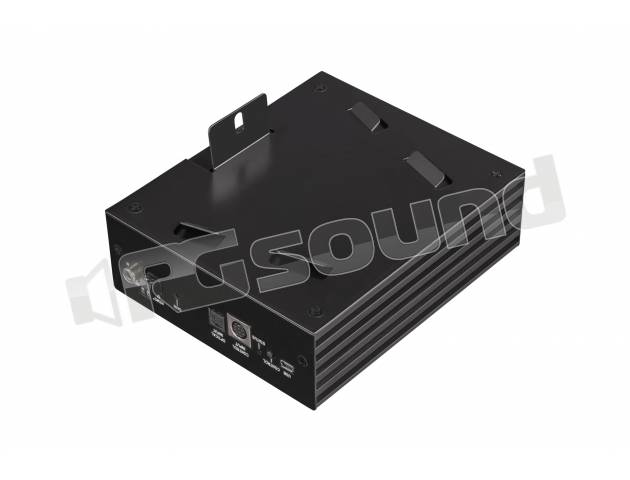

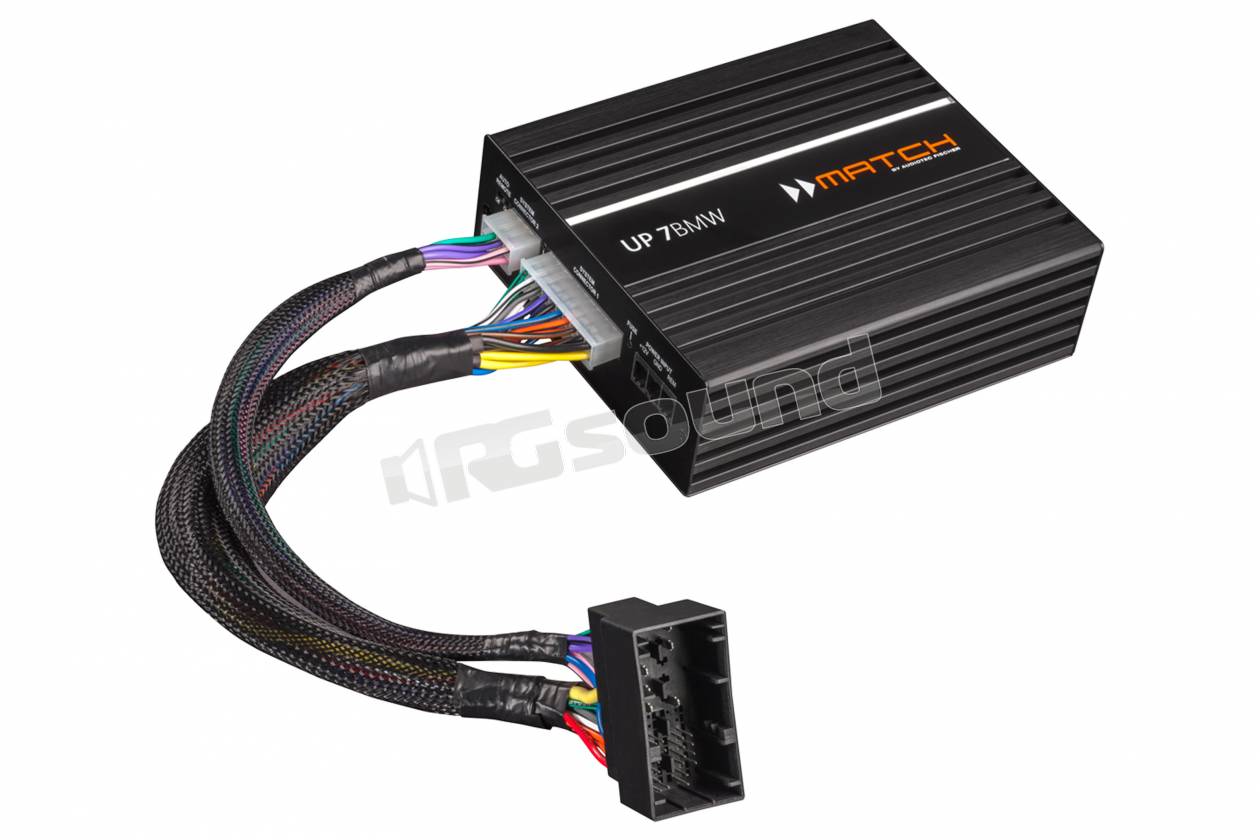

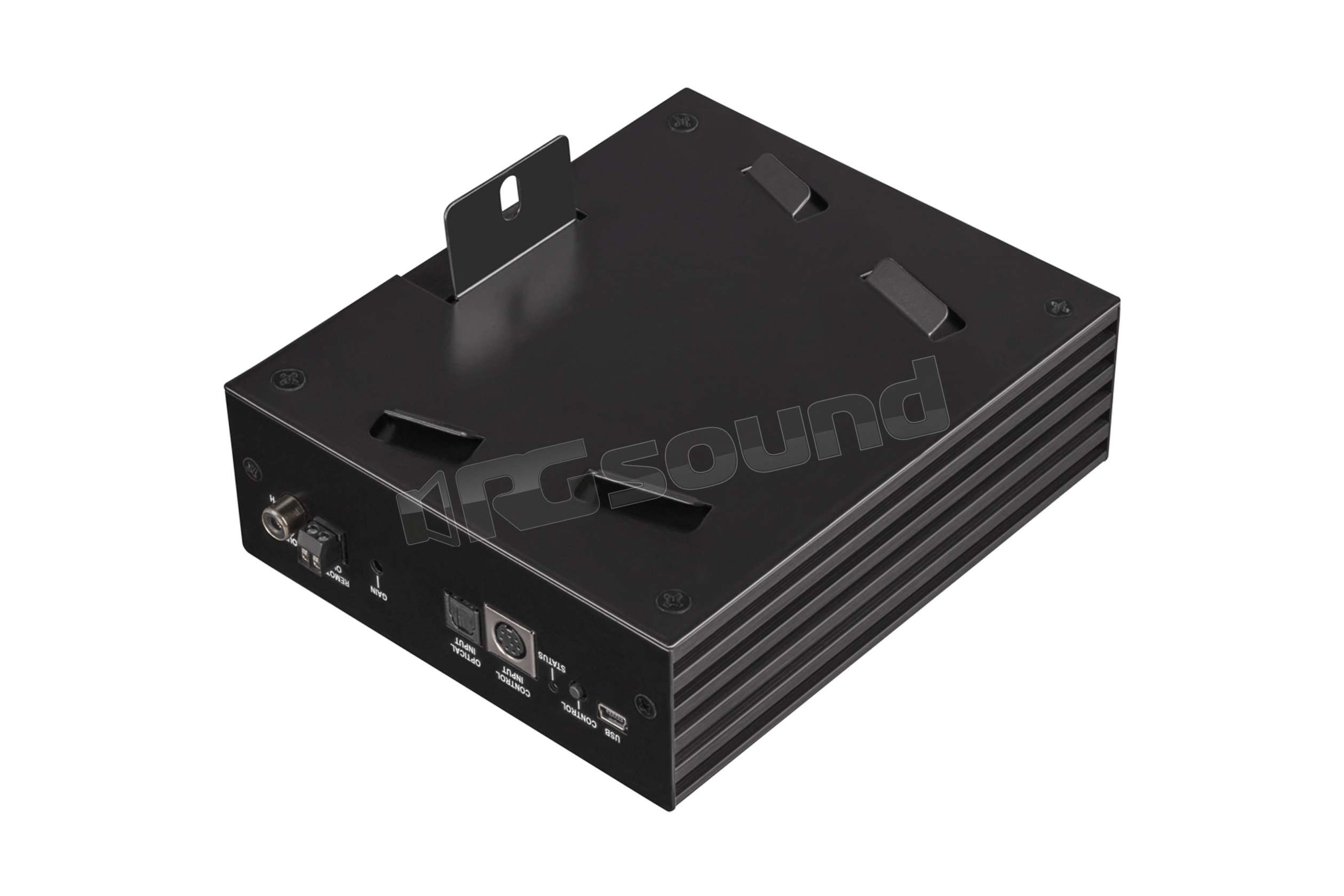

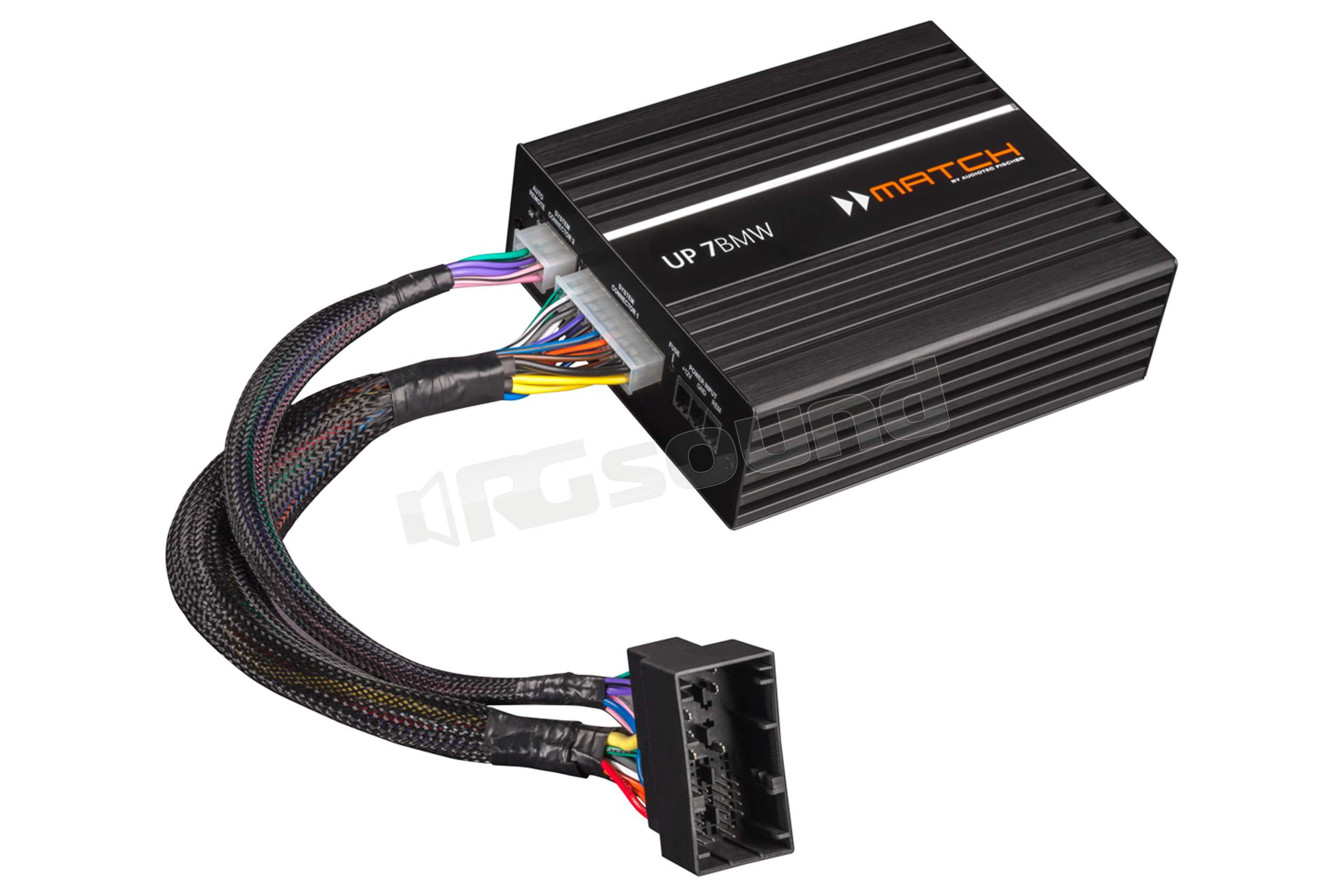

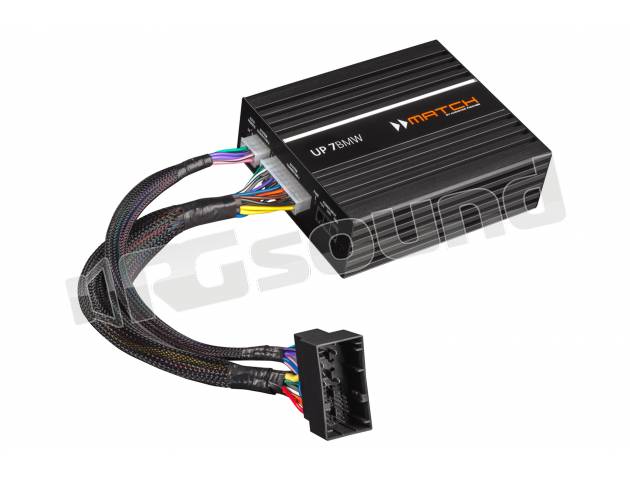

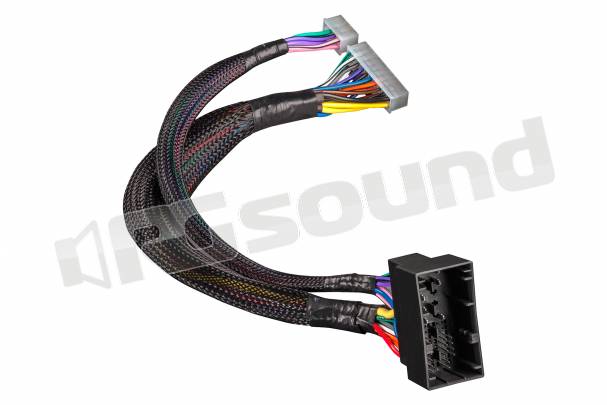

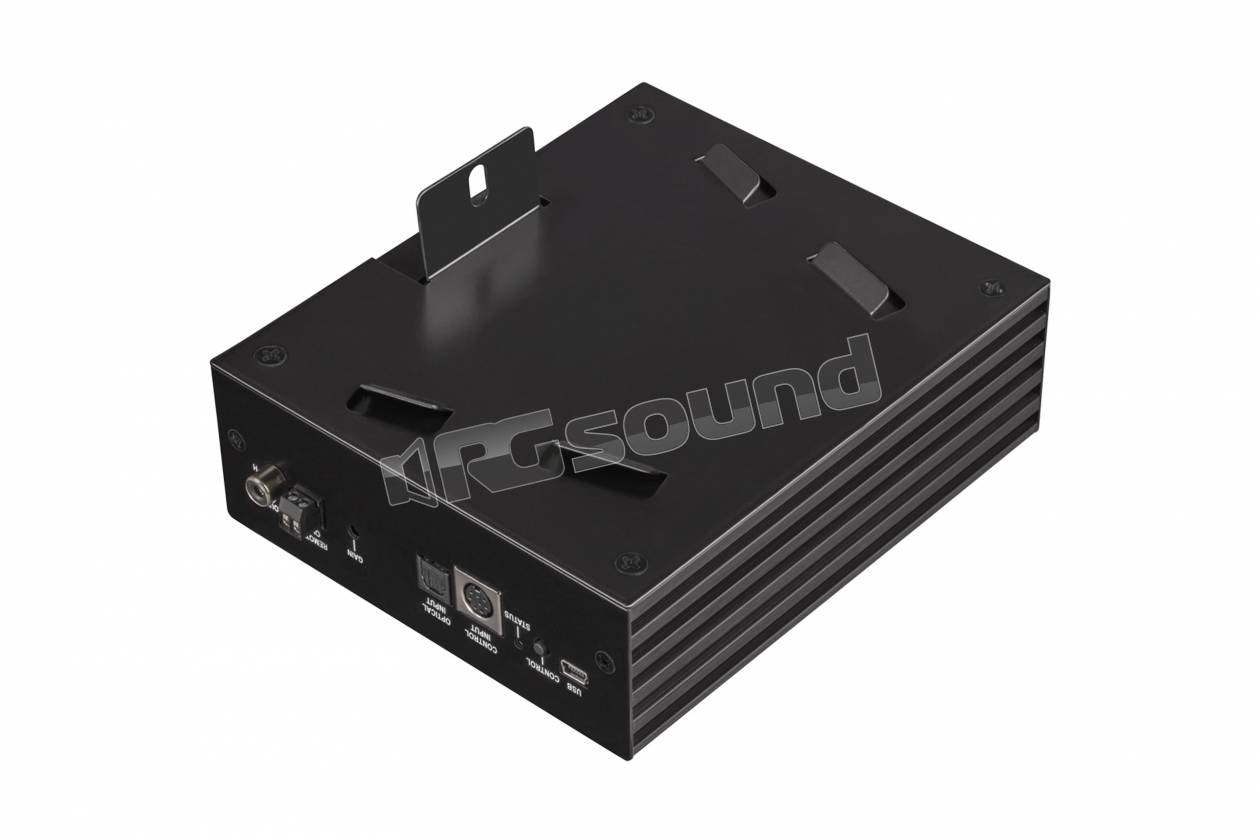

The installation is done in the blink of an eye at the mounting position of the original amplifier thanks to the included Plug & Play connection cable and a custom-fit mounting plate. Nevertheless, the UP 7BMW amplifier is so flexible that it can easily be used for universal applications in BMW vehicles.
Besides Audiotec Fischer's proprietary Class HD technology and the cutting-edge 64 Bit DSP with tremendous processing power, new and high innovative DSP features such as "Augmented Bass Processing", the "StageXpander" and the “RealCenter” function guarantee top-class listening pleasure.

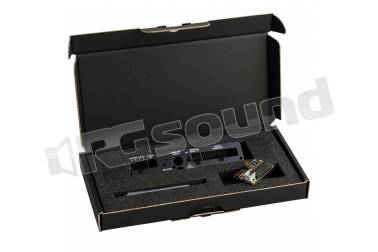

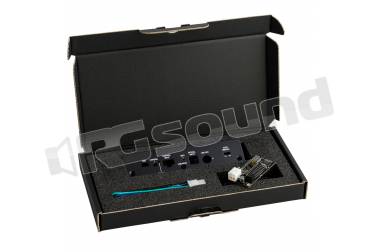

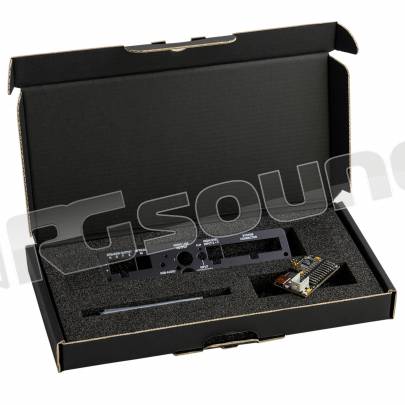

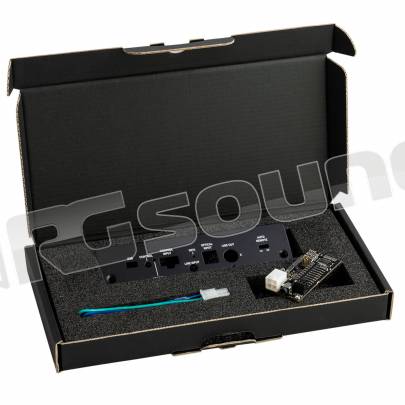

Of course, the UP 7BMW also offers a MATCH Extension Card slot (MEC slot) for additional input and output modules such as a Bluetooth® Audio Streaming module or a High Resolution audio USB sound card.
Thanks to the professional and user-friendly DSP PC-Tool software V4 the configuration of the UP 7BMW becomes straigthforward and intuitive.
|Output power RMS / max.|
|- @ 4 Ohms||5 x 65 / 130 Watts (Front / Rear / Center channels)|
|- @ 2 Ohms||-|
|- @ 1 Ohm||-|
|- bridged @ 4 Ohms||-|
|- bridged @ 2 Ohms||-|
|- Subwoofer output @ 4 Ohms||-|
|- Subwoofer output @ 2 Ohms||2 x 160 / 320 Watts|
|Amplifier technology||Class HD|

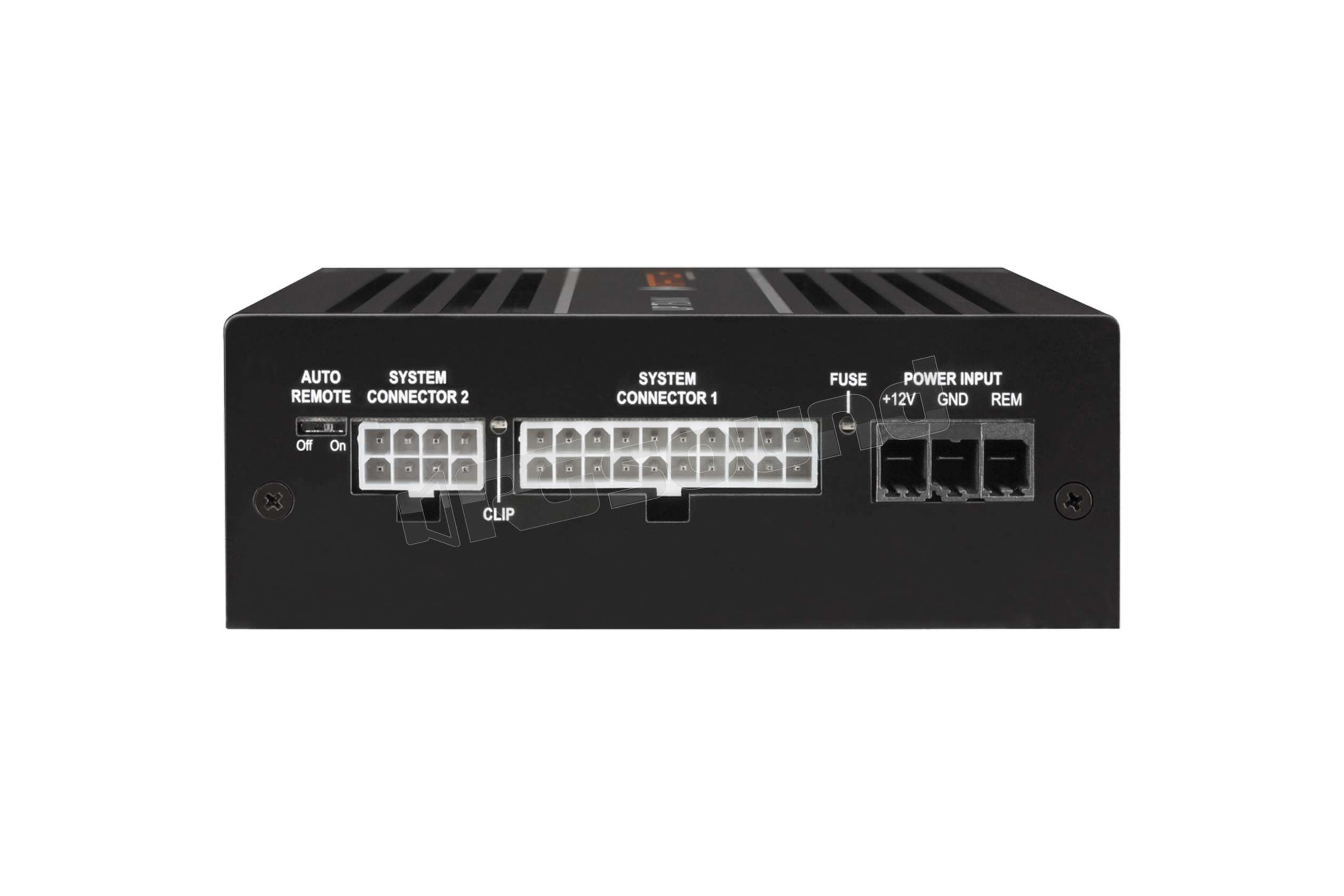

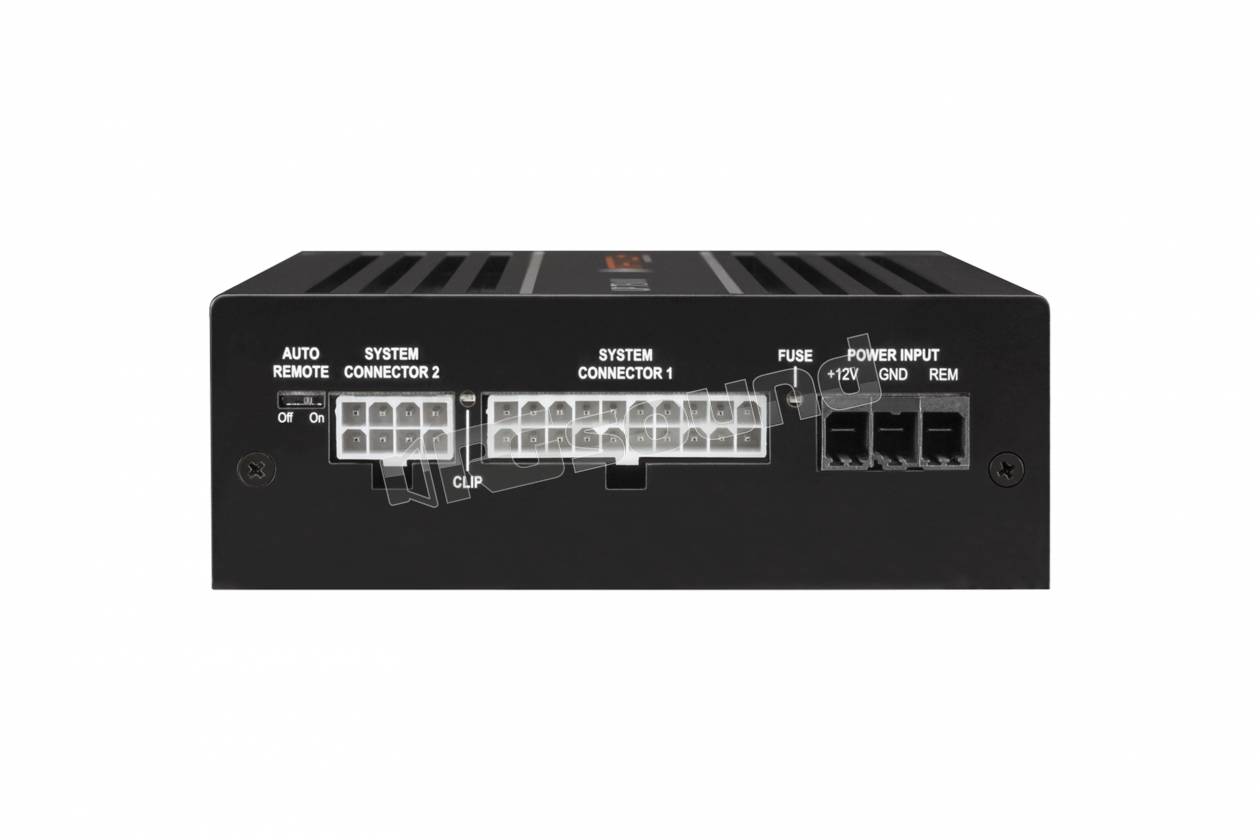

|Inputs||4 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x MEC
1 x Remote In
|Input sensitivity||Highlevel 2.0 - 8.3 Volts|
|Input impedance RCA / Cinch||-|
|Input impedance highlevel||13 Ohms|
|Outputs||7 x Speaker output
1 x RCA / Cinch
2 x Remote Out
|Output voltage RCA / Cinch||3 Volts RMS|
|Frequency response||20 Hz - 22,000 Hz|
|DSP resolution||64 Bit|
|DSP power||295 MHz (1.2 billion MAC operations/second)|
|Sampling rate||48 kHz|
|DSP type||Audio signal processor|
|Signal converters||A/D: BurrBrown
|Signal-to-noise ratio digital input||105 dB (A-weighted)|
|Signal-to-noise ratio analog input||103 dB (A-weighted)|
|Distortion (THD)||< 0.03 %|
|Damping factor||> 100|
|Operating voltage||10.5 - 16 Volts (max. 5 sec. down to 6 Volts)|
|Current draw||450 mA|
|Max. remote output current||500 mA|
|Fuse||2 x 25 A LP-Mini-fuse (APS)|

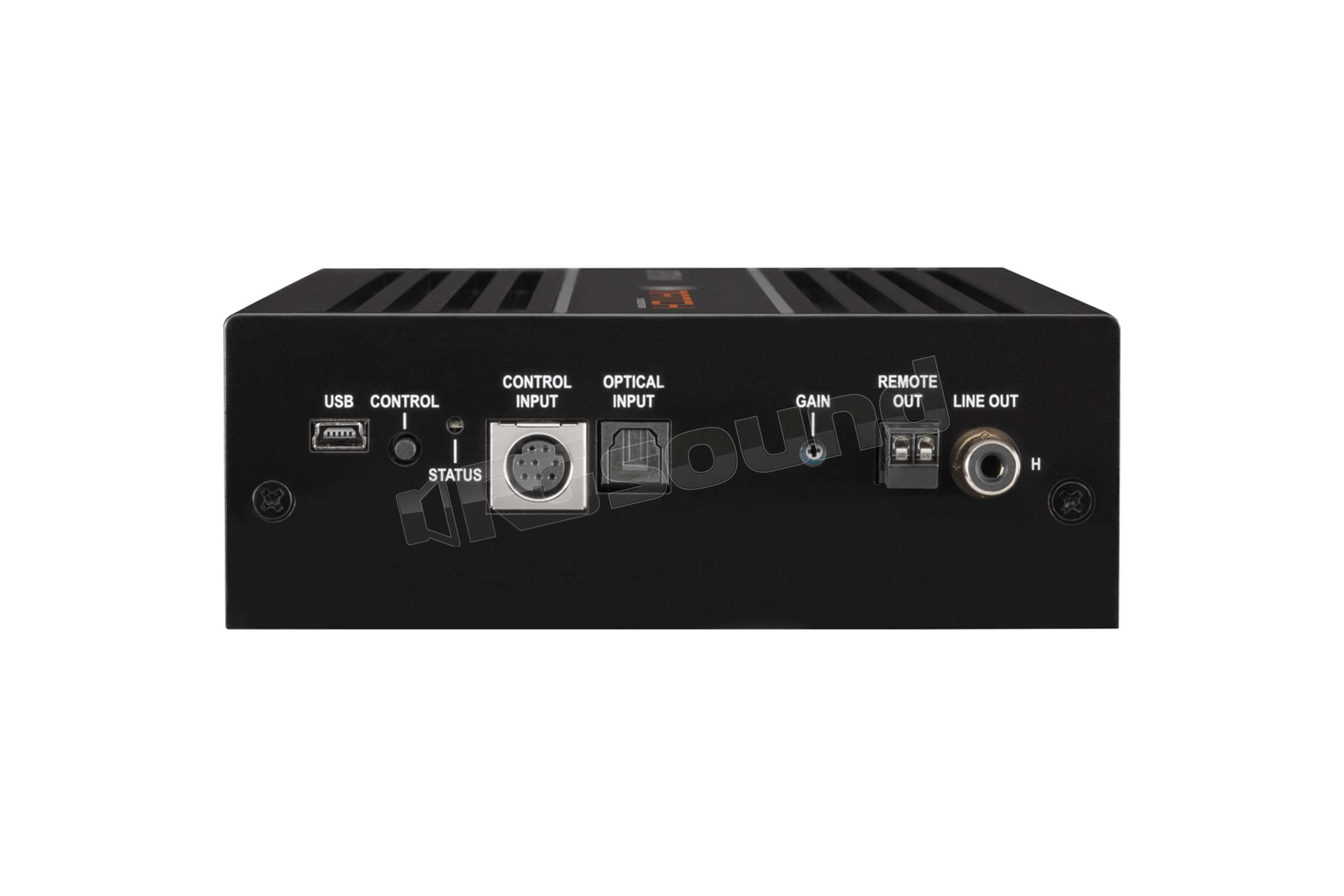

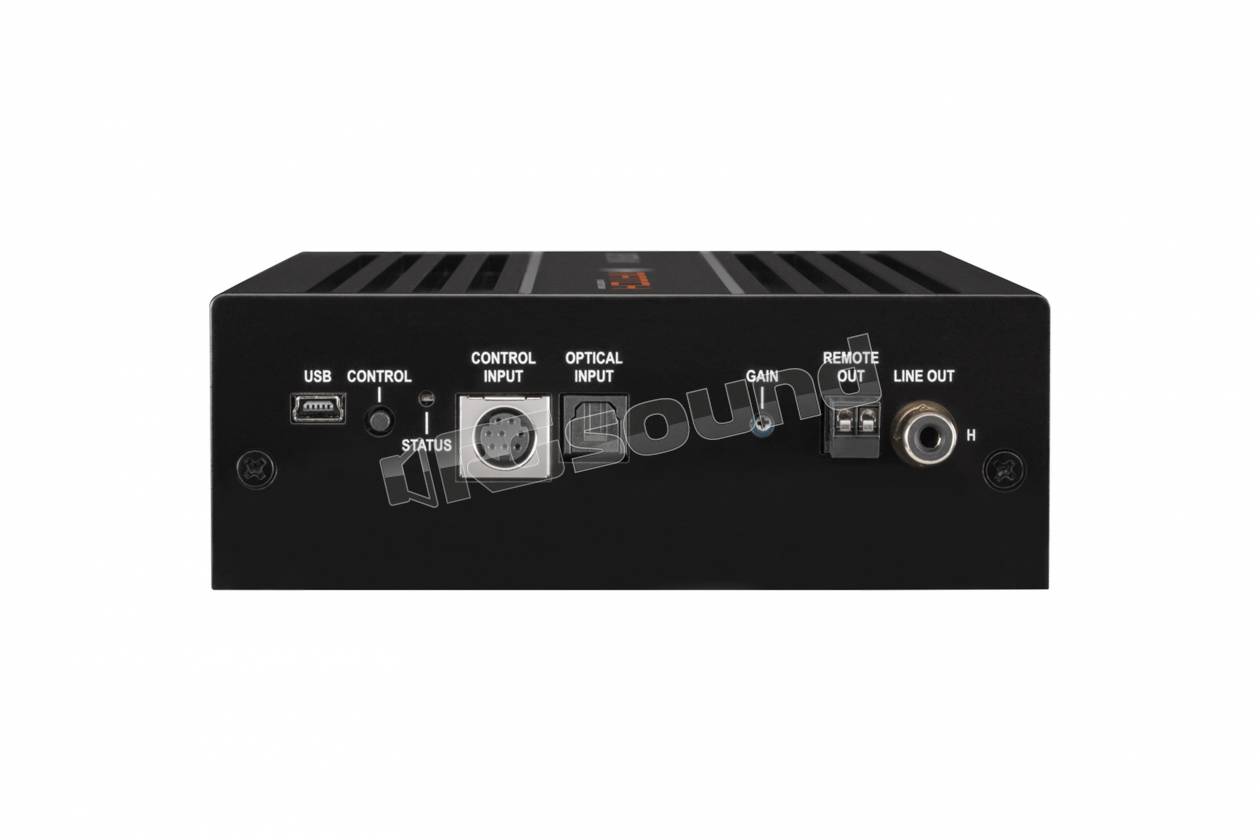

|Additional features||Class HD technology with dynamically controlled
power supply, ADEP.3 circuit, Start-Stop capability, Control Input, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out
|Dimensions (H x W x D)||46 x 130 x 153 mm /
1.81 x 5.12 x 6.02"
