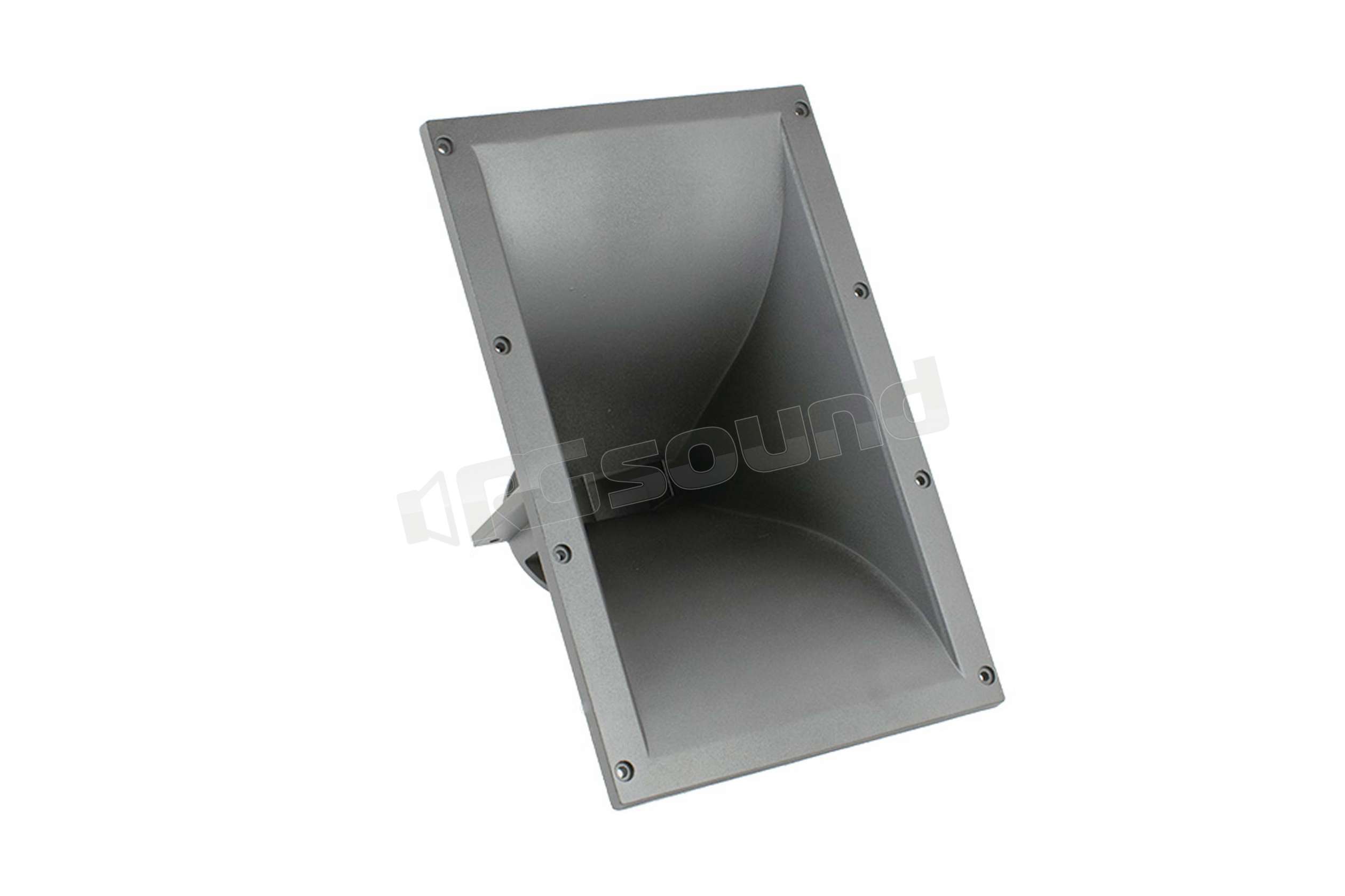

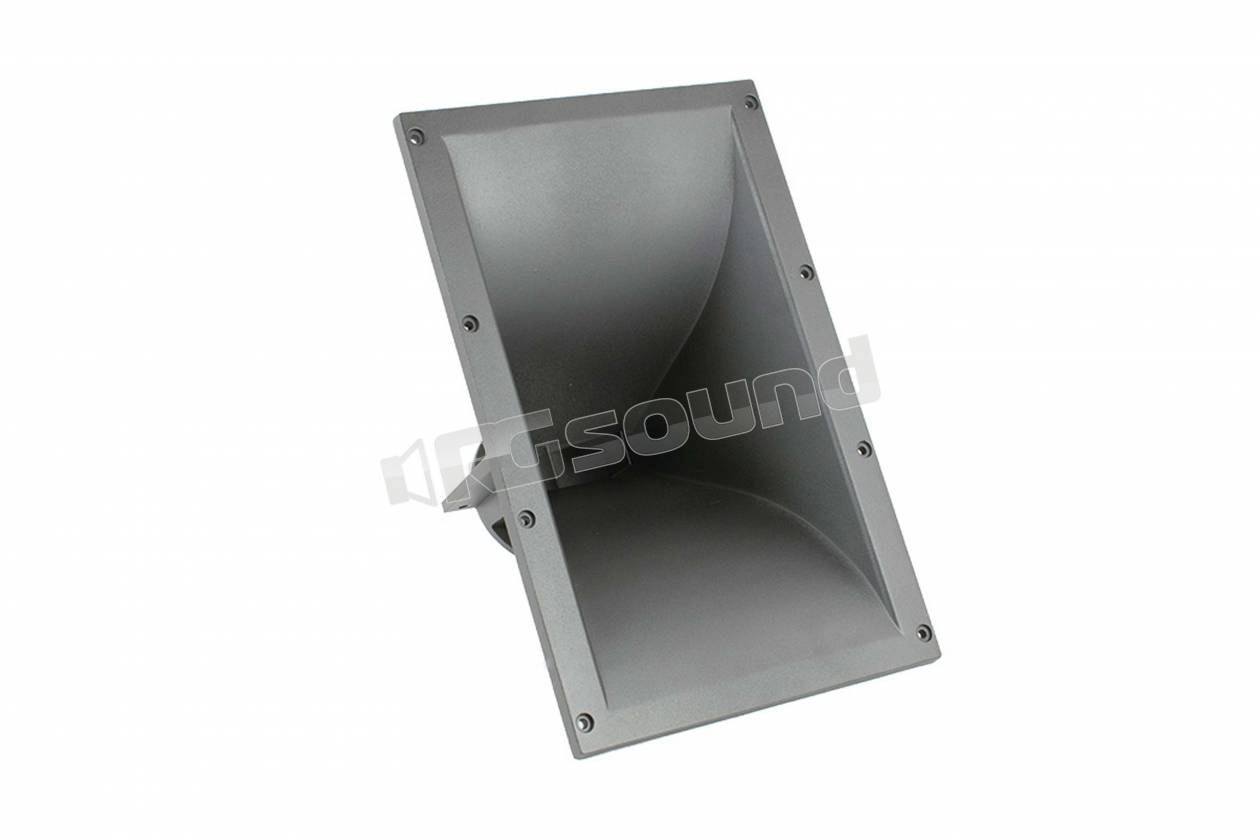

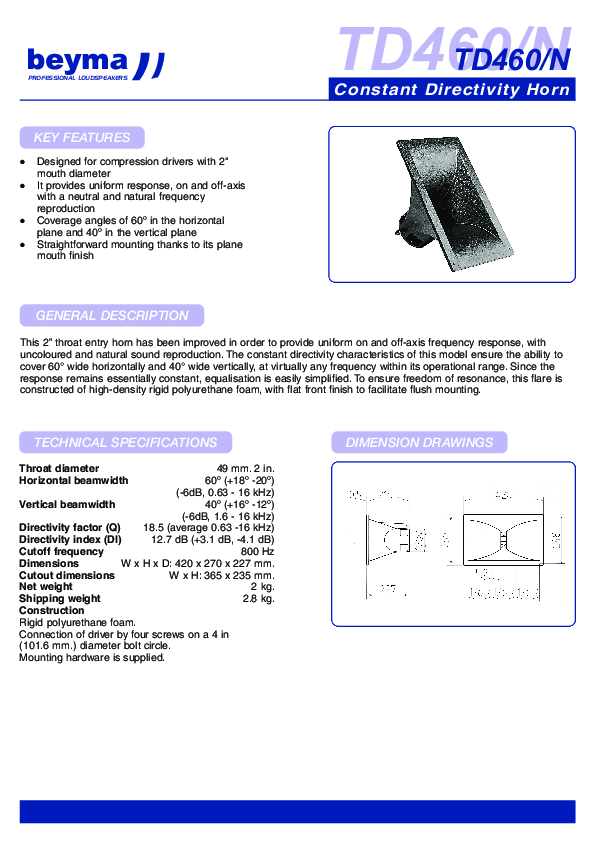

Beyma TD460/N horn tweeter
Progettato per driver a compressione con diametro di 2" / 50mm
| Dispersion HxV | 60x40º |
| Throat diameter | 49 mm 2 in |
| Horizontal beamwidth | 60º (+18º -20º) (-6dB 0.63 - 16kHz) |
| Vertical beamwidth | 40º (+16º -12º) (-6dB 1.6 - 16kHz) |
| Directivity factor (Q) | 18.5 (media/average 0.63 - 16kHz) |
| Directivity index (DI) | 12.7dB (+3.1dB -4.1dB) |
| Dimensions (WxHxD) | 420x270x227mm |
| Baffle cutout dimensions (WxH) | 365x235mm |
| Net weight | 2 kg 4.4 lb |
| Total weight | 2.8 kg 6.17 lb |
| Material | Rigid polyurethane foam |
| Construction | Rygid polyurethane foam. Aluminium adaptor. Connection of driver by 4 screws on a 4 in. (101.6mm) diameter bolt circle. Mounting hardware is supplied. |
