Rockford Fosgate T500X1br amplificatore ultra compatto - Power Micro Series

Rockford Fosgate
il tuo prezzo: € 449,00

Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Amplificatore 1 canale
Crossover Si
Potenza RMS 4 Ohm 1x175 Watt
Rapporto segnale rumore 90 dB S/N
Potenza RMS 2 Ohm 1x300 Watt
Distorsione armonica % THD
Potenza RMS 1 Ohm 1x500 Watt
Assorbimento MAX 60 Ampere
Dimensione 211 x 41 x 108 mm
Peso 1,4 Kg

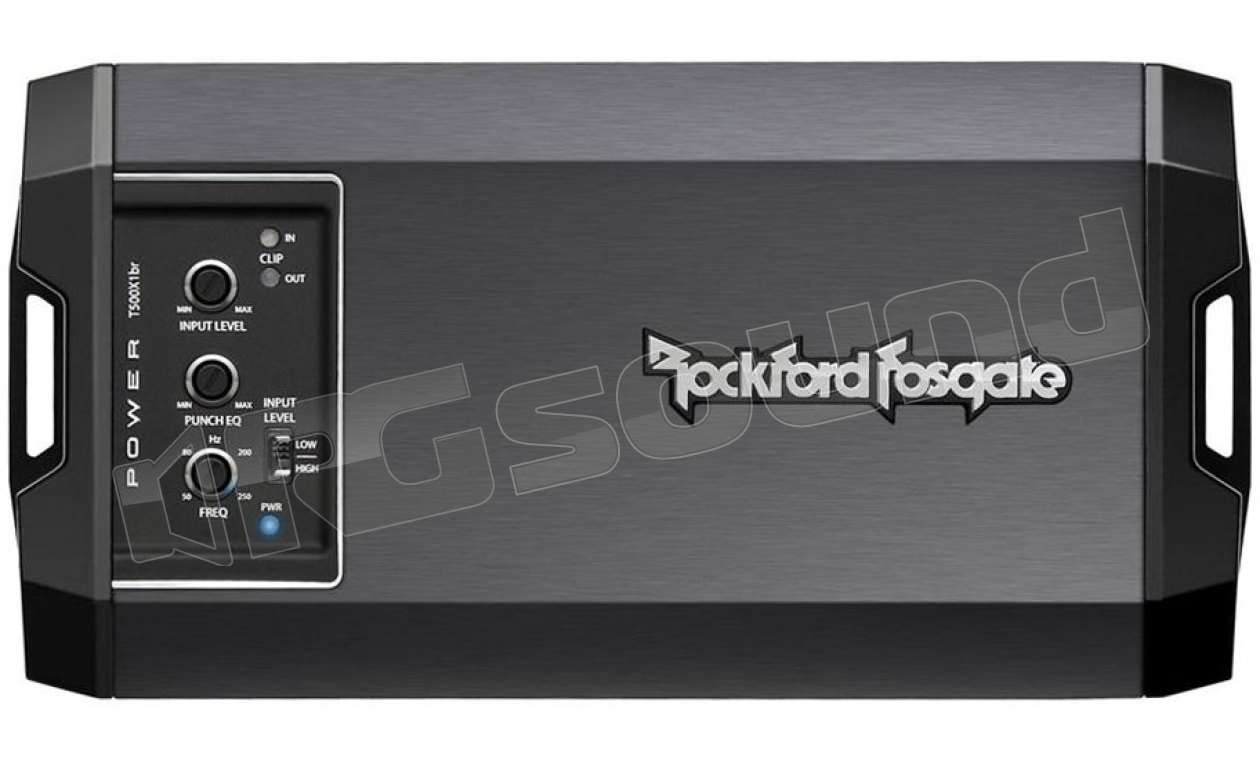

Amplificatore a monocanale ultra compatto Rockford Fosgate T500X1br - Classe AD, potenza RMS 1x175 Watt a 4 Ohm.

T500X1br è anche l'ideale per auto ibride, elettriche, camion e motocicli.


The Power T500X1br is an ultra-compact, patented Boosted Rail 500 Watt mono amplifier. Features high-level auto turn-on, input/output clip detection, top mounted controls and dual fan forced induction cooling. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.


Caratteristiche T500X1br

  • Rockford Fosgate proprietary Boosted Rail technology
  • Differential inputs with high level auto turn-on feature
  • Upgraded RCA connectors
  • 8 AWG Power/Ground connector. 10 AWG speaker connector
  • Remote-Out feature when using high level inputs
  • 2013 PLC2 remote ready
  • C.L.E.A.N. input/output clip detection and indicator LEDs

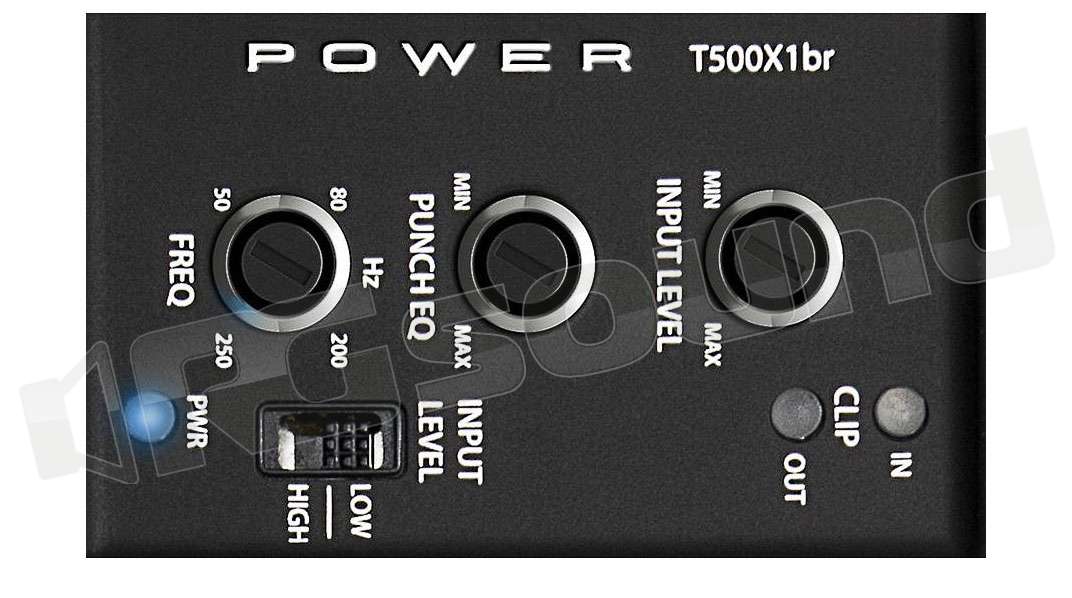

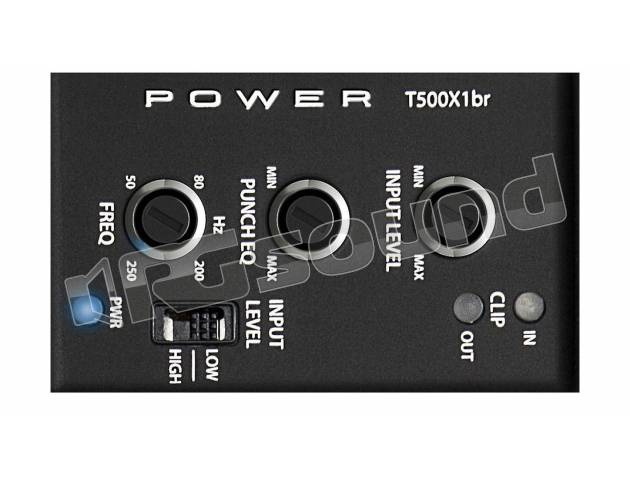

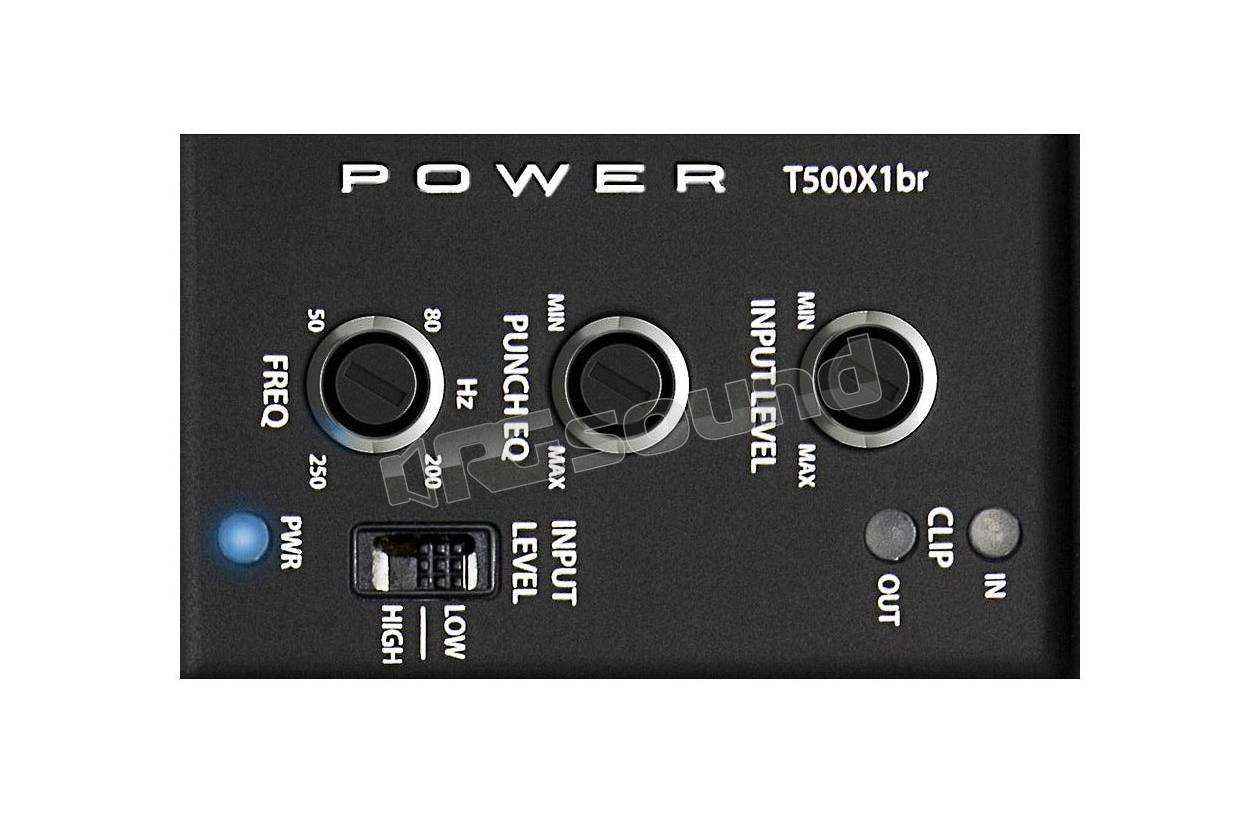

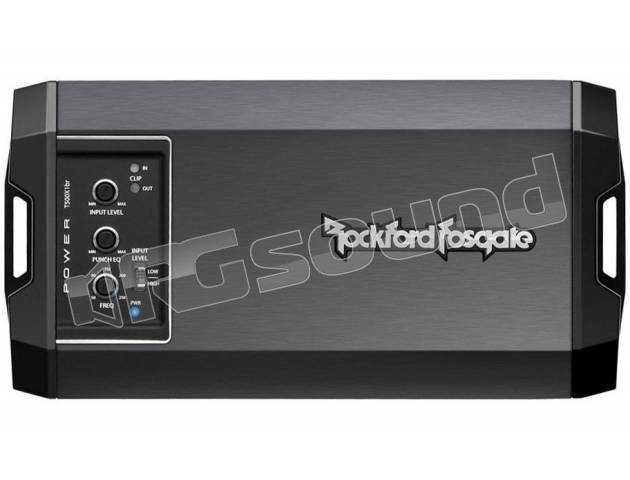

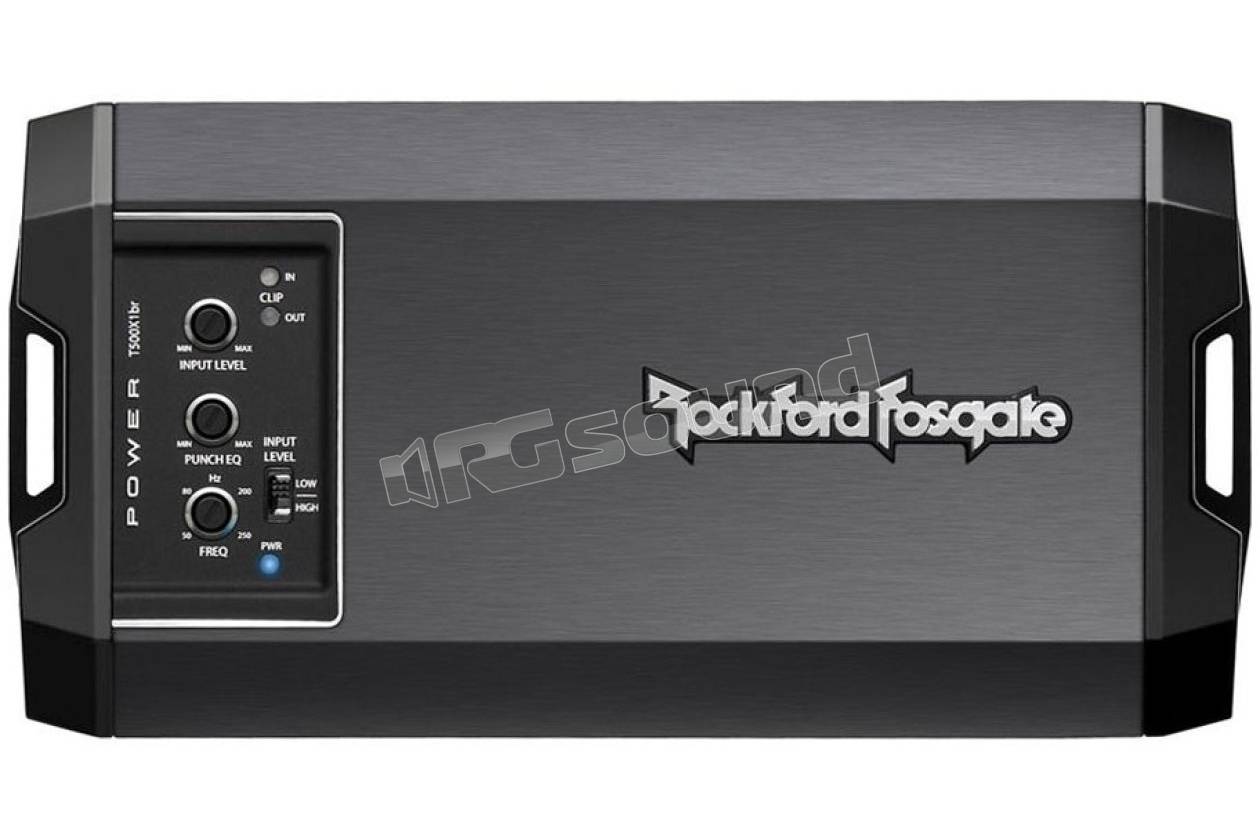

  • Top mounted controls
  • Dual fan cooled
  • Real time thermal sensing with Rollback technology

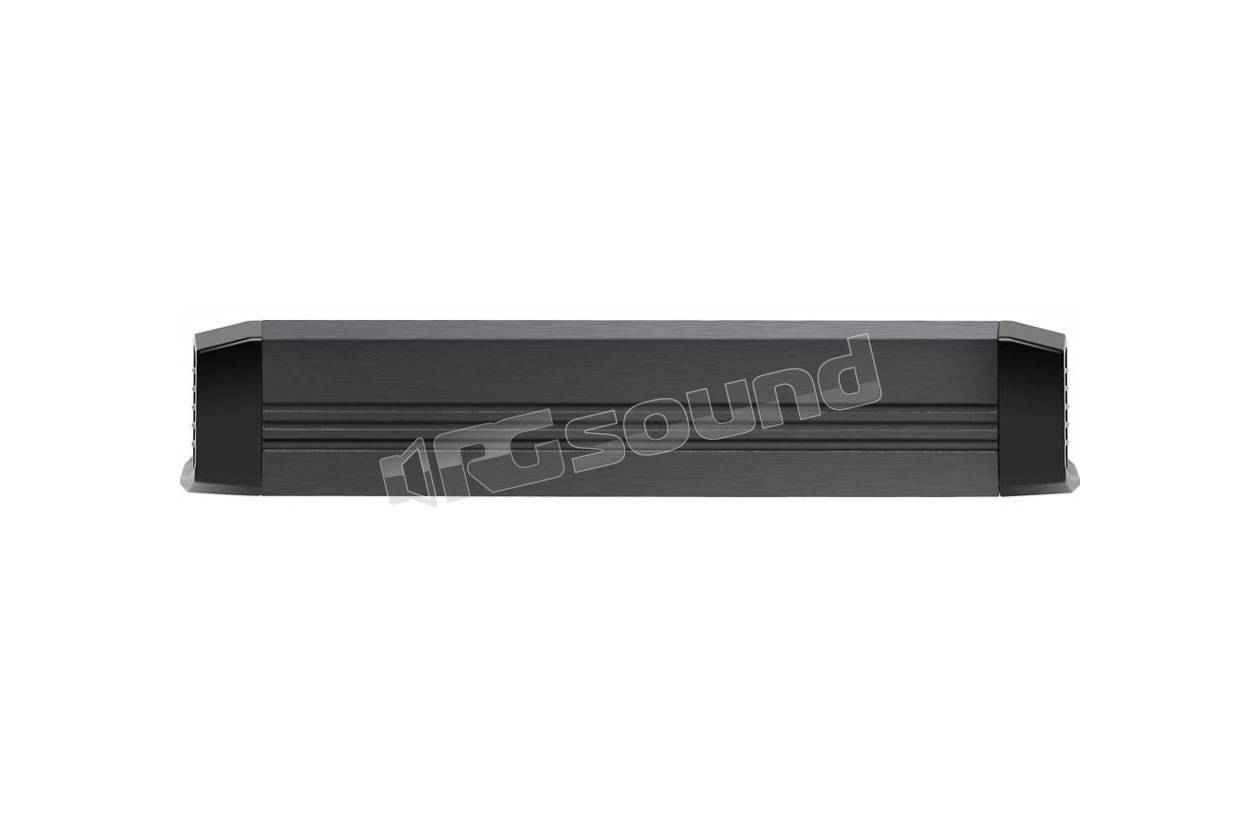

  • Dual extruded heat sinks
  • Discrete surface mount technology

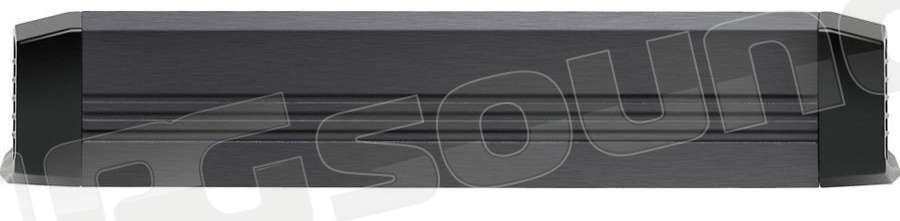

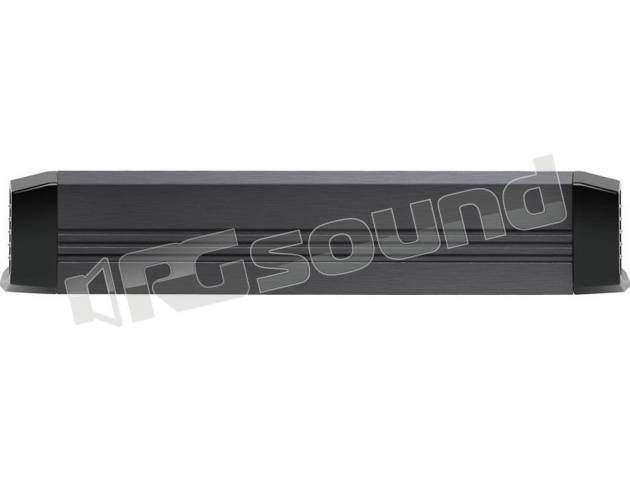

Rockford Fosgate T500X1br

Rockford Fosgate T500X1br


Ad oggi Rockford Fosgate rappresrenta uno dei marchi più conosciuti nel settore Hi-fi (car e nautico) ed è garanzia di standard qualitativi decisamente elevati come evidenzia l'amplificatore T500X1br.

RGsound è rivenditore ufficiale per l'Italia, ogni prodotto marchiato Rockford Fosgate acquistato sul sito RGsound.it gode della garanzia italiana di due anni dal momento dell'acquisto.



Specifiche Power T500X1br


Number of Channels: 1
Rated Power
(RMS Continuous Power):
175 Watts x 1 @ 4-Ohm
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm
Total Power
(Sum of Rated Power):
500 Watts
Dynamic Power
(PVC/PowerCube® Measurement):
201 Watts x 1 @ 4-Ohm
342 Watts x 1 @ 2-Ohm
540 Watts x 1 @ 1-Ohm
Bridgeable: No
Frequency Response: 20Hz - 220Hz +/-1dB
Efficiency (average): >75%
Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0% above 35 Hz
Crossover Controls: Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
All-Pass: No
Tone Controls: Bass: 0 to +18 dB @ 45 Hz
Input Sensitivity: 150 mV to 12 V

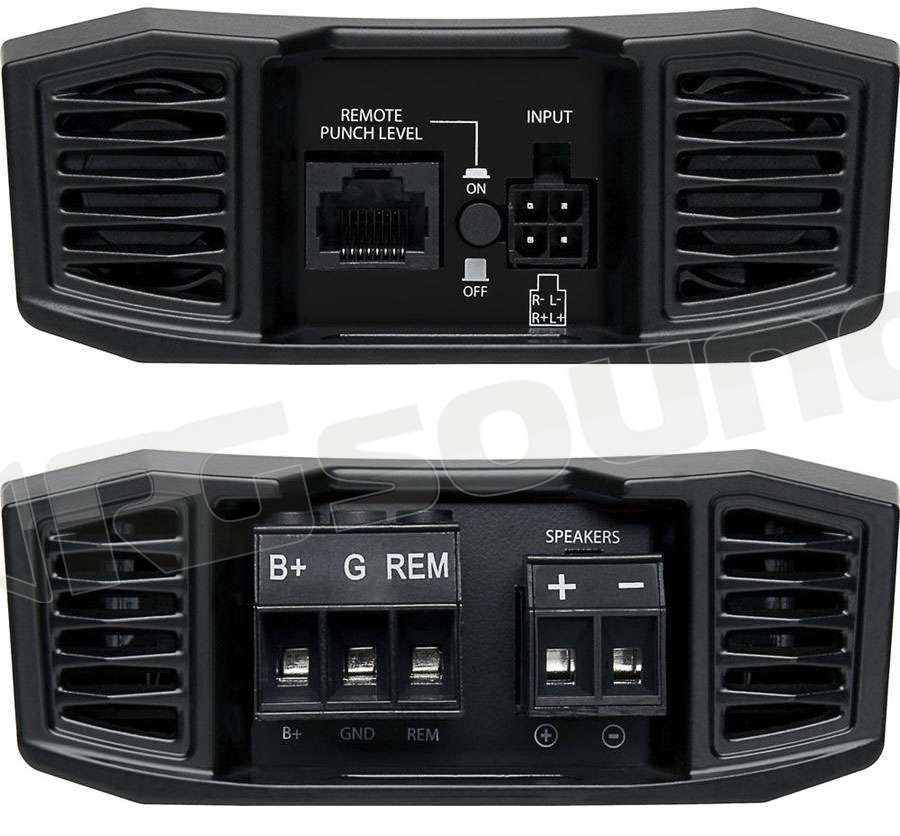

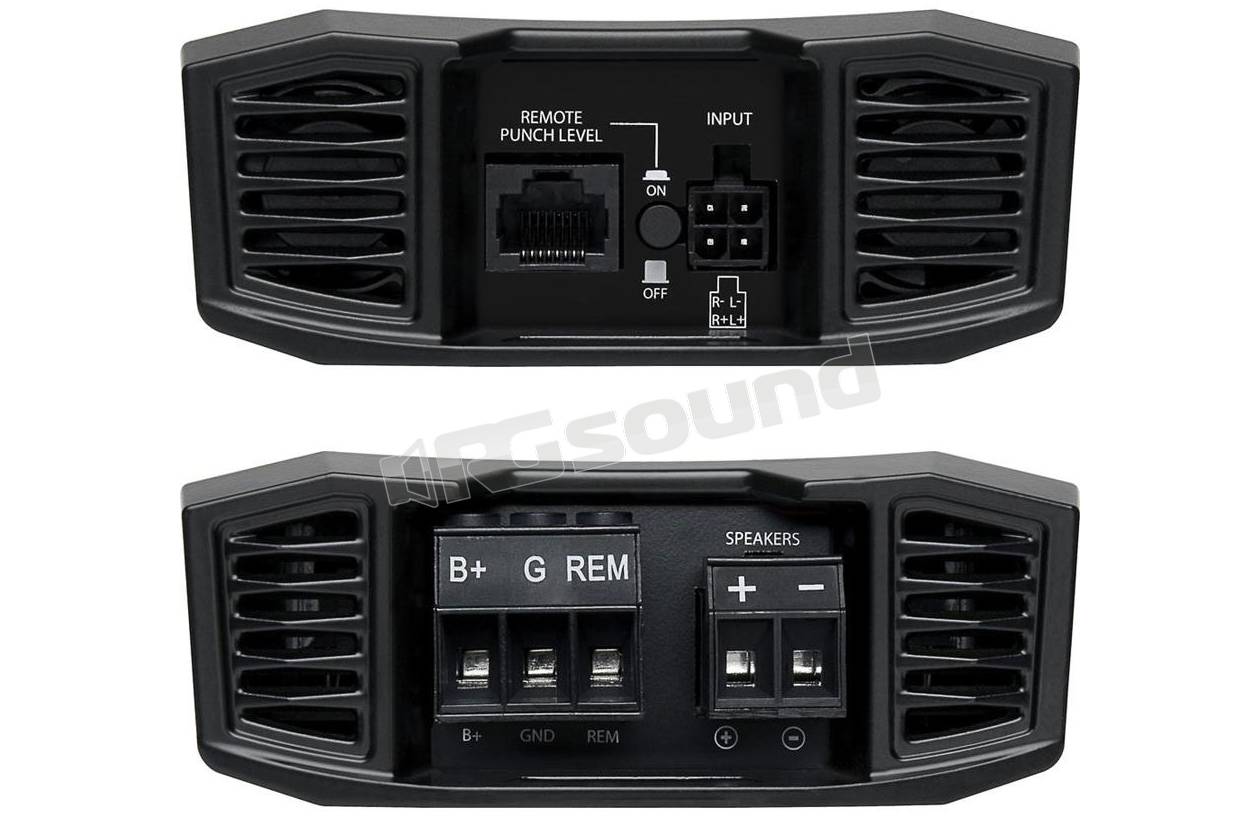

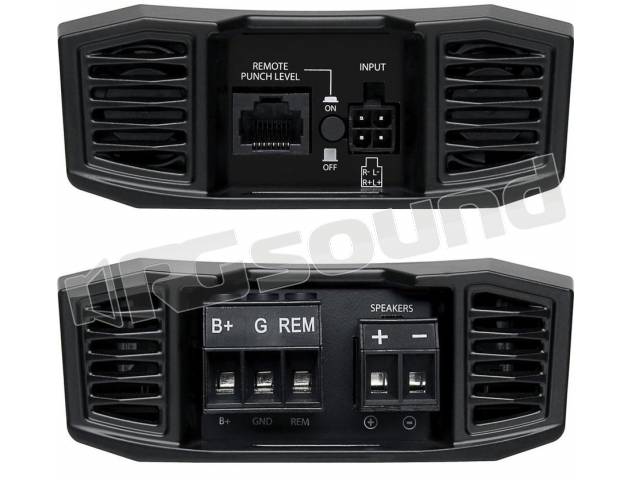

Signal Input: High/Low Level Input: 4-Pin harness
Signal Output: -
Power Input Connector: Detachable Compression Terminal
Power Wire Gauge: 8 AWG
Speaker Output Connector: Detachable Compression Terminal
Speaker Wire Gauge: 12 AWG
Heat Sink Type: Extruded Aluminum
Cooling: Dual Fan Cooled
Remote Controls: Optional PLC2 provides Punch Level Control
Visual Indicators: Power: Blue LED
Protect: Red LED
Input Clip: Red LED
Output Clip Blue/Red LED
Circuit Topology Class: Class-BR
Operating Voltage: 9 - 16 VDC
Recommended Fuse
(not included):
60 A
Max. Current Draw (13.8V Sinewave): 60 A
Average Current Draw (13.8V Music): 30 A
Suggested Alternator: 75 A
Shipping Weight: 3.1 Lbs. (1.4 Kg.)
Dimensions (HxWxL): 1.6 x 4.25 x 8.3 (in.)
4.1 x 10.79 x 21.1 (cm)
