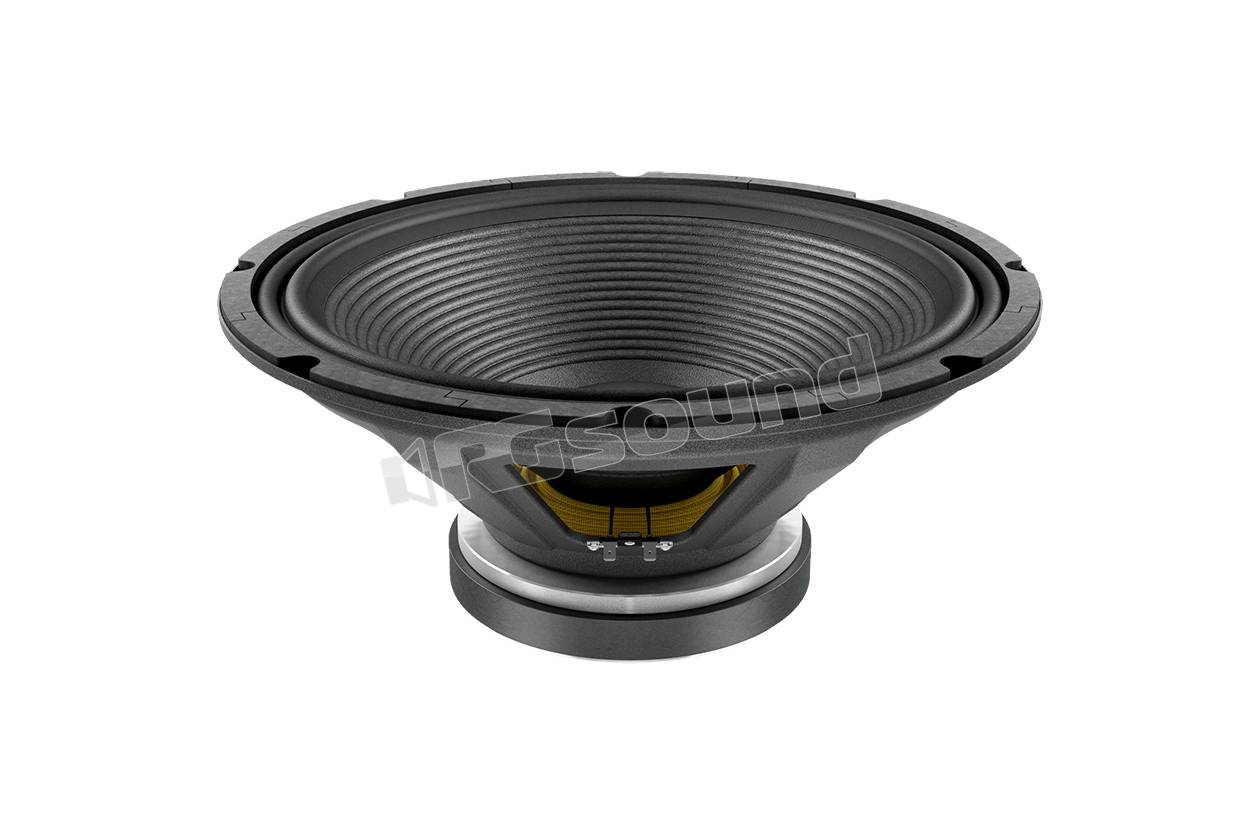

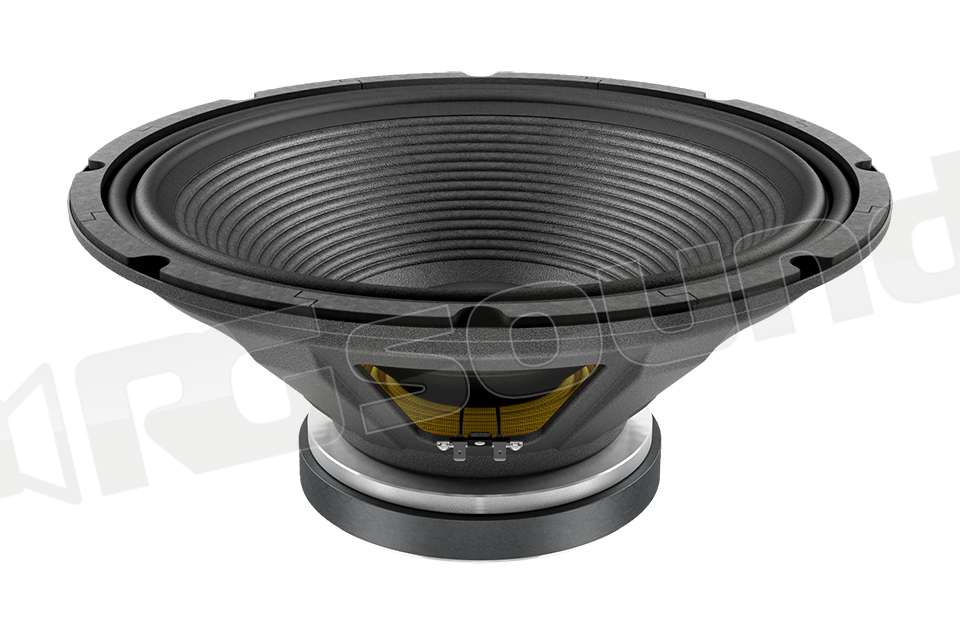

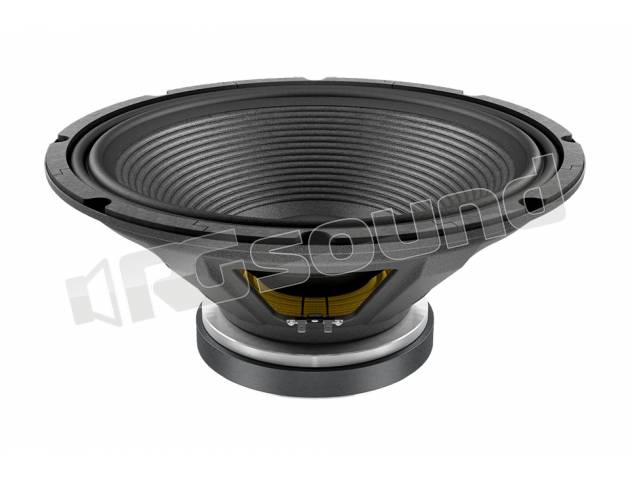

LaVoce SSF184.00 Subwoofer 460mm (18 pollici)

LaVoce
il tuo prezzo: € 218,10
Prezzo riferito a singolo pezzo (IVA inclusa)

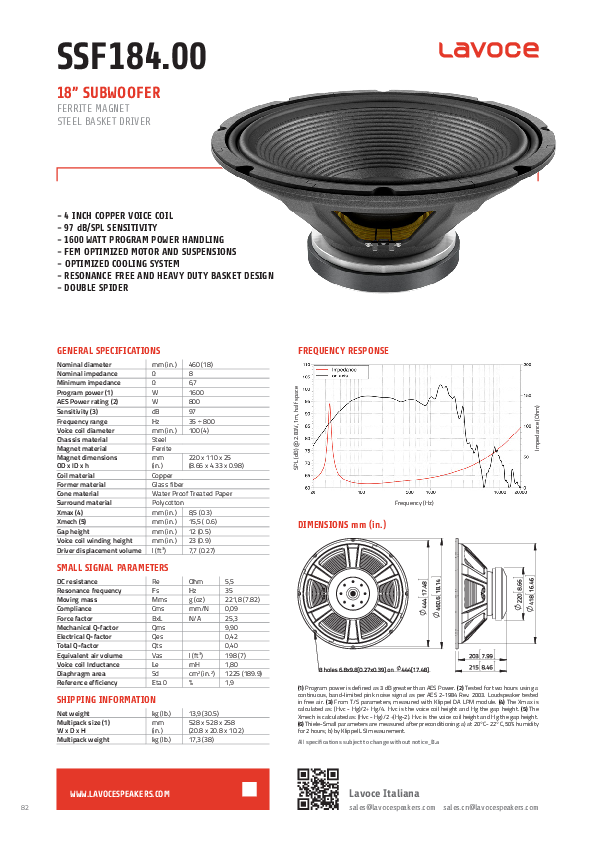

LaVoce SSF184.00 Subwoofer 460mm (18 pollici) Nom. Ø: 18" - V.C. Ø: 4'' - Power handling: 1000 W AES / 2000 W Program, Sensitivity: 97 dB, Frequency range: 35 - 800 Hz

LaVoce codice 70R11180

Features

- 4 INCH COPPER VOICE COIL

- 97 dB/SPL SENSITIVITY

- 1600 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

- DOUBLE SPIDER



General Specifications





Nominal diameter mm (in) 460 (18)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,7
Program power W 1600
AES Power rating W 800
Sensitivity dB 97
Frequency range Hz 35 ÷ 800
Voice coil diameter mm (in) 100 (4)
Chassis material   Steel
Magnet material   Ferrite

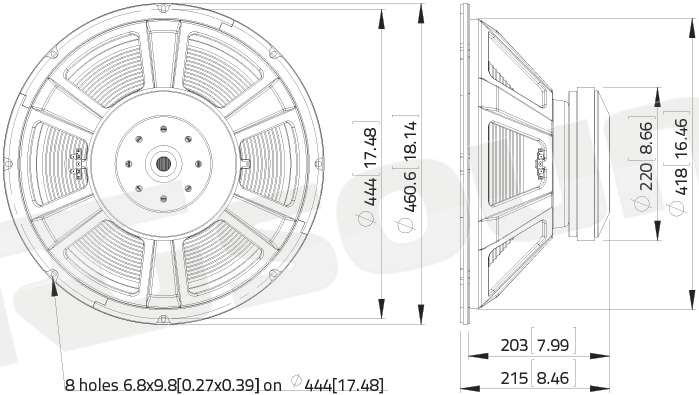

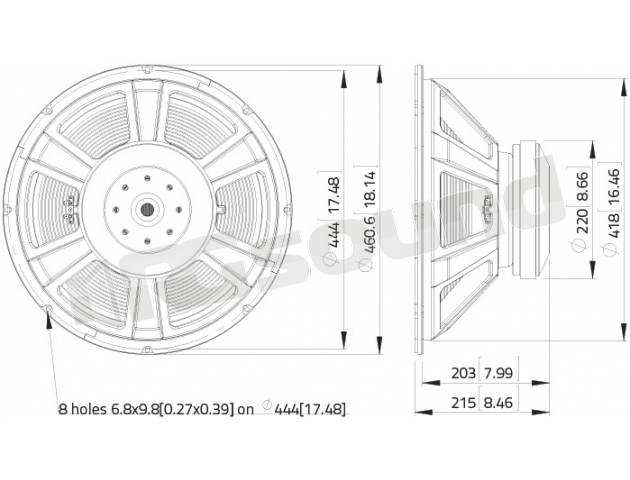

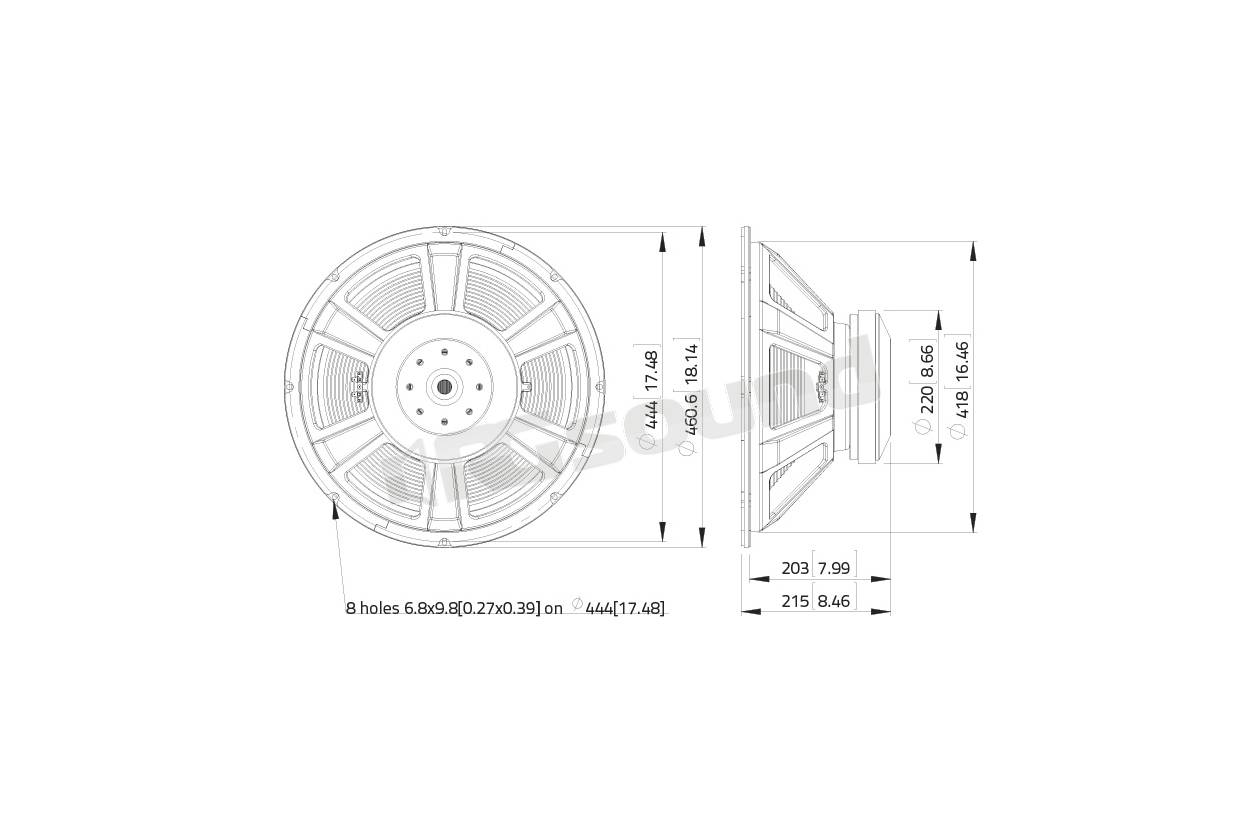

Magnet dimensions OD x ID x h mm (in) 220 x 110 x 25 (8.66 x 4.33 x 0.98)
Coil material   Copper
Former material   Glass Fiber
Cone material   Water Proof Treated Paper
Surround material   Polycotton
Xmax mm (in) 8,5 (0.3)
Xmech mm (in) 15,5 (0.6)
Gap height mm (in) 12 (0.5)
Voice coil winding height mm (in) 23 (0.9)
Driver displacement volume l (ft³) 7,7 (0.27)

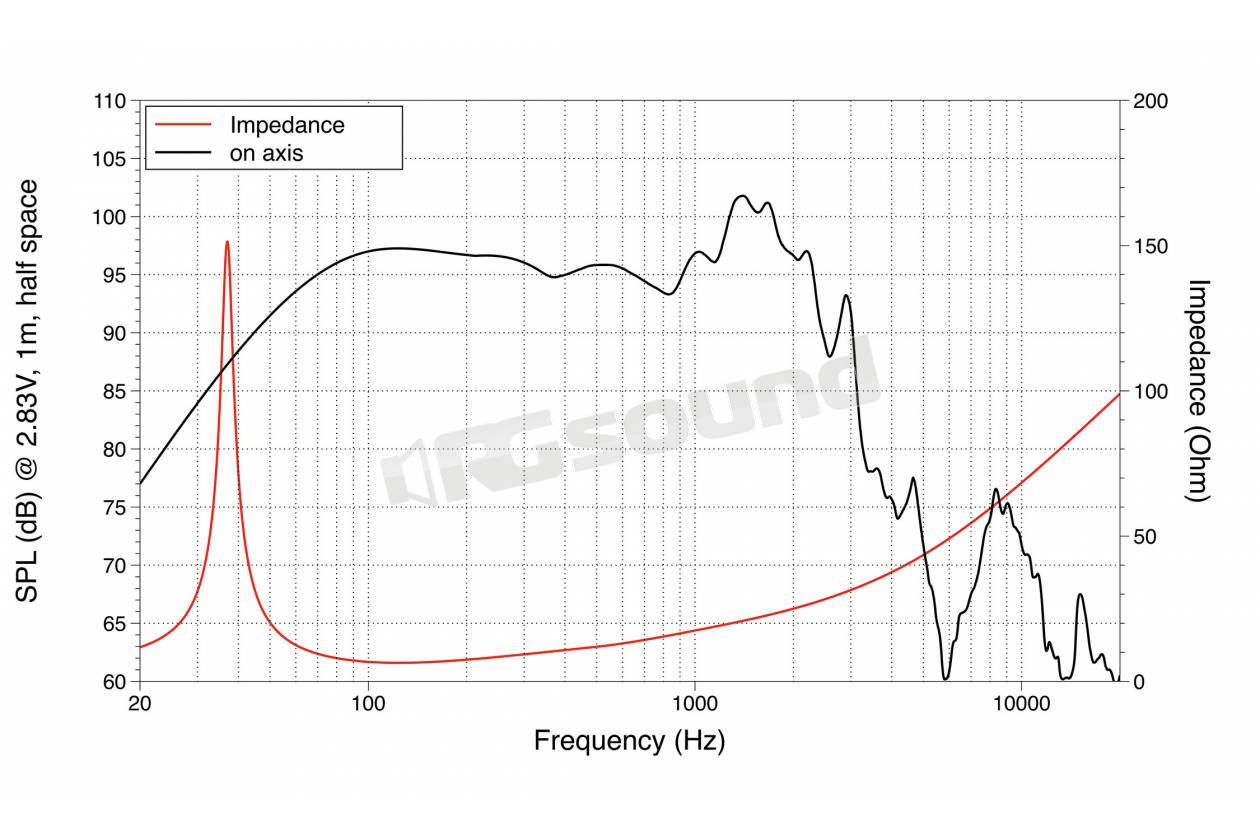

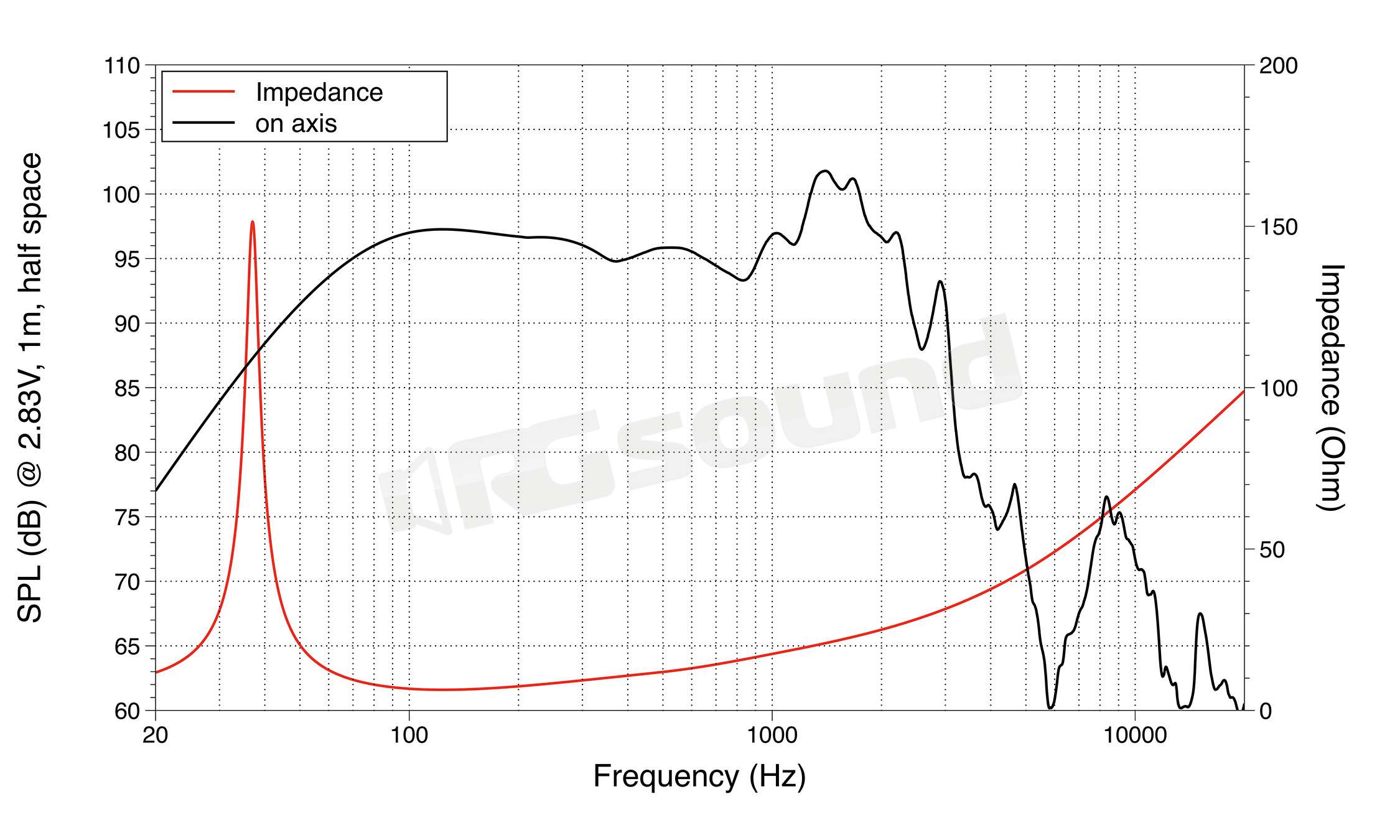

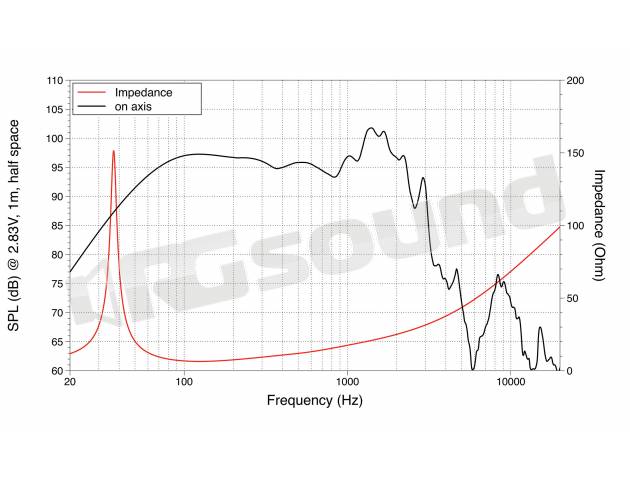

Small Signal Parameters





DC resistance Ohm 5,5
Resonance frequency Hz 35
Moving mass g (oz) 221,8 (7.82)
Compliance mm/N 0,09
Force factor N/A 25,3
Mechanical Q-factor   9,9
Electrical Q-factor   0,42
Total Q-factor   0,40
Equivalent air volume l (ft3) 198 (7)
Voice coil inductance mH 1,80
Diaphragm area cm2 (in.2) 1225 (189.9)
Reference efficiency   1,9%





Shipping Information





Net weight kg (lb) 13,9 (30.5)
Multipack size W x D x H mm x mm x mm (in x in x in) 528 x 528 x 258 (20.8 x 20.8 x 10.2)
Multipack weight kg (lb) 17,3 (38)
