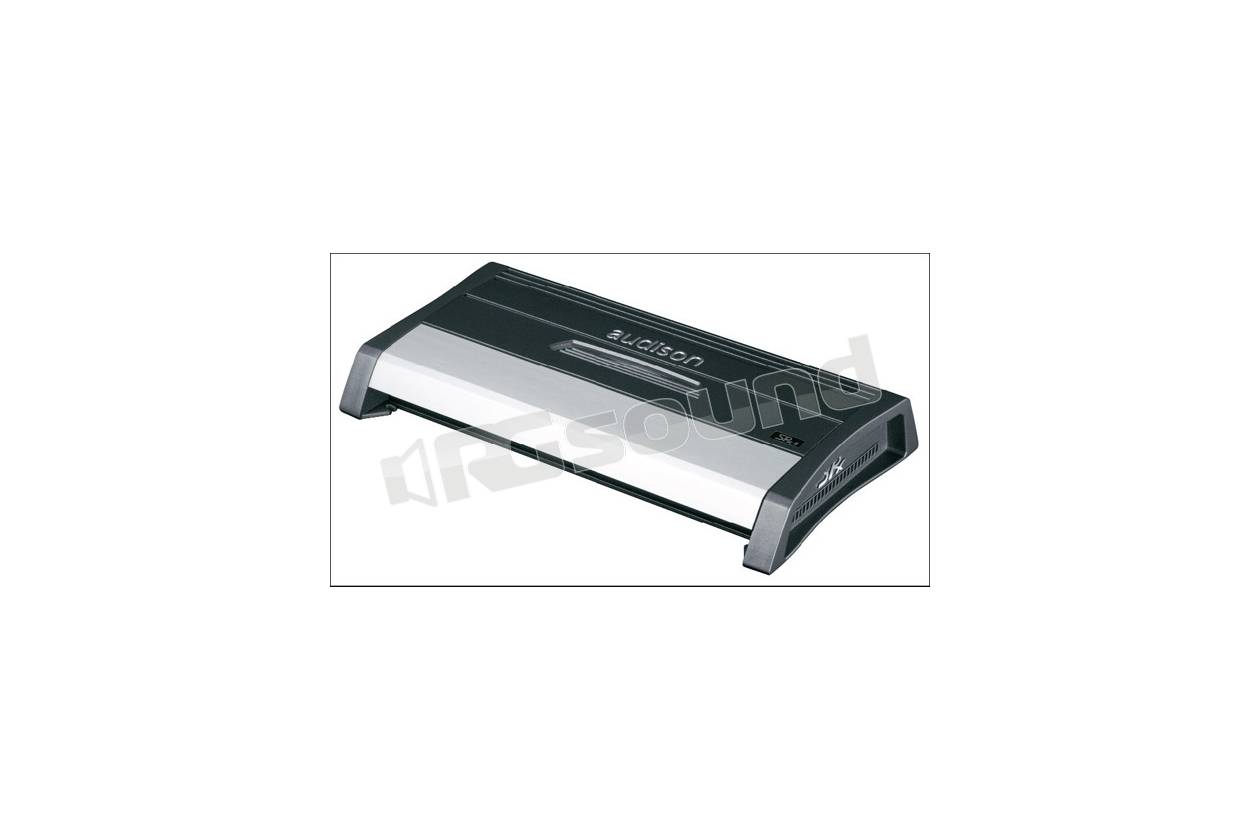

Audison SRX 4

Audison
il tuo prezzo: € 382,20
Prezzo riferito a singolo pezzo (IVA inclusa)
Spedizione Gratuita SPEDIZIONE GRATUITA

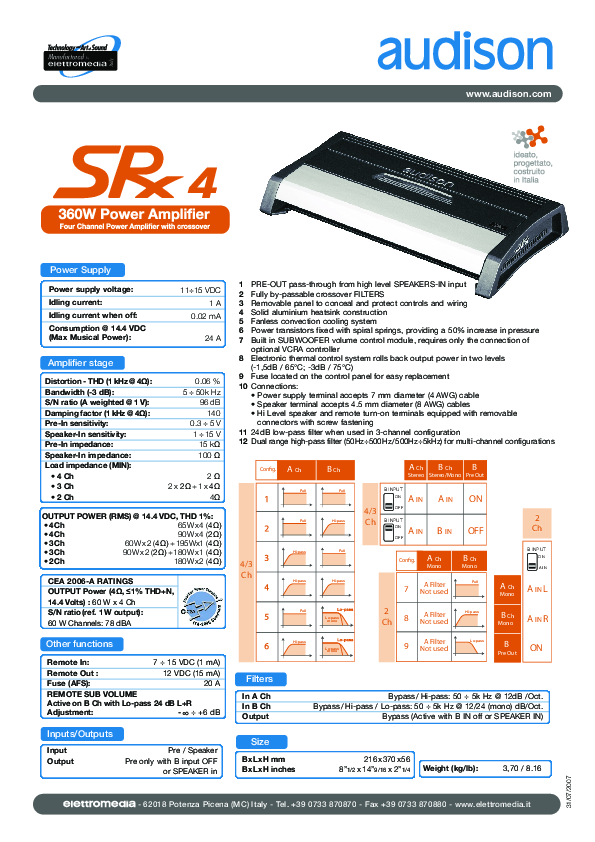

Il nuovo SRX4 è un amplificatore 4 canali completamente configurabile, grazie ai comodi filtri attivi a variazione continua; adatto per configurazioni front + sub - front/rear - 2 vie attivo: midwoofer + tweeter

Caratteristiche principali


*Distortion - THD (1 kHz@4Ω):0.06 %
*Bandwidth (-3 dB):5 ÷ 50k Hz
*S/N ratio (A weighted@1 V):96 dB
*Damping factor (1 kHz@4Ω): 140
*Pre-In sensitivity:0.3 ÷ 5 V
*Speaker-In sensitivity:1 ÷ 15 V
*Pre-In impedance :15 kΩ
*Speaker-In impedance:100 Ω
*Load impedance (MIN):
• 4 Ch 2 Ω
• 3 Ch 2x2Ω + 1x4 Ω
• 2 Ch 4 Ω
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
• 4 Ch 65W x 4 (4Ω)
• 4 Ch 90 W x 4 (2Ω)
• 3 Ch 60 W x 2 (4Ω) + 195Wx1 (4Ω)
• 3 Ch 90W x 2 (4Ω) + 180Wx1 (4Ω)
• 2 Ch 180W x 4 (4Ω)

Altre funzioni
*Remote In: 7 ÷ 15 VDC (1 mA)
*Remote Out : 12 VDC (15 mA)
*Fuse (AFS): 20 A

Filtri

*Input A ch Bypass / Hi-pass : 50 ÷ 5k Hz @12dB/Oct.
*Input B ch Bypass / Hi-pass : 50 ÷ 5k Hz @12dB/Oct.
*Output Bypass (attivo con B IN off o Speaker IN)

Dimensioni

*BxLxHmm 216x370x56
*Weight (kg/lb): 3,70 / 8.16
