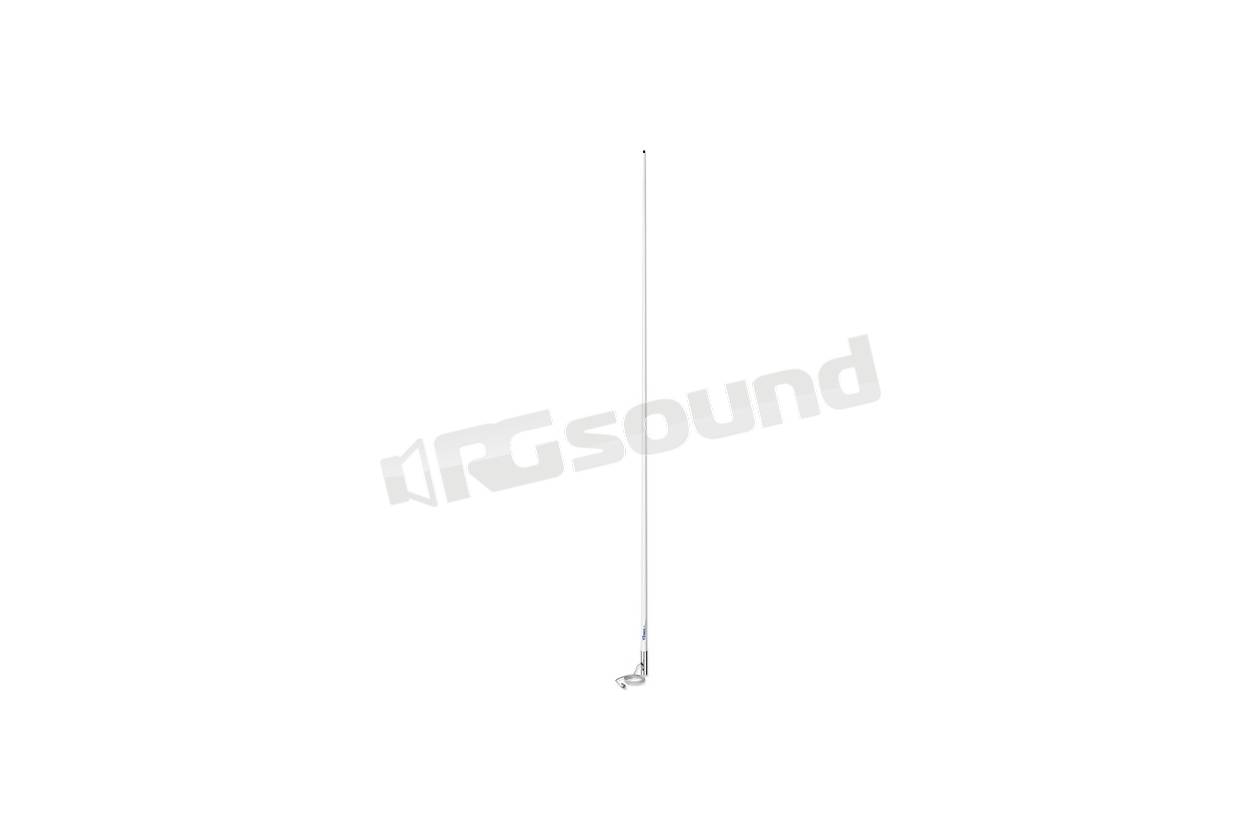

V-Tronix - Shakespeare RC 240-DB

2.4m, Cellular Antenna Dual Band with Stainless Steel Ferrule

This Cellular Antenna covers Pan European GSM 900 and 1800MHz networks. Unlike car antennas, it does not need huge amounts of metal to act as a ground plane and therefore can be mounted in any convenient location. It matches the RV 240 and the MD 32SS.

L'antenna gsm dual bands RC 240 DB ha in dotazione un cavo a bassa perdita lungo 7,60 metri, con un connettore TNC maschio alla fine del cavo.

• White tapered fibreglass tube
• Stainless steel ferrule
• Matches RV 240 and MD32SS
• 1in x 14 TPI thread
• 7.6m LoMax® cable
• TNC connector
• Recommended Ratchet Mounts are ARMNT and ARMNT-SL

Specifiche tecniche

Impedance 50 ohms

Frequency Range 890-960; 1800-1900 MHz

Gain 6 dBi

V.S.W.R. 1.5:1 at 925 MHz; 1.5:1 at 1918.7 MHz

Length 2.4 m

Weight 1.1 kg

Sections 1
