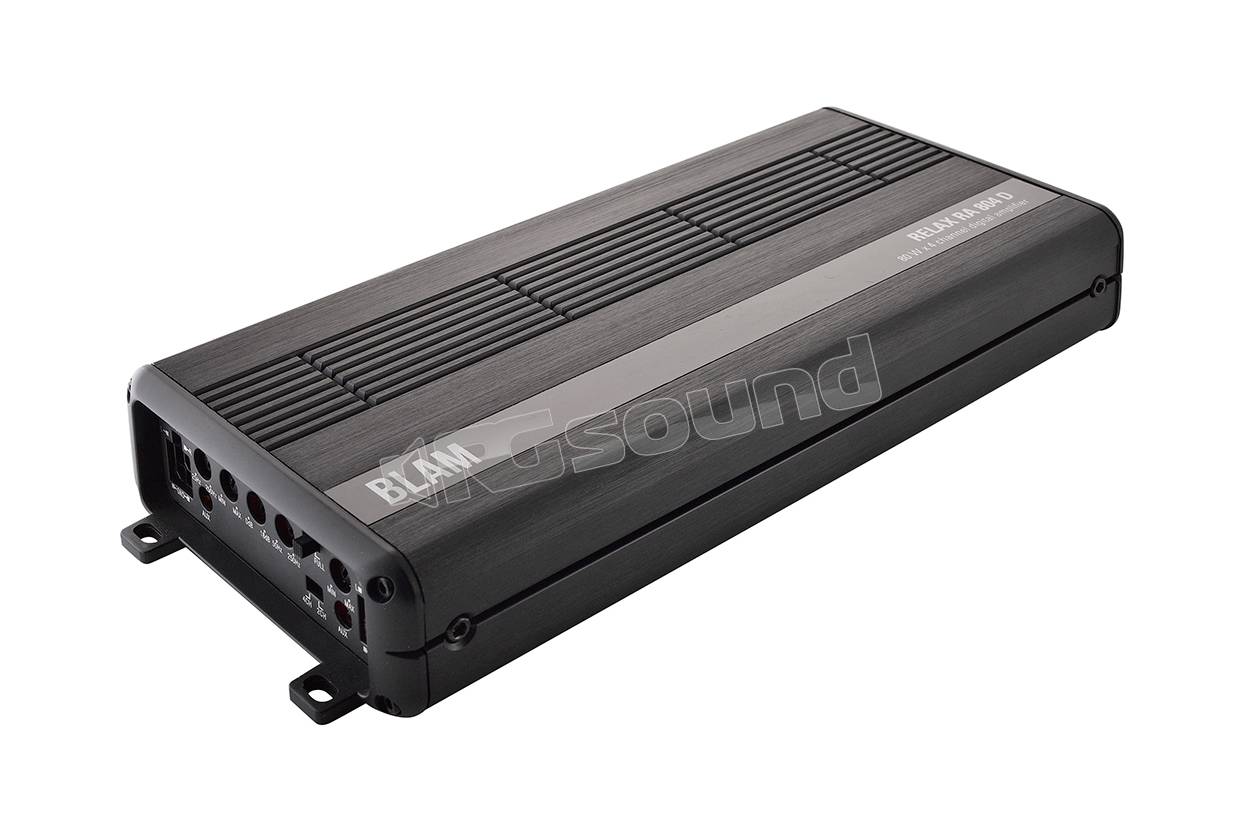

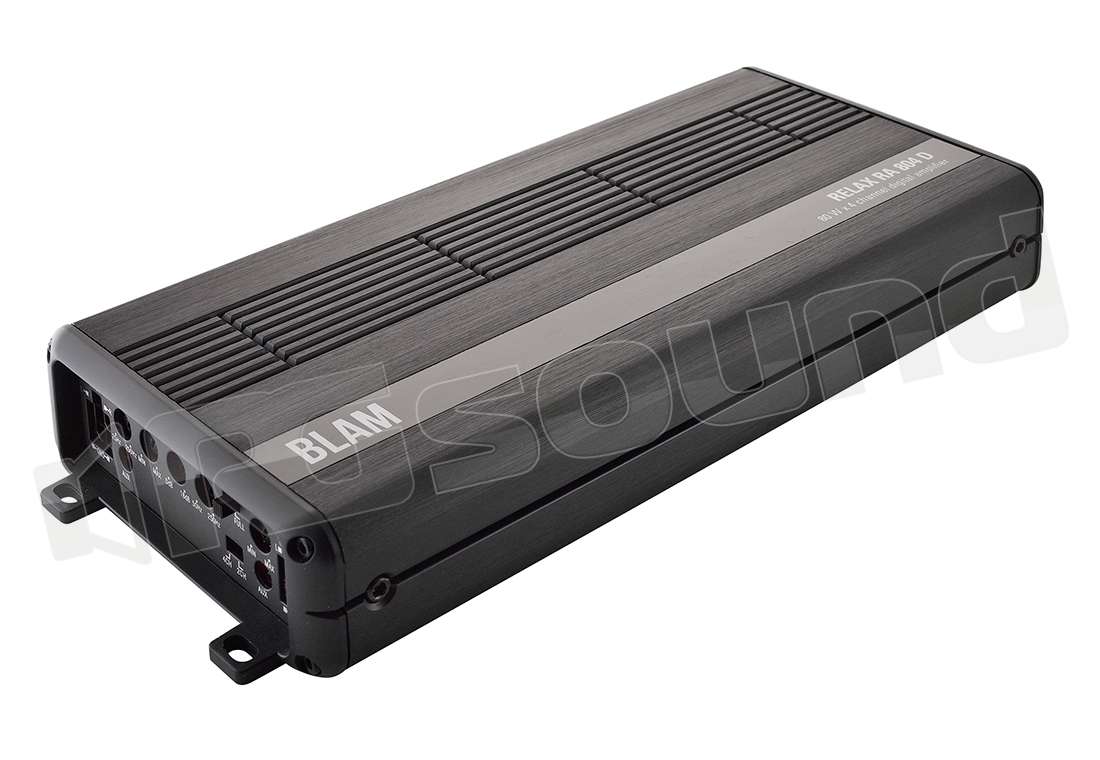

BLAM RA 804D amplificatore 4 canali

4-CHANNEL PLUG & PLAY AMPLIFIER WITH INTEGRATED DSP

Plug and play installation in the car without cutting original wires (different cables available). Delivered with cable.

RMS Power (4 Ohms) when powered directly from Battery 70 W x 4

RMS Power (4 Ohms) when powered from OEM Wires 50 W x 4

Frequency response: 20 Hz ~ 20 KHz

Distortion: 1 KHz < 0.1%

Supply voltage range: 9 V – 15 V

Signal/Noise ratio: > 90 dB

Standby current: < 0.4 mA

Class-D amp efficiency: 95%+

Maximum operating current: 30 A

Dimensions (L x W x H): 184 x 114 x 38 mm

COMMON DSP FEATURES
Sigma DSP 28-/56-bit 50 MIPS digital audio processor 24-bit stereo audio ADC and DAC: >98 dB SNR Sampling rates 96 kHz

RA 804 D Ultra-compact D Class amplifier Compatible with OEM head units

Ultra-compact 4/3/2-channel D Class amplifier

Compatible with OEM head units

High-level inputs with auto-turn on

RCA low-level inputs 0.2V / 6V – Power (4 ohms) 4 x 80 Watts RMS – Power (2 ohms) 4 x 125 Watts RMS – Power max (4 ohms bridged) 2 x 250 Watts RMS – Configurable high-pass/low-pass crossover 25 Hz-250 Hz – Signal noise ratio 95 dB – Protections: short circuit / low impedance / reversal of polarity / heat protection – Dimensions (L x W x H) 8 5/11 41/12 13/8 – 225 mm x 35 mm x 103 mm
