Coral Electronic ND 48

Coral Electronic
il tuo prezzo: € 70,60
Prezzo riferito alla coppia (IVA inclusa)
Tipologia Tweeter
Dimensione cupola 26 mm
Potenza MAX 250 Watt
Potenza RMS 100 Watt
Risposta in frequenza 2500 - 20000 Hertz
Sensibilità 90 dB
Impedenza 4 Ohm
Diametro esterno 48 mm
Profondità di installazione 10 mm
Materiale Tweeter Hypertex silk

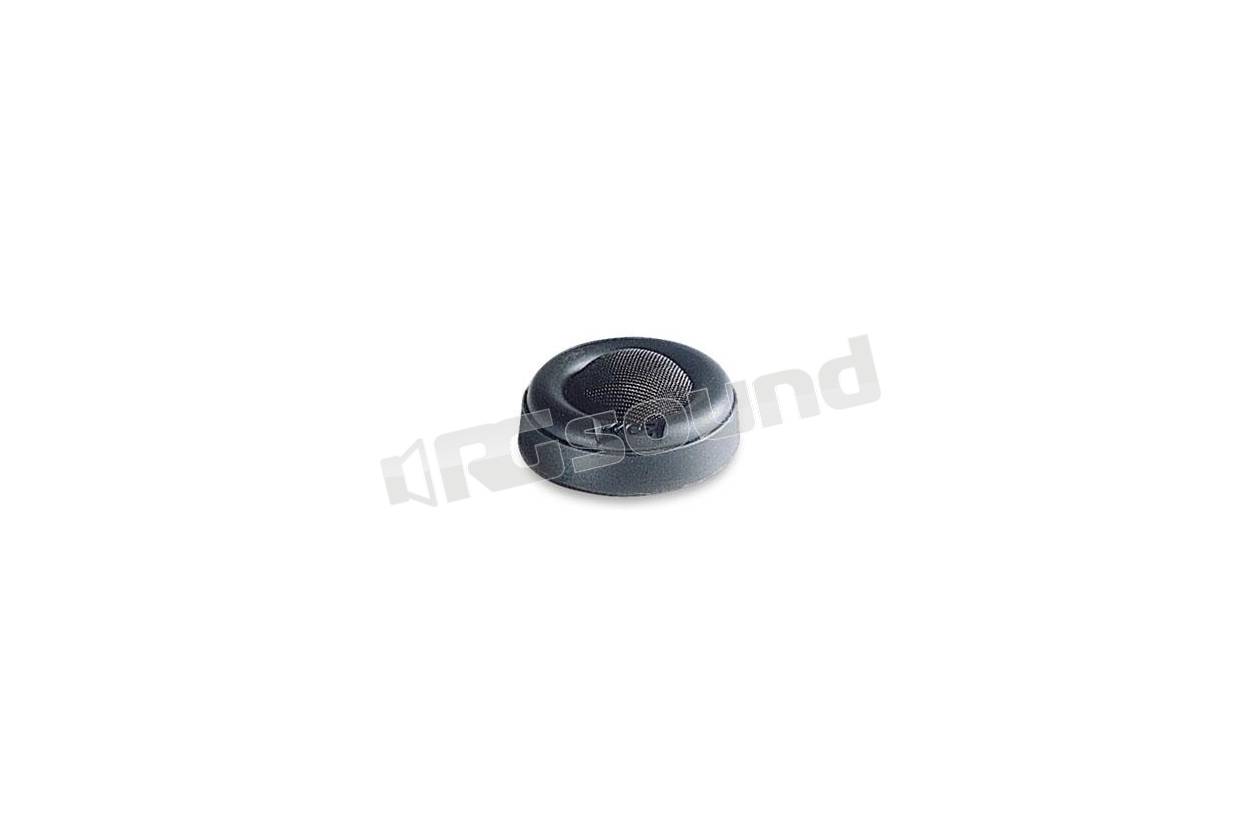

Tweeter, diametro 48 mm, 100 watt nominali, 250 watt max, magnete al neodimio, raffreddamento bobina con ferrofluido, cupola in seta trattata, flangia ad ampio angolo e basso caricamento

nominal impedance (Zn): 4 ohm
nominal power (Pn): 100 watt
max power (Pm): 250 watt
sensitivity (2.83 V/1 m): 90 dB
frequency range (BW): 2.5÷20 KHz
resonance frequency (Fs): 1600 Hz
voice coil diameter: 26 mm
dome material: silk
surround material: -
basket material: ABS
magnet material: neodymium

mechanical Q factor (Qms): 1.04
electrical Q factor (Qes): 3.86
total Q factor (Qts): 0.82
moving mass (Mms): 0.26 g
compliance (Cms): 0.03 mm/N
equivalent volume (Vas): -
force factor (BxL): 1.6 N/A
voice coil resistance (Re): 3.6 ohm
voice coil inductance (Le): 0.1 mH
emission diameter (D): 28 mm
linear excursion (Xmax): -
