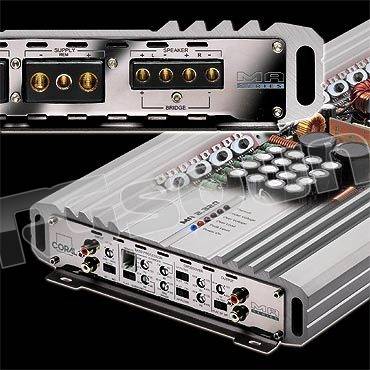

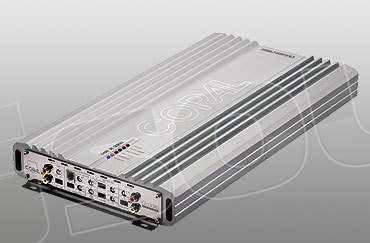

Coral Electronic MA 2320

Amplificatore stereo/mono, 2x250 watt rms (1 ohm), 1x500 watt rms (2 ohm), sezione bass processor, filtro passa-alto e passa-basso, uscita pre filtrata, controllo remoto in dotazione.

TECHNICAL DATA:

total music power: 2000 W
rms power (2 ohm,mono): 1x1000 W
rms power (4 ohm,mono): 1x640 W
rms power (1 ohm): 2x500 W
rms power (2 ohm): 2x320 W
rms power (4 ohm): 2x160 W

high-pass cut: 40÷400 Hz
high-pass slope: 12 dB/oct
low-pass cut: 40÷400 Hz
low-pass slope: 12 dB/oct
subsonic cut: 16÷48 Hz
subsonic slope: 24 dB/oct
X-Pander frequency: 40÷120 Hz
X-Pander gain: 0÷12 dB
phase control: 0÷180 deg
filtered RCA output
low/high-pass cut: 40÷400 Hz
low/high-pass slope: 12 dB/oct

freq. response (-3 dB): 20÷40K Hz
T.H.D.: 0.25 %
S/N ratio: 98 dB
input sensitivity: 0.3÷6 V
input impedance: 22 Kohm

power supply: 11÷15 V
max power current : 135 A
internal fuses: 3x40 A
size: 250x480x55 mm
