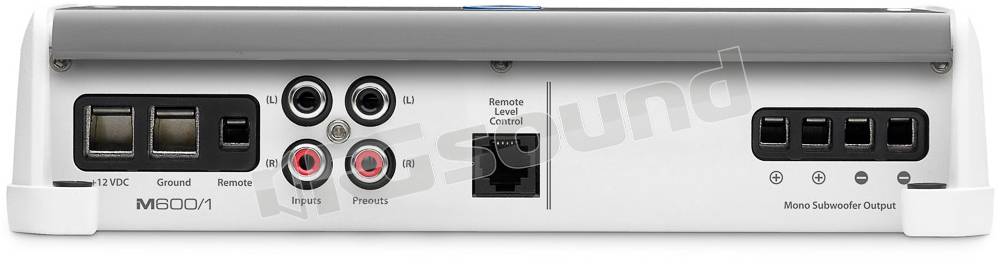

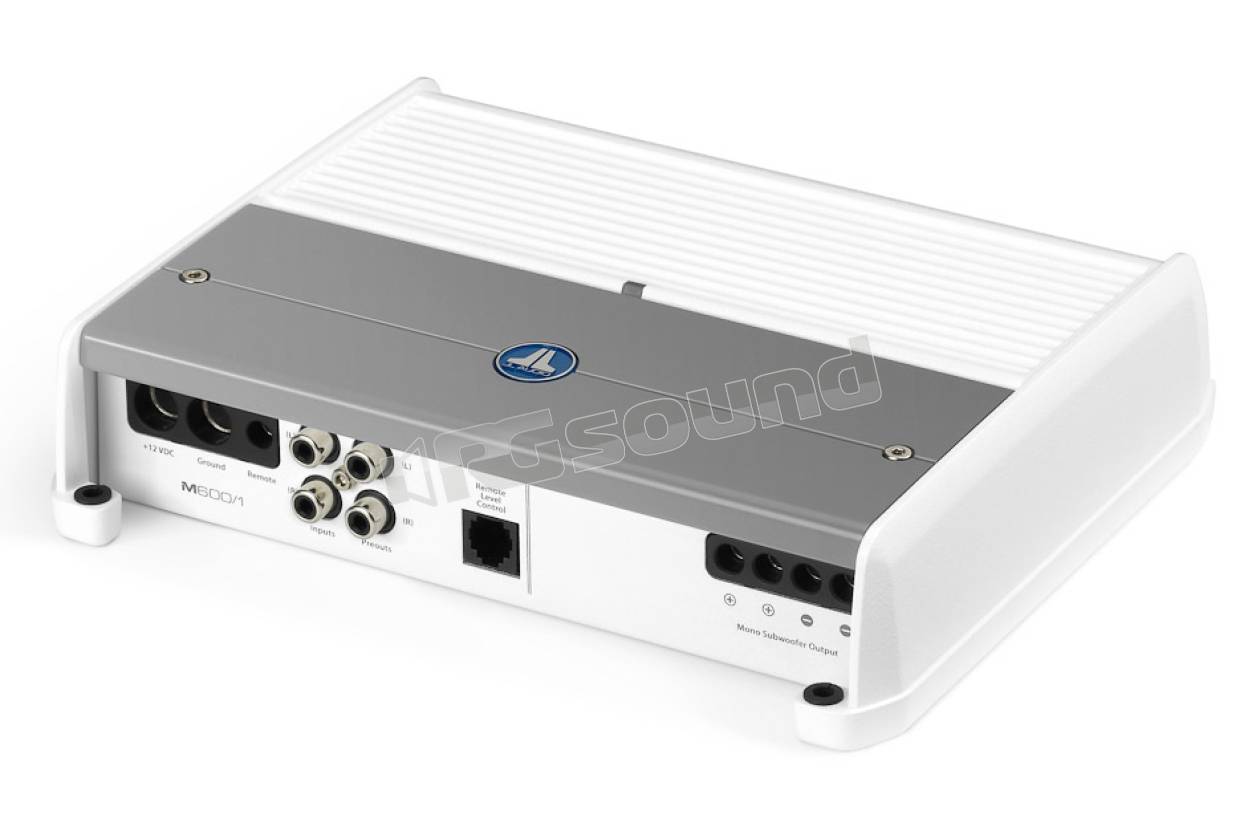

JL Audio M600/1 amplificatore marino monocanale

JL Audio
il tuo prezzo: € 503,00

Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Amplificatore 1 canale
Crossover Si
Potenza RMS 4 Ohm 1x400 Watt
Rapporto segnale rumore 59 dB S/N
Potenza RMS 2 Ohm 1x600 Watt
Distorsione armonica 1 % THD
Potenza RMS Mono 4Ω 1x300 Watt
Dimensione 216x180x52 mm
Potenza RMS Mono 2Ω 1 Watt
Peso 2.06 Kg

JL Audio M600/1 amplificatore marino full range monocanale Classe D. Garantito dal miglior servizio RGsound.it. Dimensioni ultracompatte 216 x 52 x 180 mm - Potenza RMS 1 x 400 W.



Caratteristiche M600/1
Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω
400 W RMS x 1
@ 3 Ω 500 W RMS x 1
@ 2 Ω 600 W RMS x 1
@ 1.5 Ω N/A



Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 300 W RMS x 1
@ 3 Ω 400 W RMS x 1
@ 2 Ω 500 W RMS x 1
@ 1.5 Ω N/A



JL Audio M600/1



Specifiche generali M600/1

Frequency Response
7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >59 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >1000 / 50 Hz
Damping Factor @ 2 Ω >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)



Signal Processing M600/1

Filter Modes Low-Pass only
Filter Slope (dB/Octave) 12 dB or 24 dB
Filter Frequency Range 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometer Yes
Filter Defeatable? Yes
Infrasonic Filter 30 Hz, defeatable
Bass Boost EQ (0 to +12 dB @ 45 Hz) No
Output Polarity Switch No
Remote Subwoofer Level Control Optional (HD-RLC)
Pass-Through Preamp Output Type Buffered

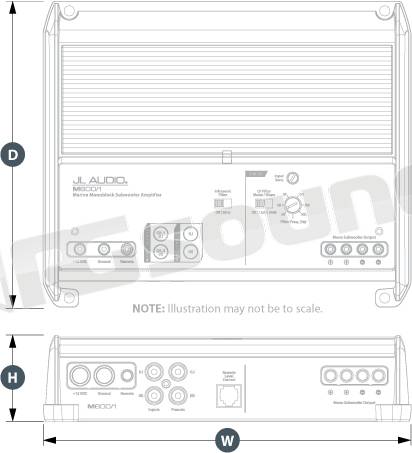

Dimensioni M600/1

Height (H) 2.05 in / 52 mm
Width (W) 8.52 in / 216 mm
Depth (D) 7.09 in / 180 mm
Net Weight 4.6 lb / 2.06 kg



JL Audio M600/1
