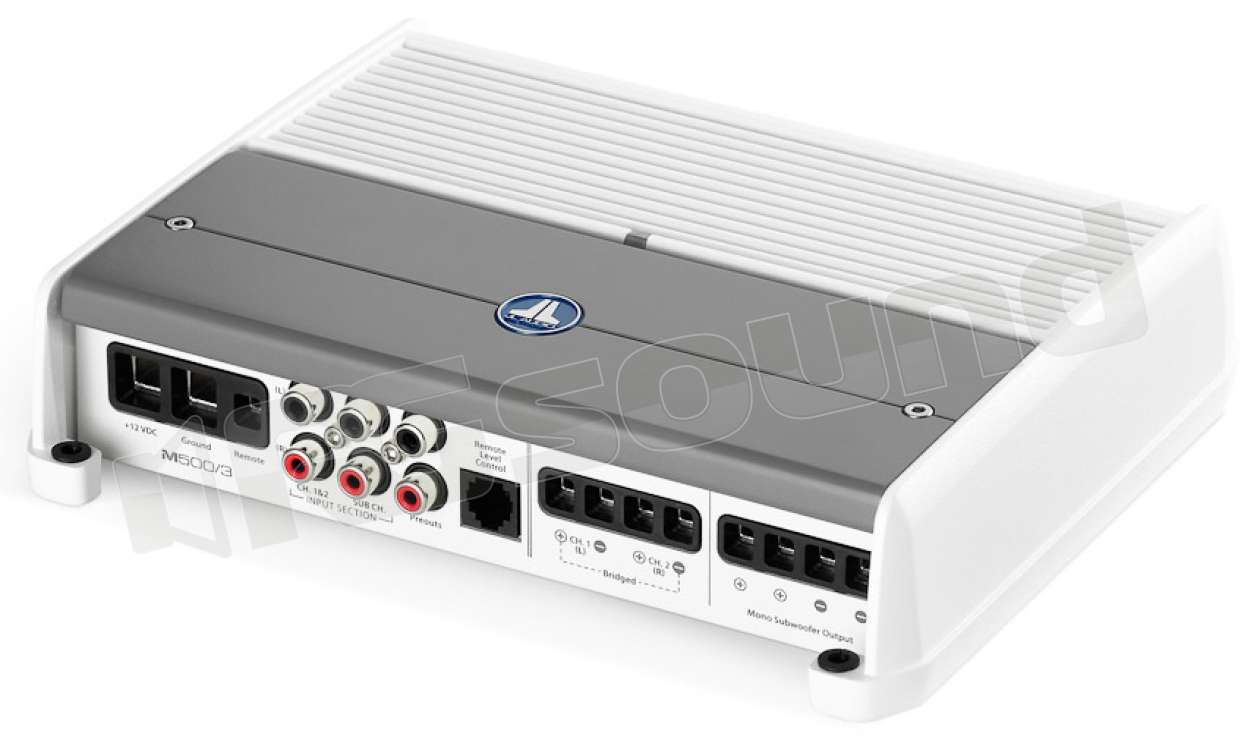

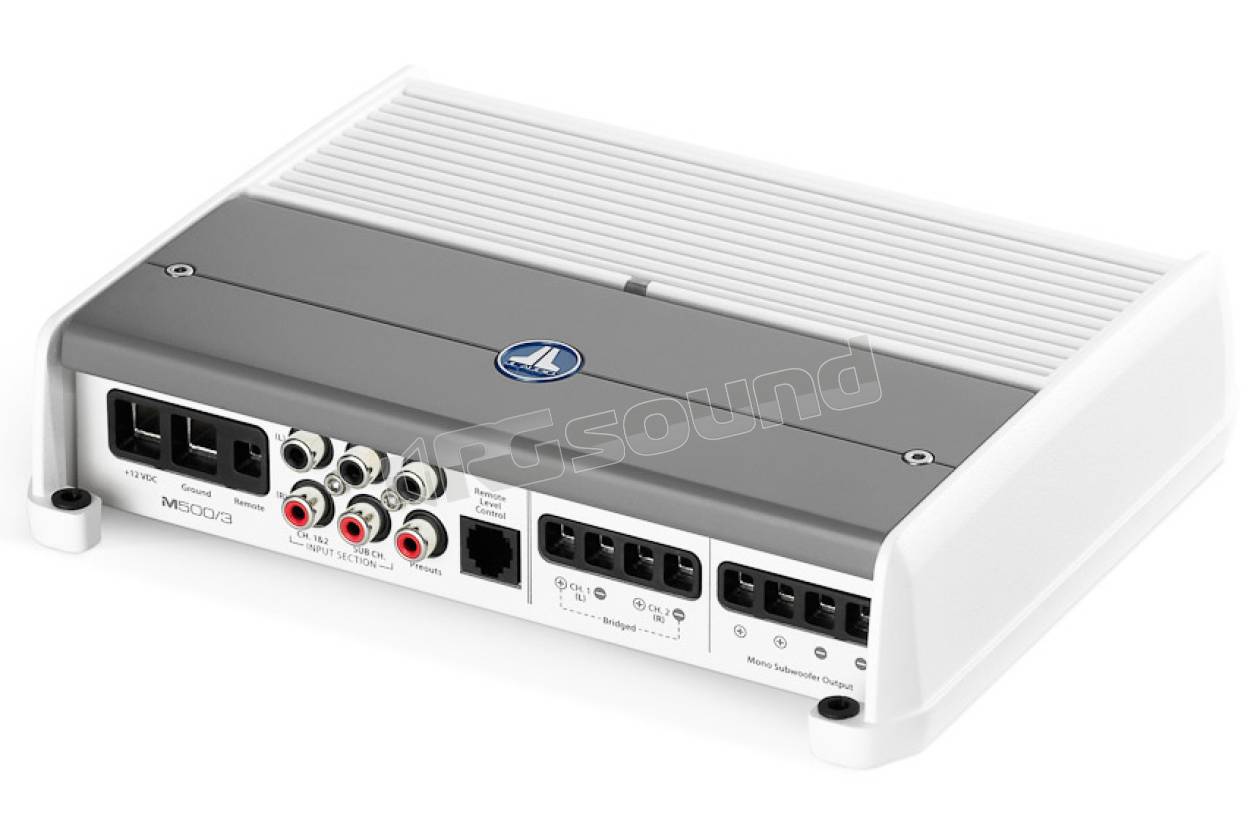

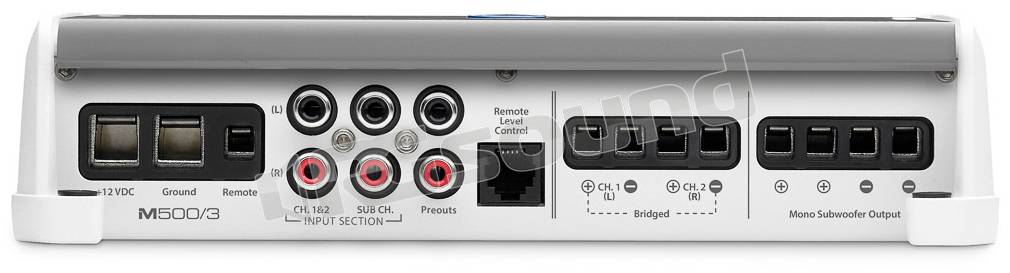

JL Audio M500/3 amplificatore marino tre canali

JL Audio
il tuo prezzo: € 526,00

Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Amplificatore 3 canali
Crossover No
Potenza RMS 4 Ohm 2x75 + 1x300 Watt
Rapporto segnale rumore 84 dB S/N
Potenza RMS 2 Ohm 2x100 + 1x300 Watt
Distorsione armonica 1 % THD
Potenza RMS Mono 4Ω 2x60 + 1x180 Watt
Dimensione 216x180x52 mm
Potenza RMS Mono 2Ω 2x90 + 1x300 Watt
Peso 2.18 Kg

JL Audio M500/3 amplificatore marino full range a tre canali Classe D. Garantito dal miglior servizio RGsound.it. Dimensioni ultracompatte 216 x 52 x 180 mm - Potenza RMS 2 x 75 W + 1 x 300 W @ 4 Ohm.



Caratteristiche M500/3
Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 Ω 75 W RMS x 2
Main Channels @ 2 Ω 100 W RMS x 2
Main Channels - Bridged @ 4Ω 200 W RMS x 1
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A



Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ω 60 W RMS x 2
Main Channels @ 2 Ω 90 W RMS x 2
Main Channels - Bridged @ 4Ω 180 W RMS x 1
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A



JL Audio M500/3



Specifiche generali M500/3

Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >120 / 50 Hz
Damping Factor @ 2 Ω >60 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)

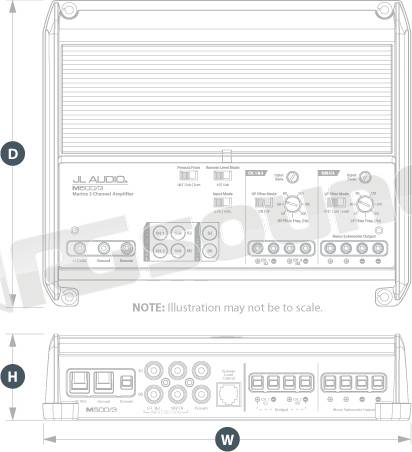

Dimensioni M500/3

Height (H) 2.05 in / 52 mm
Width (W) 8.52 in / 216 mm
Depth (D) 7.09 in / 180 mm
Net Weight 4.8 lb / 2.18 kg



JL Audio M500/3
