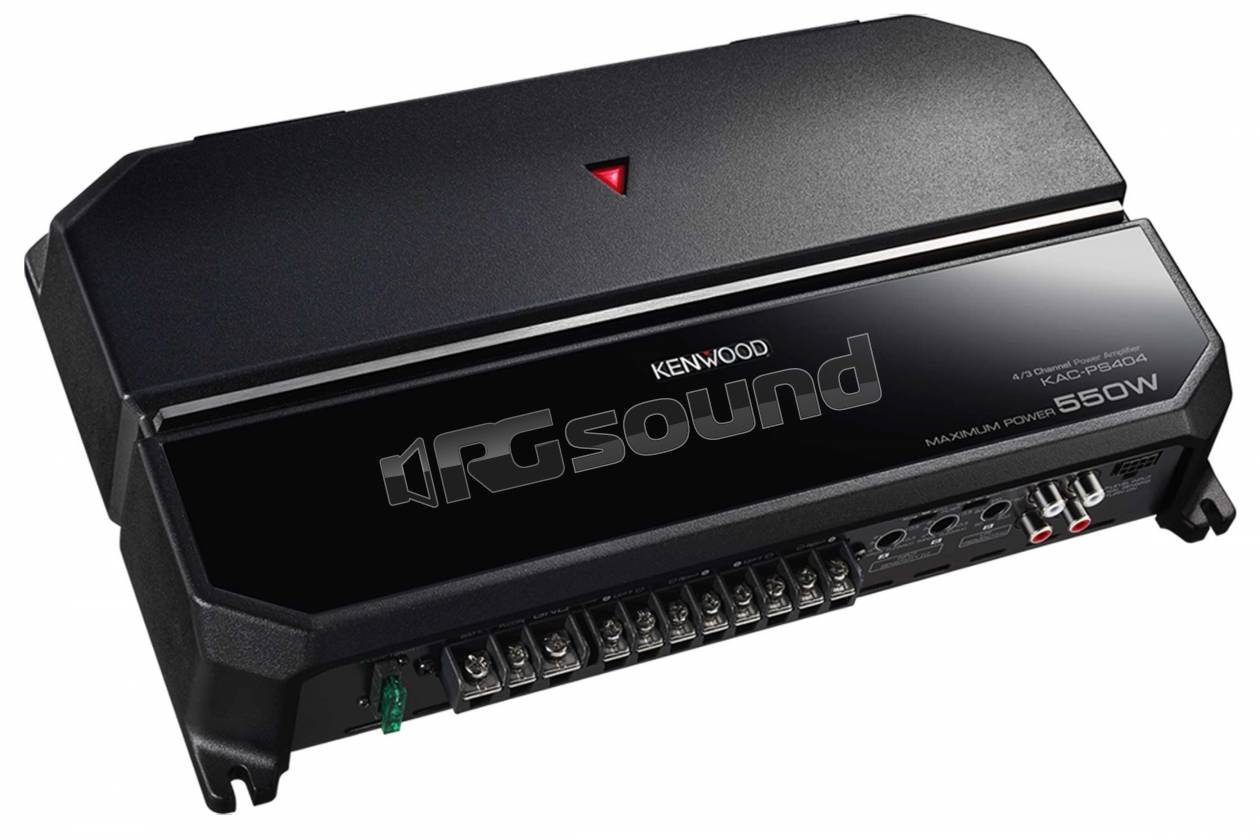

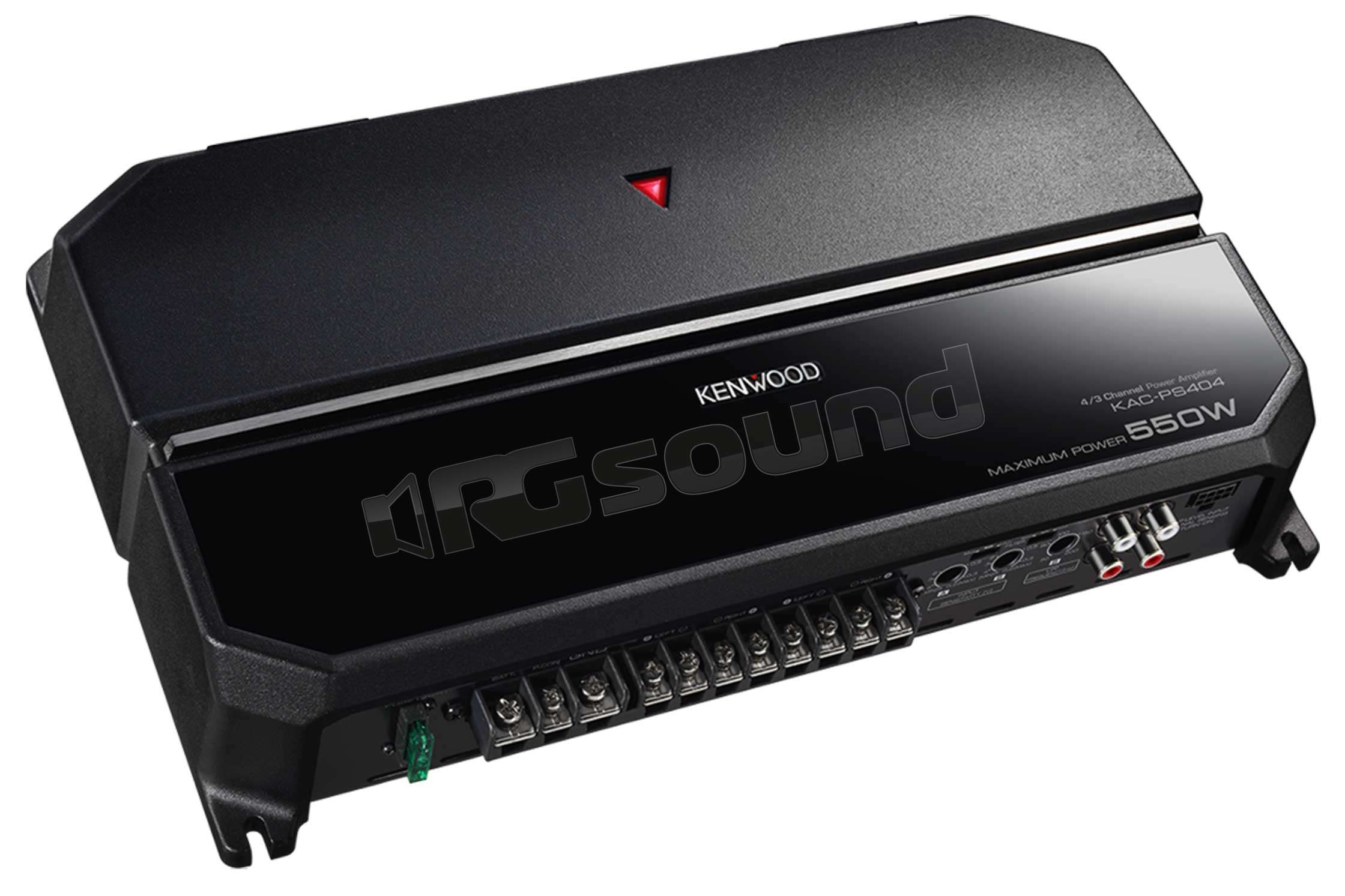

Kenwood KAC-PS404

Kenwood
il tuo prezzo: € 123,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Amplificatore 4 canali
Classe amplificatore AB
Potenza RMS 4 Ohm 4x40 Watt
Potenza RMS 2 Ohm 4x60 Watt
Potenza RMS 3 Canali 4 Ohm Watt
Potenza RMS 3 Canali 2 Ohm Watt
Potenza RMS Dual Mono 4 Ohm 2x130 Watt
Potenza RMS Mono 2Ω Watt
Ingresso Digitale S/PDIF NO
Ingresso Alto Livello SI
Rapporto segnale rumore 100 dB S/N
Distorsione armonica % THD
Dimensione 335 x 204 x 56 mm

Kenwood KAC-PS404 amplificatore a quattro canali Serie Performance Standard, la linea top degli amplificatori Kenwood, fornisce dinamiche eccezionali tenendo una riproduzione musicale di alto livello



Caratteristiche tecniche del KAC-PS702EX

Performance Standard Serie

4 channel, 3 channel or 2 channel setup

550W Maximum output power

Built-in Variable Low-pass filter

Built-in High-pass filter (80Hz: ON/OFF)

Signal Sensing Turn-on

Speaker level input

Power MOS-FET switching power supply

Die cast aluminium heat sink

Amplifier Features

Load Capability 2Ω Stable

Maximum power output 550W

Rated power output (4Ω) 40W x 4 (4Ω)

Rated power output 60W x 4 (4Ω)

Bridged power output (4Ω) 130W x 2

CEA-2006 Compliant

Low-pass Filter

High-pass Fliter

Switched Mode Power supply, MOS-FET

Signal Sensing Turn-on

Line in 4 RCA / Speaker level

Speaker level Input

Single Side Terminals

Die-Cast Aluminium Heat Sink

Amplifier-Specifications

Rated power output (4Ω, 14,4V) 40W x 4 (20Hz ~ 20000Hz, 1%THD)

Rated power output (2Ω, 14,4V) 60W x 4 (1000Hz, 1%THD)

Rated power output (CEA-2006) 70Watts RMS x 4 at 4 ohms and 1% THD

Low-pass Filter 50~200Hz (24dB/oct)(B-Channel)

High-pass Fliter 80Hz (-12dB/oct)A-channel only

RCA Input Sensitivity 0.2 ~ 5V

Speaker Level Input Sensitivity 4 ~ 12V

Input Impedance 10k Ohm

Signal to Noise Ratio 100dB

Signal to noise ratio (CEA-2006) 80dBa (Reference: 1 Watt into 4 Ohms)

Frequency response (+0dB, -3dB) 20Hz ~ 50Hz

Operating voltage 14.4V (11V - 16V allowable)

Maximum current consumption 18A

Dimensions (WxHxD) 335 x 56 x 204 mm

Weight 2.5 kg
