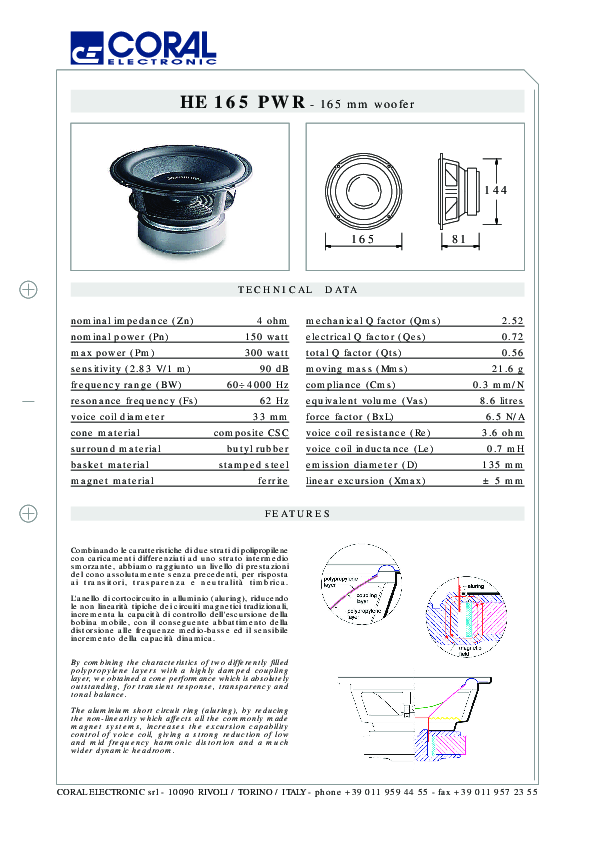

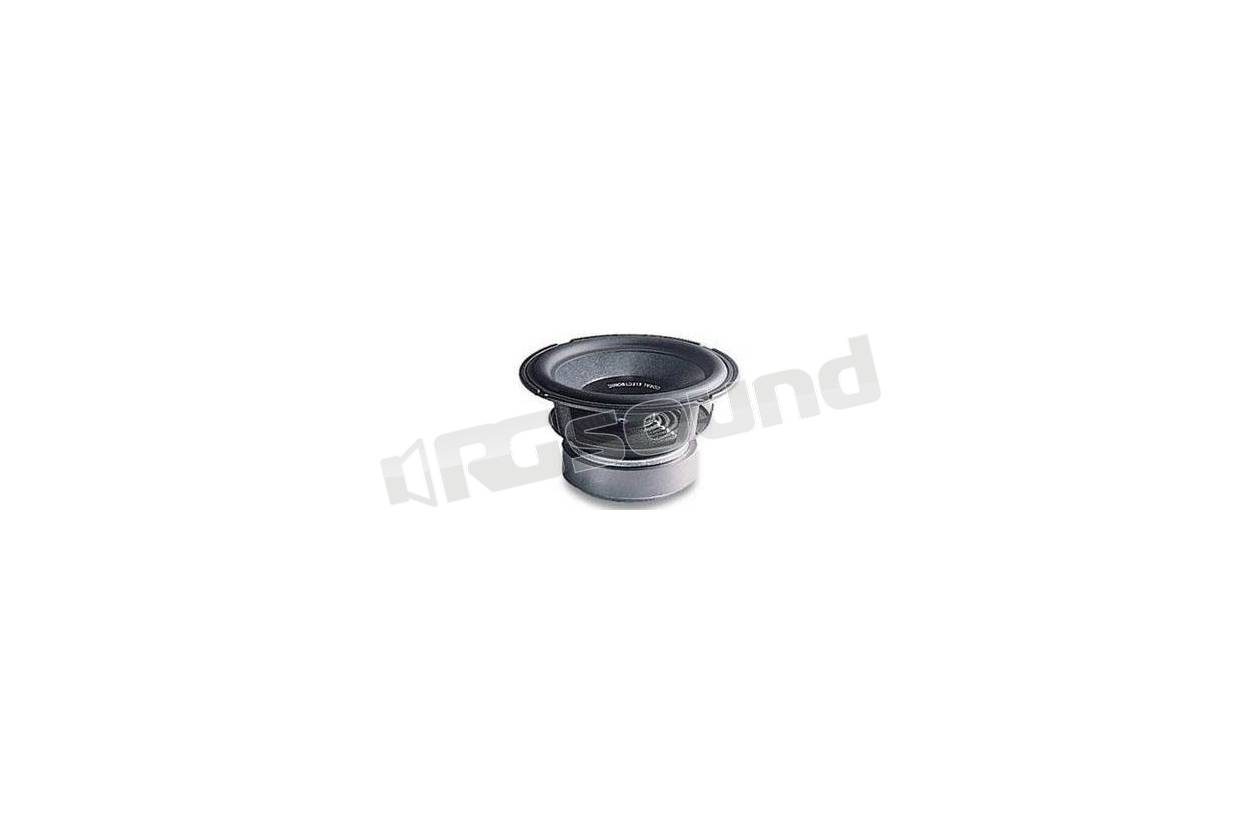

Coral Electronic HE 165 PWR

Coral Electronic
il tuo prezzo: € 131,10
Prezzo riferito alla coppia (IVA inclusa)

Woofer, diametro 165 mm, 150 watt nominali, 300 watt max, anello di cortocircuito magnetico (Aluring), cono in materiale composito (CSC)

nominal impedance (Zn): 4 ohm
nominal power (Pn): 150 watt
max power (Pm): 300 watt
sensitivity (2.83 V/1 m): 90 dB
frequency range (BW): 60÷4000 Hz
resonance frequency (Fs): 62 Hz
voice coil diameter: 33 mm
cone material: composite CSC
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

mechanical Q factor (Qms): 2.52
electrical Q factor (Qes): 0.72
total Q factor (Qts): 0.56
moving mass (Mms): 21.6 g
compliance (Cms): 0.3 mm/N
equivalent volume (Vas): 8.6 litres
force factor (BxL): 6.5 N/A
voice coil resistance (Re): 3.6 ohm
voice coil inductance (Le): 0.7 mH
emission diameter (D): 135 mm
linear excursion (Xmax): ± 5 mm
