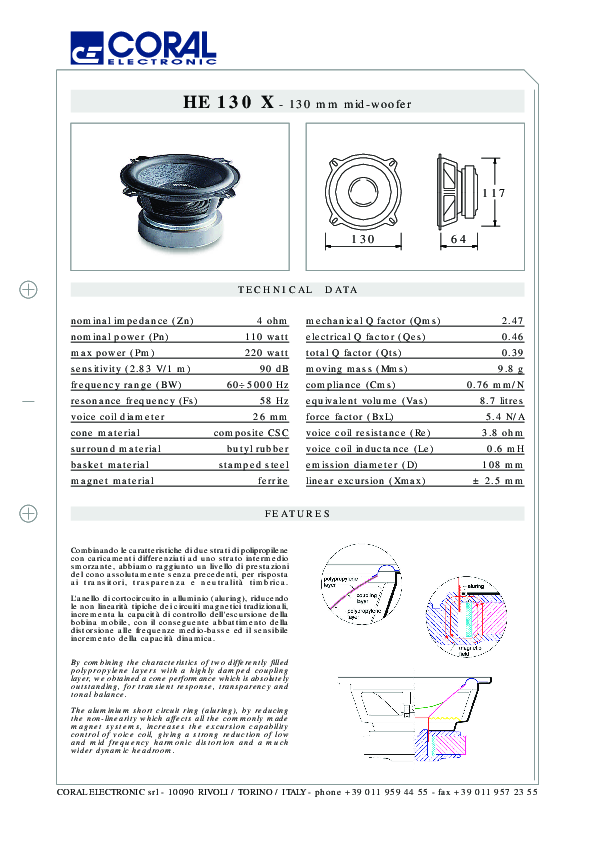

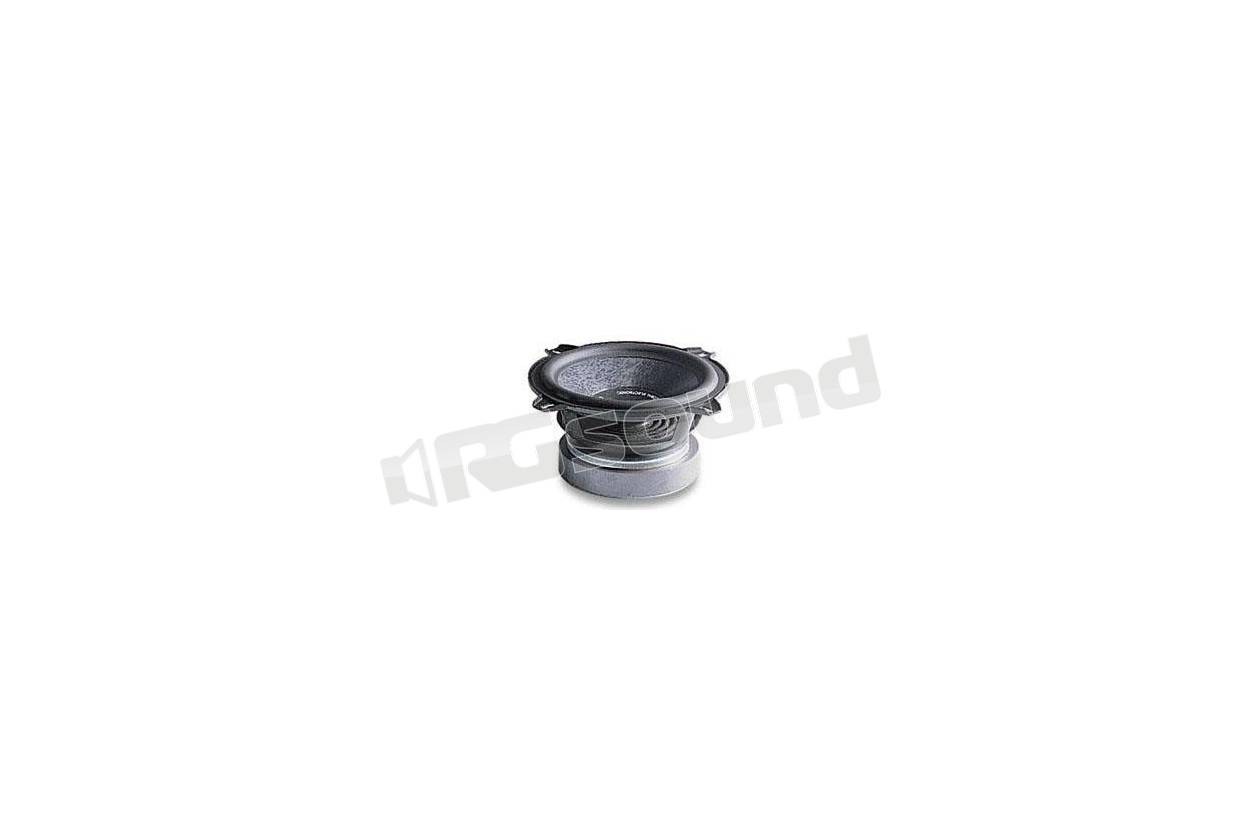

Coral Electronic HE 130 X

Coral Electronic
il tuo prezzo: € 99,90
Prezzo riferito alla coppia (IVA inclusa)

Mid-woofer, diametro 130 mm, 110 watt nominali, 220 watt max, anello di cortocircuito magnetico (Aluring), cono in materiale composito (CSC)

nominal impedance (Zn): 4 ohm
nominal power (Pn): 110 watt
max power (Pm): 220 watt
sensitivity (2.83 V/1 m): 90 dB
frequency range (BW): 60÷5000 Hz
resonance frequency (Fs): 58 Hz
voice coil diameter: 26 mm
cone material: composite CSC
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

mechanical Q factor (Qms): 2.47
electrical Q factor (Qes): 0.46
total Q factor (Qts): 0.39
moving mass (Mms): 9.8 g
compliance (Cms): 0.76 mm/N
equivalent volume (Vas): 8.7 litres
force factor (BxL): 5.4 N/A
voice coil resistance (Re): 3.8 ohm
voice coil inductance (Le): 0.6 mH
emission diameter (D): 108 mm
linear excursion (Xmax): ± 2.5 mm
