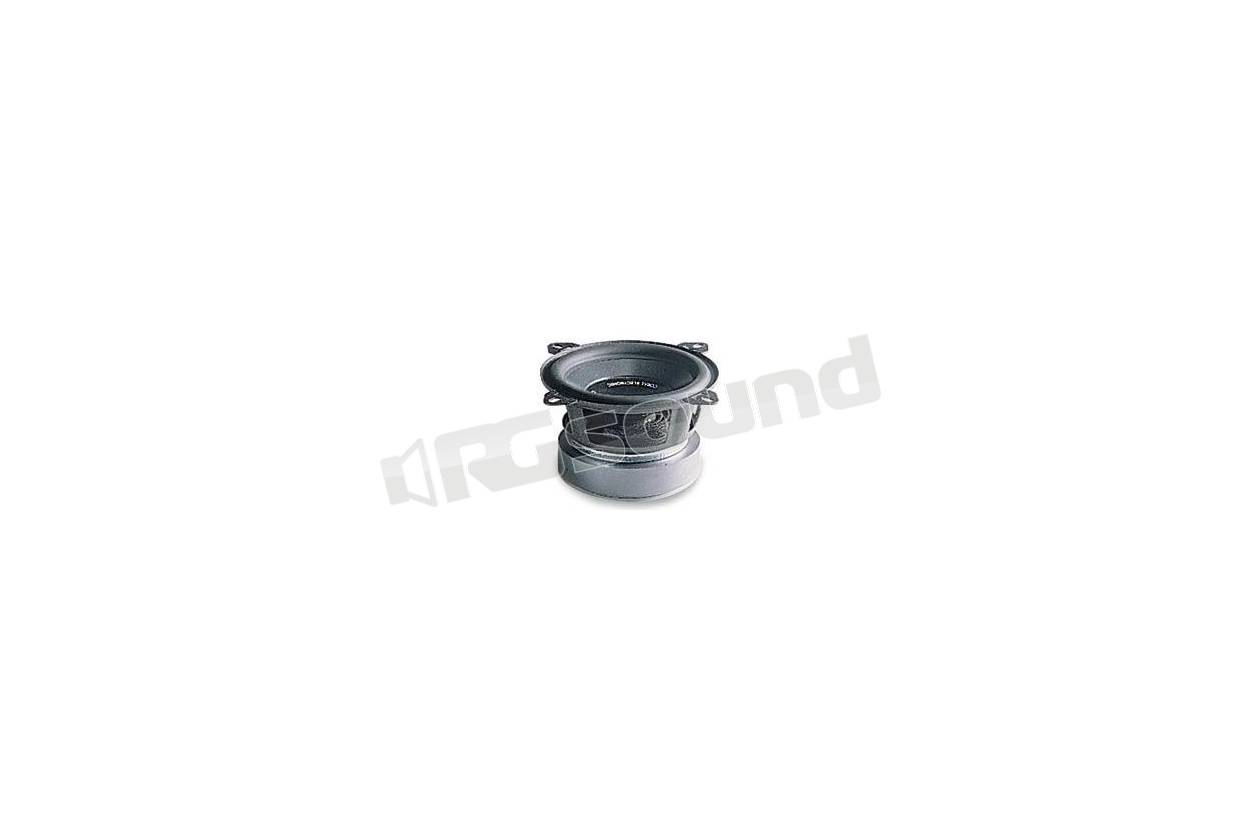

Coral Electronic HE 100 X

Coral Electronic
il tuo prezzo: € 86,80
Prezzo riferito alla coppia (IVA inclusa)
Tipologia Woofer e midwoofer
Dimensione Altoparlante 100 mm
Potenza MAX 160 Watt
Potenza RMS 80 Watt
Risposta in frequenza 80 - 5000 Hertz
Sensibilità 90 dB
Impedenza 4 Ohm
Peso Kg
Profondità di installazione 53 mm
Materiale Woofer Matriale composito

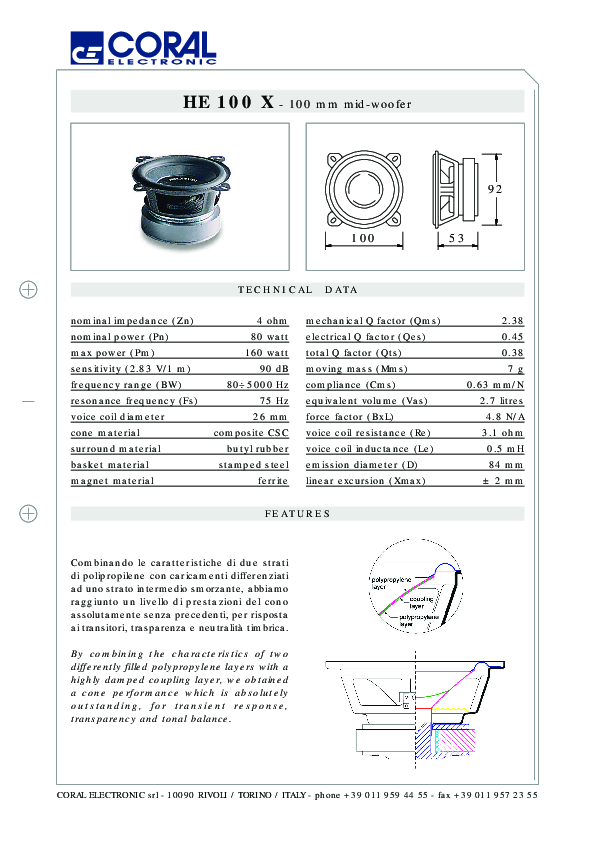

Mid-woofer, diametro 100 mm, 80 watt nominali, 160 watt max, cono in materiale composito (CSC)

nominal impedance (Zn): 4 ohm
nominal power (Pn): 80 watt
max power (Pm): 160 watt
sensitivity (2.83 V/1 m): 90 dB
frequency range (BW): 80÷5000 Hz
resonance frequency (Fs): 75 Hz
voice coil diameter: 26 mm
cone material composite: CSC
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

mechanical Q factor (Qms): 2.38
electrical Q factor (Qes): 0.45
total Q factor (Qts): 0.38
moving mass (Mms): 7 g
compliance (Cms): 0.63 mm/N
equivalent volume (Vas): 2.7 litres
force factor (BxL): 4.8 N/A
voice coil resistance (Re): 3.1 ohm
voice coil inductance (Le): 0.5 mH
emission diameter (D): 84 mm
linear excursion (Xmax): ± 2 mm
