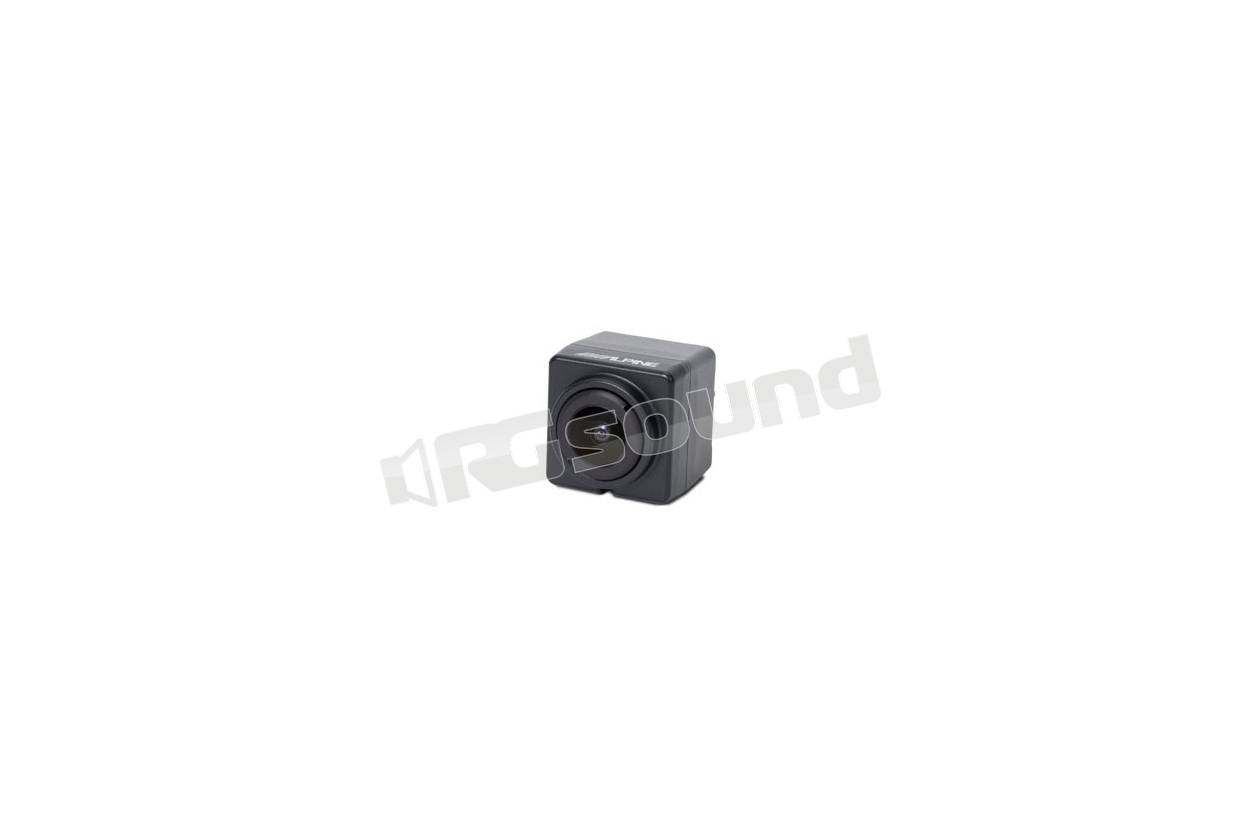

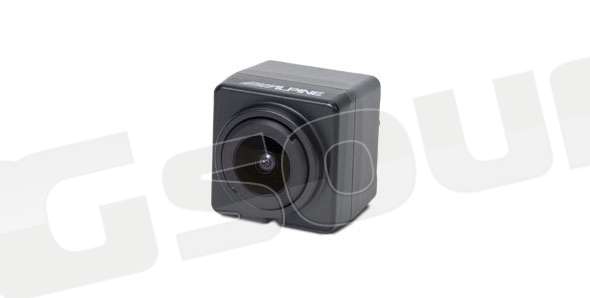

Alpine HCE-C107D

il tuo prezzo: € 156,30

Prezzo riferito a singolo pezzo (IVA inclusa)

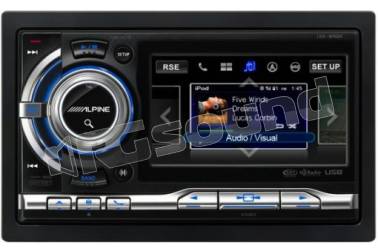

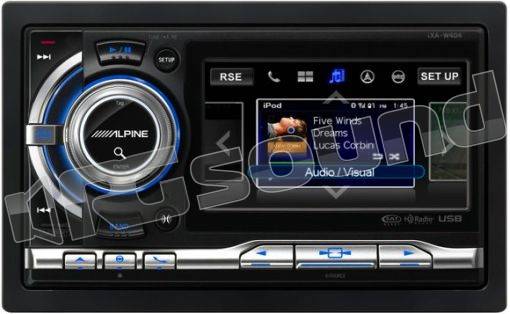

Retrocamera retromarcia per IXA-W404R con collegameto diretto sorgente angolo 138° h 105°v cavo 11 metri incluso

Add a back-up camera to your iXA-W404. Back out of your parking spot with an extra view. With the addition of the HCE-C107D camera that works specifically with the iXA-W404, simply have it installed on the rear bumper of your vehicle and see what’s behind you, right from the convenience of your dash. You also have the option to integrate it into the KTX-C10LP license plate frame kit for a clean incognito fit.
  • High visibility day and night
  • Wide viewing angle
  • Dimensions: 7/8” x 7/8” x 1”
  • Compatible exclusively with: iXA-W404
  • Accessories included
  • Power Requirements: 6.0V DC (5.5 to 6.5V allowable)
  • Ground Type: Negative ground type
  • Max. Power Consumption: 0.9W
  • Output Image: Mirror image, VBCS (NTSC Color signal system)
  • Image Sensor: 1/4 Type Color CCD image sensor. aspect ratio 4:3
  • Effective Number of Pixels: 510(horizontal)x 4929(vertical) approximately 0.25 Mega pixels
  • Lens Section: Focal length f=1.28mm, brightness f=2.8
  • Angle of field: Horizontal: 138º Vertical: 105º
  • Automatic image adjusting function: Automatic metering and white balance adjustment
  • Synchro-System: Internal synchronization
  • S/N: 40dB or more
  • Resolution(horizontal): 300 TV lines (center area)
  • Illumination Range: 1.5 to 100,000 lx
  • Operating Temperature Range: -22 to +158F (-30 to +70ºC)
  • Storage Temperature Range: -32 to 181F (-40 to +85ºC)
  • External Dimensions (WxHXD): Camera section: 23.4 x 23.4 x 24.6mm (except projection on rear)
  • Weight: Camera section: 37g

Included Accessories
  • (x1) Rearview camera
  • (x1) Camera Mounting Bracket
  • (x2) Hex camera mounting screws
  • (x1) Hexagonal wrench
  • (x1) 3.5meter Camera extension cable
  • (x1) Waterproofing mounting pad
  • (x1) Waterproofing pad adhesive
  • (x5) Wire clamps
  • (x4) Self-tapping mounting screws
