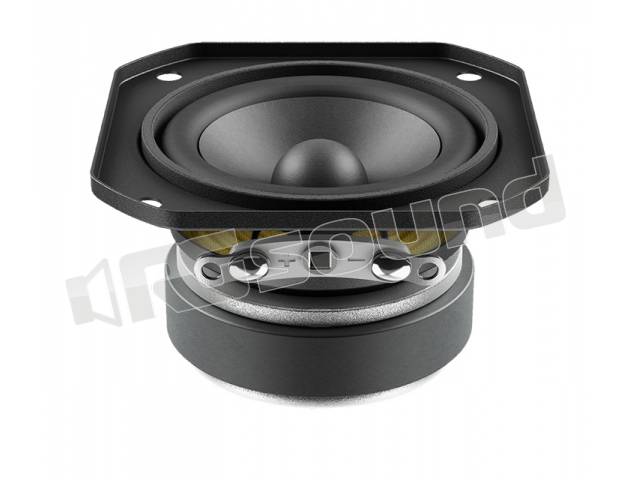

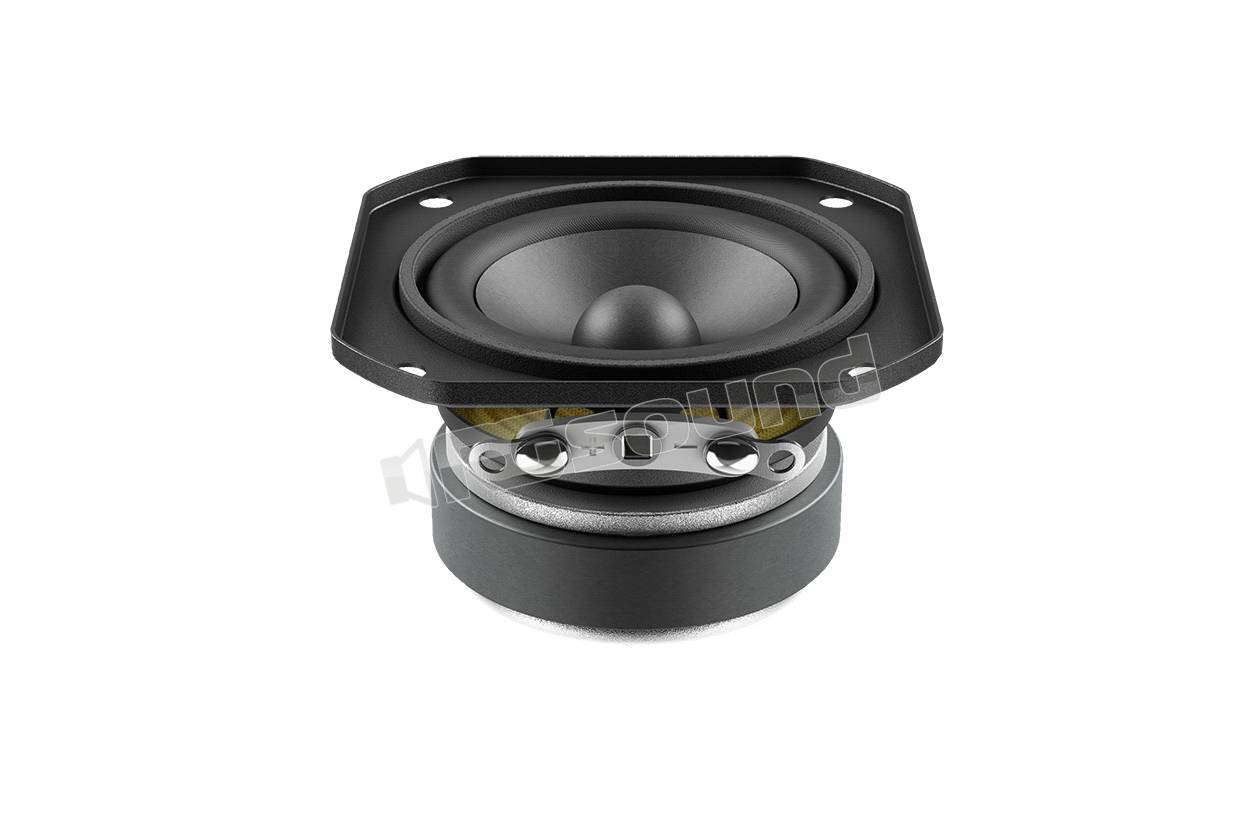

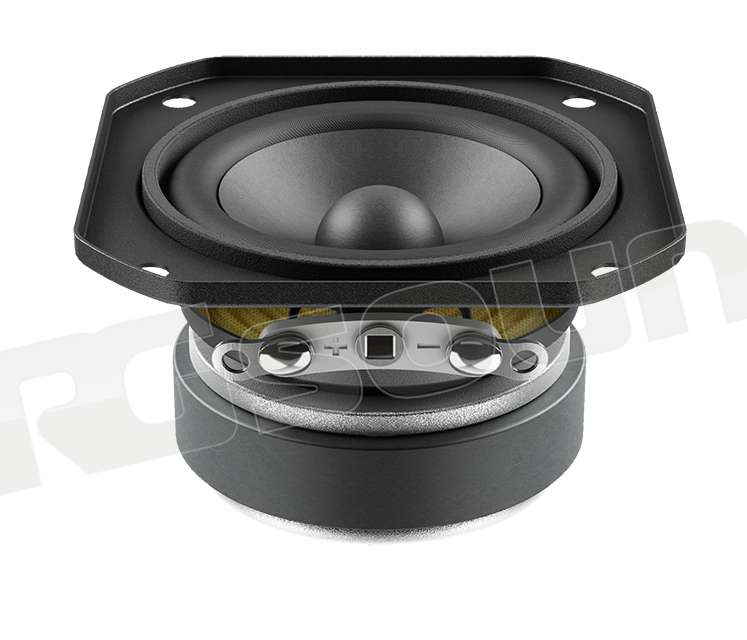

LaVoce FSF020.50 Fullrange 52mm (2 pollici) Nom. Ø: 2" - V.C. Ø: 0,55'' - Power handling: 10 W AES / 20 W Program, Sensitivity: 84,5 dB, Frequency range: 200 - 20000 Hz

LaVoce codice 70R06021

Features

- 0.5 INCH COPPER VOICE COIL

- 84,5 dB/SPL SENSITIVITY

- 20 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- VERY LIGHT MEMBRANE, FOR EXTENDED FREQUENCY RESPONSE


General Specifications

Nominal diametermm (in)50 (2)
Nominal ImpedanceOhm8
Minimum impedanceOhm7,8
Program powerW20
AES Power ratingW10
SensitivitydB84,5

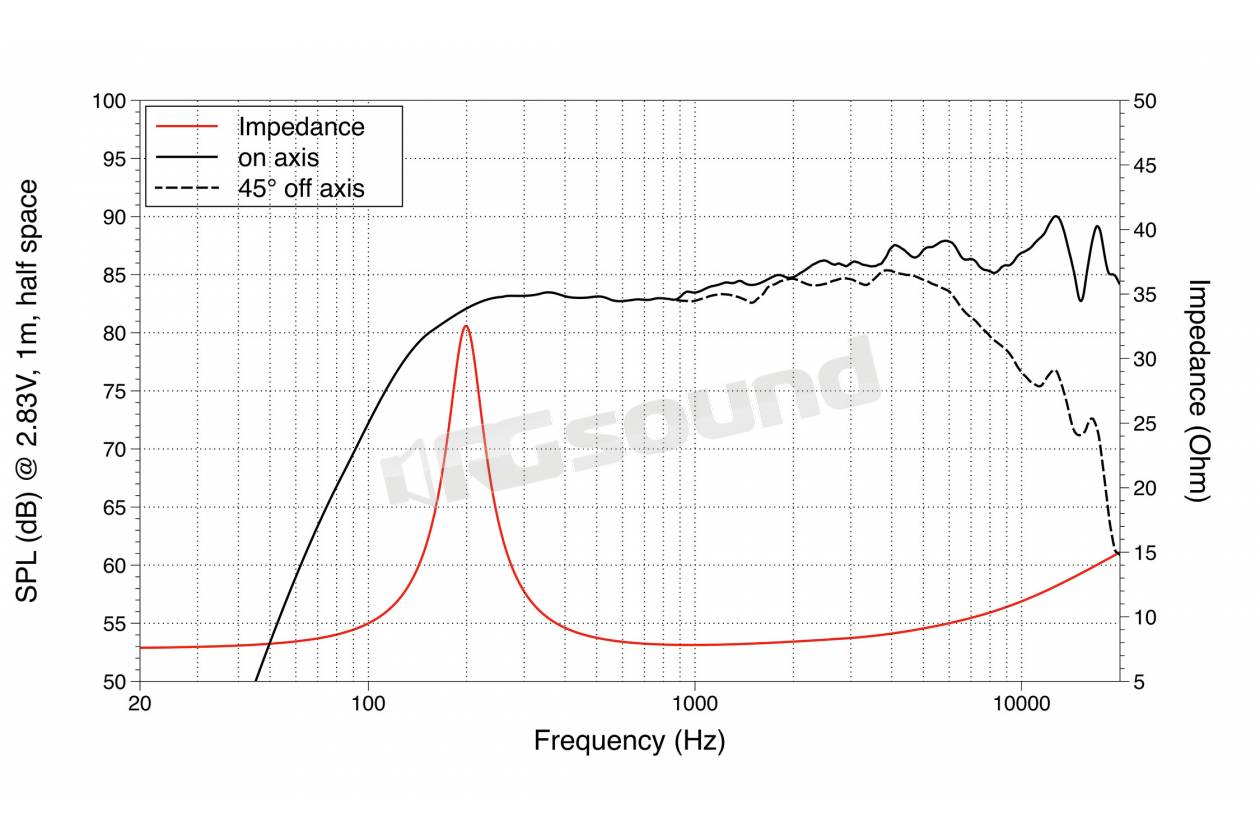

Frequency rangeHz200 ÷ 20000
Voice coil diametermm (in)14 (0.5)
Chassis materialSteel
Magnet materialFerrite
Magnet dimensions OD x ID x hmm (in)45 x 18 x 10 (1.77 x 0.71 x 0.39)
Coil materialCopper
Former materialPolyimide
Cone materialWater Proof Treated Paper
Surround materialPolycotton
Xmaxmm (in)1 (0.04)
Xmechmm (in)0,8 (0.03)
Gap heightmm (in)3 (0.12)
Voice coil winding heightmm (in)2,6 (0.1)
Driver displacement volumel (ft³)0,036 (0.001)

Small Signal Parameters

DC resistanceOhm7,5
Resonance frequencyHz200
Moving massg (oz)0,6 (0.02)
Compliancemm/N1,00
Force factorN/A2,3
Mechanical Q-factor3,8
Electrical Q-factor1,15
Total Q-factor0,89
Equivalent air volumel (ft3)0,25 (0.01)
Voice coil inductancemH0,10
Diaphragm areacm2 (in.2)13 (2.03)
Reference efficiency0,16%

Shipping Information

Net weightkg (lb)0,15 (0.34)
Multipack size W x D x Hmm x mm x mm (in x in x in)440 x 397 x 182 (17.3 x 15.6 x 7.2)
Multipack weightkg (lb)13,1 (28.9)
