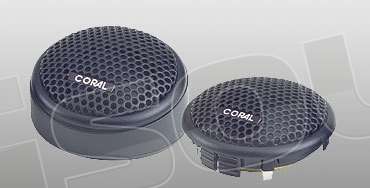

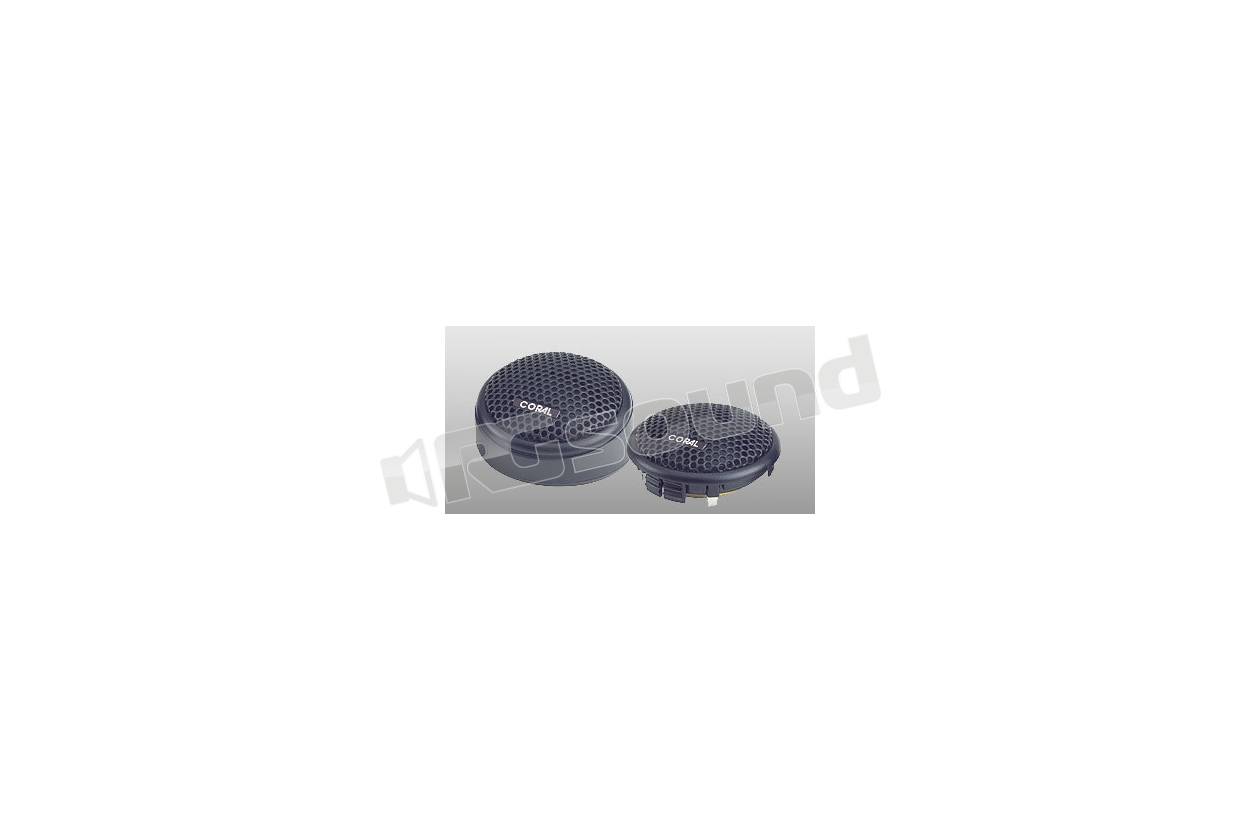

Coral Electronic EVO 25

Coral Electronic
il tuo prezzo: € 66,60
Prezzo riferito alla coppia (IVA inclusa)
Tipologia Tweeter
Dimensione cupola 25 mm
Potenza MAX 250 Watt
Potenza RMS 100 Watt
Risposta in frequenza 2500 - 20000 Hertz
Sensibilità 92 dB
Impedenza 4 Ohm

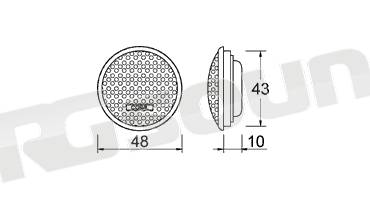

Diametro esterno 48 mm
Profondità di installazione 10 mm
Materiale Tweeter Hypertex silk

Tweeter al neodimio, diametro 48 mm, 100 watt nominali,
250 watt max, cupola multi radiale da 1 pollice in seta Hypertex, struttura magnetica ottimizzata tramite sistema FEA.




Coral Electronic EVO 25

TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
nominal power (Pn): 100 watt
max power (Pm): 250 watt
sensitivity (2.83 V/1 m): 92 dB
frequency range (BW): 2.5 ÷20 KHz
resonance frequency (Fs): 1650 Hz
voice coil diameter: 25 mm
dome material: Hypertex silk
magnet material: neodymium

mechanical Q factor (Qms): 2.30
electrical Q factor (Qes): 3.57
total Q factor (Qts): 1.40
moving mass (Mms): 0.30 g
compliance (Cms): 0.03 mm/N
equivalent volume (Vas): -
force factor (BxL): 2.02 N/A
voice coil resistance (Re): 4.67 ohm
voice coil inductance (Le): 0.02 mH
emission diameter (D): 25 mm
linear excursion (Xmax): -
