Coral Electronic EVO 165

Coral Electronic
il tuo prezzo: € 84,70
Prezzo riferito alla coppia (IVA inclusa)

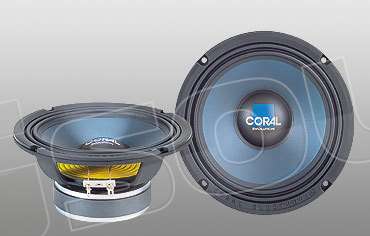

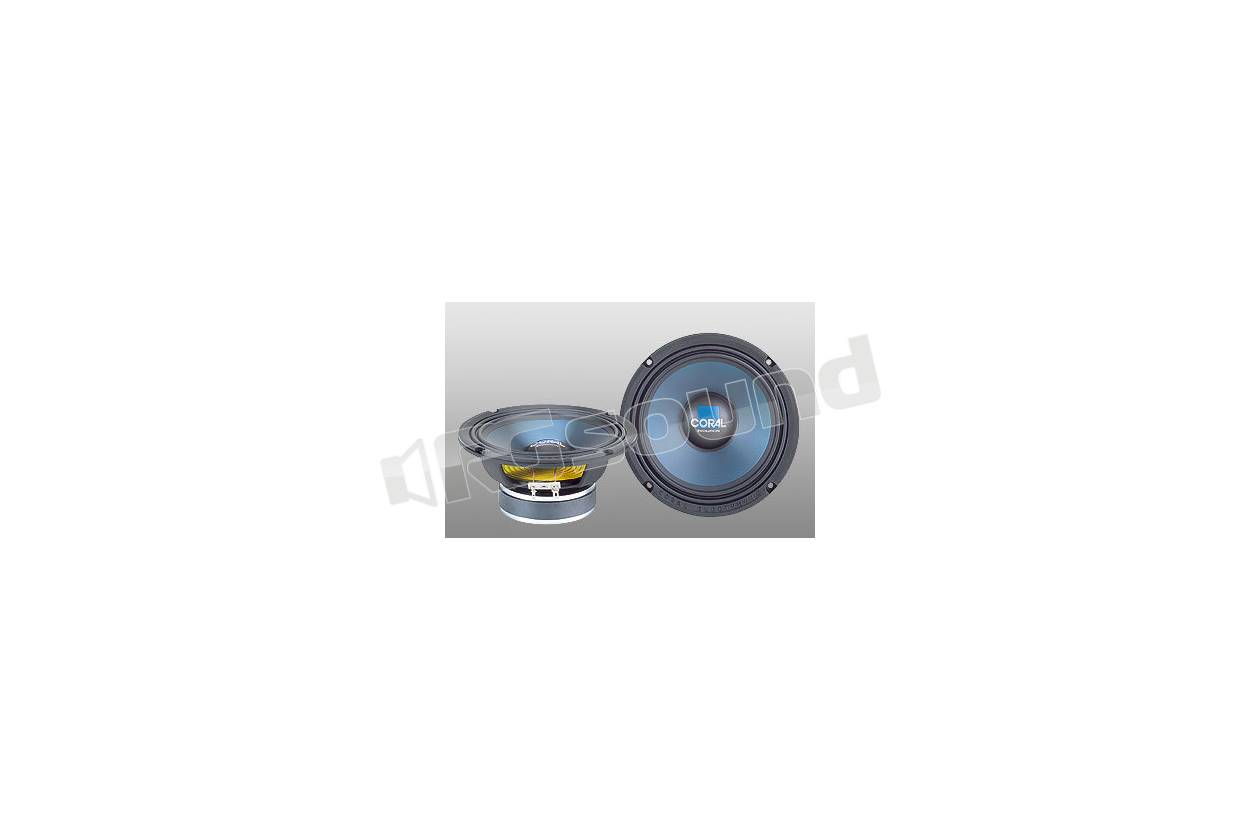

Woofer, diametro 165 mm, 120 watt nominali, 240 watt max, cestello in acciaio stampato, cono in polipropilene caricato con mica, doppia sospensione in gomma butilica.




Coral Electronic EVO 165

TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
nominal power (Pn): 120 watt
max power (Pm): 240 watt
sensitivity (2.83 V/1 m): 92 dB
frequency range (BW): 50÷6000 Hz
resonance frequency (Fs): 57 Hz
voice coil diameter: 25 mm
cone material: mica-polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

mechanical Q factor (Qms): 2.40
electrical Q factor (Qes): 0.78
total Q factor (Qts): 0.59
moving mass (Mms): 13.02 g
compliance (Cms): 0.60 mm/N
equivalent volume (Vas): 15.83 litres
force factor (BxL): 5.53 N/A
voice coil resistance (Re): 3.44 ohm
voice coil inductance (Le): 0.10 mH

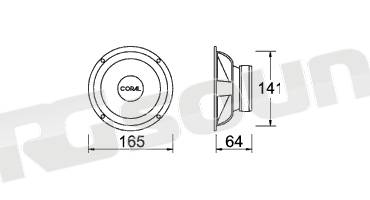

emission diameter (D): 132 mm
linear excursion (Xmax): ± 2 mm
