Coral Electronic EVO 130

Coral Electronic
il tuo prezzo: € 76,70
Prezzo riferito alla coppia (IVA inclusa)

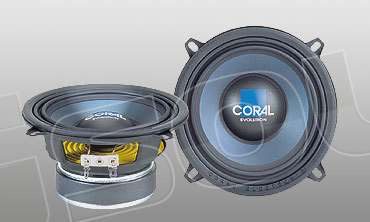

Mid-woofer, diametro 130 mm, 100 watt nominali, 200 watt max, cestello in acciaio stampato, cono in polipropilene caricato con mica, doppia sospensione in gomma butilica.




Coral Electronic EVO 130

TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
nominal power (Pn): 100 watt
max power (Pm): 200 watt
sensitivity (2.83 V/1 m): 92 dB
frequency range (BW): 60÷6000 Hz
resonance frequency (Fs): 72 Hz
voice coil diameter: 25 mm
cone material: mica-polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

mechanical Q factor (Qms): 2.26
electrical Q factor (Qes): 0.64
total Q factor (Qts): 0.50
moving mass (Mms): 10.19 g
compliance (Cms): 0.49 mm/N
equivalent volume (Vas): 4.73 litres
force factor (BxL): 5.0 N/A
voice coil resistance (Re): 3.48 ohm
voice coil inductance (Le): 0.11 mH

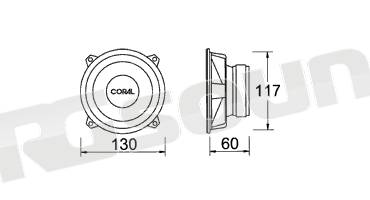

emission diameter (D): 103 mm
linear excursion (Xmax): ± 2 mm
