CZ087 Cz Series

Ciare

Discontinued

Your price:
€ 24,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
87 mm
Coaxial Type
2-way
MAX Power
80 Watt
RMS Power
30 Watt
Sensitivity
86 dB
Impedance
4 Ohm
Woofer Material
Acciaio
Tweeter Material
Neodimio

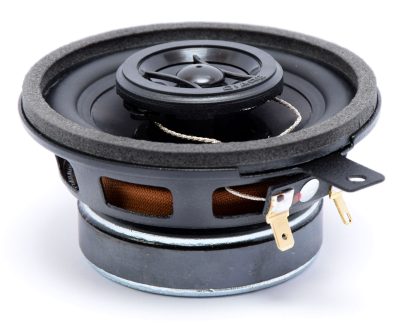

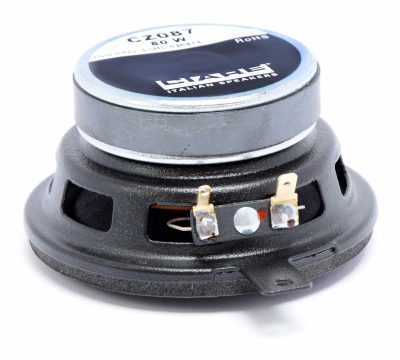

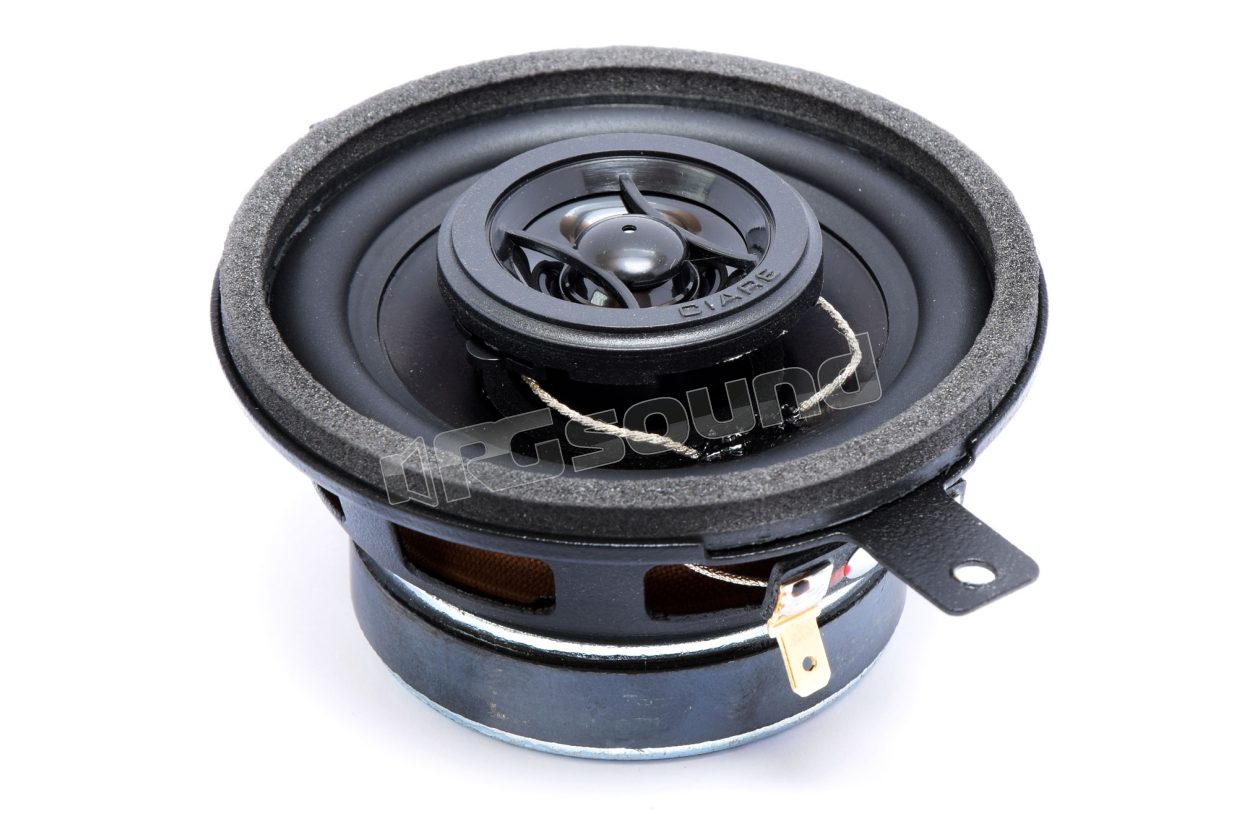

CIARE CZ087 two-way coaxial 87mm Cz Series with damped cellulose woofer cone, neodymium tweeter. Coaxial with excellent quality-to-price ratio, great frequency response linearity and reliability at its price. Ciare is a company constantly keeping pace with technological innovations and under continuous stimulus from market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all stages of product realization, allow the company to achieve the highest quality standards in the production of every component.

CZ087 Features

  • Max power: 80W
  • Nominal power: 30W
  • Nominal impedance: 4Ω
  • Diameter: 87mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 86 dB

CZ087 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 3 mm

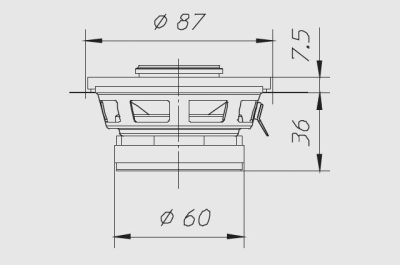

CZ087 Dimensions

  • Outer diameter: 87 mm
  • Depth below flange: 36 mm
  • Flange thickness: 7.5 mm
  • Panel hole: 77 mm
  • Mounting hole diameter: 4 mm
  • Mounting hole position diameter: 112
  • Weight with single packaging: 0.35 Kg

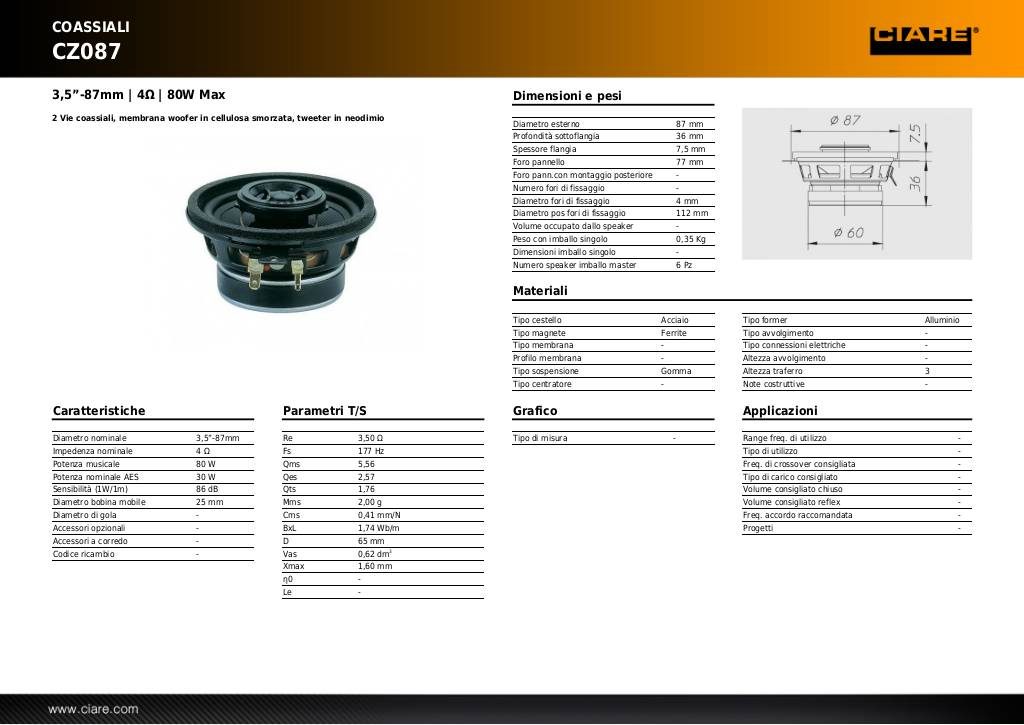

Scheda tecnica

20131030173335-cz087.pdf

1 Ciare CZ087 coaxial speaker
