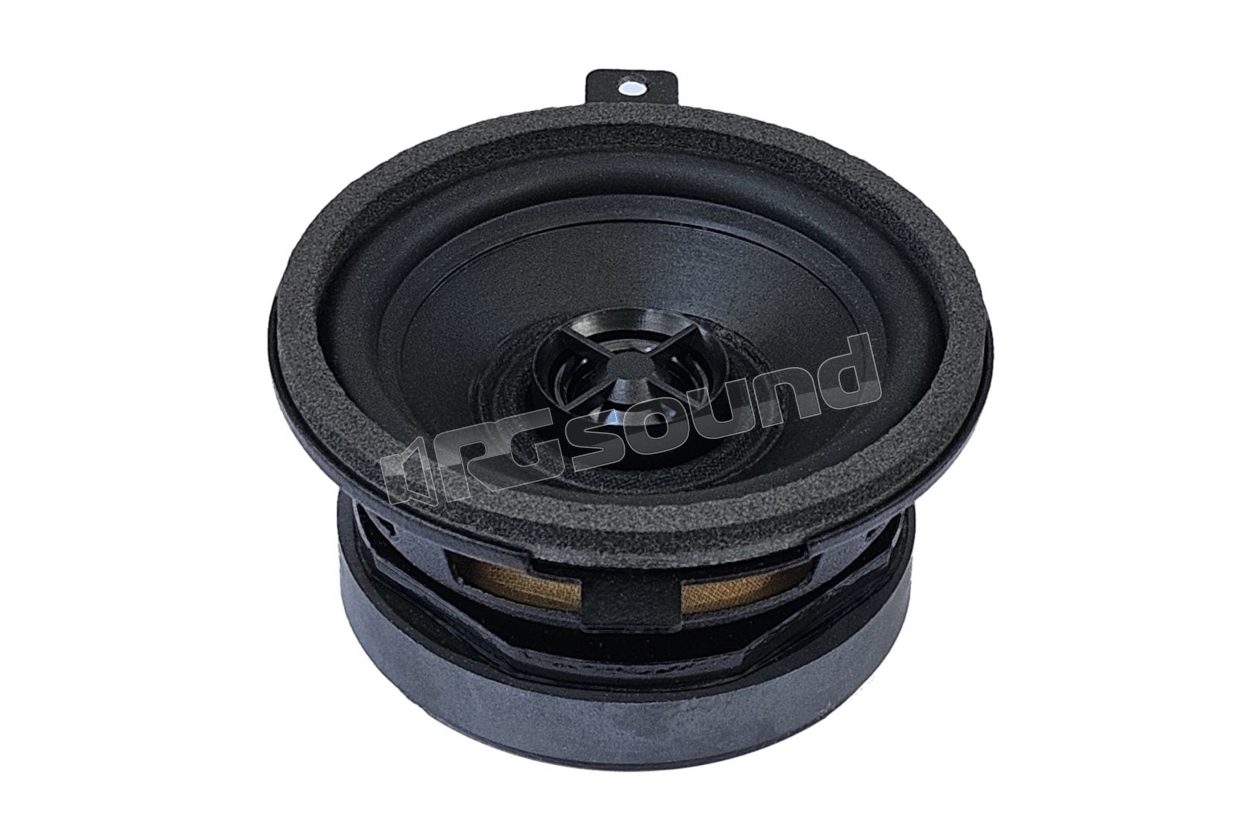

CXE874 87 mm two-way coaxial speakers with neodymium tweeter

Ciare
Your price:
€ 28,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
87 mm
Coaxial Type
2-way
MAX Power
60 Watt
RMS Power
45 Watt
Sensitivity
86 dB
Impedance
665 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio

Ciare CXE874 Neo coaxial 3" (87 mm), V.C. 25 mm, 80 W, 86 dB, 4 Ω

Main features:

  • Two-way coaxial 87mm new Cz series
  • Damped cellulose woofer cone
  • Neodymium tweeter
  • Robust steel basket
  • Power 45 W RMS / 90 W max
  • Installation depth 43.5 mm

Scheda tecnica

n-20260824103107-ciare-cxe874-en.pdf

Ciare CXE874 technical specifications

  • Nominal diameter 87 mm (3.5 inches)
  • Nominal power handling 45 W
  • Sensitivity 86 dB
  • Form material Aluminum
  • Nominal impedance 4 Ω
  • Continuous power handling 90 W
  • Voice coil diameter 25 mm (1 inch)
  • Gap depth 3 mm (0.12 inches)
  • Overall diameter 87 mm (3.43 in)
  • Hole diameter in baffle 77 mm (3.03 in)
  • Flange and gasket thickness 7.5 mm (0.3 in)
  • Bolt circle diameter 112 mm (4.41 inches)
  • Depth 43.5 mm (1.71 inches)
  • Net weight 0.35 kg (0.77 lbs)
  • Basket material Steel
  • Hole diameter 4 mm (0.16 inches)
  • Fs 145 Hz
  • Qes 1.56
  • Qts 1.23
  • Sd 33 cm² (5.12 inches²)
  • Mms 3.6 g
  • Cms 0.33 mm/N
  • EBP 93 Hz
  • Re 3.3 Ω
  • Qms 5.88
  • Vas 0.6 dm³ (0.02 ft³)
  • Xmax 1.6 mm (0.06 in)
  • Bl 2.66 Tm
  • d 65 mm (2.56 in)
€ 28,00 Price incl. VAT
