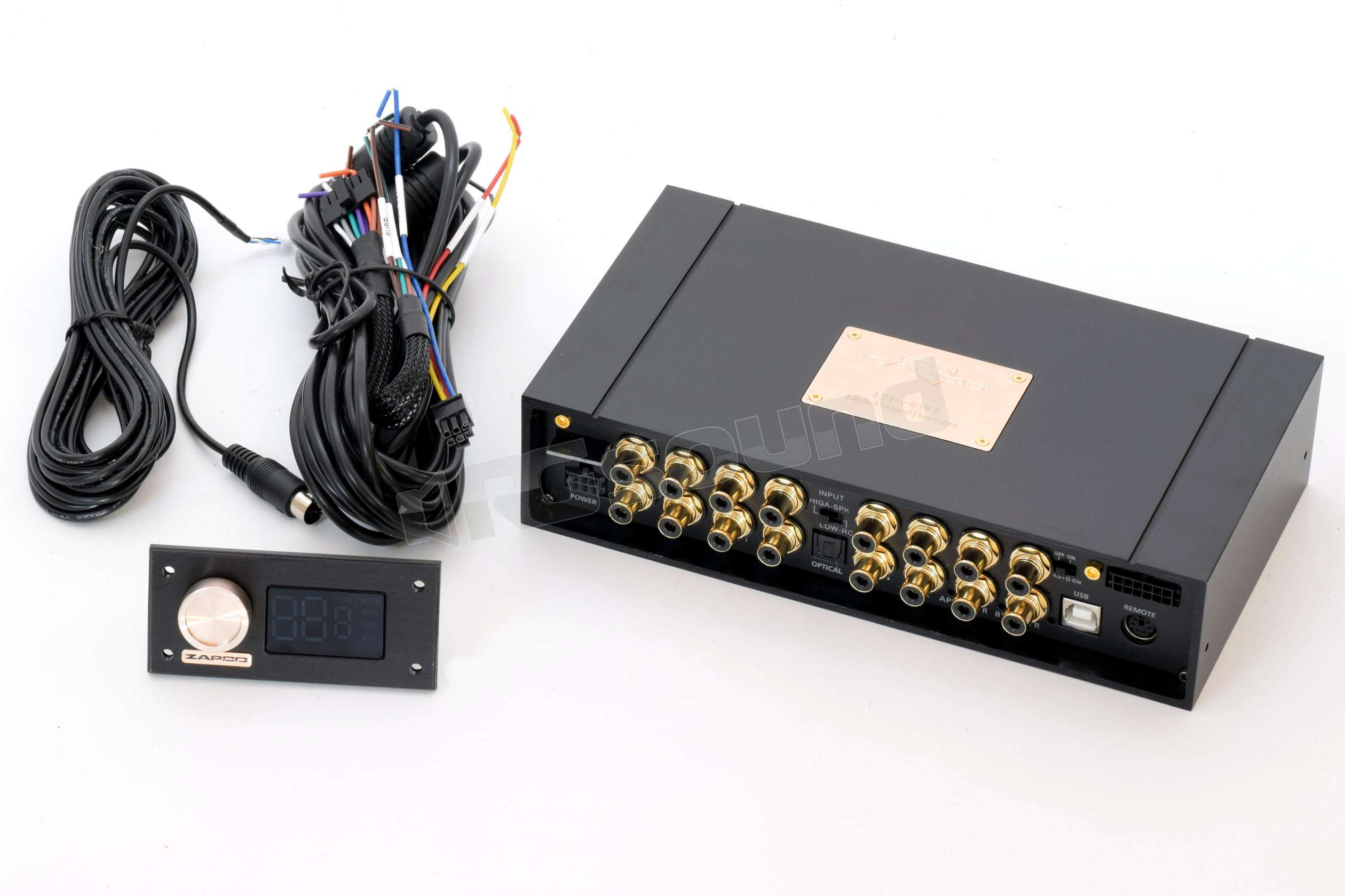

Zapco DSP-Z8 IV II

il tuo prezzo: € 600,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Ingresso Digitale S/PDIF SI
Crossover Si
Ingressi RCA Si
Equalizzatore Parametrico Si
Ingresso Alto Livello SI
Equalizzatore grafico Si
Canali pre in uscita 8
Allineamento temporale Si
Dimensione 111x49x16 mm

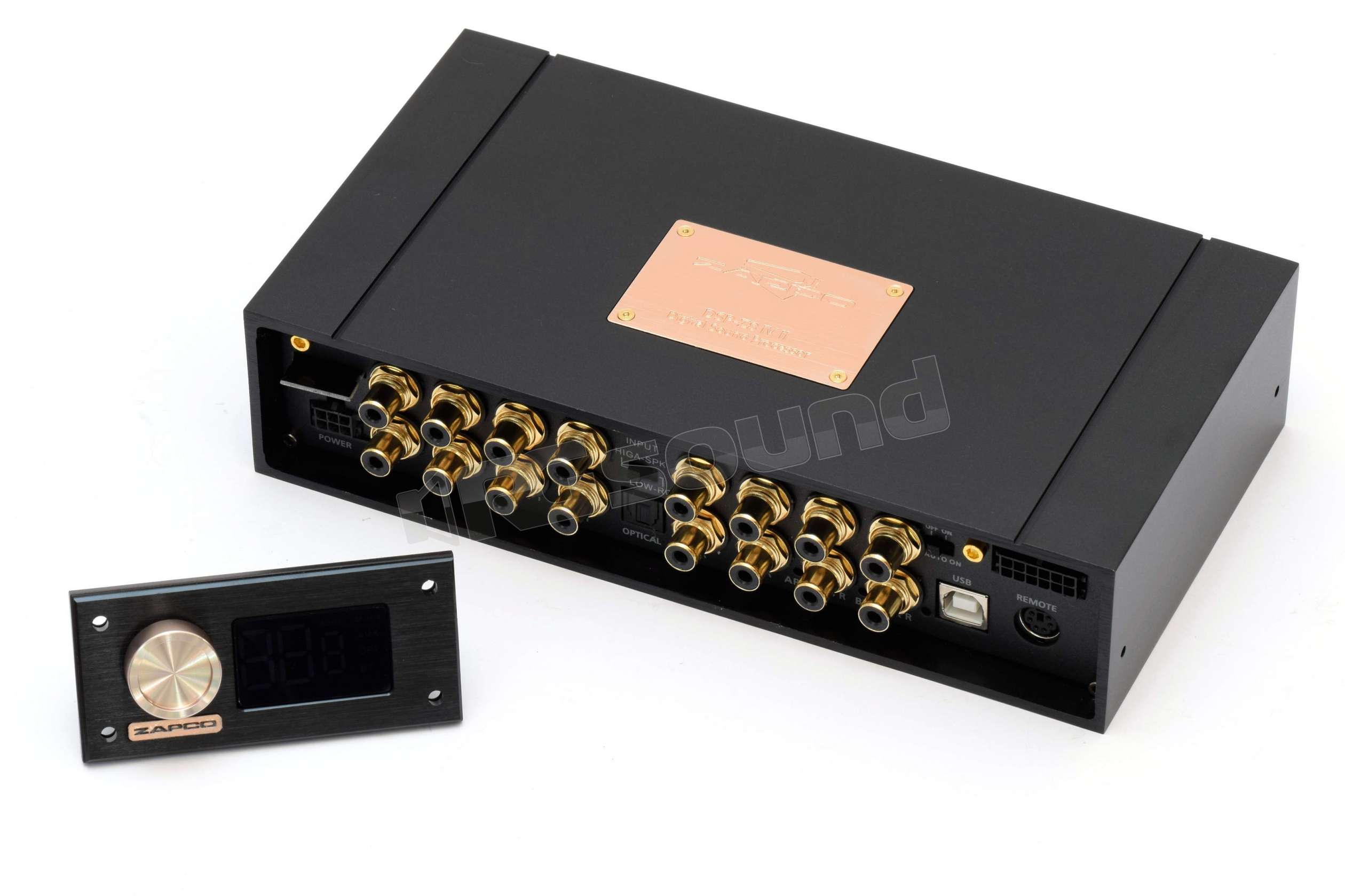

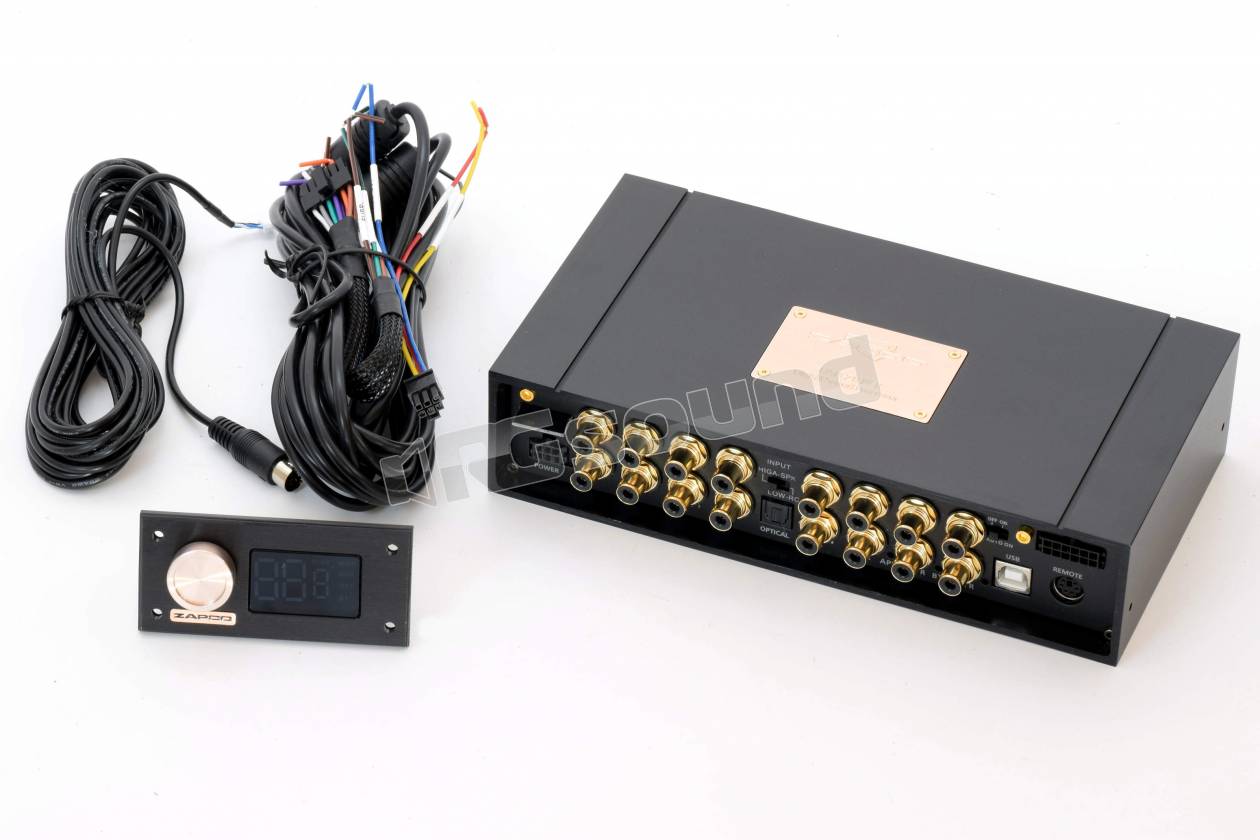

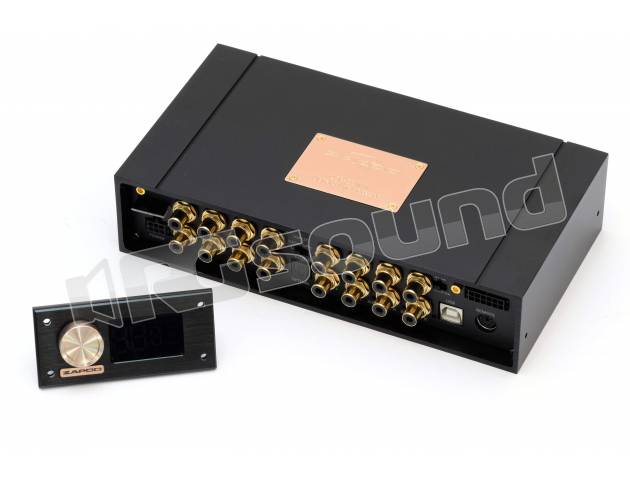

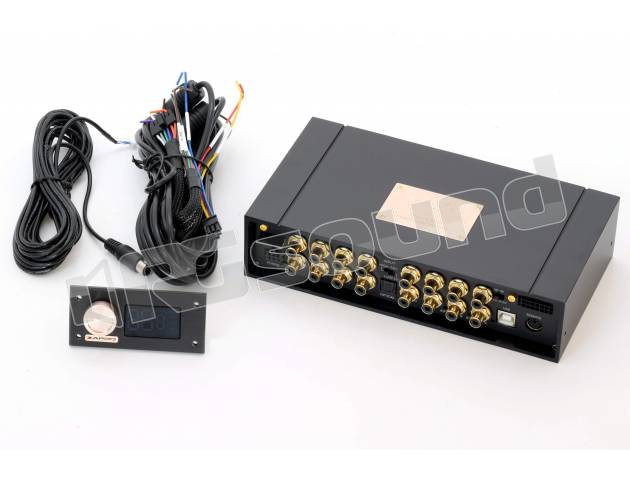

Processore di segnale 8 canali.

Two years ago, Zapco introduced the new DSP-Z8 IV signal processor. It was designed to bring true audiophile sound quality to an      affordable DSP. And it did just that! The DSP-Z8 IV provided sound quality superior to units costing even twice as much. Even competition cars are using the Z8 IV, right up to one of the top Master Class SQ cars. The DSP-Z8 IV has been a true giant killer. But, as we have always said, and always will say, “We believe we can still do better”. This year we present the Zapco DSP-Z8 IV II and the ADSP-Z8 IV-8 Amplifier. What’s new with the Series IV II? Just about everything, new form, new features, new control... even improved sound quality with a lower noise floor.

The sharp new look matching the Black and Copper theme of the AP amplifiers is only the beginning. The hardware inside is where the magic begins. A quick fact: You can only be as good as your source material, and the DSP-Z8 IV II series greatly expands your potential for the best possible source material. The Toslink optical input accepts the digital signal from your head unit or from a portable HD player, but the IV II series doesn’t stop there. The DSP-Z8 IV II units also have digital Bluetooth streaming so you can stream digital music. Speaking of hardware, we have added the ADSP-Z8 IV-8 this year. So you can have the DSP Z8 IV II with an on-board 8-Channel full range Class D Amplifier.



  • DSP Processor: Cirrus Logic CS47048

  • Power: 150 MHz/32 bit/48 KHz

  • 8-Channels

  • ADC: Cirrus Logic CS5368 24 bit/192 KHz

  • ADC Dynamic Range/THD: 114 dB/-105 dB

  • DAC: Cirrus Logic CS47048 32 bit/192 KHz

  • DAC Dynamic Range/THD: 108 dB/-98 dB

  • Low level (Pre)/Sensitivity: 8/1-5 VRMS

  • High Level (Spk In)/Sens.: 6/2-20 V

  • AUX Inputs/Sensitivity: 1/0.2-4 VRMS

  • Optical IN: 24 bit-192 KHz

  • Output Ch. RCA/Sensitivity: 8 / 4 VRMS

  • Freq. Response (-3dB): 10 Hz - 22.5 KHz

  • S/N Ratio Digital Input: 110 dBA

  • S/N Ratio Analog Input: 106 dBA

  • THD+N Digital Input: 0,002 %

  • THD+N Analog Input:     0,005 %

  • Crosstalk at 1 Khz: 90 dB

  • F/R?EQ: 1-6 ch Gr. & Par./31 poles

  • Effect EQ: 7-8 ch Gr. & Par./11 poles

  • Mute/Solo: Yes, each channel

  • Time Align. (Range/Steps): 0/15 ms / 0.02 ms

  • Max Delay (Cm/Steps): 515 cm / 0.68 cm

  • Polarity: 0/180°

  • Display (included): 1” LCD

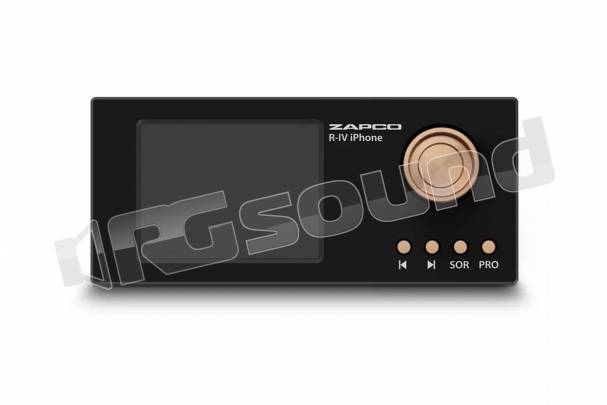

  • Display (optional): 3” LCD Touch-Screen

  • Bluetooth Streaming

  • PC/Display Connection: USB/6-pin Mini DIN

  • Unit Dimensions: 210(L) x 125(W) x 48(H)

  • Display Dim.: 111(L) x 49(W)  x 16(H)
