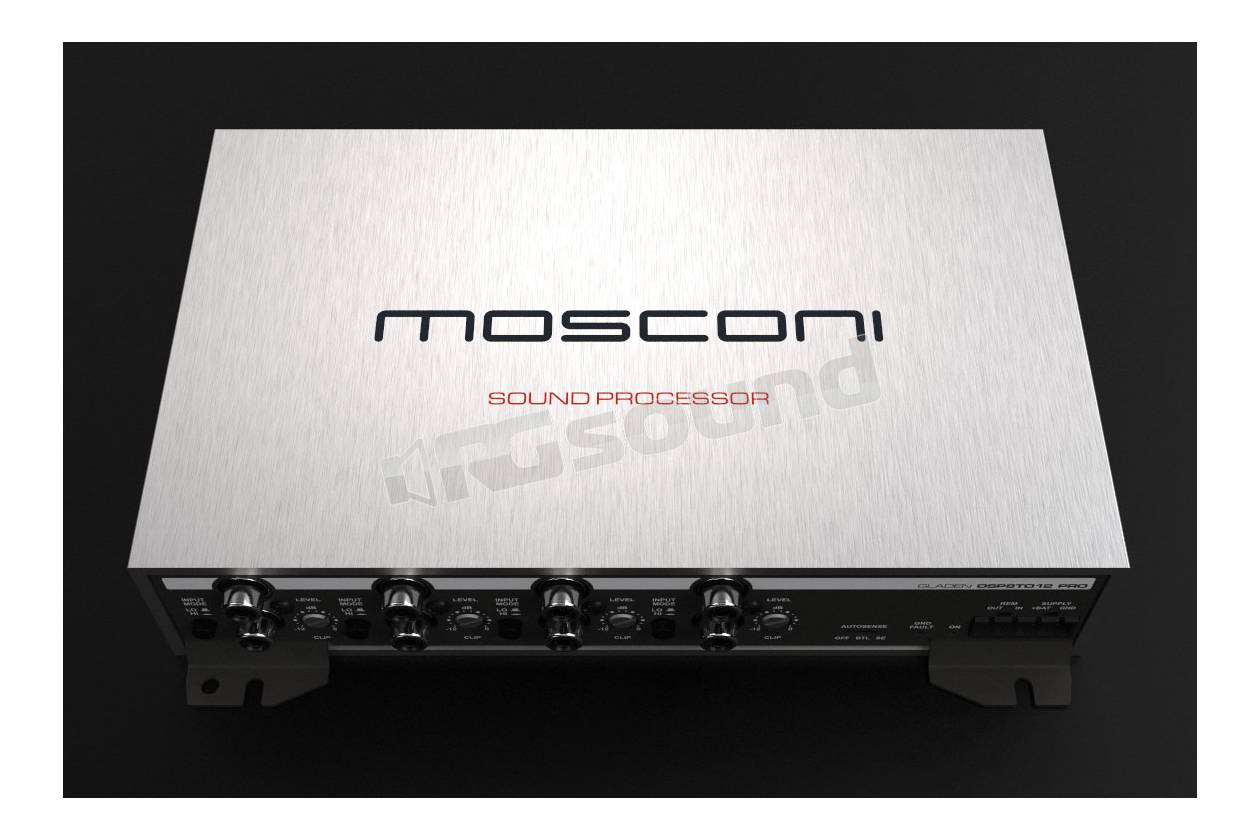

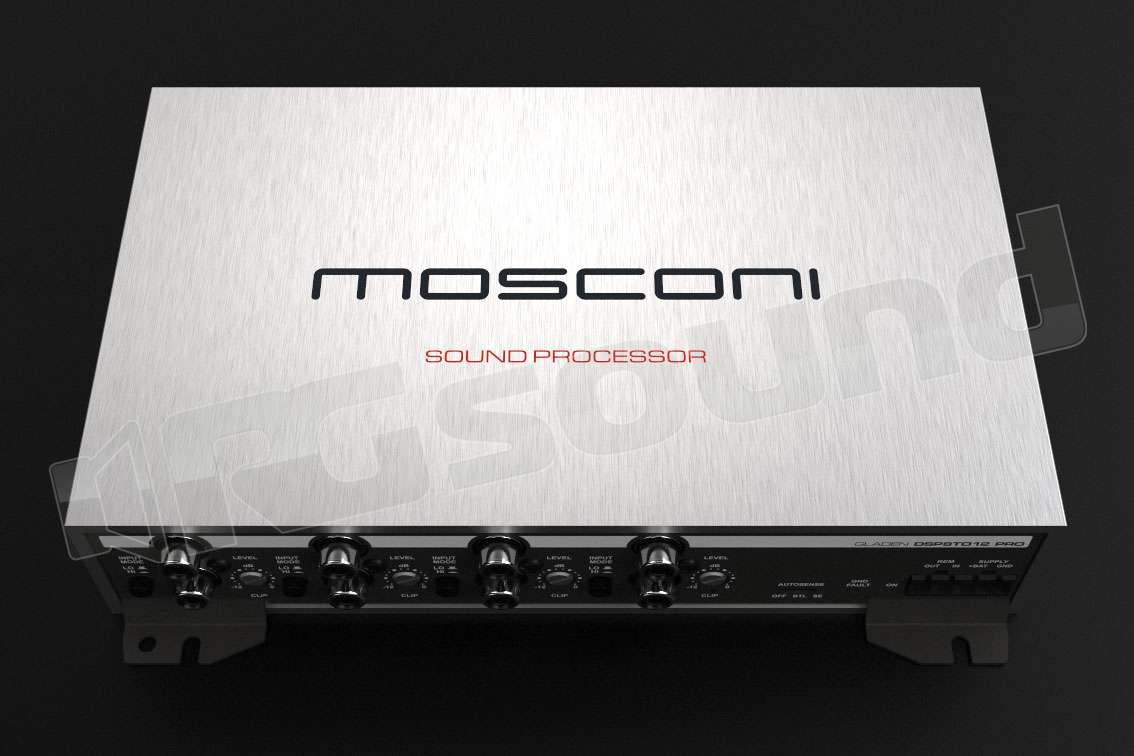

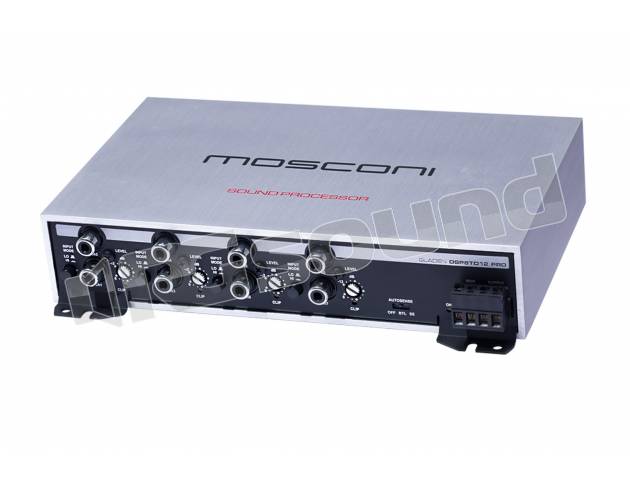

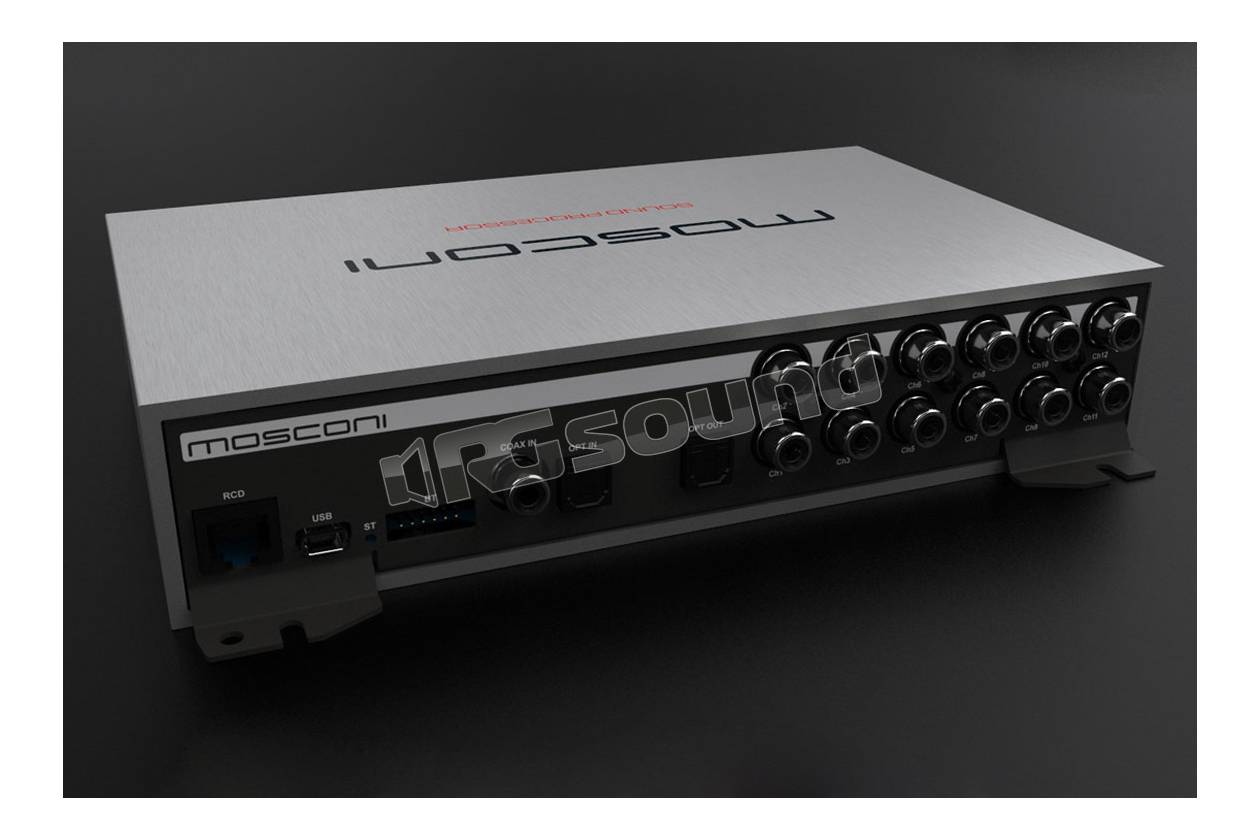

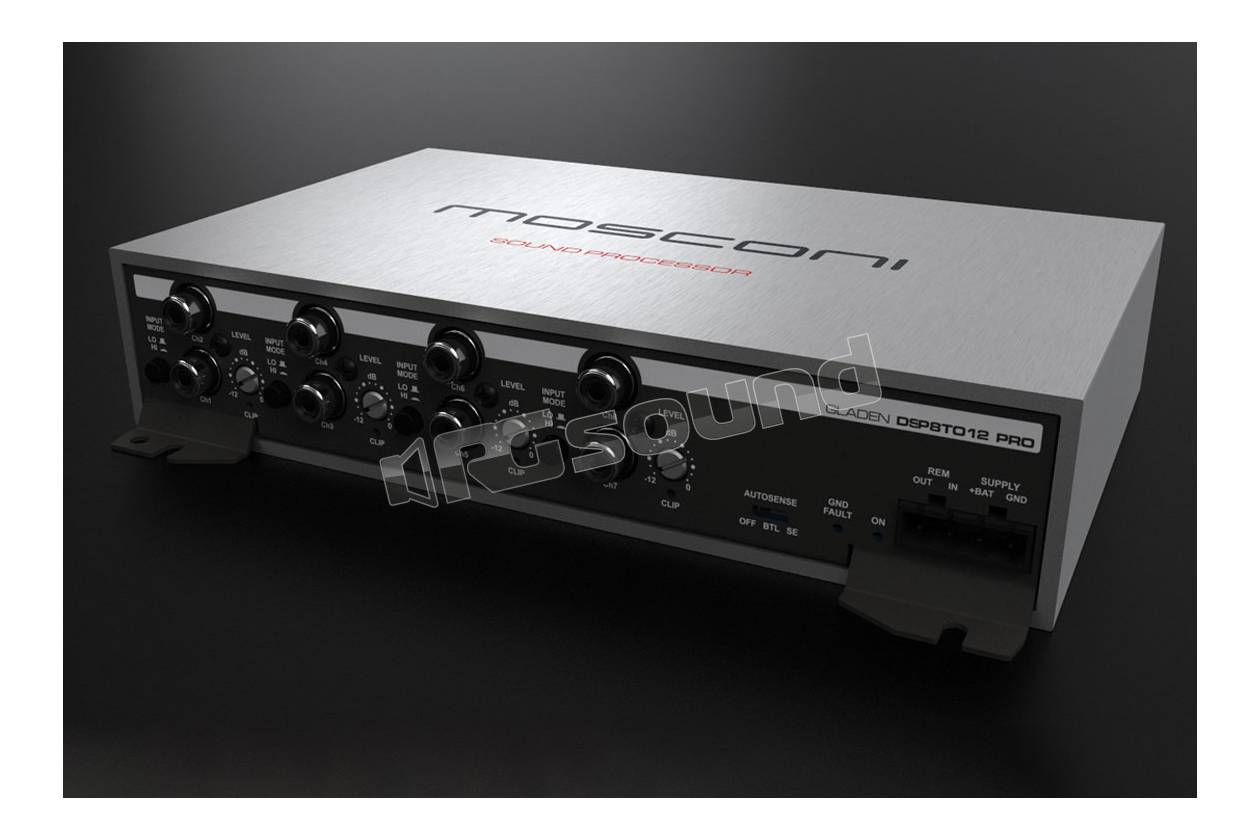

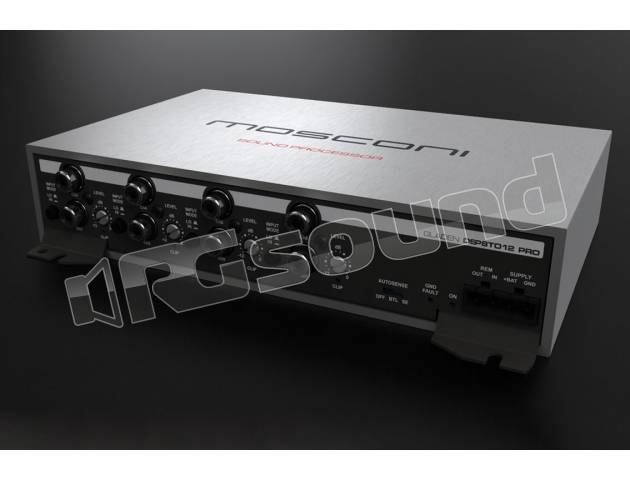

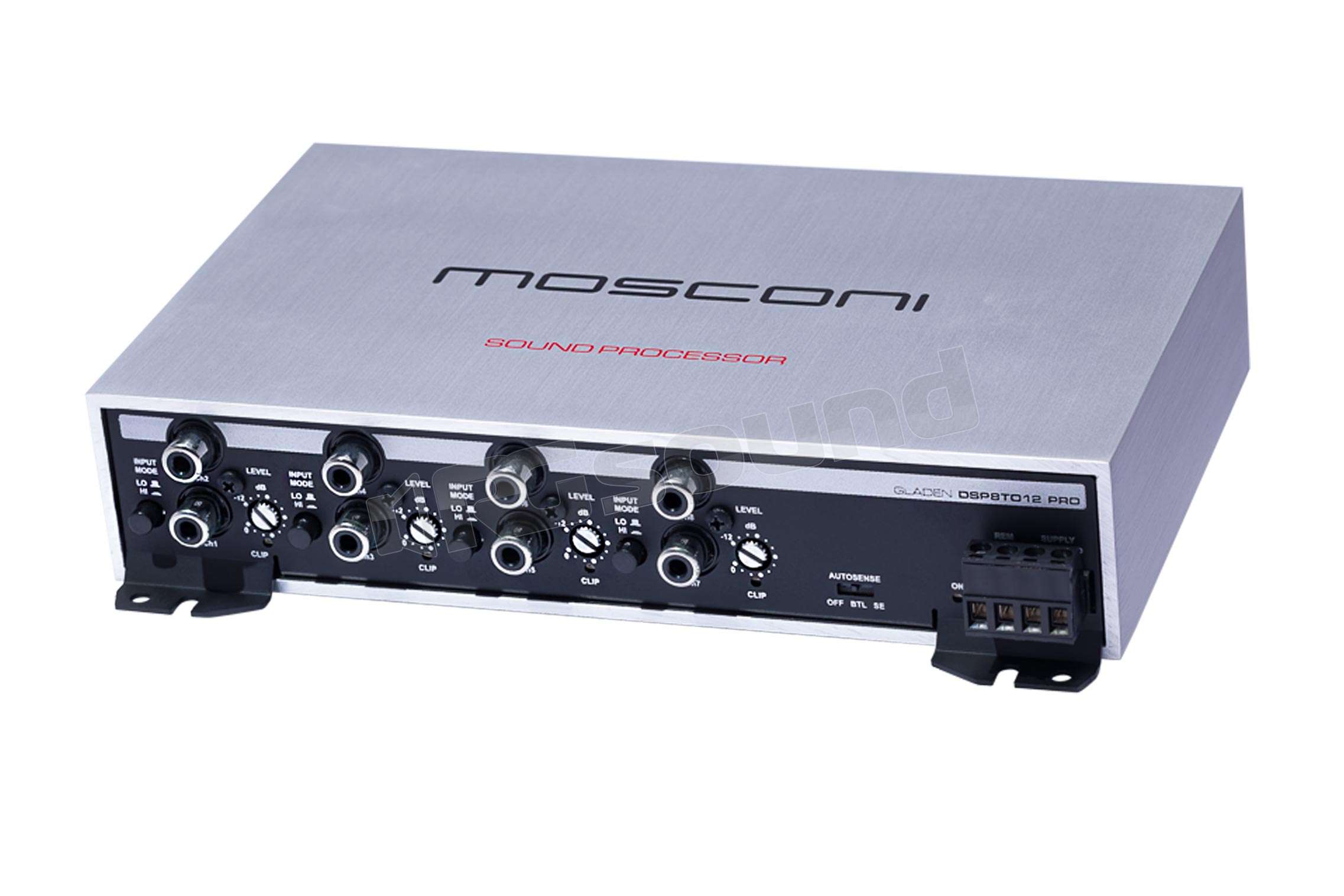

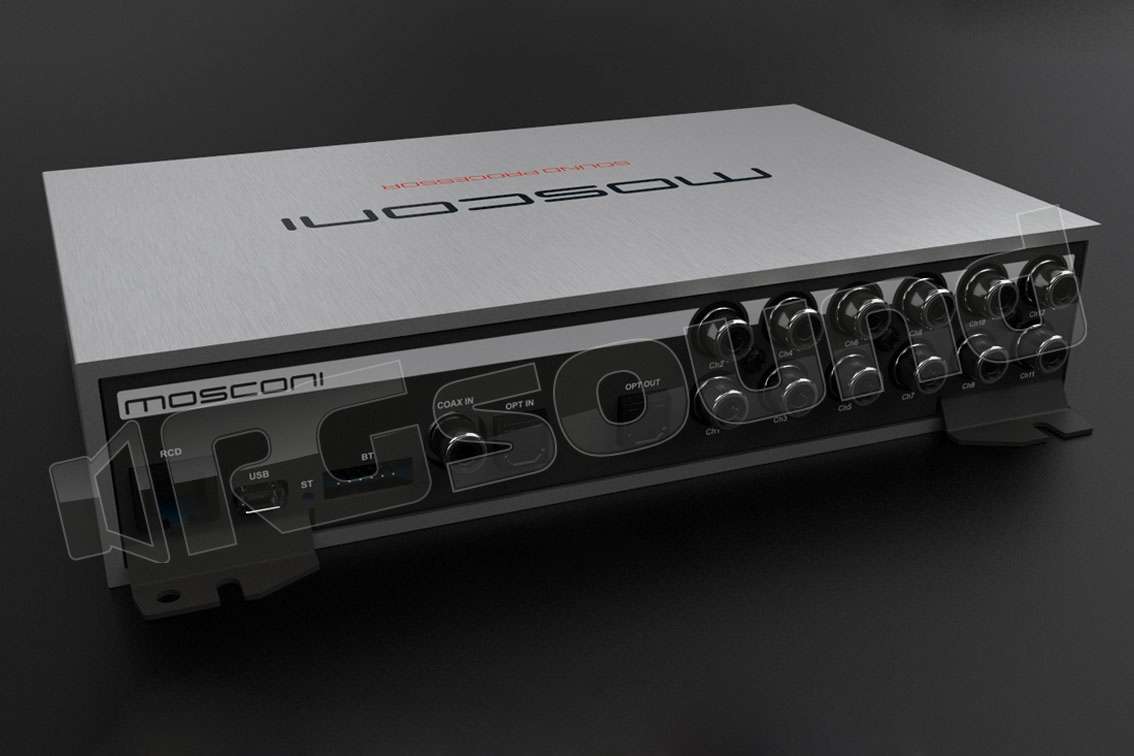

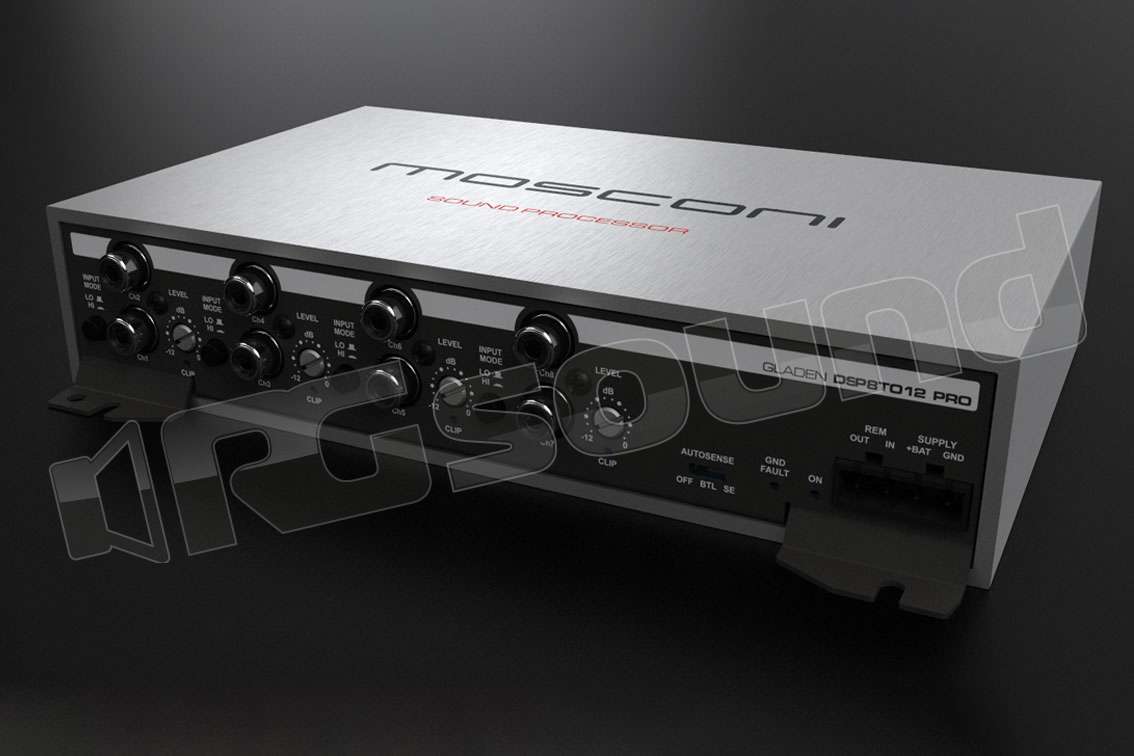

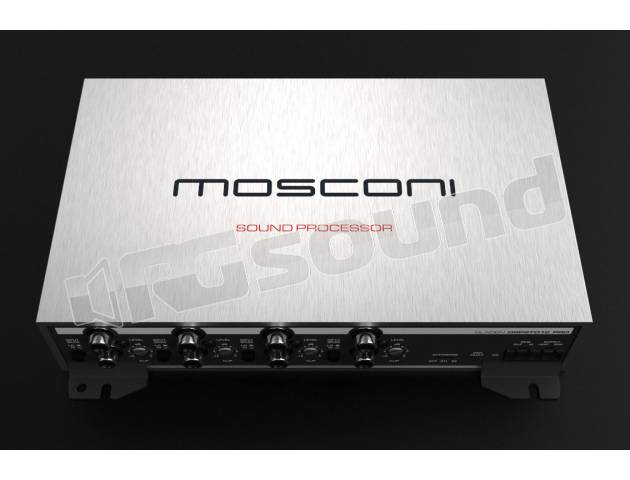

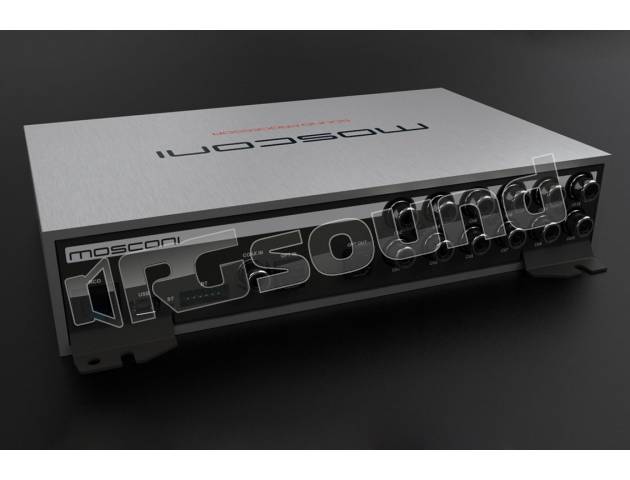

Mosconi DSP 8to12 PRO

Mosconi DSP 8to12 PRO nuovo processore con DSP integrato, 8 ingressi e 12 uscite RCA

DSP 8to12 PRO è anche dotato di ingresso ottico e ingresso coassiale, ed è compatibile con il modulo Bluetooth MOS-BTS

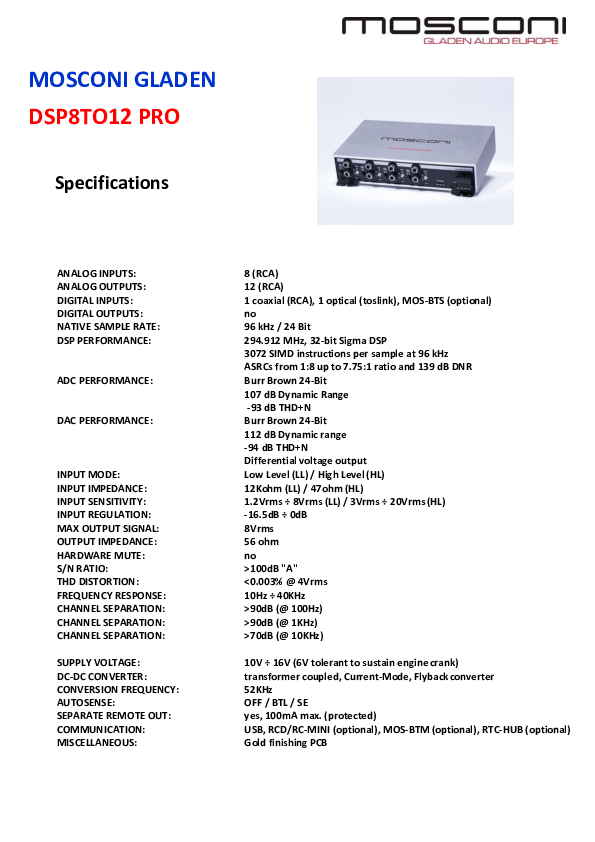

Caratteristiche tecniche DSP 8to12 PRO

Ingressi: 8 (RCA)
Uscite: 12 (RCA)
Ingressi digitali: 1 coaxial (RCA), 1 optical (toslink), MOS-BTS (optional)

Native seple rate: 96 kHz / 24 Bit

DSP performance:
294.912 MHz, 32-bit Sigma DSP
3072 SIMD instructions per sample at 96 kHz ASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR

ADC performance:
Burr Brown 24-Bit
107 dB Dynamic Range
-93 dB THD+N

DAC performance:
Burr Brown 24-Bit
112 dB Dynamic range
-94 dB THD+N
Differential voltage output

Input model: Low Level (LL) / High Level (HL)

Input impedence: 12Kohm (LL) / 47ohm (HL)

Input senitivity: 1.2Vrms ÷ 8Vrms (LL) / 3Vrms ÷ 20Vrms (HL)

Input regolation: -16.5dB ÷ 0dB

Max output signal: 8Vrms

Output impedence: 56 ohm

Hardware mute: no

S/N ratio: >100dB "A"

THD distortion: <0.003% @ 4Vrms

Frequency responce: 10Hz ÷ 40KHz

Channel separation: >90dB (@ 100Hz)

Channel separation: >90dB (@ 1KHz)

Channel separation: >70dB (@ 10KHz)

Supply voltage: 10V ÷ 16V (6V tolerant to sustain engine crank)

DC-DC converter: transformer coupled, Current-Mode, Flyback converter

Conversion frequency: 52KHz

Autosense: OFF / BTL / SE

Separate remote out: yes, 100mA max. (protected)

Communication: USB, RCD/RC-MINI (optional), MOS-BTM (optional), RTC-HUB (optional)

Miscellaneous: Gold finishing PCB
