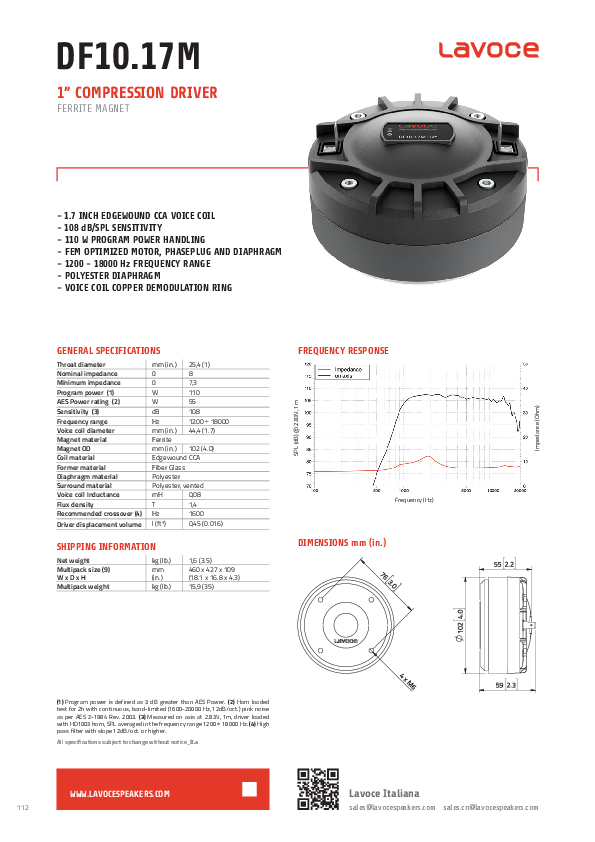

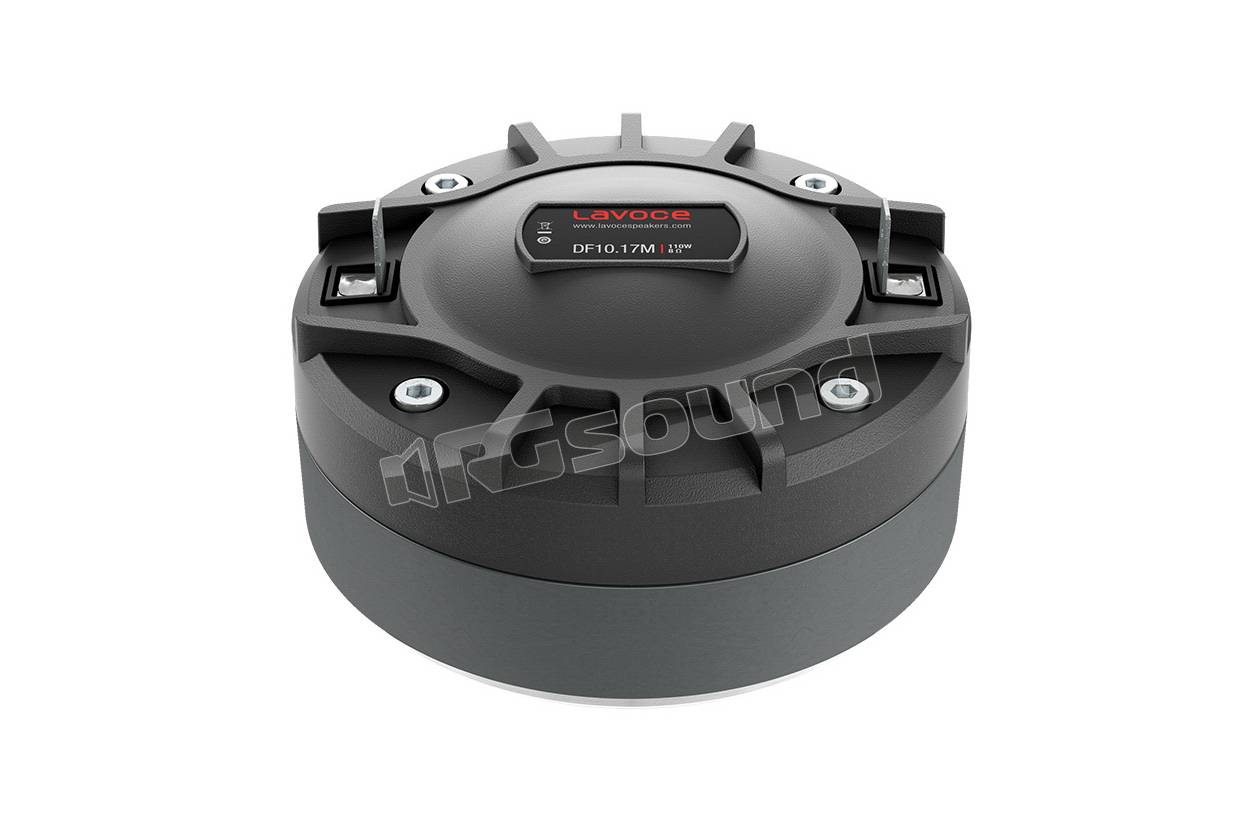

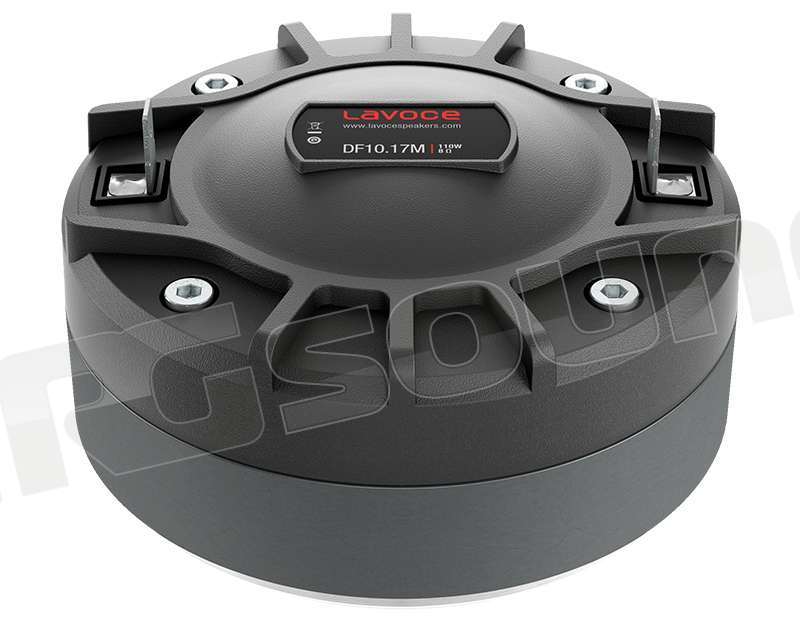

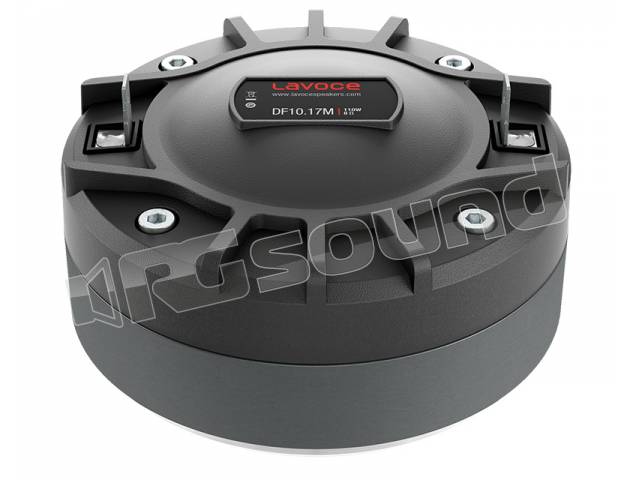

LaVoce DF10.17M High Freq. 25mm (1 pollici)
il tuo prezzo: € 84,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto
LaVoce DF10.17M High Freq. 25mm (1 pollici) Nom. Ø: 1" - V.C. Ø: 1,7'' - Power handling: 55 W AES / 110 W Program, Sensitivity: 108 dB, Frequency range: 1200 - 18000 Hz
Prodotto disponibile solo su ordinazione, tempo di attesa 6 settimana dal momento dell'ordine.
LaVoce codice 70R53103
Features
- 1.7 INCH EDGEWOUND CCA VOICE COIL
- 108 dB/SPL SENSITIVITY
- 110 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 1200 - 18000 Hz FREQUENCY RANGE
- POLYESTER DIAPHRAGM
- VOICE COIL COPPER DEMODULATION RING
General Specifications
| Throat diameter | mm (in) | 25,4 (1) |
| Nominal impedance | Ohm | 8 |
| Minimum impedance | Ohm | 7,3 |
| Program power (1) | W | 110 |
| AES Power rating (2) | W | 55 |
| Sensitivity (3) | dB | 108 |
| Frequency range | Hz | 1200 ÷ 18000 |
| Voice coil diameter | mm (in) | 44,4 (1.7) |
| Magnet material | Ferrite | |
| Coil material | Edgewound CCA | |
| Former material | Fiber Glass | |
| Diaphragm material | Polyester | |
| Surround material | Polyester, vented | |

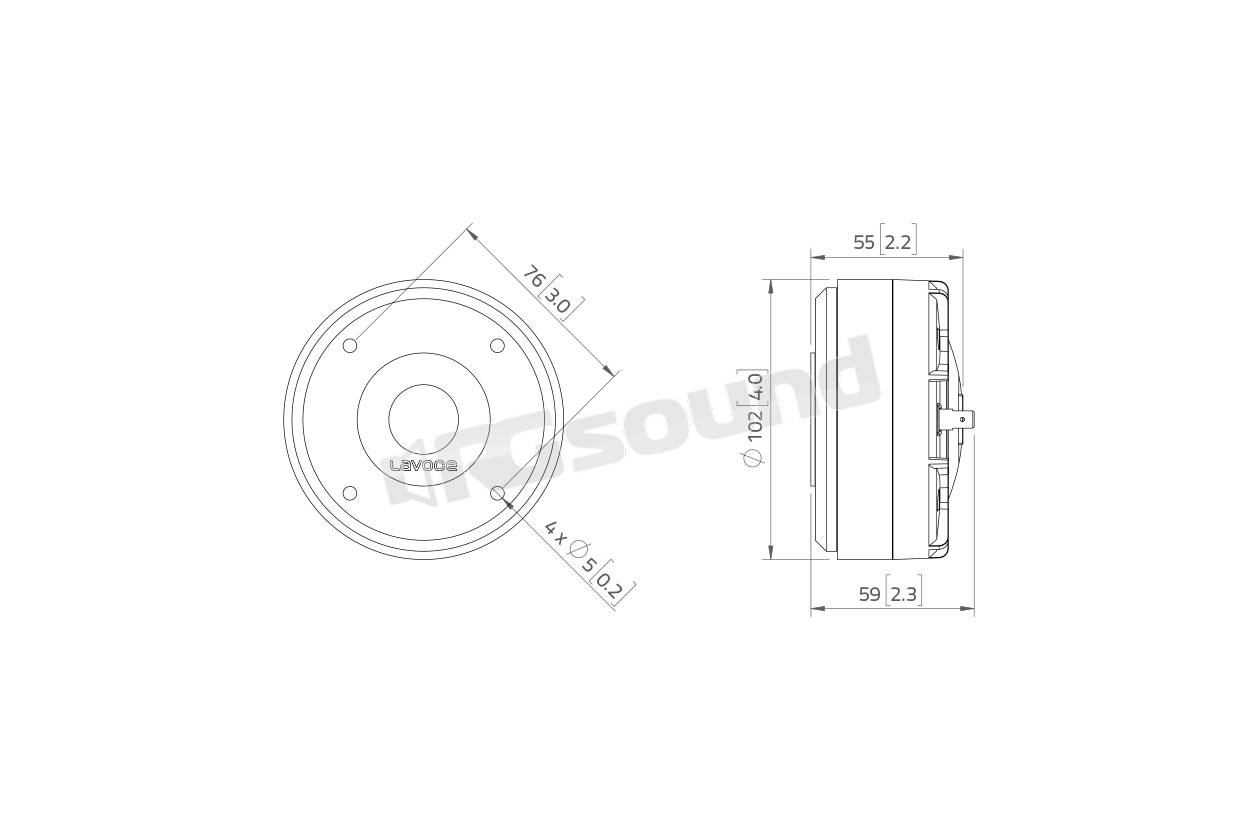

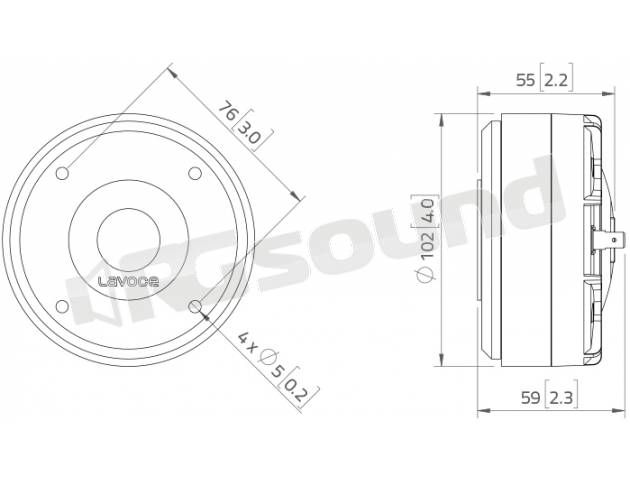

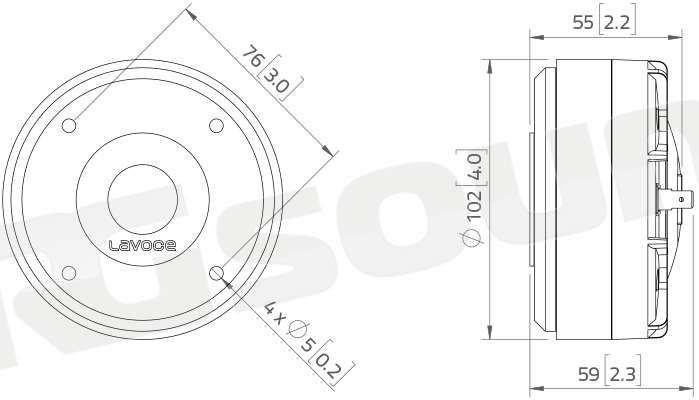

| Magnet OD | mm (in) | 102 (4.0) |
| Voice coil inductance | mH | 0,08 |
| Flux density | T | 1,4 |
| Recommended crossover (4) | Hz | 1600 |
| Driver displacement volume | l (ft³) | 0,45 (0.016) |
Shipping Information
| Multipack weight | kg (lb) | 15,9 (35) |
| Multipack size W x D x H | mm x mm x mm (in x in x in) | 460 x 427 x 109 (18.1 x 16.8 x 4.3) |
| Net weight | kg (lb) | 1,6 (3.5) |
Notes
- 1 - Program power is defined as 3 dB greater than AES Power.
- 2 - Horn loaded test for 2h with continuous, band-limited (1600-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.

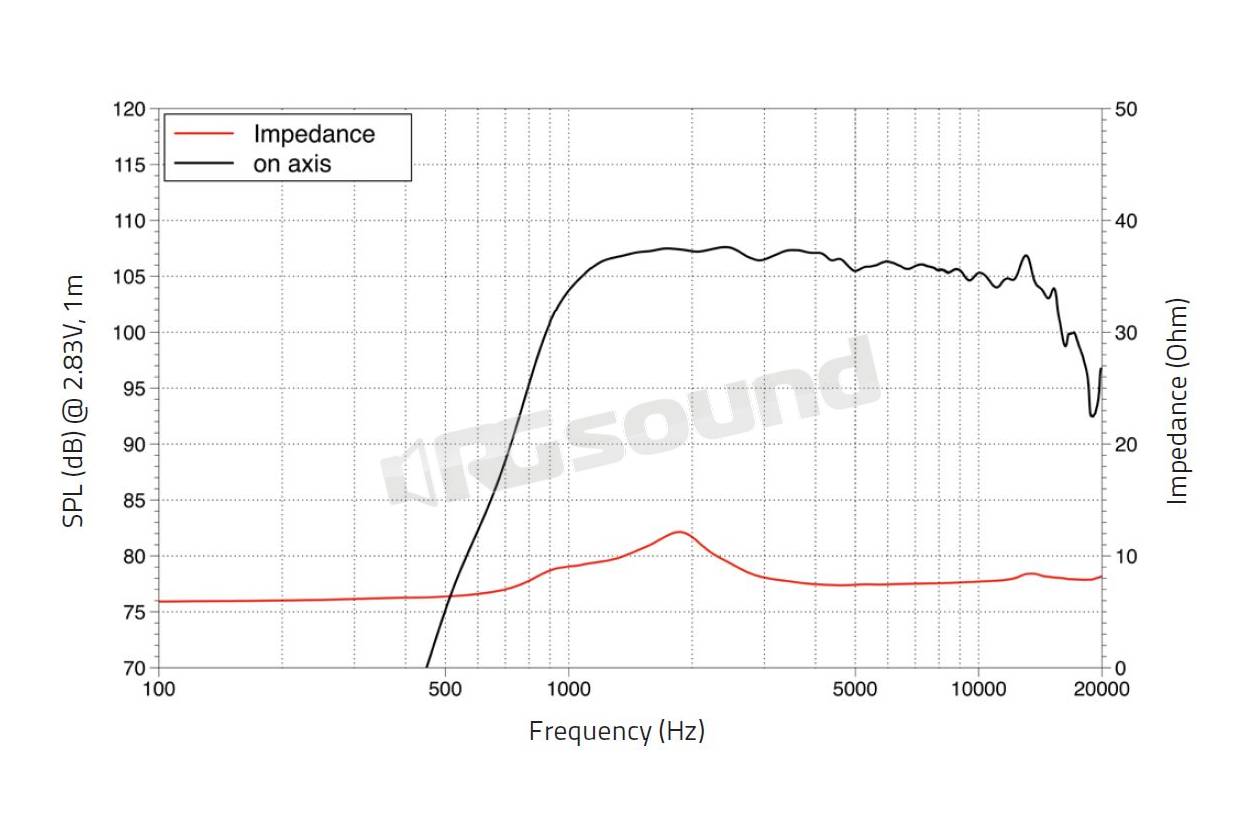

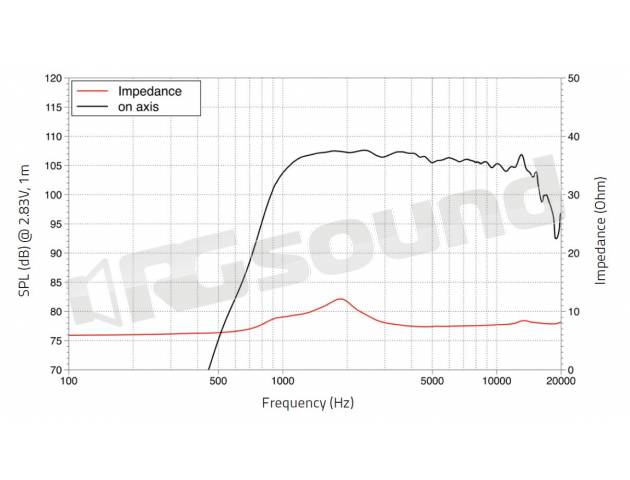

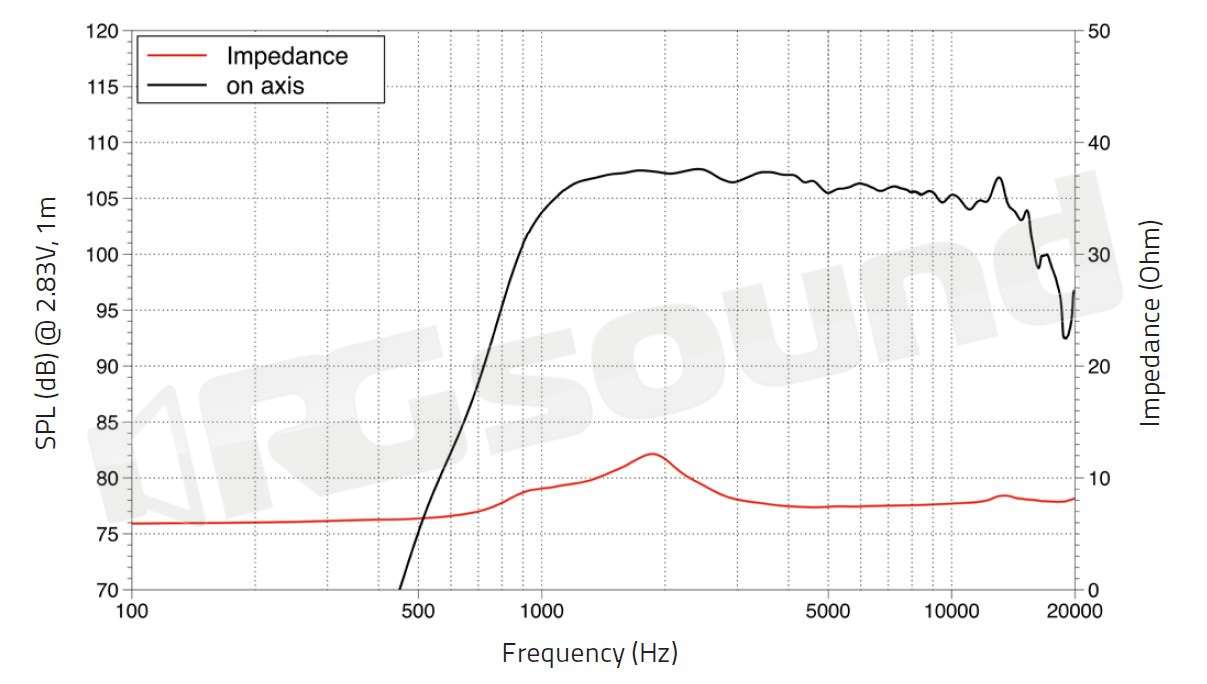

- 3 - Measured on axis at 2.83V, 1m, driver loaded with HD1003 horn, SPL averaged in the frequency range 1200 ÷ 18000 Hz.
- 4 - High pass filter with slope 12dB/oct. or higher.
